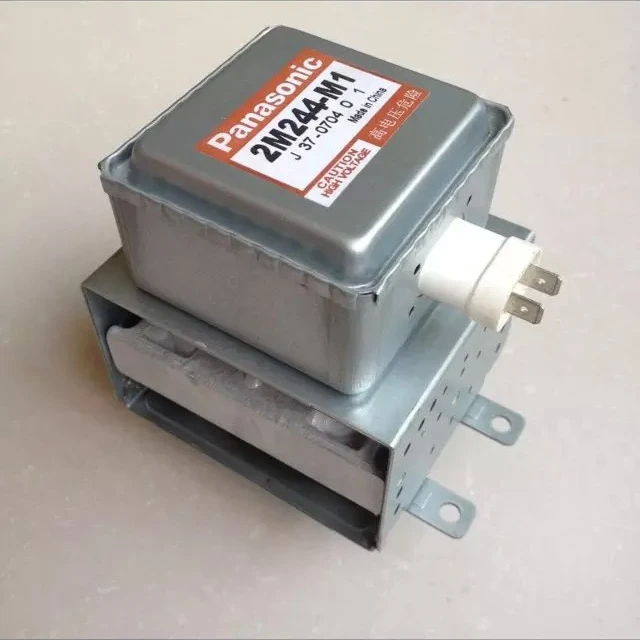

Long Life 1000w water cooling magnetron Panasonic 2M244 for Menumaster commercial microwave oven
Magnetron 2M244
Output Power: 1.0kW
Filament Voltage: 3.15Vac
Filament Current: 10Aac
Anode Voltage: 4.4V
Frequency: 2455MHz
Magnetron is the heart of microwave equipment. choosing high quality magnetron is very important, especially that the cooling method can decide the life long of magnetrons. In order to resolve this problem, Our company designed water jackets for water cooling, which has got patents. Compared to the traditional air cooling way, the water cooling can improve the cooling efficiency at a large degrees, at leat two times of the air cooling way.

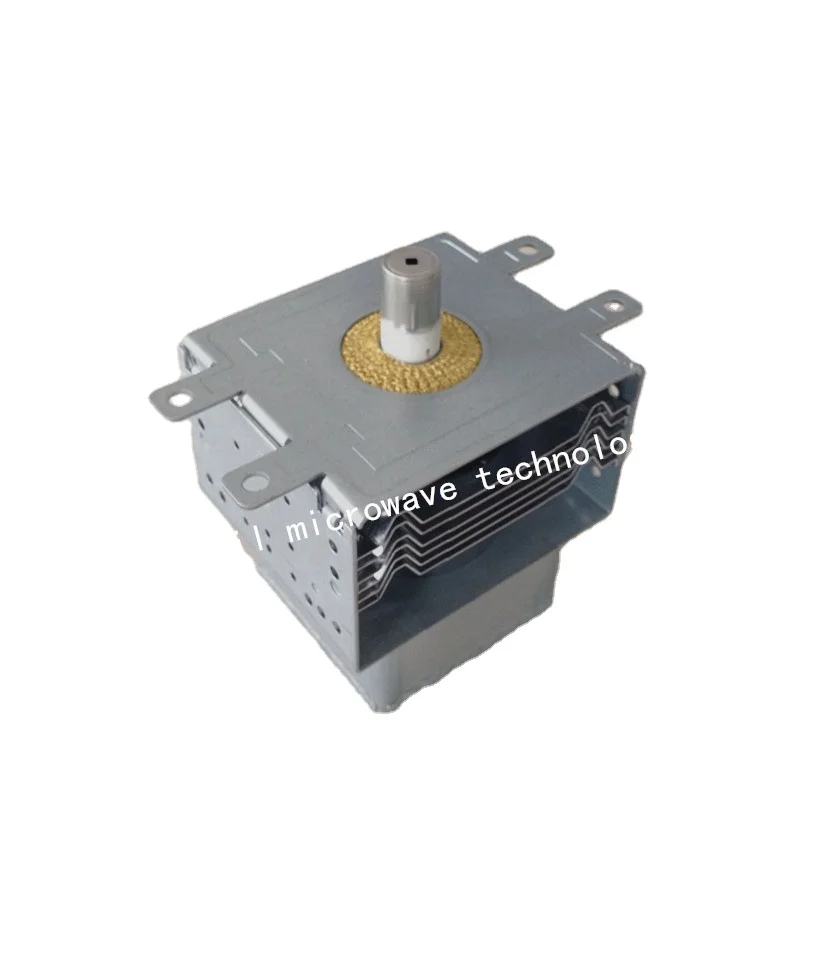

Following are the pictures of our water cooling microwave magnetron:
Magnetron Tube model: 2M167B (Air-cooled)
Output Power: 0.9kW
Filament Voltage: 3.3Vac
Filament Current: 10Aac
Anode Voltage: 4.1V
Frequency: 2455MHz
Outline Dimension: 126x94x135mm
Weight: 0.8kg
Magnetron Tube model: 2M210 (Air-cooled)
Output Power: 0.9kW
Filament Voltage: 3.3Vac
Filament Current: 10Aac
Anode Voltage: 4.1V
Frequency: 2455MHz
Outline Dimension: 127x80x135mm
Weight: 0.8kg
Magnetron Tube model: 2M236 (Air-cooled)
Output Power: 0.9kW
Filament Voltage: 3.3Vac
Filament Current: 10Aac
Anode Voltage: 4.1V
Frequency: 2455MHz
Outline Dimension: 127x80x129mm
Weight: 0.8kg
Magnetron Tube model: 2M261 (Air-cooled)
Output Power: 1.0kW
Filament Voltage: 3.3Vac
Filament Current: 10Aac
Anode Voltage: 4.5V
Frequency: 2455MHz
Outline Dimension: 126x94x135mm
Weight: 0.8kg
Original High Quality Magnetrons.
Model: 2M213,2M288,2M214,2M226,2M246,2M286
700~1100W
Competitive Price, Prompt Deliver
Magnetron Tube model: 2M213 (Standard Type)
Typical Oven Output Power: 700W
Frequency: 2460MHz
Peak Anode Voltage : 3.95kV
Average Anode Current: 200mA
Filament Current: 10.5A
Filament Voltage: 3.5V
Outline Demensions: 73.2x109x126mm
Weight: 0.8kg
Magnetron Tube model: 2M288 (Compact Size)
Typical Oven Output Power: 700W
Frequency: 2460MHz
Peak Anode Voltage : 4.05kV
Average Anode Current: 200mA
Filament Current: 10.0A
Filament Voltage: 3.5V
Outline Demensions: 73.2x109x126mm
Weight: 0.8kg
Magnetron Tube model: 2M214 (Compact Size)
Typical Oven Output Power: 900W
Frequency: 2460MHz
Peak Anode Voltage : 4.20kV
Average Anode Current: 300mA
Filament Current: 10.0A
Filament Voltage: 3.3V
Outline Demensions: 80x127x133mm
Weight: 0.8kg
Magnetron Tube model: 2M226 (Standard Type)
Typical Oven Output Power: 900W
Frequency: 2460MHz
Peak Anode Voltage : 4.20kV
Average Anode Current: 300mA
Filament Current: 10.0A
Filament Voltage: 3.3V
Outline Demensions: 93.2x127x133mm
Weight: 0.9kg
Magnetron Tube model: 2M226 (Inverter Type)
Typical Oven Output Power: 900W
Frequency: 2460MHz
Peak Anode Voltage : 4.20kV
Average Anode Current: 300mA
Filament Current: 10.0A
Filament Voltage: 3.3V
Outline Demensions: 93.2x127x133mm
Weight: 0.9kg
Magnetron Tube model: 2M246 (Standard Type)
Typical Oven Output Power: 1100W
Frequency: 2460MHz
Peak Anode Voltage : 4.40kV
Average Anode Current: 330mA
Filament Current: 10.0A
Filament Voltage: 3.15V
Outline Demensions: 93.2x127x133mm
Weight: 0.9kg
Magnetron Tube model: 2M286 (Inverter Type)
Typical Oven Output Power: 1100W
Frequency: 2460MHz
Peak Anode Voltage : 4.40kV
Average Anode Current: 330mA
Filament Current: 10.0A
Filament Voltage: 3.15V
Outline Demensions: 93.2x127x133mm
Weight: 0.9kg
Long Life 1000w water cooling magnetron Panasonic 2M244 for Menumaster commercial microwave oven
we can accept the international order ,we can ship to our coverage zone.
1. we guarantee that the goods will be send out within 5 days if there are goods in stock .
2. the shipping time is depends on buyer's country, customs clearance time and other conditions; such as Force Majeure. if you don't receive the goods ,please contact your customs, and your local shipment company. Maybe you can get the goods quickly.
Long Life 1000w water cooling magnetron Panasonic 2M244 for Menumaster commercial microwave oven
we have a strong technical group to keep good quality of the goods. Even this, in order to provide excellent service to our customers, we also orgnise after-sales service group to help customers in time.
1. All the parts we offer is new and original .
2. If the goods you buy from our company is not complete, the goods must remain their original condition. we can give you a replacement, but the freight must be paid by the buyers.
Long Life Water Cooling Panasonic Magnetron 2M244 1000W for Menumaster commercial microwave oven
Q1: Is your product original?
A1: We have panasonic company and LG company's authorization, guarantee the products are original and new.
Q2: How long is your Warranty?
A2: Usually we offer 12 Months Warranty.
Q3: How much is the minimum order quantity?Can you provide the sample?
A3: The minimum order is one piece,we can provide the sample,but you need to pay the freight.
Q4: What’s the delivery time? (How long do you need to prepare my goods?)
A4: If you order the products is the panasonic magnetron, general need 10 working days,except for the sample.
Q5: How will you deliver my product to me? How long do I need to wait before my product arrive?
A5: You can select shipping options possibly, such as DHL, UPS, FedEx, TNT ,EMS to enable our customers get their goods rapidly at door. We also ship by economic method such as air cargo and sea cargo, Direct line, Air Mail according to clients' request.3-7 days for international express, 5-7 days for air cargo, 20-40 days by sea cargo.
Q6: What are the mode of payment?(How do the payment?)
A6: Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram. You can choose anyone, suggest you through the alibaba platform payment, convenient and more secure.
Q7: Can you provide a complete set of magnetron,microwave transformer, waveguide, capacitance, and silicon stack?
A7: Yes, We are a company that specializes in microwave components, All parts of 1000w,200w can be provided. also provide 3000w air-cooled and water-cooled magnetron.
Q8: Where is your company located? How can I visit you?
A8: Our company is located in Zhengzhou City, China. You can fly to Zhengzhou airport directly, and we will pick you up. Welcome to visit our company.
Long Life 1000w water cooling magnetron Panasonic 2M244 for Menumaster commercial microwave oven
Henan xinhang microwave technology CO,.LTD main products including microwave magnetron, transformer,high voltage silicon stack and oil cooling transformer group, waveguide microwave components . 2008 Beijing Olympic central kitchen microwave oven selection of our company's transformer matching. To serve as a service to each participant
