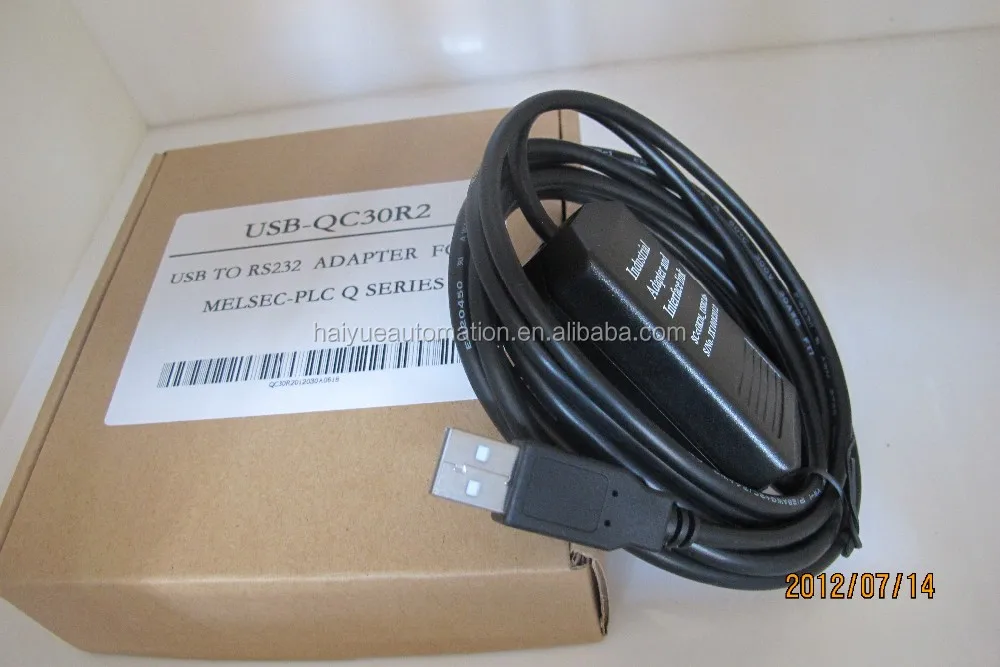

plc programming cable USB-QC30R2.
USB-QC30R2 is through the USB interface conversion, serial connection and RS422 signal conversion programming cable, through the USB drive, the computer's USB interface simulation into a virtual serial port (commonly known as COM), which applies to a variety of programming software, communication software and monitoring software and other applications.

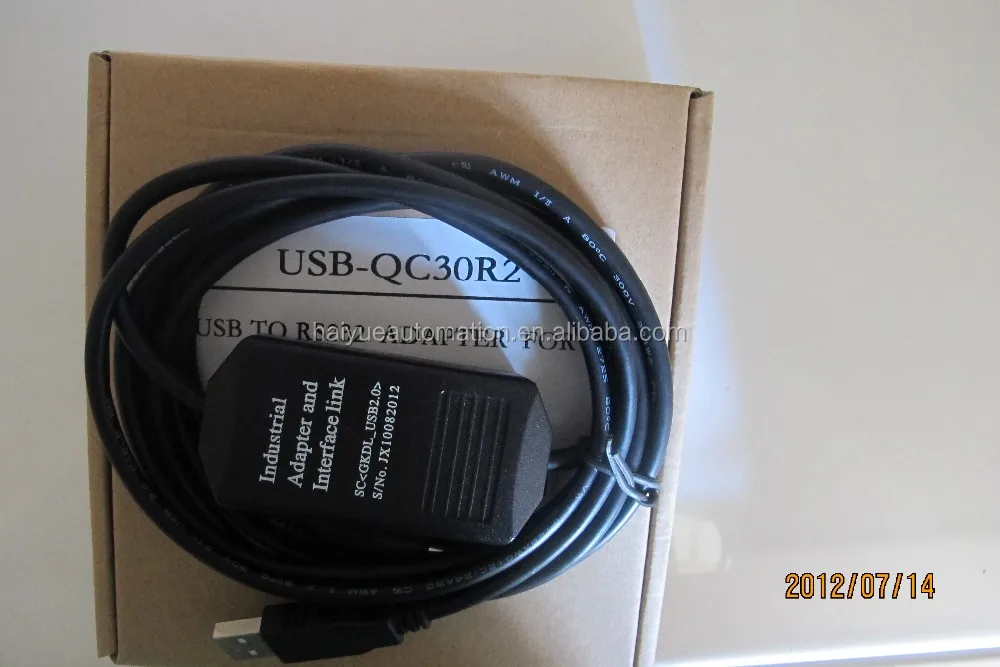

The working power supply of the cable from the USB port, product shape is a diamond shaped adapter, equipped with a power supply; the receiving, sending three lamp instructions, is easy for engineers to monitor, debug, the standard length is 3 meters.
USB-QC30R2 programming cable for MITSUBISHI Q series MITSUBISHI PLC.
1, insert the cable into the computer's USB port, and correctly install the USB driver download.
In 2, the computer "device manager" - > "COM and print" drop-down menu, find the inserted cable corresponding to the COM port.
3, such as the insertion of the corresponding COM value is too large, in the "property" of the "advanced" option, the COM to 10, some software can only be within the COM4.
4, the COM port is set to the corresponding COM number in the programming software.
5, the other steps are the same as the standard RS232 cable.
