Through hole addressable 5mm RGB pixel LED Lamp P9823 ws2811

Share on:


Price:RUB 8.18 - RUB 13.08
Price in USD:Details

Quantity:

  • add to wishlist

Product Overview

Description

Through hole addressable 5mm RGB pixel LED Lamp P9823 ws2811

Product Description

 1. This Through hole addressable 5mm RGB pixel LED Lamp P9823 ws2811 offers an easy way to add colorful and complex lighting effects to a project.

 2. Each Through hole addressable 5mm RGB pixel LED Lamp P9823 ws2811 features an integrated WS2811 driver that operates at 5 V and is controlled through a high-speed one-wire digital interface that allows multiple LEDs to be connected together to form a chain of addressable RGB LEDs or form large displays.

3. Each LED looks just like a shorter version of the classic through-hole 5mm RGB LED with 4 legs, but instead of just red/green/blue with chip inside that can control the LED with high speed PWM for 24-bit color.Equates to 16.7 million colors.

4.These are very similar to the LEDs in our addressable RGB led strips, but with these discrete LEDs you have far more flexibility in how they are arranged.

5.We offer these integraged LEDs in two different sizes: 5mm DIP led and 8mm DIP led.

Product features

1. Single-wire digital control interface

2. Can form a chain of individually-addressable RGB LEDs

3. 24-bit color control (8-bit PWM per channel); 16.8 million colors per pixel

4. 5 V operating voltage

5. Draws approximately 50 mA at 5 V with red, green, and blue at full brightness

6. Example code available for Arduino, AVR, and mbed

Detailed Images

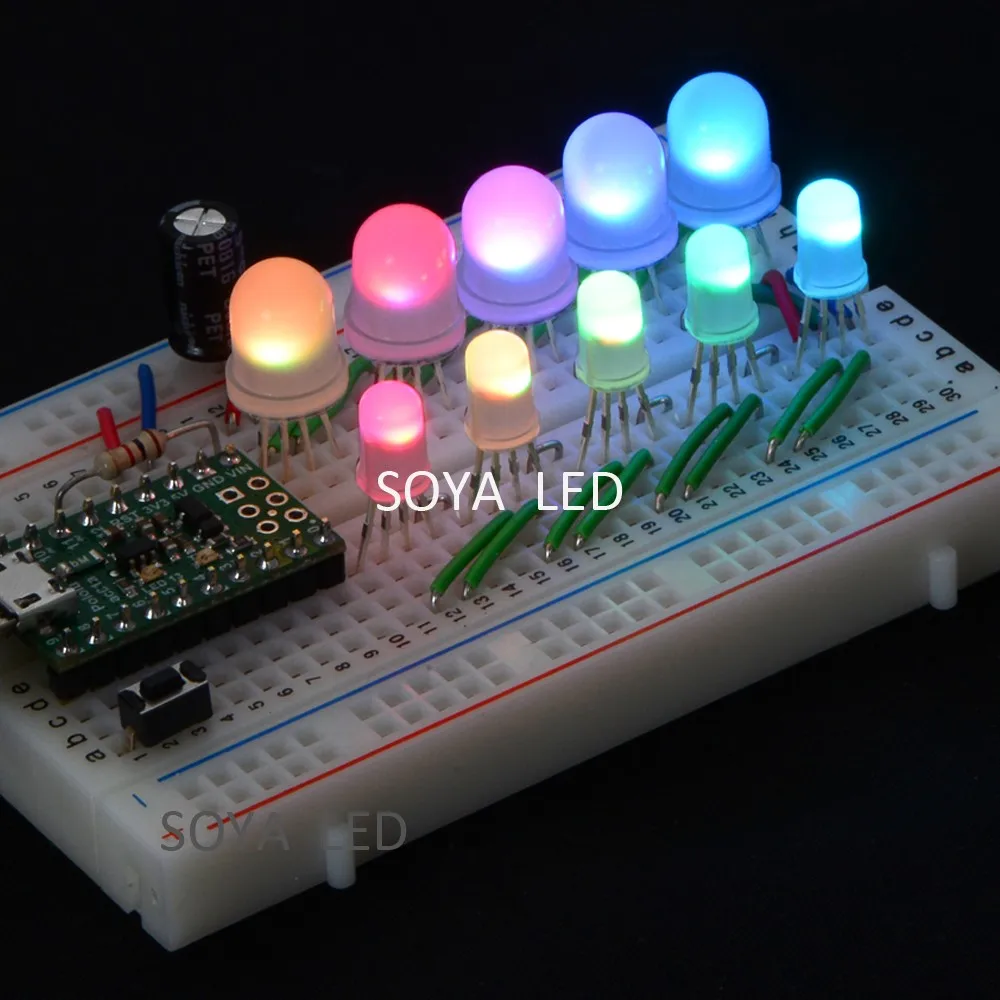

Through hole addressable 5mm RGB pixel LED Lamp P9823 ws2811 detailed imagesws2811 5mm RGB pixel LED 02.jpg
ws2811 5mm RGB pixel LED 01.jpgws2811 5mm RGB pixel LED.jpgws2811 5mm RGB pixel LED 03

Trade Terms

1. Payment Terms:

T/T, Western Union, Aliexpress Escrow

2. Lead Time:

Usually we had materials in stock, regular order delivery time 1--7days after the profoma invoice paid,

OEM products:  10--15days (Customized PCB board).

3.Warranty:

2 years warranty since the data of purchase our LED products.

4. Delivery Way:

DHL, Fedex, TNT UPS, EMS door to door service, by sea, by air, etc
