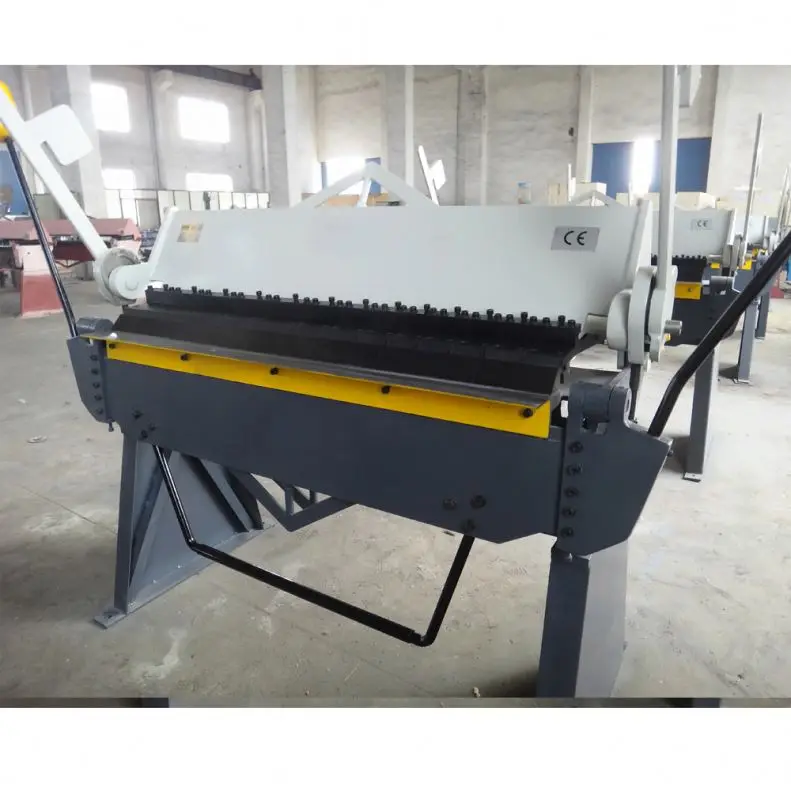

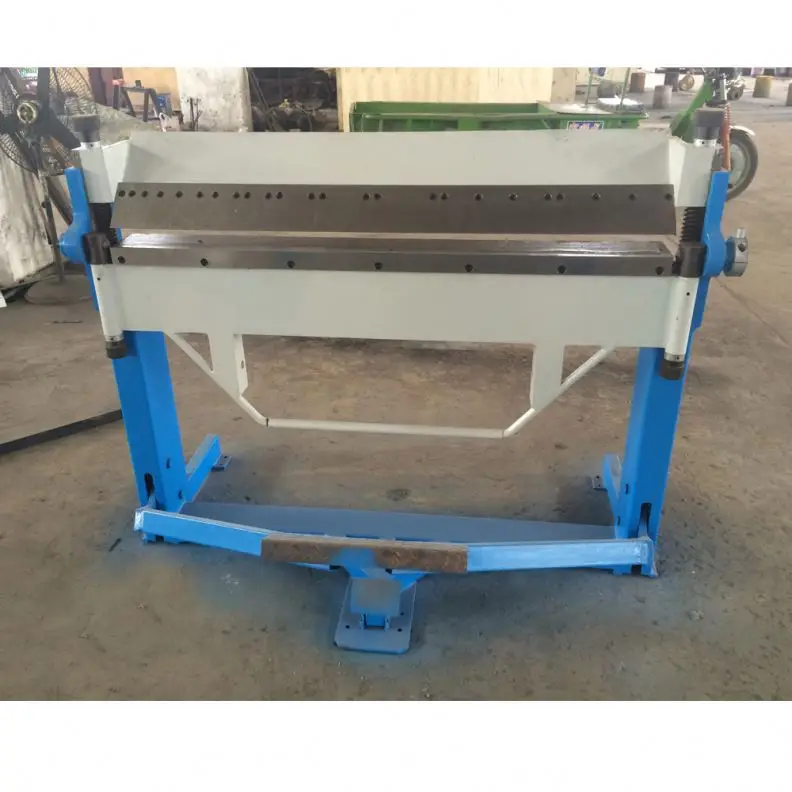

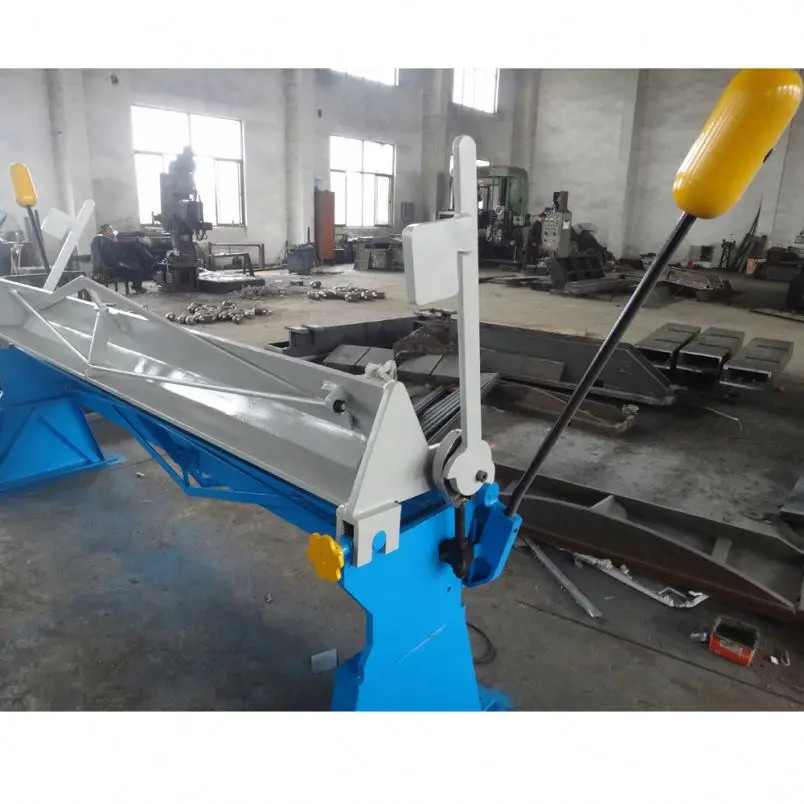

Pan box making machine manual folder hand operate press brake

Share on:


Price:RUB 74,815.97 - RUB 1,130,032.85
Price in USD:Details

Quantity:

Add to Cart

Product Overview

Description

sheet metal folders||sheet metal folderssheet metal folders||sheet metal folderssheet metal folders||sheet metal folderssheet metal folderssheet metal folders|sheet metal folders









Main features:



The machine tool is full welded-steel plate construction. After vibration aging treatment. The deformation is minor so that the accuracy can be ensured.



It is low energy consumption, easy to maintenance and durable in use.



Upper acting die is sub-portfolio with the open height up to 110mm and suitable for producing disk, box like work pieces.



Box And Pan Brakes machine with stainless steel bending segment for high precision.



Box And Pan Brakes

WH06-1.5x915A

1. Solid machine with stainless steel bending segment for high precision

WH06-2.5x1320

1. With segment bending blade for tle bending of box section

2. Various widths segment, shiftable setup



Purpose:





This machine can be used to shape metal sheets into boxes and pans in various sizes.

Also used for ventilation, cases, trays, kitchen, furniture.





Functions and Characteristics:





This type hand folding machine can be used to make electric box. Also, it is widely used in the production of conveying machine, tote box, varies kinds of box and disc. It is popular both in and aboard wit the features of ligt, energy saving, high efficiency, widely usage, etc.







12QQ20140504103211 -







Features:



1. Heavy duty steel fabricated frame provides accurate bends

2. Extended fingers allows bending of pans or boxes to a depth of 200mm

3. Machine equipped with a graduation ruler on both sides, readout eliminates the bend angle guess work

4. Ground segmented fingers can be repositioned to suit many applications

5. Safety top beam support stop lever located on right side of machine

6. Quick action beam adjustment for varying material thickness

7. Includes rear manual back gauge















3







Technical data:







Heavy-Duty Hand BrakesModelModelModelModelModelModel
WH06-2.5x1220WH06-2x1550WH06-2x2000WH06-1.5x2500WH06-1.2x3200WH06-1.2x
     4000
Capacity16gauge18gauge16gauge18gauge16gauge18gauge
2.5mm2mm2.5mm1.5mm2.5mm1.2mm
Bending length48in61in79in98in123in157in
1220mm1500mm2000mm2500mm3200mm4000mm
Maximum liff of beam1-7/8in1-7/8in1-7/8in1-7/8in1-7/8in1-7/8in
47mm47mm47mm47mm47mm47mm
Front to real beam adjustment1-7/8in1-7/8in1-7/8in1-7/8in1-7/8in1-7/8in
47mm47mm47mm47mm47mm47mm
Minimum reverse bend1/4in1/4in1/4in1/4in1/4in1/4in
6mm6mm6mm6mm6mm6mm
Minimum flange in capacity material1in1in1in1in1in1in
25mm25mm25mm25mm25mm25mm
Machine Size75x32x39in92x39x48in123x52x64in154x65x197x83x246x104x
1906x803x2343x987x3124x131681in103in128in
995mm1223mmx1631mm3905x16454998x2106x6248x2632
   x2039mm2610mmx3262mm
Shipping weight359kg441kg588kg735kg941kg1176kg



















QQ20140504103232QQ20140728103327







ModelFolding thicknessFolding lengthEvolving angle of the bending beamMax.lift of then upper beamNet weightDimension
(mm)(mm)(°)(mm)(kg)(mm)
W06-2x132021320120110750
W06-2x2000220001201109501750x600x1200
W06-1.5x25001.5250012011013503000x750x1100







No.ModelSteel packing:N/GRemark
hand folder L×W×H(mm)(Kg)
1WH06-2.5×13001800×700×105580/650
2WH06-2.5×15002000×700×105700/850
3WH06-2.5×20002500×700×105700/850
4WH06-2.5×25003000×700×1051050/1200
5WH06-2.5×30003500×700×1051350/1500
6WH06-2.5×40004500×750×1051900/2200


















How to check shipping cost from China to my country?



Very simple,tell us your city or port.





How to check imported charges or tax ?



Call your Customer.tell them machine HS code.



Press brake and rolling machine are 84622990. shearing machine is 84623990.





How to see our machine in your local place?



We have sold lots of machines to the world,in most situation,you can see our machine



in your country,however,we can not promise 100%,so,confirm with us by email.





How to repair&maintain our machine ?



Generally,the hydraulic machine is not easy to break.even though the problem occur,it is small problem.



we can solve it through email and video.





do you offer commissioning service ?



yes,we can offer commissioning service,but,the buyer need to afford plane tickets.







Do you offer teaching&training ?



yes, we prefer that you arrange your worker to China. or our engineer go to your country.





what policy for broken parts?



within one year,we offer free parts.



if beyond one year,you need to buy by factory cost.
