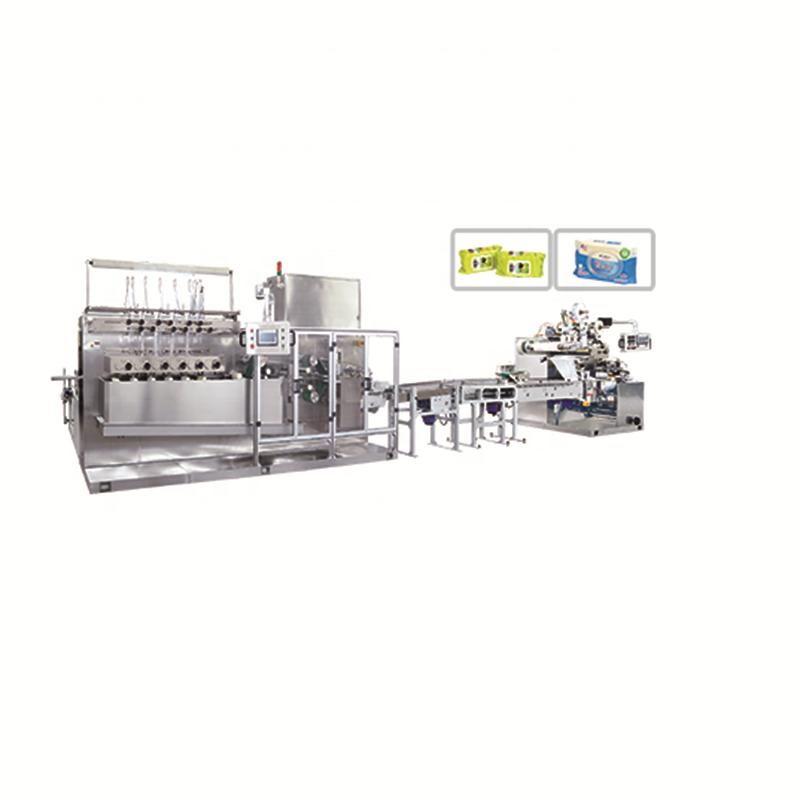

CD-2000H Full auto wet wipe machine is directly slitting the raw material, folding, wetting, cut in size, auto convey the wipe to packing machine. Raw material is equipped with auto splicing unit, and with tension control and web guiding function. The whole process from raw material to final product is in machine, production is sanitary and speed is high. The folding machine and packing machine can automatically connect for production and also can be separated for special size of product, which makes customer use the machine in maximum limit and get the maximum profit.
Main technical parameter(suitable for 30-120pcs/pack):
1.Power supply: 380V 50Hz 3 Phase 220V(customized as per client request)
3.Suitable material: Spunlace non-woven fabric, Hot-rolling non-woven fabric
4.Quality of material: 35---80g/m2
5.Wet wipe size (unfolded): (150-230mm)*(180-250mm) (L*W)
6.Wet wipe size (folded): (150-230mm)*(90-120mm) (L*W)
7.Final Product Size: (200-280mm)*(90-120mm)*(30-100) (L*W*H)
8.Stable Production speed: 4800-6400 pcs/min
9.Packing Speed: 60-80 packs/min
10.Parent roll size (raw material reel): width:1000mm, dia: 800—1200mm
11.Folding way:”Z” fold, pop up or non pop up
12.Counting way: auto-counting, quantity changeable pile system
13. Independent pressing and sending system after folding, good stability
14.Humidification agitating system: double agitating drums with agitator, 400L*2 ( Quantitative liquid adding system)
15.Control system: PLC control system, color touch screen
16.Machine size: 19600*3500*2200mm (L*W*H)
17.Water tank size: 2000*1100*1900mm (L*W*H)
18.Net weight of machine: 12000kg
Adjustable bag-making device, inserting corner device(adjustable corner balance), high precise color indicator, electric eye tracking, roll type date printing device, punching device, labeling device.
Optional:1. With 180 degree U corner or parallel display.
2. Glue spray between two piles with glue machine.
3. Tear-prevent labeling device.
Packaging & Shipping
by export standard protective measures and outside wooden case, suitable for long distance ocean and/or air, and inland transportation and well protected against dampness, moisture, shock, rust and rough handling so as to ensure machine of safe arrival at the erection or construction site without any damage.
