aisi 1045 / sae 1045 steel equivalent

1045 steel is a medium tensile low hardenability and medium carbon steel supplied in the hot rolled, cold drawn, forged and turned or polished condition.

aisi 1045 / sae 1045 / astm 1045 Steel Equivalent Materials or Steel Grades
GB
DIN
ASTM
JIS
45#
1.1191 ck45 c45
aisi 1045, sae 1045, astm 1045
s45c
aisi 1045 / sae 1045 / astm 1045 Steel Chemical Composition
C
SI
MN
S/P
CR/TI
0.42-0.48
0.17-0.37
0.50-0.80
0.035(MAX)
0.30-0.40/0.05-0.10
aisi 1045 / sae 1045 / astm 1045 Steel Mechanical Properties
Yield strength(MPa)
Tensile strength(MPa)
Elongation(%)
Reduction of area(%)
355MPa(min)
600MPa(min)
16%(min)
40%(min)
aisi 1045 / sae 1045 / astm 1045 steel standard sizes

steel round bar
steel square bar
steel flat bar
steel hexagonal bar
hot rolled
10mm to 310mm
10*10mm to 100*100mm
(6-80mm)*(20-100mm)
17mm to 75mm
cold drawn
6mm to 100mm
10*10mm to 100*100mm
(6-80mm)*(20-100mm)
6mm to 75mm
forged
200mm to 1000mm
200*200mm to 800*800mm
200*200mm to 800*800mm
/
Diameter Tolerances of aisi 1045 / sae 1045 / astm 1045 hot rolled steel round bar and square bar
DIA
7-20
20-30
30-50
50-80
80-110
110-150
150-190
190-250
260-310
mm
+/-0.35
+/-0.4
+/-0.5
+/-0.7
+/-1.0
+/-1.3
+/-2.0
+/-2.5
+/-3
Other aisi 1045 / sae 1045 / astm 1045 steel bars size tolerance
cold drawn steel bar
h9, h10, h11
forged steel bar
+/-5mm for black surface bars , +/-3mm for peeled or turned bright bars surface
Detailed Images

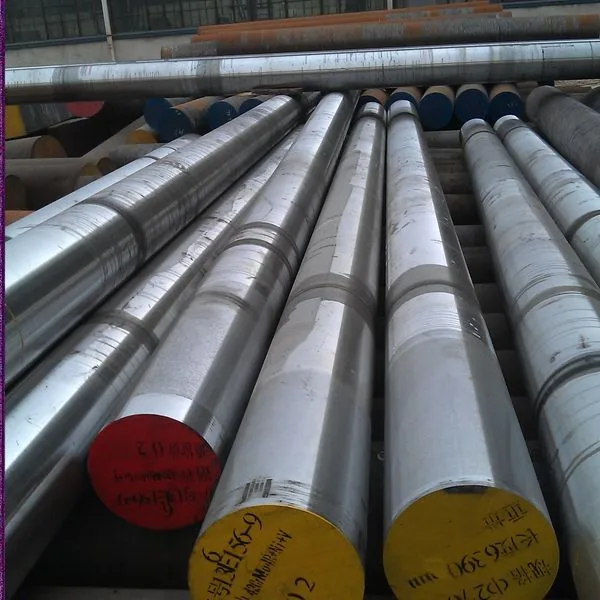

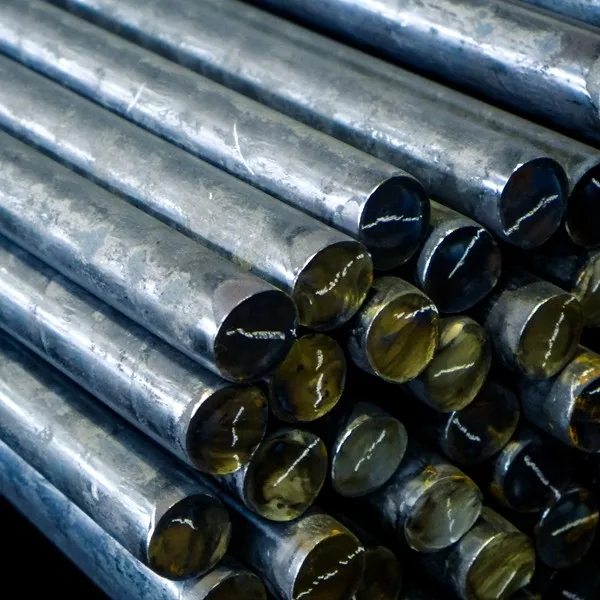

aisi 1045 / sae 1045 / astm 1045 hot rolled steel round bar


aisi 1045 / sae 1045 / astm 1045 hot rolled steel square bar

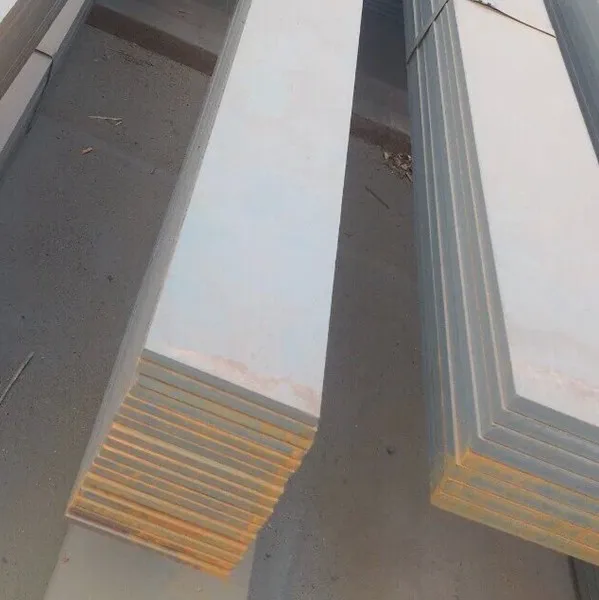

aisi 1045 / sae 1045 / astm 1045 hot rolled steel flat bar

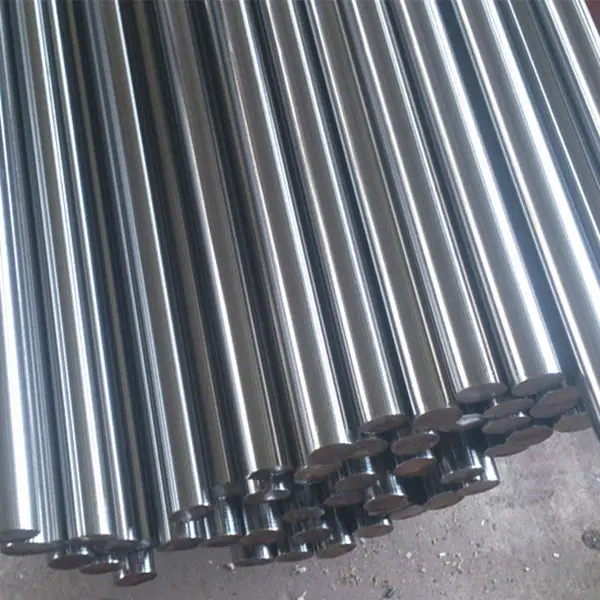

aisi 1045 / sae 1045 / astm 1045 cold drawn steel round bar

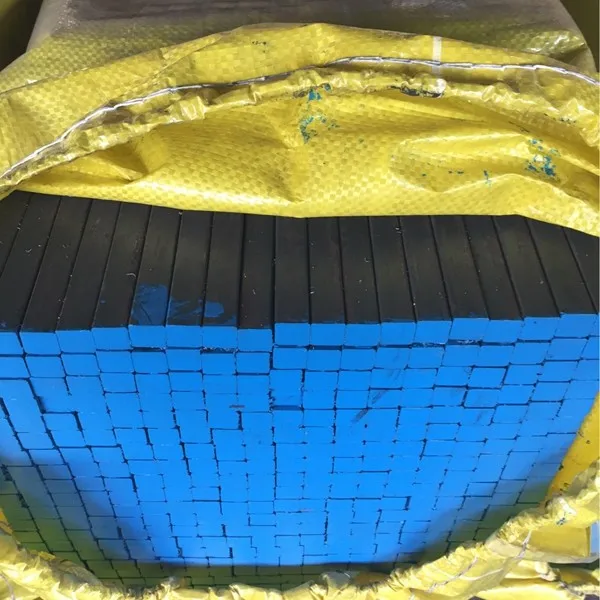

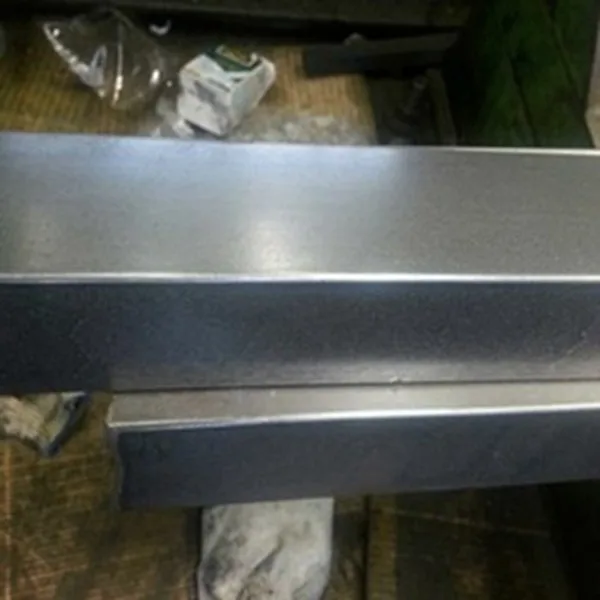

aisi 1045 / sae 1045 / astm 1045 cold drawn steel square bar

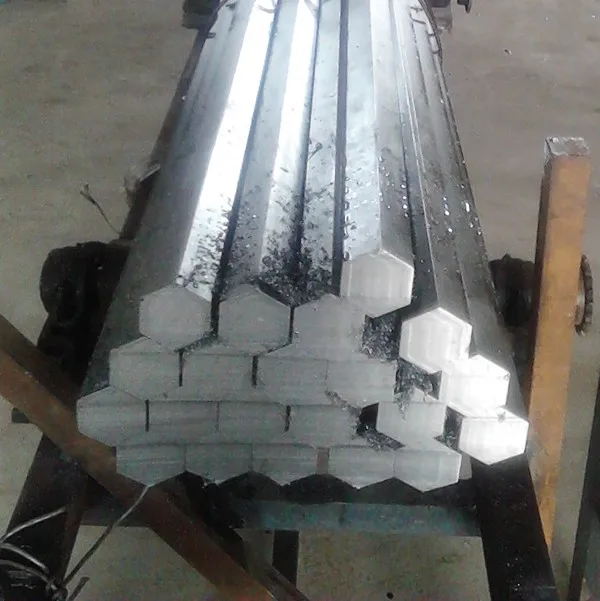

aisi 1045 / sae 1045 / astm 1045 cold drawn steel hexagonal bar


aisi 1045 / sae 1045 / astm 1045 forged steel round bar with black surface

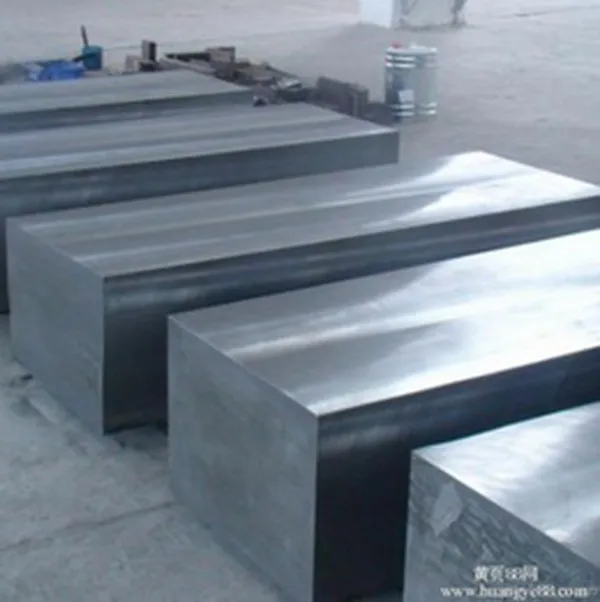

aisi 1045 / sae 1045 / astm 1045 forged steel block pre-machined bar


aisi 1045 / sae 1045 / astm 1045 forged steel bright bar


aisi 1045 / sae 1045 / astm 1045 steel round bar straightened bar

aisi 1045 / sae 1045 / astm 1045 steel round bar chamferred bar


aisi 1045 / sae 1045 / astm 1045 steel round bar peeled bright bar


Packing & Delivery

Packages:

1. Bared packages for hot rolled round bars if no requirement from customers.

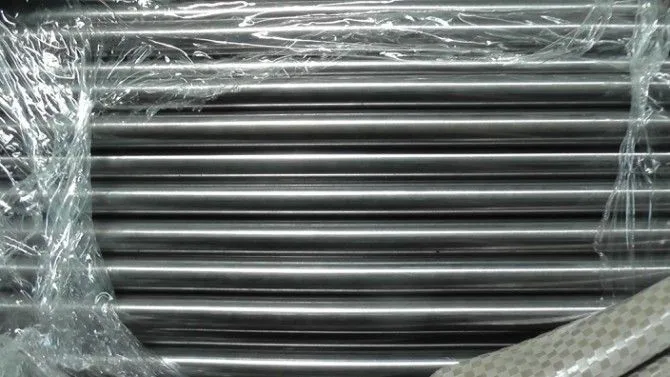

2. Film wrapped inside and nylon plastic wrapped outside for cold drawn or peeled or turned bright bars

3. Pallet and wooden box is available according to customer's requirement

Delivery:

1. Within two weeks for stock goods

2. Within one month for hot rolled bars

3. Within two months for further processing bars

Bundling

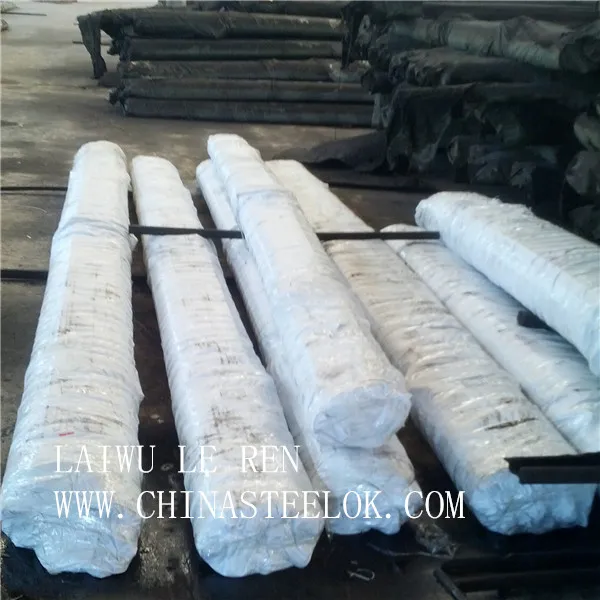

Film wrapping

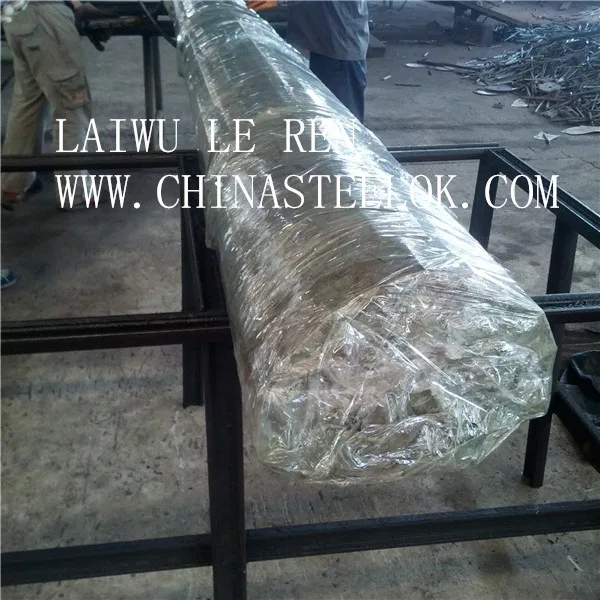

Nylon plastic wrapping


Tapping


Pallet packing

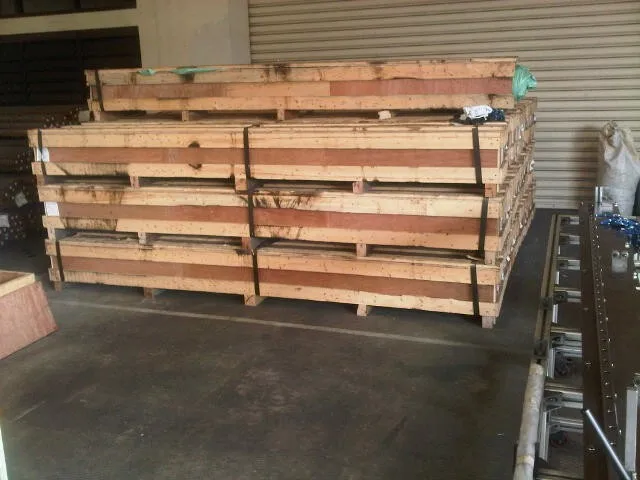

Wooden box packing
