flexible drinking straw making machine

Product Description





Driving motor

1.5kw  control by frequency converter

Production Capacity

300 pcs/min

specifications

 Inside diameter

3.8mm

4.8mm

5.8mm

 Thickness of straw

 0.2±0.02mm

0.2±0.02mm

0.2±0.02mm

 Length of straight straw

 165-245mm

 200-260mm

 200-260mm

 Length of flexible straw

 150-230mm

 185-245mm

 185-245mm

Other specifications are customizable

Machine size

1500 *1500* 1700mm

Machine weight

1000kg



Flexible drinking straw making machine is automatic used to bend the straight drinking straws into flexible ones. The machine is fully automatic from straight straws to flexible products, only need workers to add the straight straws in hopper.

The straight straws are supplied from the hopper at the top of the machine, then clamped by 2 mechanical hand and feed one by one into the main drum of the machine. As the main drum rotates, the straw passes through 2 rotary dies to form indentation. After compressed by 2 mechanical hand, contraction-like folding indentation was formed. At last, the finished products output automatically. The main drum can run continuously with 12 straws. Moreover, this machine has a high speed production capacity.

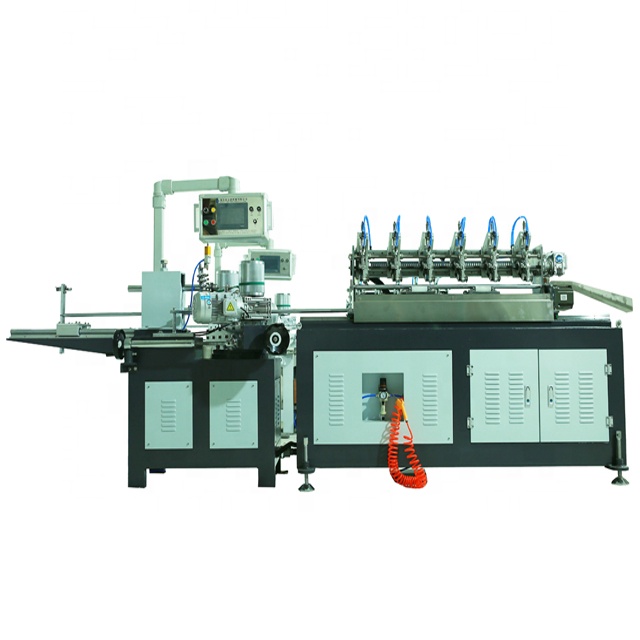

flexible straw machine.jpg


flexible straw sample 1.jpgflexible straw sample 2.jpg
