Product Overview

Description

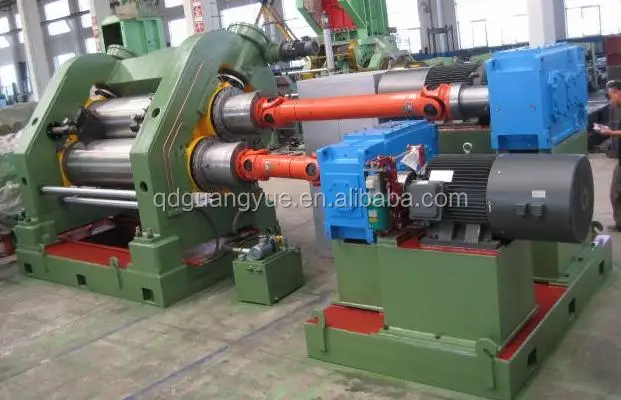

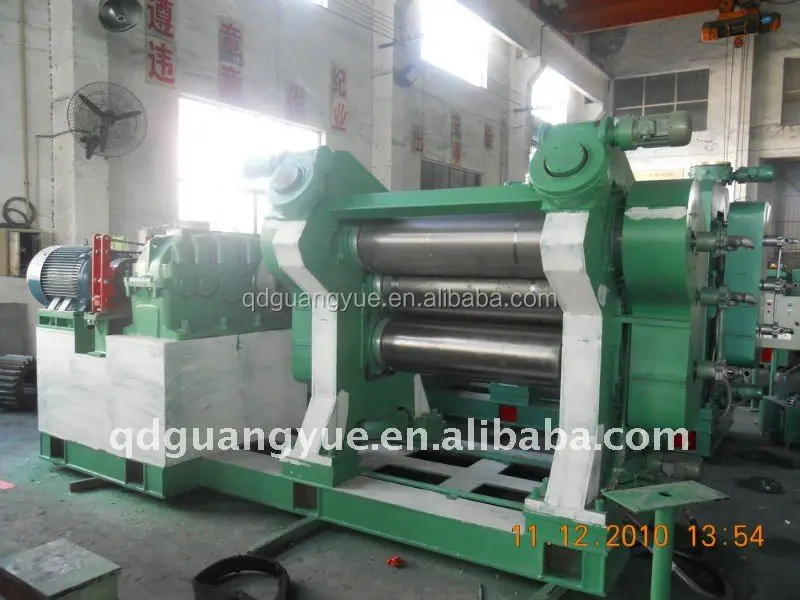

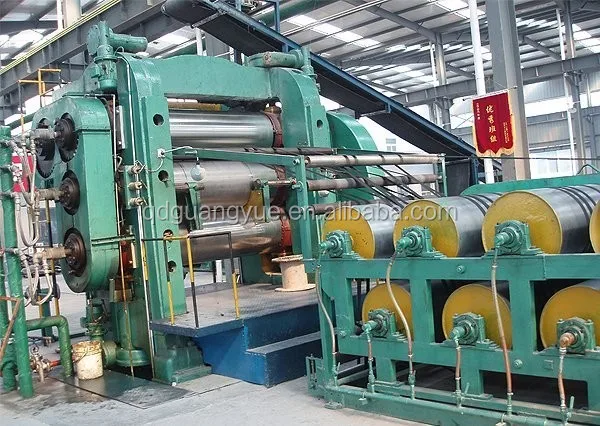

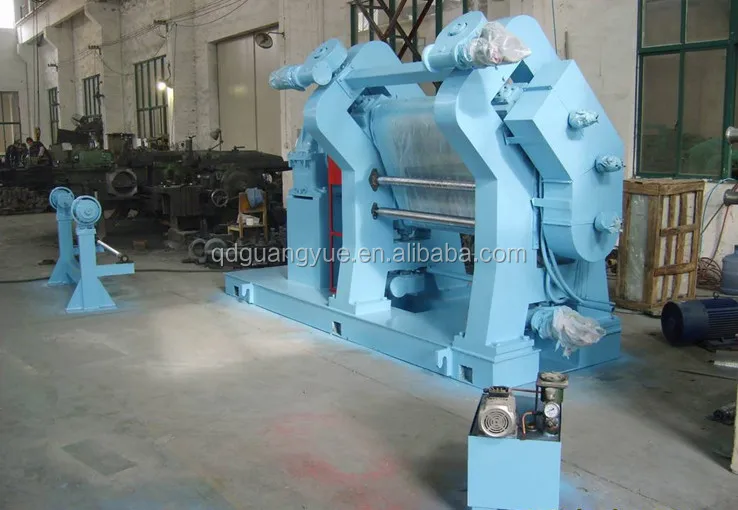

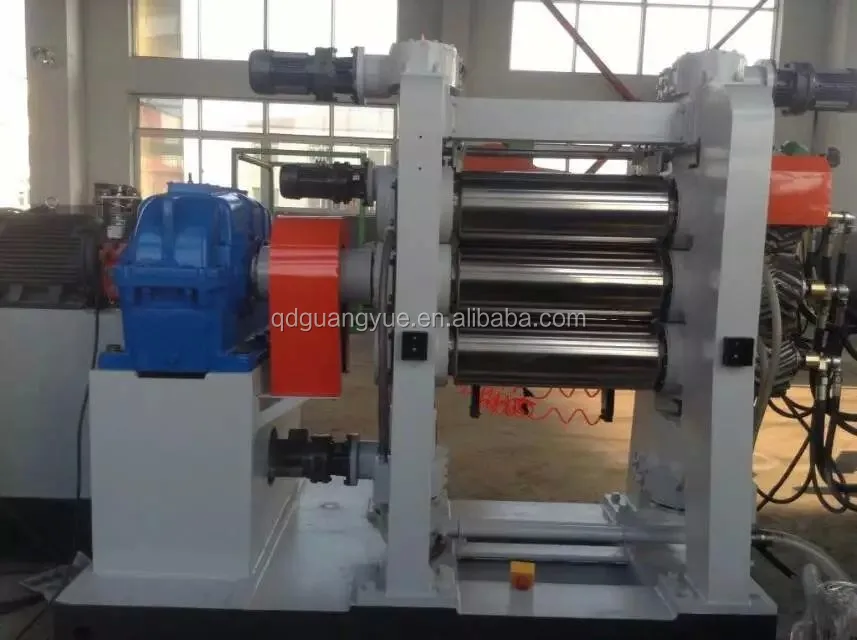

                                                 Three-roll rubber Calender

 XY 3F 400 ce iso roller automatic rubber calender machine price



 2_



1.Structure



  The mac

Structure details:



 1. Roll and bearing group

 2. Roll temperature adjusting device

 3. Base and frame

 4. Roll nip adjusting device

 5. Rubber-guard device

 6. Rubber storage device

 7. Transmission device

 8. Emergency stop device

 9. Lubricating device

10. Electrical control system



1.The machine is made of chilled alloyed castiron,whose work surface has high hardness,so it is wear-resistant and durable.







2.While using,the steem,cooling water or heat-conducting oil can be passed into the roller's cavity to adjust the working temperature, in order to meet different technological requirement.







3.Roller space can be adjusted both by manual or electric mode.



Brief self-introduction:











We are manufacturer of  rubber machine with nearly 30 years' experience in China.



All machines our factory directly export.



Our main products:







1. open mixing mill



2. roll calender



3. tire crusher



4. internal mixer(kneader and banbury mixer)



5. rubber extruder



Technical parameters:



model               roller dia(mm)working surface length (mm)calendering width(mm)calendering thickness(mm)roller linear velocity(m/min)overall dimension(L*W*H)(mm)

weight

(t)

XY-3FΦ230*635230        635~720   ≤500~600   ≥0.20.98~9.7972650/2750*1200*1800

3

XY-3FΦ250*720250635~720≤500~600   ≥0.213.603300/3400*1200*1700
XY-3FΦ300*810300600~900≤500~700≥0.216.323400/3700*1280*20506
XY-3FΦ360*1120360900~1200≤700~1000≥0.222.614400/4700*1700*210011.6
XY-3FΦ400*14004001200~1400≤1000~1200≥0.221.984900/5200*1860*210015
XY-3FΦ450*15004501200~1500≤1000~1300≥0.224.986100/6400*2200*2900 20
XY-3FΦ560*16505601530~1650≤1300~1400≥0.231.096800/6950*2600*370038
XY-3FΦ610*17306101730≤1500≥0.230.107500*2700*383045

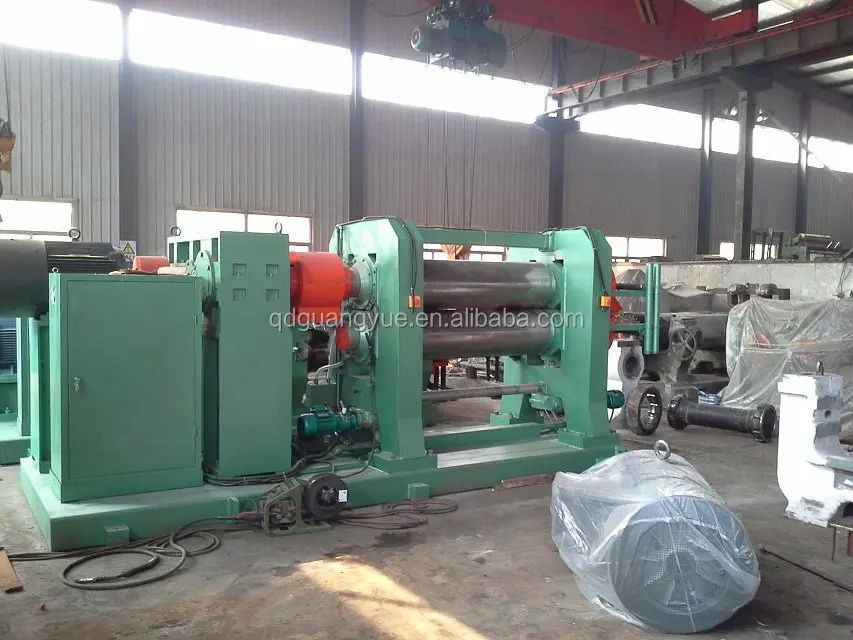

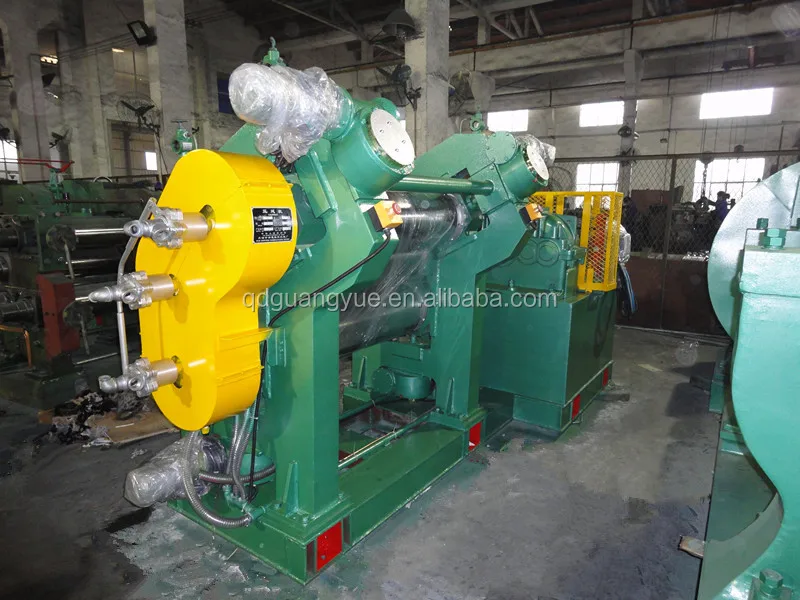

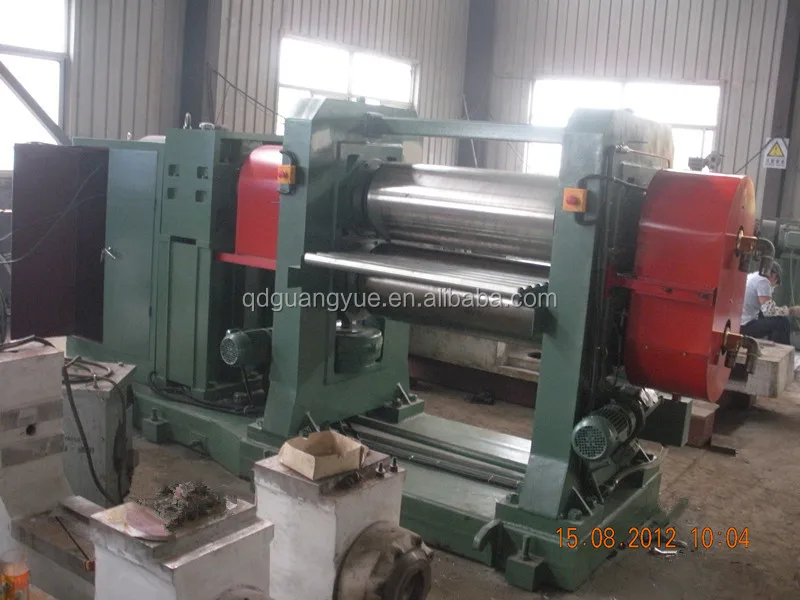

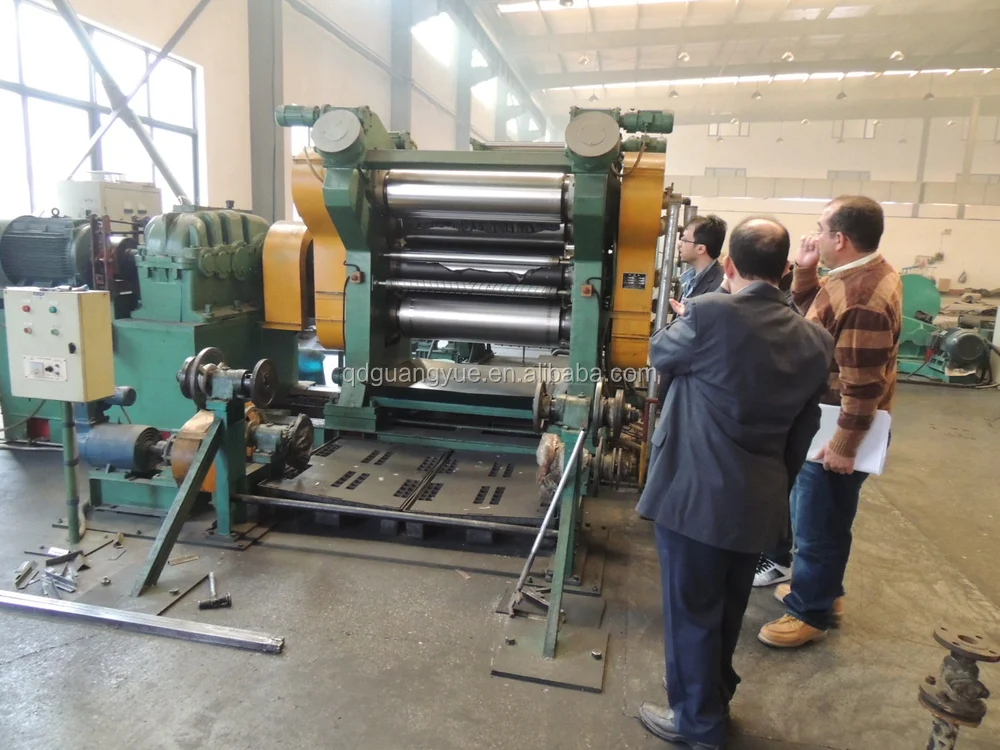

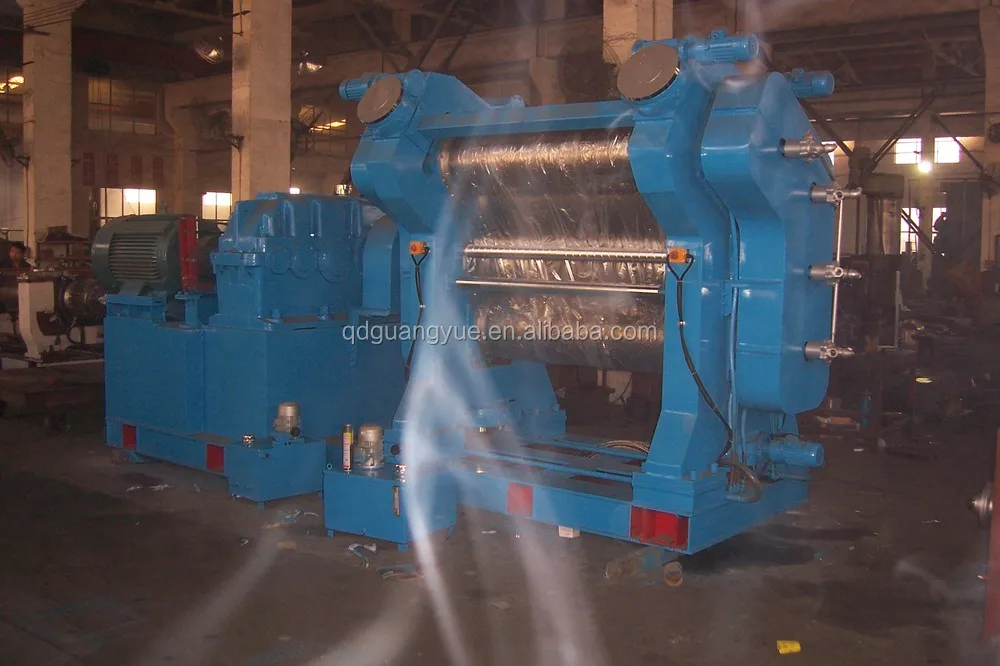

166)20140323_134821two roll rubber calender{9C22CBE4-55E4-4C62-9848-E74D900F869F}9)2014-11-03DSC00025_DSCN0937100_2138  QQ20160423094750
