pass test CAT5E lan cable 24AWG UTP FTP copper network cable

Share on:


Price:RUB 1,178.64 - RUB 3,535.92
Price in USD:Details

Quantity:

Add to Cart

Product Overview

Description

Product Description
SPECIFICATIONS FOR CAT5e FTP 24AWG NETWORK CABLE

Conductor
AWG
24
material
oxygen-free copper
Cores
number
8 cores, 4 pairs

Insulation
material
HDPE
Color
Orange/white、orange、green/white、green、blue/white、blue、brown/white、brown
thickness
0.18 mm
Shielding
material
Aluminum foiled

Jacket
material
PVC or LSZH
thickness
0.55mm
color
grey/blue/orange/white/black/as request
diameter
5.4 mm

Main Features

1) Impedance:(f=1-100MHZ) 100±15%.

2) Propagation delay & delay skew:(Max) 40ns/100m

3) NVP:72%

4) Tensile force:(Max) 250N.

5) Apply temperature: -40℃~+70℃.

Detailed Images



Four twisted pair with 24awg or 26awg oxygen-free copper insulated super quality HDPE strengthen signals transmission.

Structure

Meet 100MHz while used in the building correspondence synthesis wiring system.

Before Tensile strength (Mpa)   ≥13.8

Aging Elongation (%)                   ≥100

Aging condition (C xhrs)             100x240

After Tensile strength (Mpa)      ≥85% of unaged

Aging Elongation(%)               ≥50% of unaged

cold Bend (-20±2℃x4 hrs)     No crock

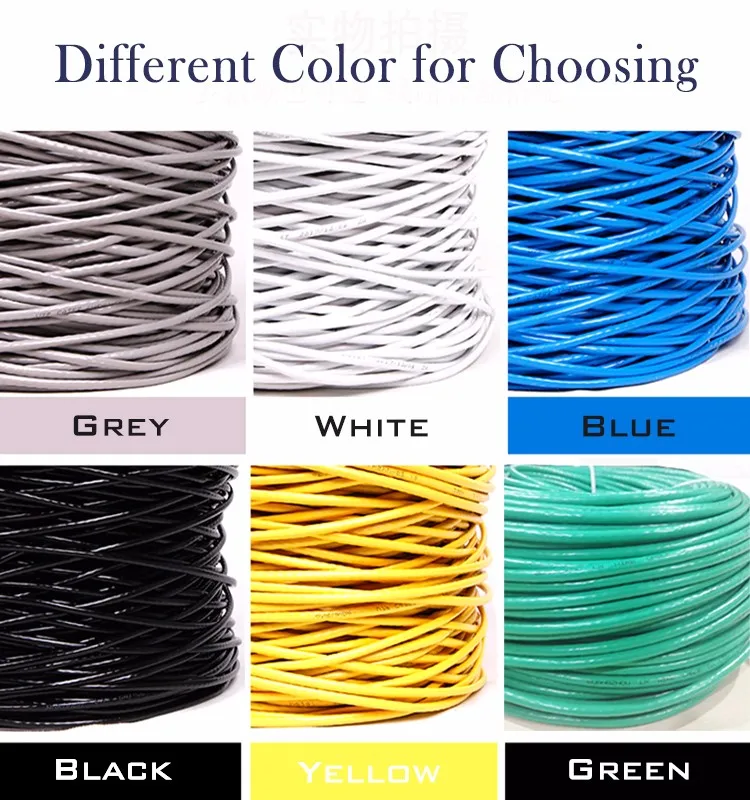

Product Color
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Free to return the goods if there are any problem on quality that proved and admitted by buyer.

* Engineers available to service machinery overseas.

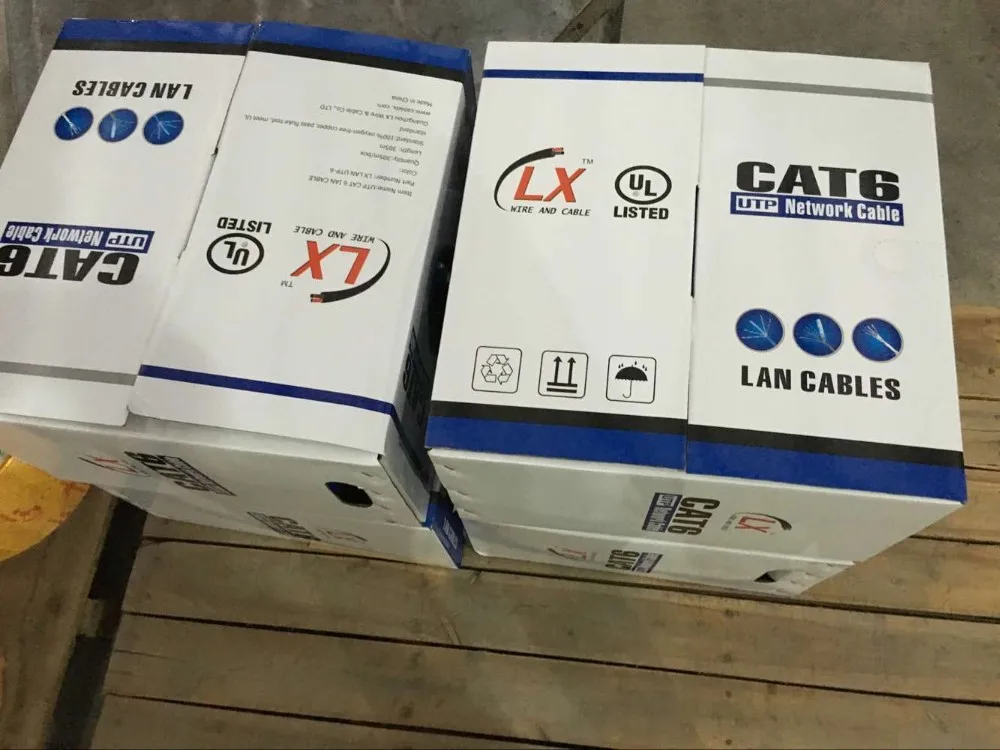

Packing & Delivery
Outer Packaging
Size
72.5(L)*42(W)*42(D)cm
Weight
89kg

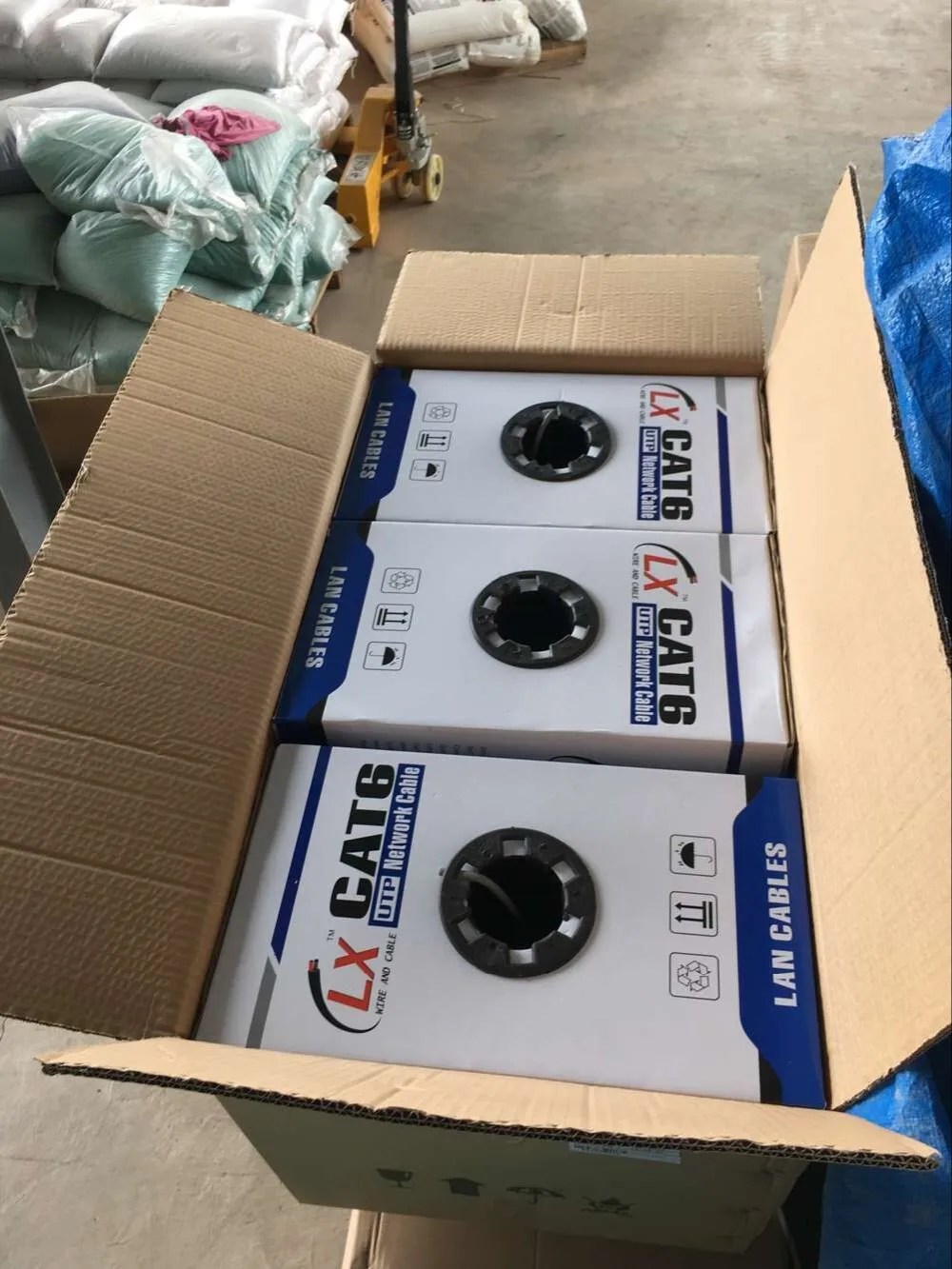

Packaging Details
The normal package is corrugated case (Size: L*W*H). If export to European countries,the carton will be fumigated. Packing could be OEM or pack it according to customers special request.
