CHINA High speed Aluminium cutting machine for aluminum plate saw and aluminum copper pipe/tube/profile

Share on:

Price:RUB 71,882.73 - RUB 1,597,314.14
Price in USD:Details

Quantity:

Add to Cart

Product Overview

Description

Product Description

 Machine Feature

1. Hidden sawblade goes up and down safely.

2. Foot switch can control automatic loading and cutting.

3. Automatic lubricating improves service of sawblade and fineness of cutting surface.

4. It can cut one piece or bundle cutting at the same time, suitable for mass production.

5. It can cut material with 45 degree.

6. Solving the problem of splashing chips.improving working environment.

Machine Parameter

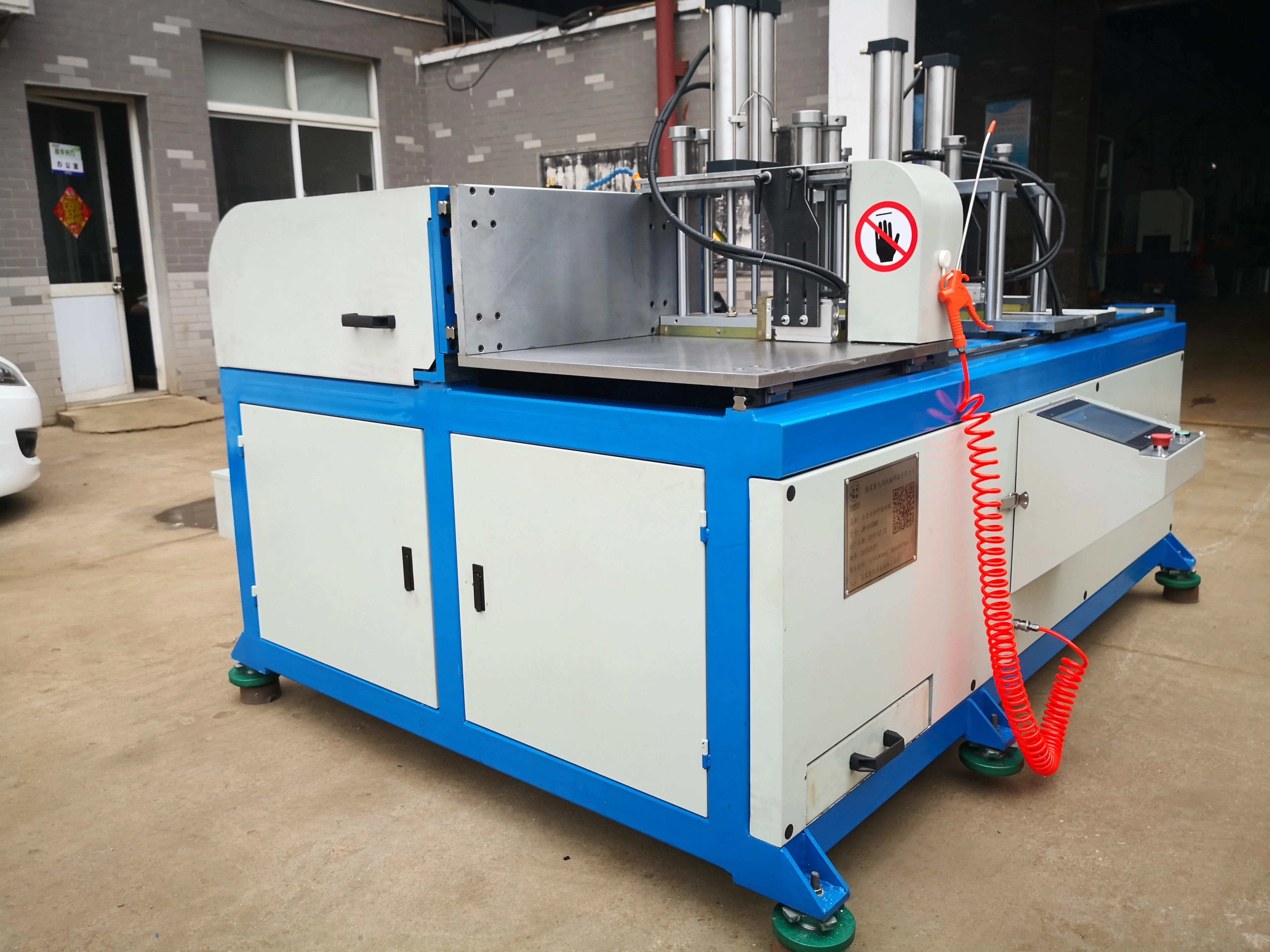

CNC Aluminium Plate Cutting Machine LJX-505NC

No.



unit

Parameter



Machine Model



LJX-505NC

1

Clamp



Vertical+ Left

2

Cutting way



Servo motor

3

Motor

Kw

5.5

4

Voltage



As requests

5

Speed

rpm/min

3000

6

Blade size



Dia.φ355-φ505mm  Inner Dia.φ30mm

7

Max Cutting height

mm

155

8

Max cutting width

mm

450

9

Feeding length

mm

1000

10

tails

mm

0-80

11

Tolerance

mm

±0.05

12

 Feed servo motor

Kw

1

13

Cut  servo motor

Kw

1.5

14

scrap suction

Kw

4Kw(Option)

15

Worktable size

mm2

580*700

16



17

Roller table

mm

3 Option

18

Machine size



2100mmx 1450mm×1600mm

19

Machine weight



1550kgs

20

3m roller table



3000mm×410mmX900mm

21

  table weight



80kgs

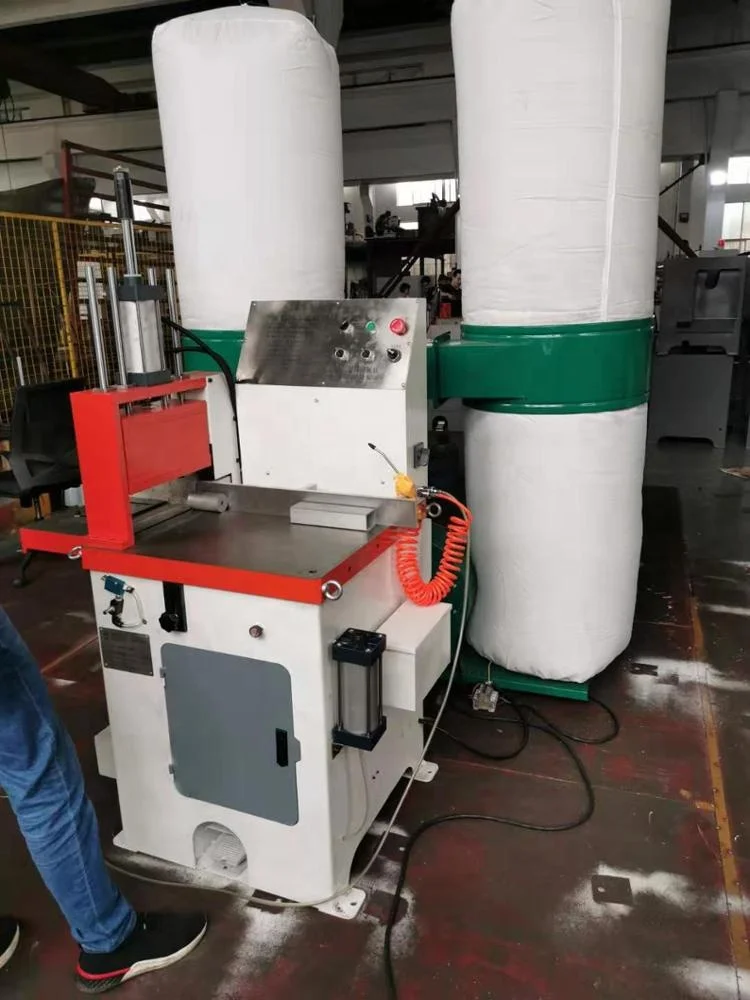

scrap suction



50kgs

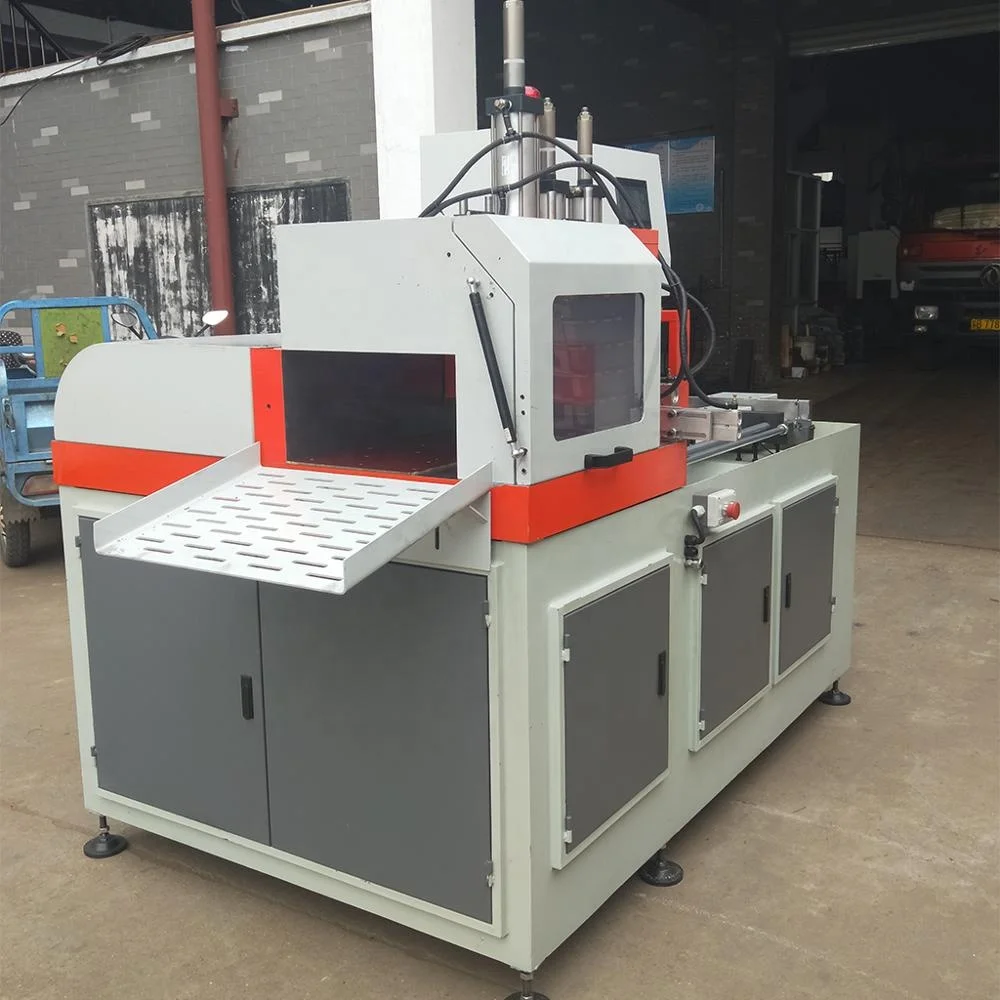

  CHINA High speed Aluminium cutting machine for cut-off aluminum copper pipe/tube/profile




Other type Aluminum cutting machine  we can manufacture machine Following customer requests
2014826846572016378385

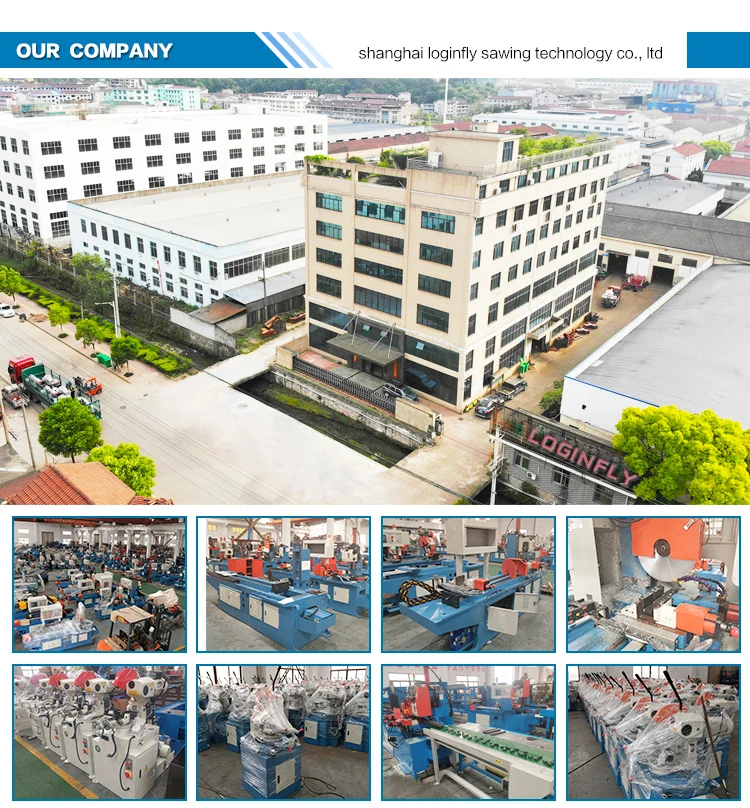

Company Information

_06

 Our team in China sawing industry especially band sawing machine and band saw blade industry has accumulated rich experience and established a set of technical training machine tool manufacturing, application for the integration of production and research and development base and sales service center.
In 1985, we beginning to manufacture  band saw machine, until now we got rich experience in this scope, we also have OEM experience more than 15 years, there are more than 10000 sets Machine we do OEM as customer's requests.            -(1).jpg
Customer visit




FAQ




    1) Q: Can  i have your quotation?

    A: First, please offer us the information of your material size,

    without these parameter, we are not able to recommend you the suitable machine

    2) Q: Do you have overseas service?

    A: No,but we normally help our customers to solve the problems through phone,

   Email, skype, internet video. high efficiency. We offer one year guaranteen, within

   one year, if component of the  machine broken, we freely offer the component, but

   the delivery fee should be paide by client

   3)Q: What is the voltage and Hertz in your country?

   A: In China,the Voltage is 380V(3 Phase), the Hertz is 50HZ, we can change the

   voltage and Hertz according to your requirment.

   4) Q: How about the payment term

   A:  T/T 30% deposit, 70% of balance paid before shipment.
