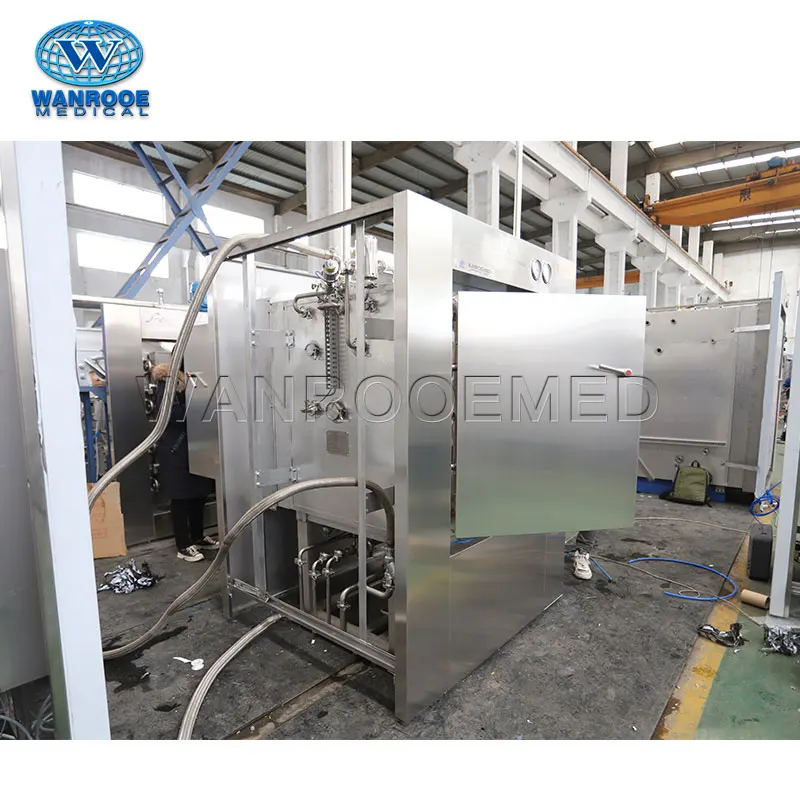

YG-0.36 Vertical Pulse Vacuum Pump Autoclave Sterilizer For Dry Clothing Metal Instrument

Share on:


Price:28 000,00 $ - 30 000,00 $
Price in USD:Details

Quantity:


Product Overview

Description



Product Description

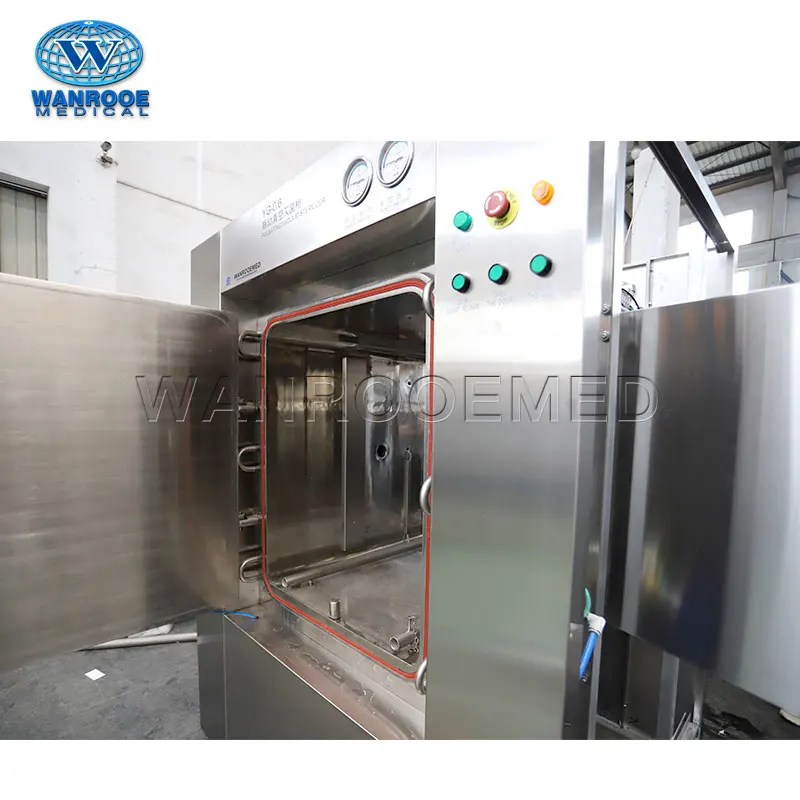

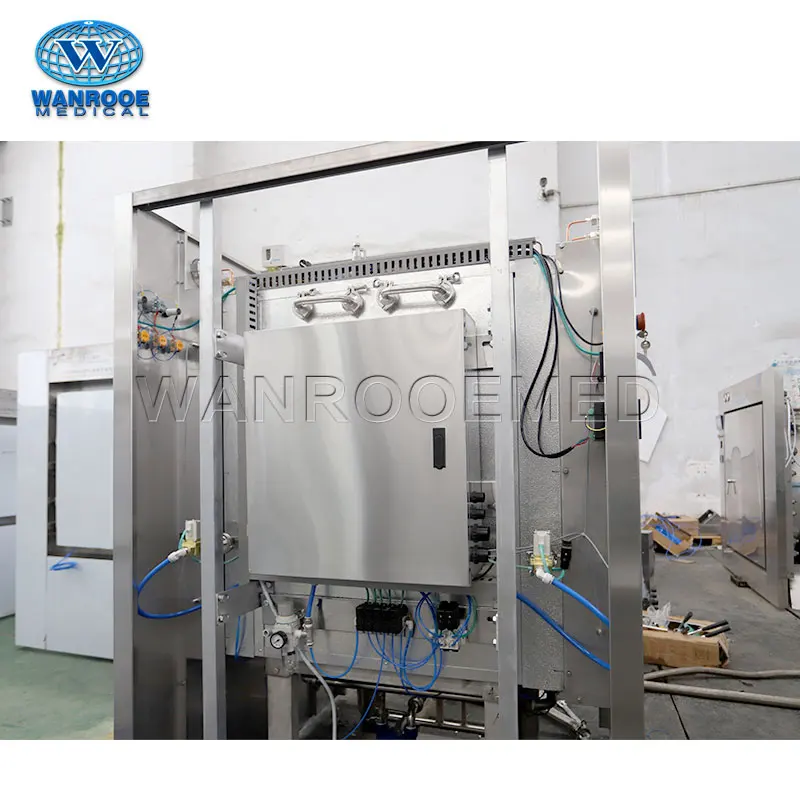

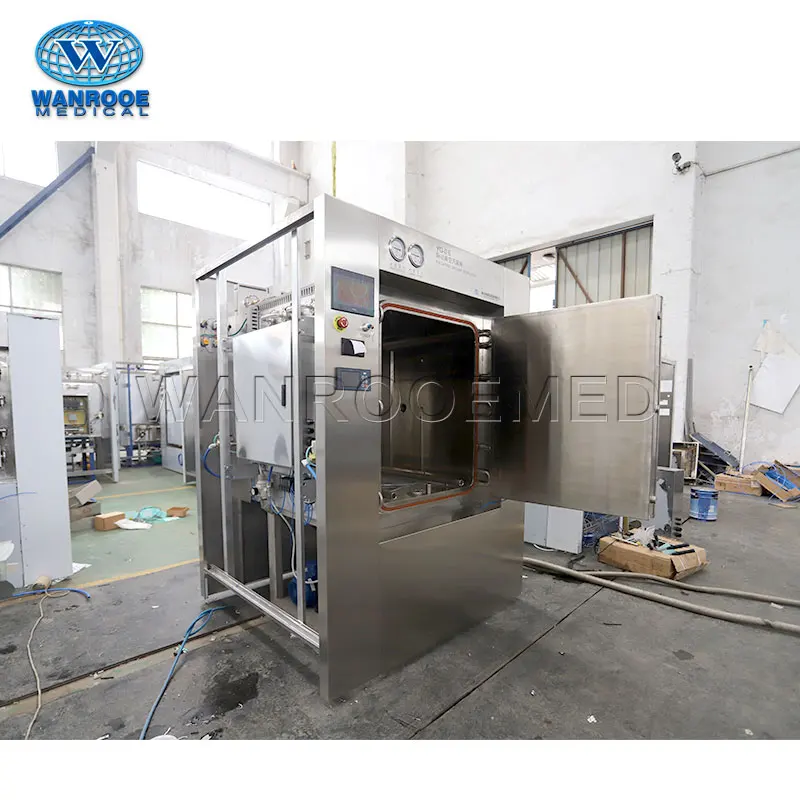

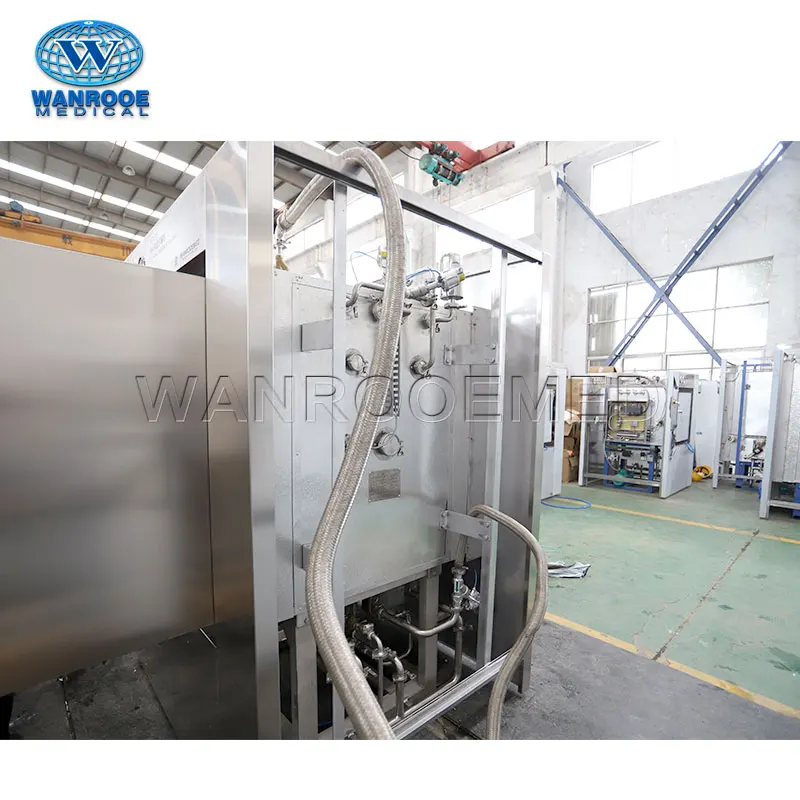

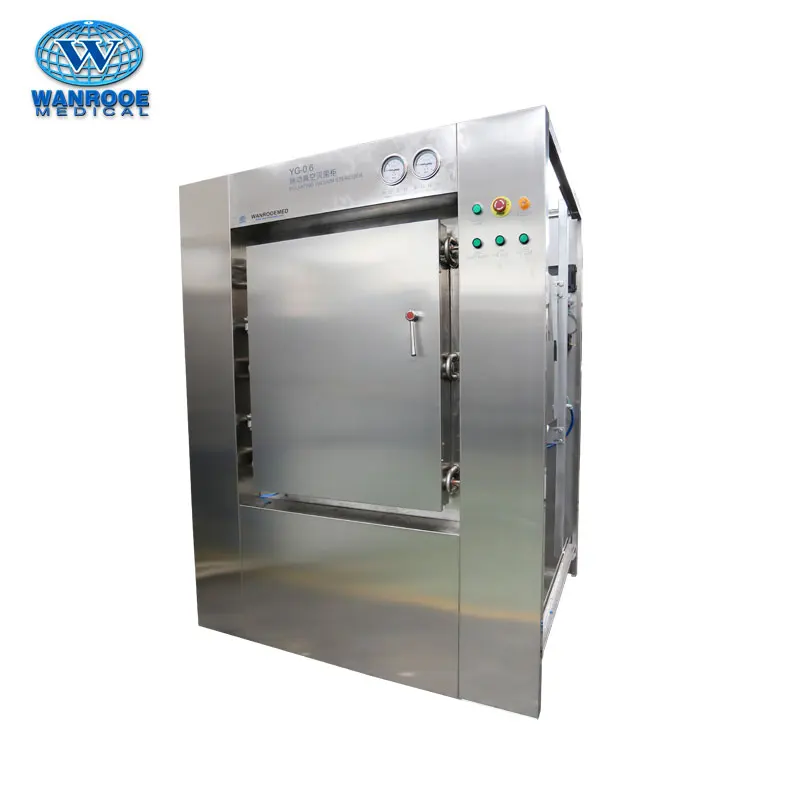

YG-0.36 Vertical Pulse Vacuum Pump Autoclave Sterilizer For Dry Clothing Metal Instrument

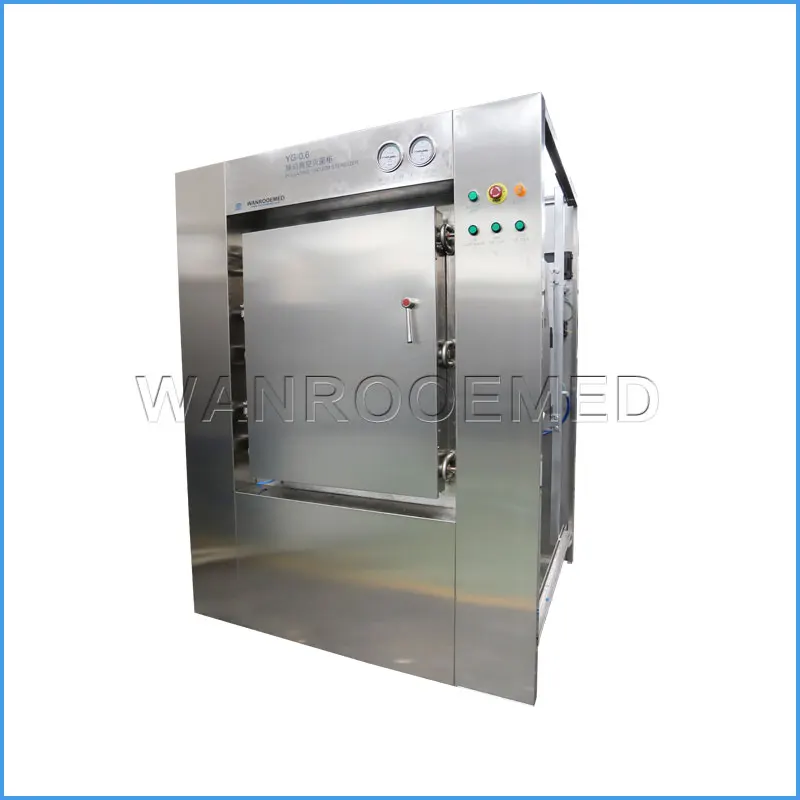

YG-0.36 Vertical Pulse Vacuum Pump Autoclave Sterilizer For Clothing Metal Instrument





















WANROOEMED YG Series

YG Pulsating Vacuum Pressure Steam Sterilizer With the features of Siemens PLC and man-computer interface automatic program control, automatic temperature recording, vacuum drying, ect.


It is suitable for hospitals, pharmaceutical factories, scientific research instiutes and other units to sterilize and dry clothing, dressing, metal instruments, culture medium,ect.

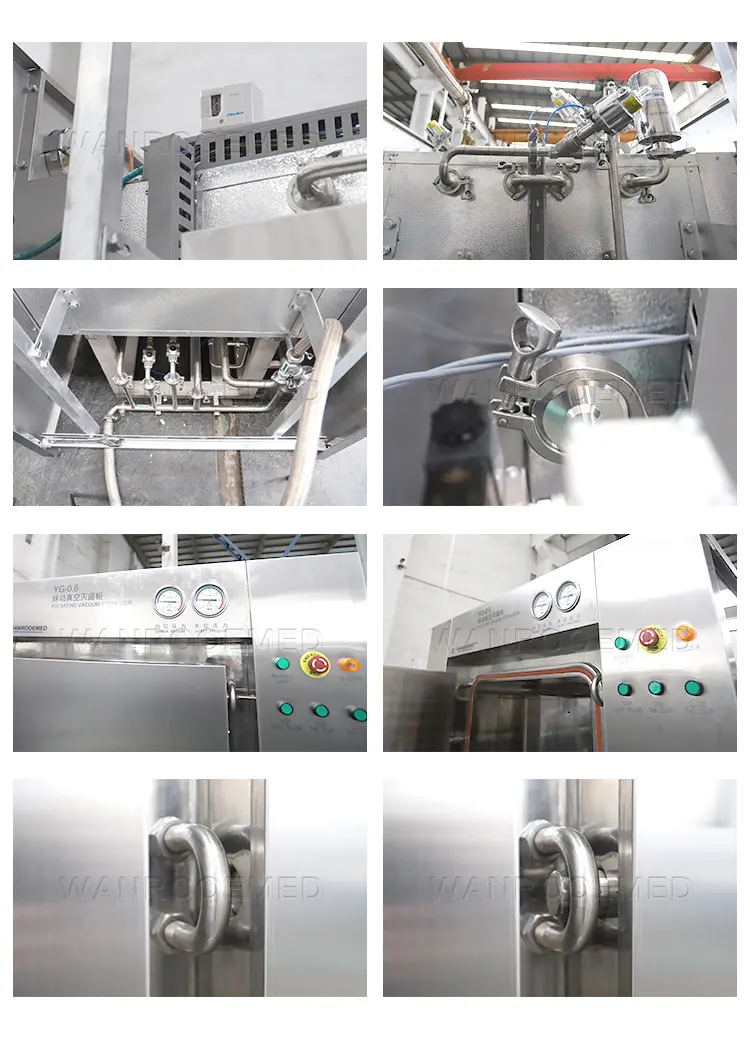

Feature:

The box is designed, produced and tested strictly according to the Steel Pressure Vessel
·National patent door inter lock
·National patent sealing technology of inner gas
·Reliable and stable Siemens brand PLC+touch screen control, advanced function for function for recording, printing and storing
·Elegant stainless steel decorate cover
·The heat preservation layer is made by polyurethane material and pearl rock wool
·The GMP confirmation access is fixed on the equipment
independent temperature monitoring system


the steam condenser is fitted in the exhaust/vacuum line to condense the steam before entering inside the vacuum pump
·B.D testing program is included in the equipment























































































Specifications
Model
Overall Dimensions
L*M*H(mm)
Single/Double Door
Chamber Size
L*W*H(mm)
Steam Consumption
(kg/cycle)
Power
(KW)
Water Consmption
(kg/cycle)
Net Weight
(kg)
YG-0.1825*1080*1600630*400*480151.080380
YG-0.25895*1220*1720760*600*600201.5150650
YG-0.361195*1220*17201000*600*600251.5150760
YG-0.61245*1300*18801050*680*850302.02001100
YG-0.81595*1300*18801400*680*850353.02501300
YG-1.21695*1370*19601500*750*1100403.03001900
YG-2.53195*1370*19603000*750*1100754.54502800
YG-5.03635*1800*22003400*1000*15001507.56004500





































Design pressure0.245MpaVacunm-0.095Mpa
Working Pressure0.22MpaSteam Source Pressure0.4-0.6Mpa
Design Temperature139℃Water Source PressureV0.1-0.3Mp
Working Temperature134℃Compressed Air Pressure0.5-0.7Mpa
Heat Equilibrium≤±1℃













Related Products

































Related Products

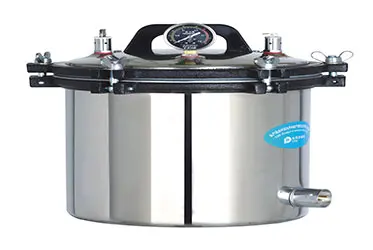

Stainless Steel Portable Pressure Steam Sterilizer


1.Fully stainless steel structure
2.Hand wheel type of quick-open door structure
3.Door safety lock system
4.Automatically controlled by computer
5.Digital display of working status, touch of key










 Stainless Steel Portable Steam Autoclave


--Fully stainless steel structure.
--Electric or LPG heated.
--Working pressure:0.14~0.16MPa.
--Working temperature:126℃
--Double scale indication pressure gauge.
--Easy to operate,safe and reliable.




Digital Display Steam Sterilizer Autoclave


--For 4~6 minutes rapidly sterilizing.
--Digital display of working status,touch type key.
--With 3 fixed cycles of water adding,temperature rising,sterilizing,drying steam discharging controlled automatically.

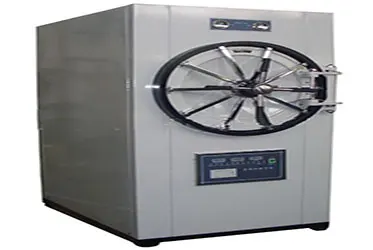

Horizontal Pressure Steam Autoclave Sterilizer
