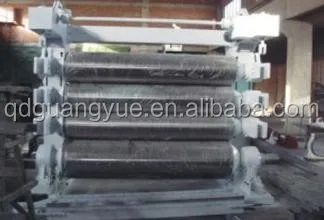

                                                 FOUR-roll rubber Calender


 four roll rubber calender machine / rubber conveyor belt calendering line

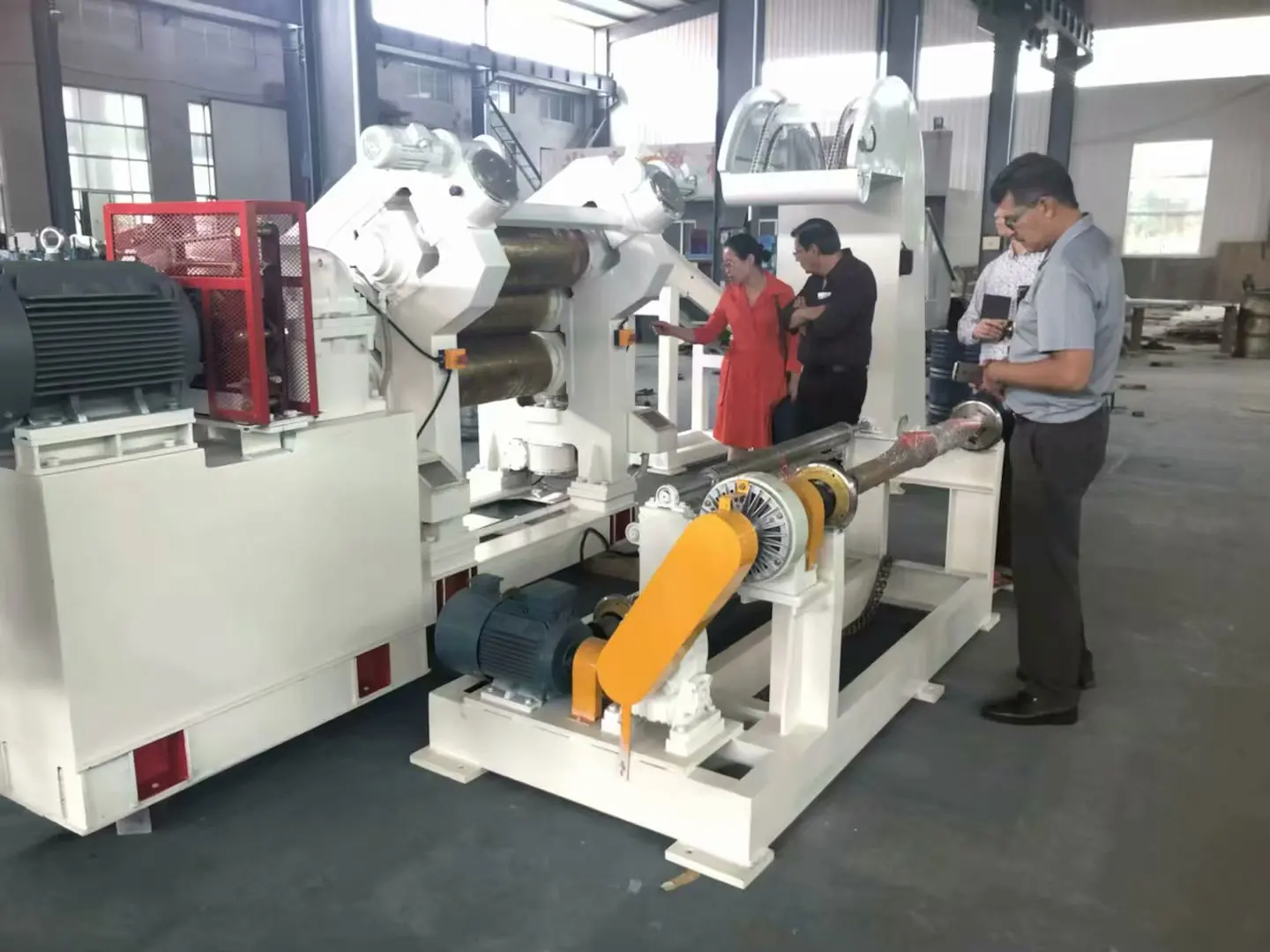

default (2)default (5)default (4)





1.Structure





  The machine is consisted of frame, roll, adjusting spacing device, speed ratio gear, the adjusting temperature device of roll, reducer, adjusting speed motor, bed plate ,coupling ,etc.





2.Uses





    It is used for calendering of rubber or plastics, fabric fractioning and coating, sheeting and composite of rubber or plastics





3.Feature





1.Tailored structure, easy to operate and install.



2. There are many speeds and speed ratios available, which can satisfy most customers formula and technique requirements.


3. Frame and base., looking very nice, are welded and treated by annealing for stress relieving.


4. The speed reducer is the hard-tooth surface gear reducer of Class 6 precision, which has long service life and low noise.


5. Perfect emergency stop device can ensure the safety of person and equipment


6. The seal structure with special design can eliminate the leaking phenomenon of lubricating oil





Parameter of three-roll rubber calender







 11021138_1









Parameter of Four-roll rubber calender
































































Number of rolls



4



4



Working Diameter of Rolls (mm)



  230



230



Working Length of Rolls (mm)



  635



720



Main roller wire-speed (m/min)



2 to 9.79



2 to 9.79



roller speed ratio



1:1:1



1:1:1



speed ratio



1:5



1:59



Decelerator model



BW7-59



BW7-59



Main Motor Power (kw)



22



22



speed (r/min)



132 to 1320



132 to 1320



Dimention (L/W/H)  mm



2650X1200X1700



2750X1200X1700



Weight (t)



3.5



3.5
