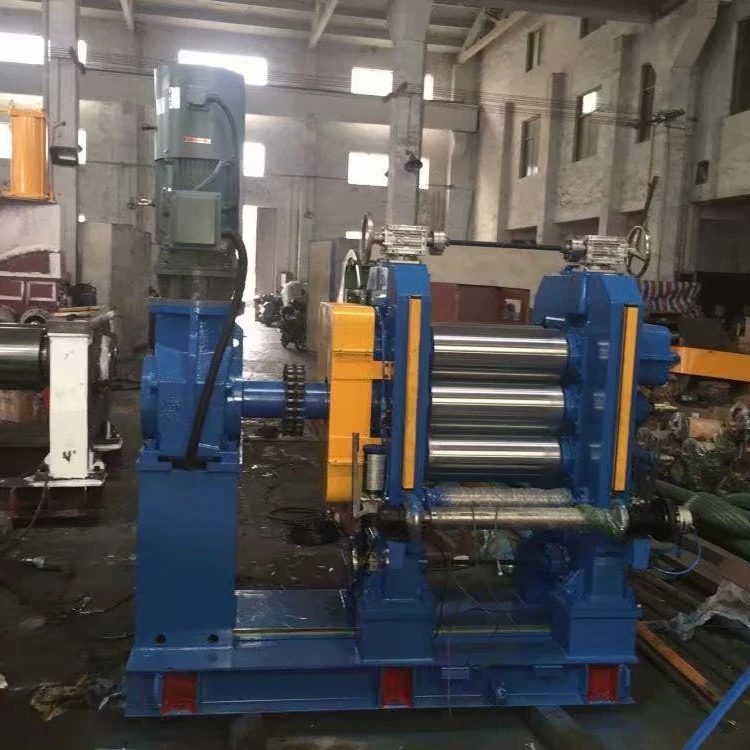

XY4 F 610*1730 4 roll rubber calender machine / calendering line machine price

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description


                                               rubber Calender





XY4 F 610*1730 4 roll rubber calender machine / calendering line machine price





1.Structure





  The machine is consisted of frame, roll, adjusting spacing device, speed ratio gear, the adjusting temperature device of roll, reducer, adjusting speed motor, bed plate ,coupling ,etc.

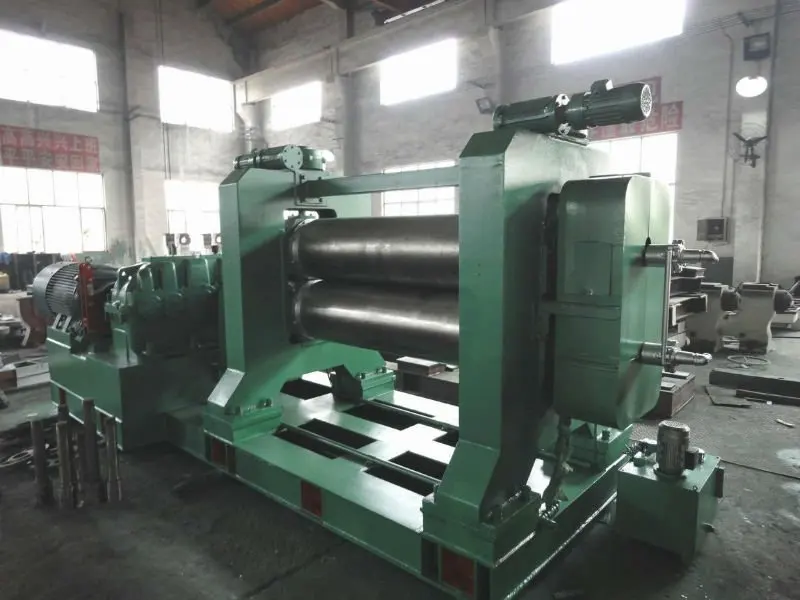

  p-3


2.Uses





    It is used for calendering of rubber or plastics, fabric fractioning and coating, sheeting and composite of rubber or plastics

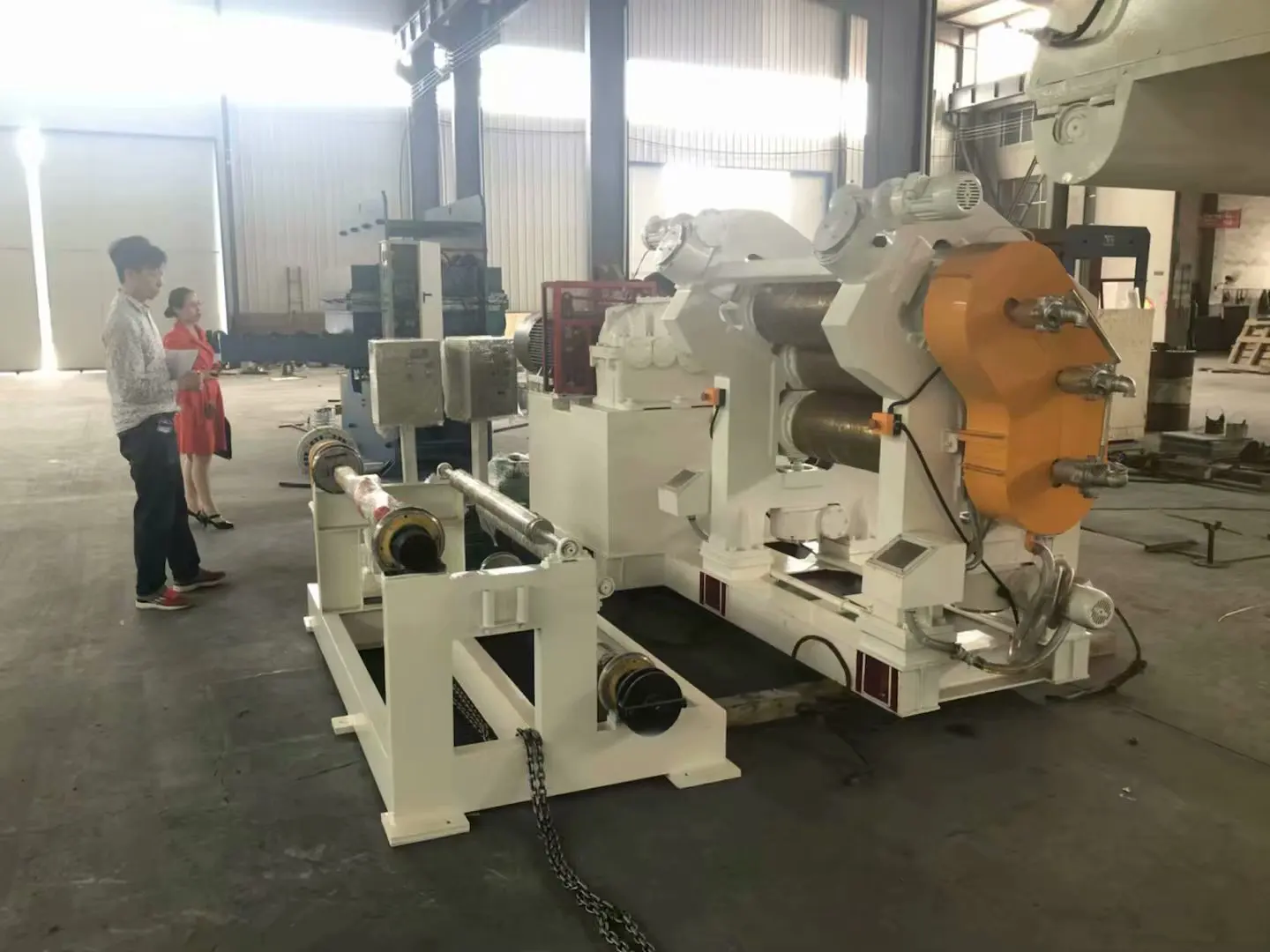

 default (5)


3.Feature





1.Tailored structure, easy to operate and install.



2. There are many speeds and speed ratios available, which can satisfy most customers formula and technique requirements.


3. Frame and base., looking very nice, are welded and treated by annealing for stress relieving.


4. The speed reducer is the hard-tooth surface gear reducer of Class 6 precision, which has long service life and low noise.


5. Perfect emergency stop device can ensure the safety of person and equipment


6. The seal structure with special design can eliminate the leaking phenomenon of lubricating oil

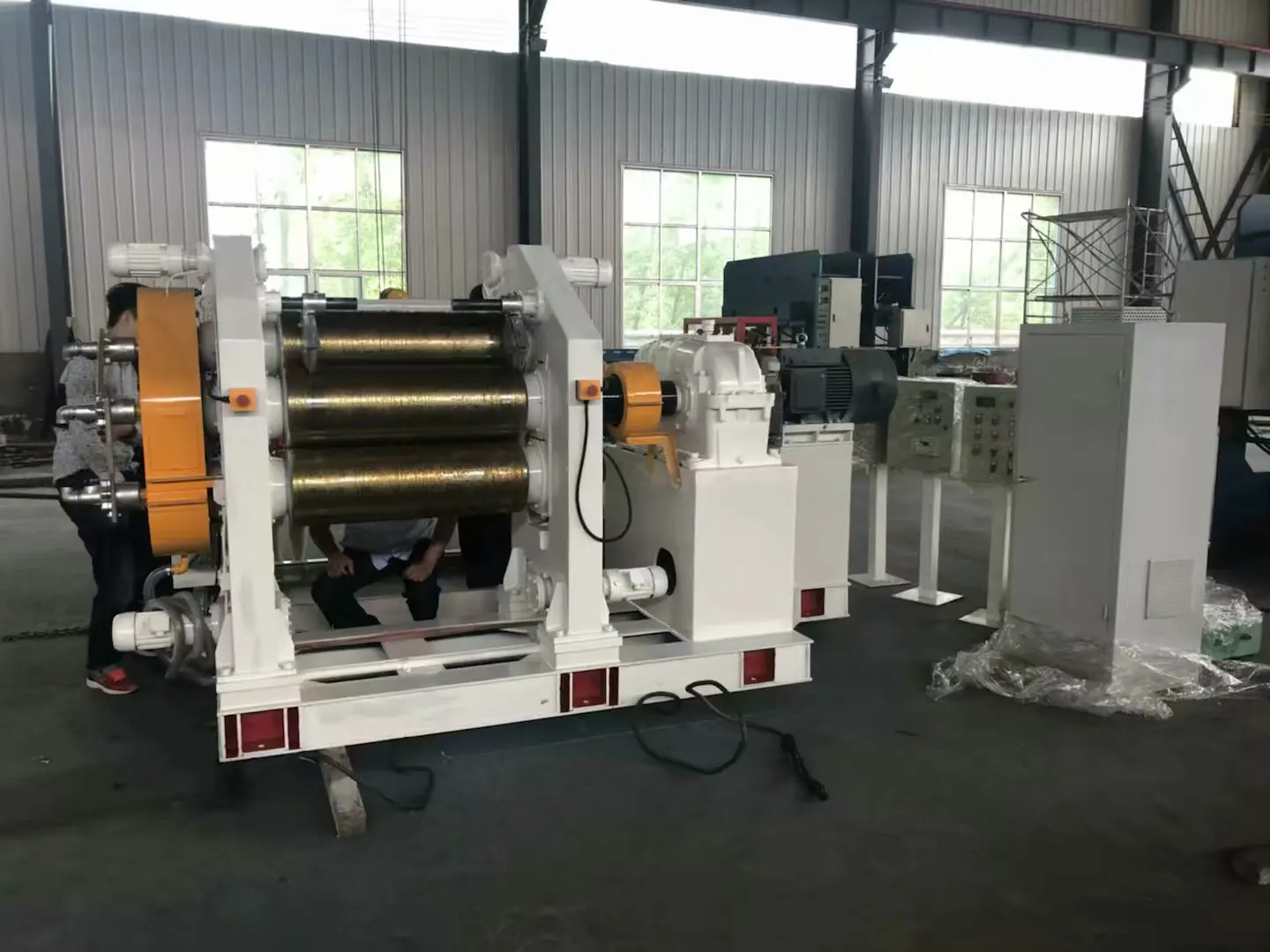

 default (2)

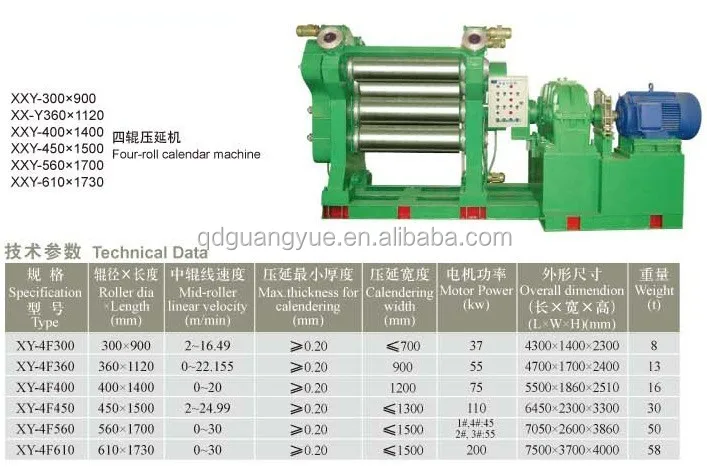

Parameter of Four-roll rubber calender
































































Number of rolls



4



4



Working Diameter of Rolls (mm)



  230



230



Working Length of Rolls (mm)



  635



720



Main roller wire-speed (m/min)



2 to 9.79



2 to 9.79



roller speed ratio



1:1:1



1:1:1



speed ratio



1:5



1:59



Decelerator model



BW7-59



BW7-59



Main Motor Power (kw)



22



22



speed (r/min)



132 to 1320



132 to 1320



Dimention (L/W/H)  mm



2650X1200X1700



2750X1200X1700



Weight (t)



3.5



3.5

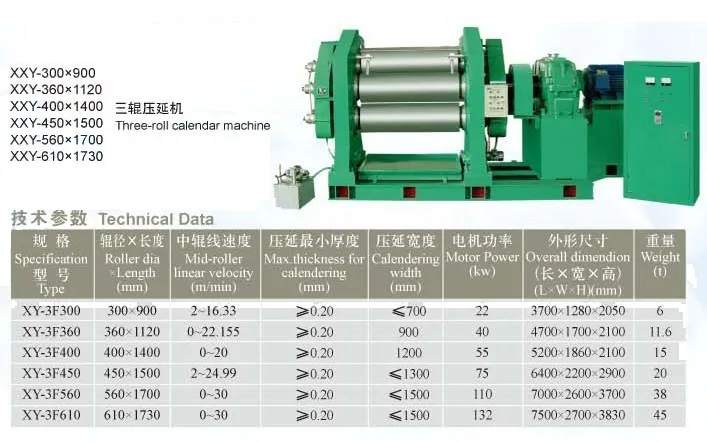

Parameter of three-roll rubber calender

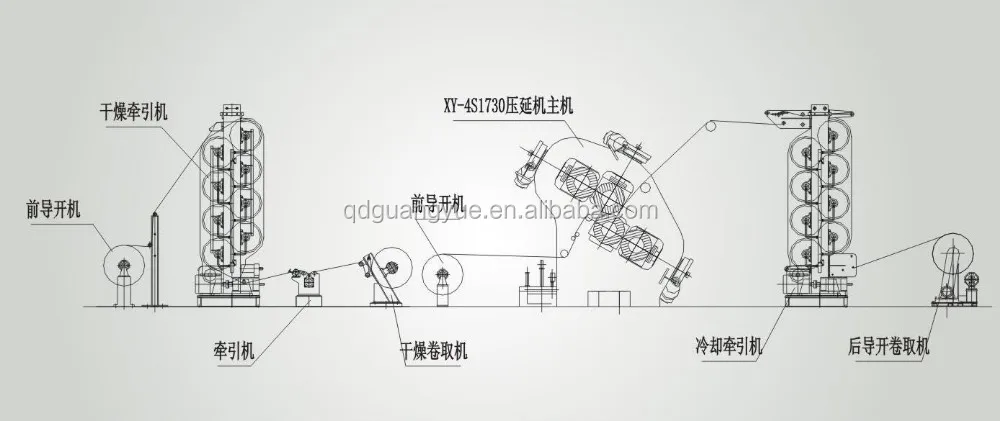

 schematic_diagram_of_production_line_with_four_roll_rubber_calender_and_its_auxiliaries

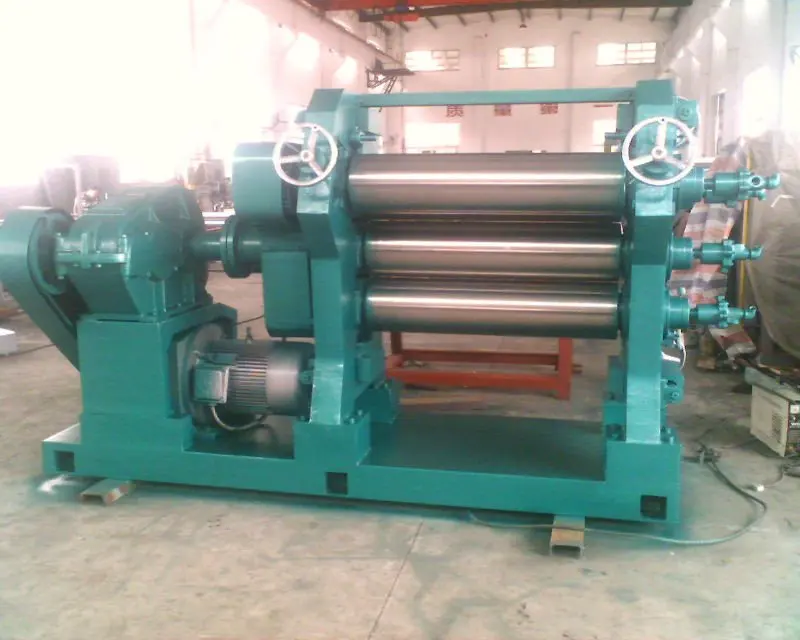

 11021138_1









9)2014-11-03DSC00025_DSCN0937
