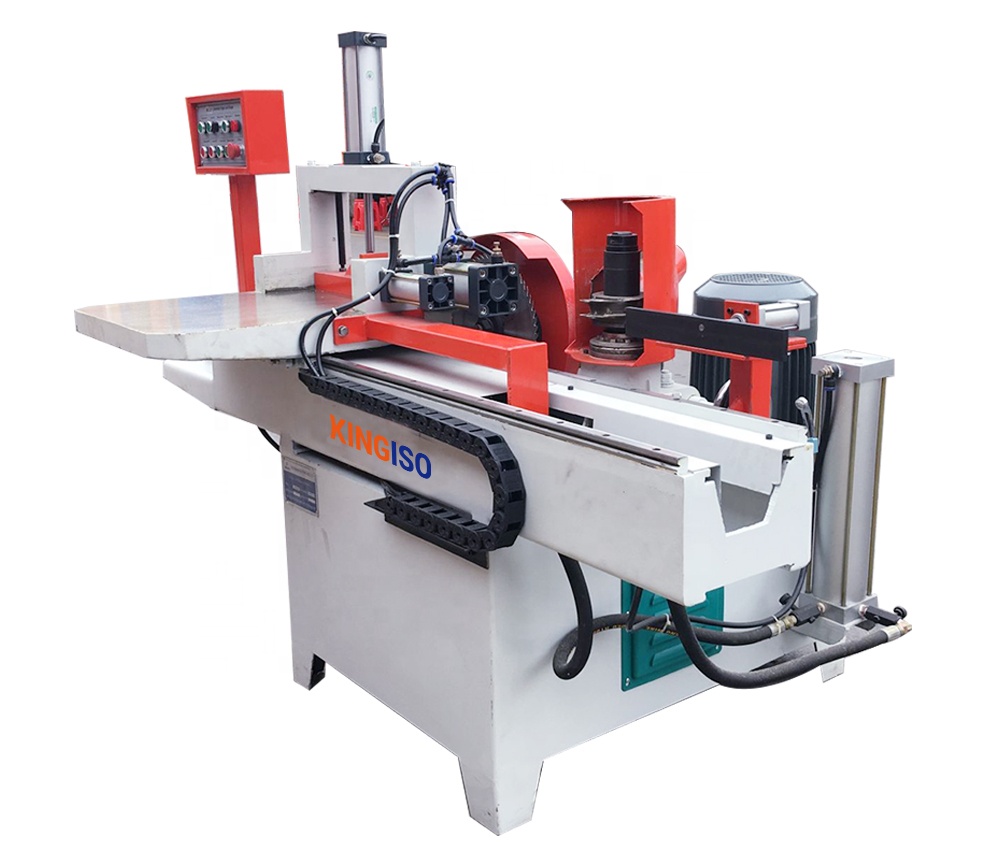

wood semi-auto finger joint shaper MX3515B with CE

Product Description

.jpg

Application:

This equipment is used for processing engineering square timber, grooving operations.



Features:

1. The equipment is equipped with automatic vacuum cleaner, which has high efficiency of automatic dust absorption after tooth opening and saves labor.

2. Precise linear guide rail is adopted to ensure the accuracy of the longitudinal Angle of the tooth shape after the wood tooth opening.

3.The worker only needs to comb the wood on the working table of the tooth comb. The machine can deliver the material automatically. When it reaches a certain length, press the switch, and the machine can work naturally.

4.The equipment is equipped with a full head circular saw, which can realize the processing of waste wood tooth opening and flat head



Advantage:

1.All gas - liquid dynamic components adopt high quality products produced by ISO and CE certification enterprises.

2.This machine can improve the efficiency by 3~5 times.

3.This equipment is more efficient and improves the working efficiency of the workers compared with the conventional wood finger joint shaper machine

4.High quality goods, low price, this equipment is your wood comb teeth processing of the choice



Technical  Parameters:



MX3515B

MX3514B

Worktable size

650x650mm

650x540mm

Max working width

460mm

400mm

Max.working height

140mm

140mm

Shaper spindle diameter

Ø50mm

Ø50mm

Finger cutting knife diameter

Ø160mm

Ø160mm

Shaper spindle speed

7000r/min

7000r/min

Cut off saw speed

2840r/min

2840r/min

Cut off saw shaft diameter

Ø25.4mm

Ø25.4mm

Cut off saw diameter

305mm

305mm

Cut off saw power

3kw

2.2kw

Shaper spindle power

11kw

7.5kw

Working air pressure

0.4-0.6mpa

0.4-0.6mpa

Overall size

1730×1410×1460mm

1500×1410×1460mm

Net  weight

600kgs

550kgs



 MX3515T

Max working width

600mm

Working thickness

150mm

Shaper blade size

Φ160xΦ50mm

Main saw blade size

Φ255xΦ30mm

Scoring saw balde size

Φ180xΦ19mm

Shaper spindle speed

5000rpm

Main saw blade speed

2840r/min

Scoring saw spindle speed

2840r/min

Shaper spindle power

11kw

Main saw blade power

4kw

Scoring saw power

0.75kwx2

Gluing power

0.37kw

Gluing pump power

1.5kw

Total power

18.37kw

Pressure of air system

0.6-0.8MPa

Overall dimensions(LxWxH)

3200*1800*1460mm

Weight

1400kg

Detailed Images


MX3515T:


Finished Products


Packing&Service



1.Delivery:

We can guarantee delivery on time.

We also can sign on-time delivery contracts. If we can’t deliver on time, we will give the product a corresponding discount.

2. Package:
We will take care of your machinery packages well like picture show.
Our workers will make sure your machine clean before package.
We will add stretchy film for the whole machine and spare parts for delicate protection.
We will make export standard strong Wooden box case package as your request.
3.Guarantee:
The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem ,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.
4.Technical support:
Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service machinery overseas.
5. After sales services:
Our machine is installed and tested well before delivery. You can operate the machine immediately after receiving machine.
If you don't know how to use the machine, we will offer you free training until you can use machine freely. And If there is still have any question, please contact us by Email, Skype, Wechat, WhatsApp, Phone and Trade Manager online service at any time.
