CE approved gas generator 1mw parallel to 4MW power plant

Product Description

CE approved gas generator 1mw parallel to 4MW power plant meeting the requirements of environmental protection and new mareket environment. The fuel can be natural gas, biogas or LPG. They are widely used in areas of oil fields and regions abundant in natural gas or biogas. The genset is quick to start and easy to operate with complete protection system. Most of its economic parameters are capable of leading this industry. The gensets can be used as power stations for oil fileds and local enterprises.

Gas generator

Model

WP1000GFQ

Prime power(KW/KVA)

1000/1250

Type

open type, silent type, trailer type

Current(A)

1800

Voltage(V)

110/220, 230/400

Frequency(HZ)

50/60



Engine

Engine Brand

Zichai

model

8300ZLD

Rated Power(KW)

1100

Cylinders

8

Bore

300mm

Stroke

210mm

Rated Speed

1500rpm

Start Method

24V DC starter

Speed Governing

Electrical governor

Cooling Method

closed water cooling

Gas Consumption(m³/h)

Natural gas: 0.3 Biogas: 0.6



Alternator

Brand

Stamford, Marathon, Leroysomer

Rated Power(kw/kva)

1000/1250

Rated Frequency(HZ)

50hz

Rated Voltage(V)

230/400V

Power  Factor

0.8 (Lag)

Connection Type

3P4W

Excitation Method

Brushless

Voltage regulation

AVR

Protection

IP23

Class

H

Technical Advantages:

1. Adopting advanced Hall ignition sensor and Highly capable ignition system, the engine ignition will be more reliable, and easier to start.

2. Main control parts are imported from USA and Italy, to make more stable and reliable running.

3. Several gensets can be parallel connection , which can increase the total power range. In addition,the gensets can take maintenance in different times,which will make little influence to the normal performance of gensets.

4.  Low gas pressure is acceptable,  no need to set up specified gas storage tank , which will save the investment and enhance the efficient output power .

5. Self-contained parts of gensets needs few accessories

6. Economical and low-cost running.

7.The fuel of gas reduces the accumulated carbon, which lessen the damage to between cylinder and valve, therefore, it will largely prolong lifetime.

8. The installation of  high-quality control cabinet set enable multiple protection, which enhance the safety for the running of gensets.

Gas Generator Set working condition:

Normal working conditions:

Atmospheric Pressure: 100kPa,  Ambient Temp: 25°C, Relative Humidity: 30%, Altitude: ≤1000m

Gas requirement:

Applied gas type :

Nature Gas, Biogas, LPG, CNG, LNG, oil field gas, Syngas, Coal bed methane, straw gas,wood gas etc.

Gas inlet pressure: 0.8-2.0kPa, higher water pressure must use additional decompression machine.

Gas heat value≥5500kcal/Nm3 (23MJ/Nm3 ).



Genset output power will increase as the gas heat value increase, if use low heat value gas for fuel (Heat value<5500kcal/Nm3, it will lower the power efficiency.)



The gas must be to desulfurize and dehydrate and dust removal.

 H2S ≤ 200mg/Nm3

 NH3 content≤20mg/Nm3

 Impurity granularity ≤ 5 μm

 Impurity content ≤ 30 mg/Nm3

 No liquid ingredients (not including free water, light hydrocarbon)

 CH4 content ≥ 55%

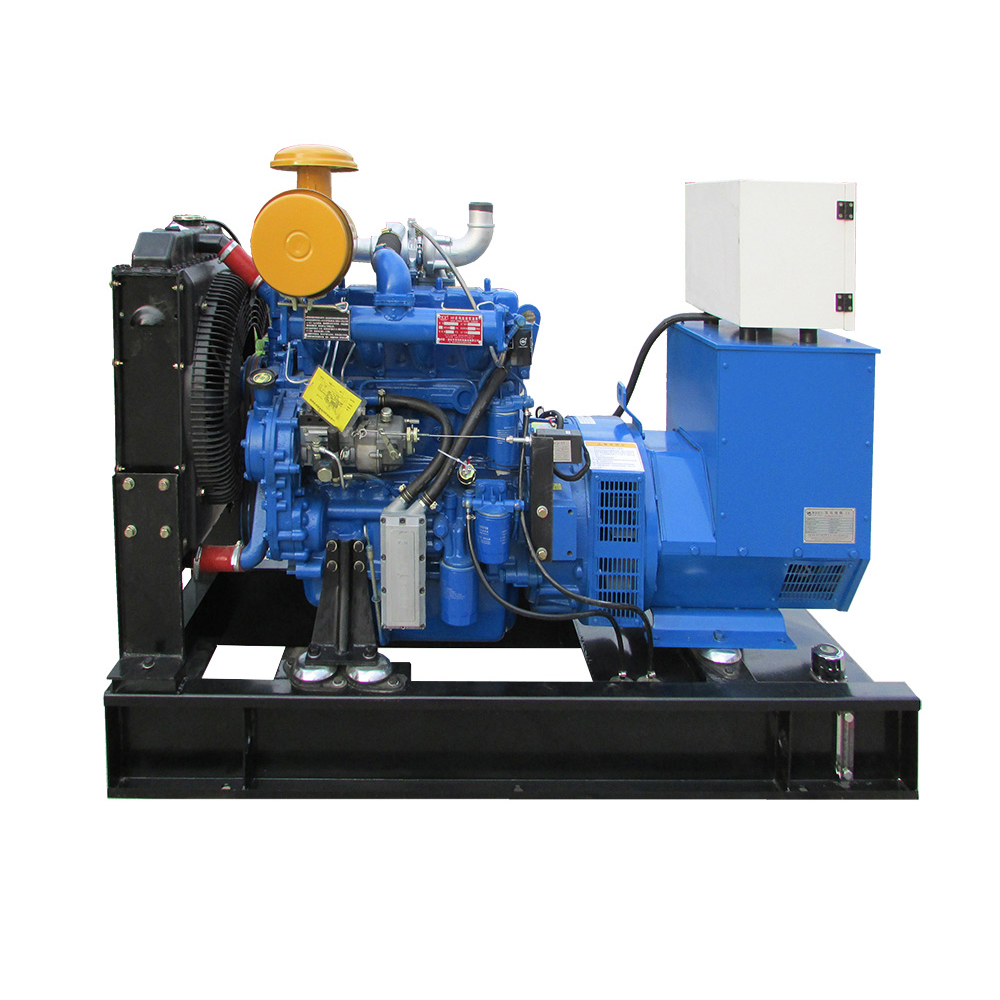

Open type gas generator


Silent type gas generator with CHP






Application case

 .jpg

Production Flow

 Production process.png

Packaging & Shipping


Company Information



Weifang Power Machinery Equipment Co.,Ltd is based in the world beautiful kite city---Weifang City, Shandong Province, mainly engaged in R&D, producing and marketing of all kinds of diesel generator, gas generator and diesel water pump sets.

Power Machinery annual production of various types of gen-sets is more than 5000 units, power coverage 10—2000kw. It is coupled by world famous brand engine such as Perkins, Cummins, Deutz, Weichai, Yuchai etc with world famous brand alternator such as Stamford, Marathon, Simense etc. It currently widely used in the national defense, telecommunications, petroleum, medical, plateau, railway, wilderness rescue, agriculture and other fields.
