High stability finger joint line semi-auto finger joint production line

Product Description

MHB1560x600 .jpgApplication:

This machine used for waste wood recycling, will have an ear on construction sites and other regions, waste wood to open after the tooth comb, the glue wood machine pressure, can be achieved using length, this process of regeneration, wood can be used as a new wood, for the world to save energy and cost savings for the enterprise.



Features:

1.Guide rail of finger joint shaper’s conveyor is japan precision linear guide rail to gurantee the shaping accuracy .

2.The design for finger joint shaper is double blades+tooth-tenon knife assembly to provide high precision.

3.The conveyor table of finger joint shaper adopts German pneumatic hydraulic conveyor system to control bakc and forth ,smoothly,low maintenance,high quality .

4.The second push part of finger joint assembler adopts long+short double pushing board design,by this kind of structure ,it can assemble very short workpiece to reduce the cost .

5.Whole machine is conveniently operated by PLC Central integrated programmable controller.



Advantage:

1.Save wood and material cost

2. Semi-automatic production line greatly improves the working efficiency of workers and saves labor costs

3.Two people of the complete set of machinery can complete the operation, with low safety risk and low accident rate of work-related injury. In addition, the safety protection measures of the wood receiving machine are in place, making the whole operation safe and reliable.



Technical parameter:

Model

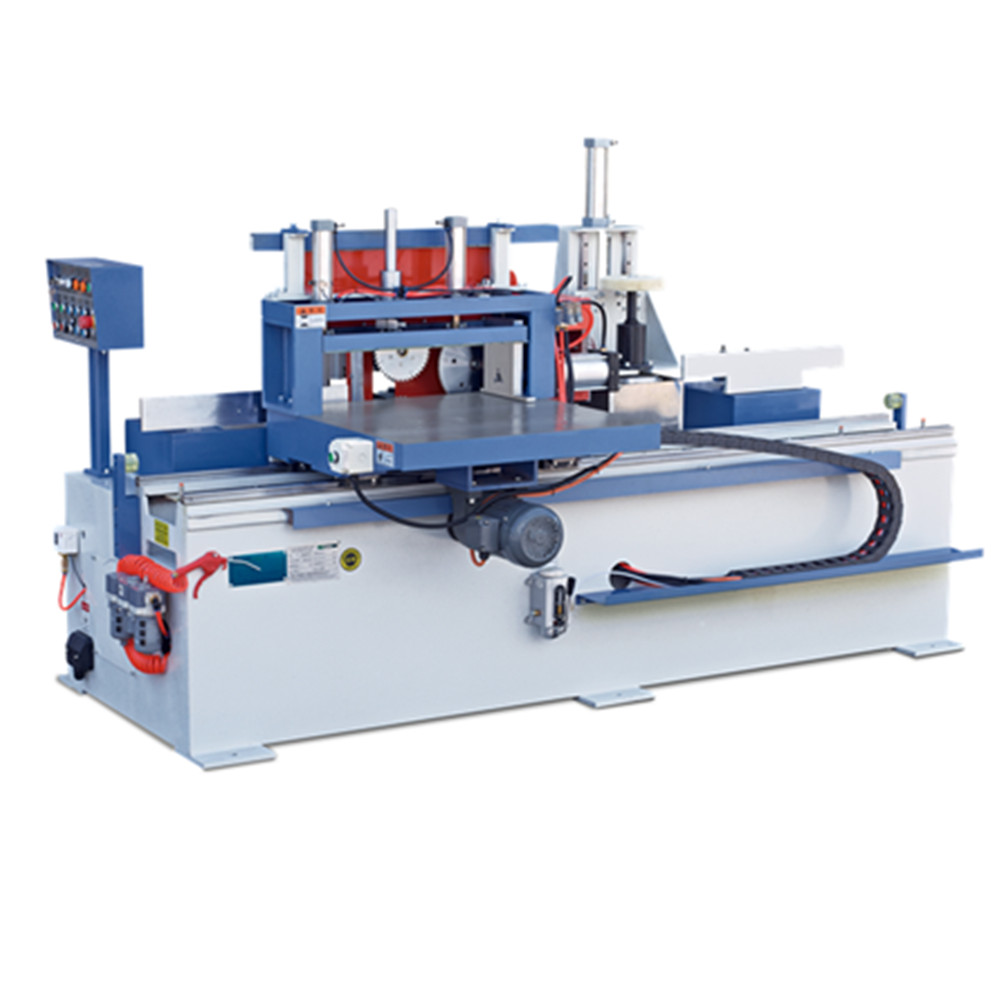

MXZ3515 Finger joint shaper

MXZ3515T Finger joint shaper with automatic  gluing device

Table Size(LxW)

850x600mm

850x600mm

Max working size(LxWxH)

850x80x150mm

850x80x150mm

Min working thickness

150x20x30mm

150x20x30mm

Cutter speed

6000r/min

6000r/min

Draw saw speed

5600r/min

5600r/min

Trimming saw speed

5000r/min

5000r/min

Shaper blade diameter

160mm

160mm

Shaper spindle diameter

70mm

70mm

Main saw blade size

255mm

255mm

Cutter motor power

11kw

11kw

Saw motor power

5.5kw

5.5kw

Feeder motor power

0.375kw

0.375kw

Total power

16.12kw

16.87kw

Working air pressure

0.5-0.8Mpa

0.5-0.8Mpa

Net weight

2000kg

2200kg

Overall diamensions

2380×1700×1400mm

2580×1700×1400mm

Model

MHB1560 Finger joint assembler

Max.assembled size

6200x150x80mm

Max.working length one time

6200mm

Max.working width

150mm

Max.working thickness

80mm

Min.working length

2000 mm

Min.working width

30mm

Min.working thickness

20mm

Blade speed

3700r/min

Saw blade dia

355 mm

Saw blade power

3kw

Oil pump motor power

5.5kw

Working air pressure

0.5-0.8Mpa

Max.thrust for oil pressure

7800Kg

Max.output

25m/min

Overall diamensions

4700×1000×1420mm

Detail:

.jpg

Finshed Products


Packing&Service

1.Delivery and Package:
We will take care of your machinery packages well like picture show.
·Our workers will make sure your machine clean before package.
·We will add stretchy film for the whole machine and spare parts for delicate protection.
·We will make export standard strong Wooden box case package as your request.
2.Guarantee:
The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem ,you will get spare part for free . more than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.
3. Technical support:
·Technical support by Phone, Email ,Wechat, WhatsApp and Skype,24 hours online.
·We provide English version manual.
·Engineer available to service machinery overseas.
4. After sales services:
Our machine is installed and tested well before delivery. You can operation the machine immediately after received machine.
If you don't know how to use the machine,we will offer you free training until you can use machine freely.And If there is still have any question, please contact us by Email, Skype, Phone and Trademanager online service at any time.
