USR-T2 последовательного порта RJ45 Модуль UART TTL к Ethernet TCPIP преобразователя Поддержка DHCP и DNS

Share on:


Price:9,00 $ - 11,00 $
Price in USD:Details

Quantity:


Product Overview

Description



Welcome to Minisite






Product Description

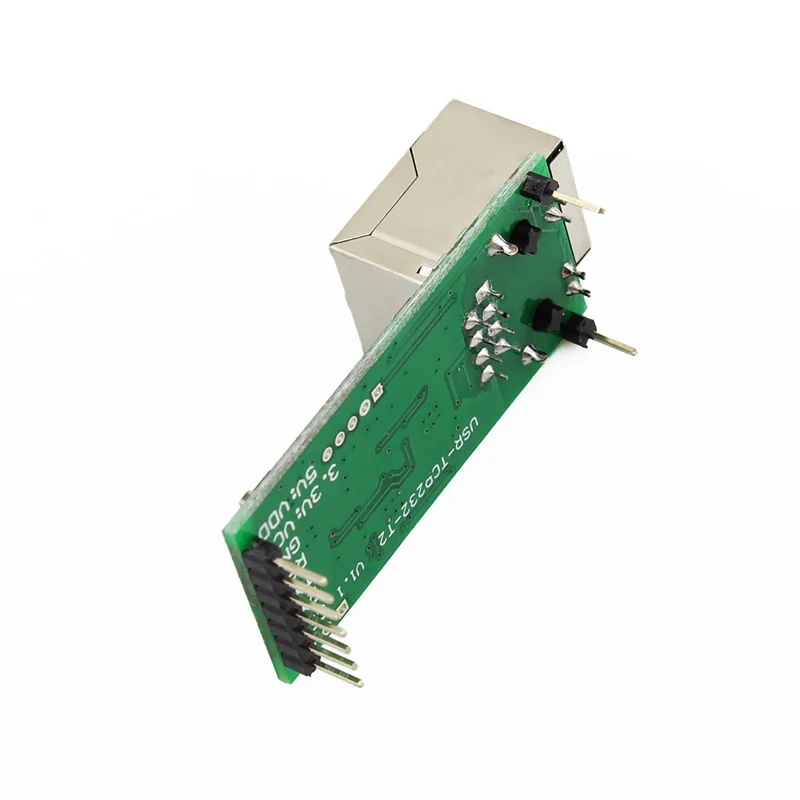

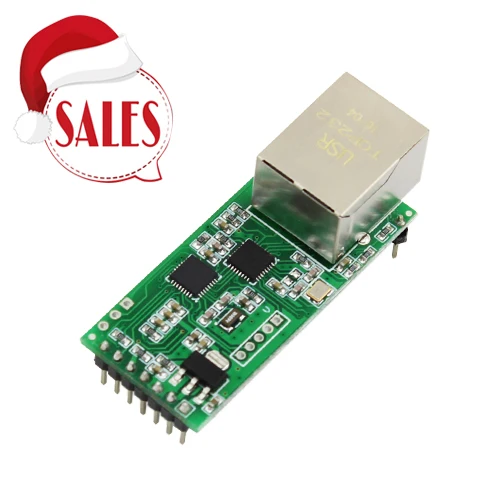

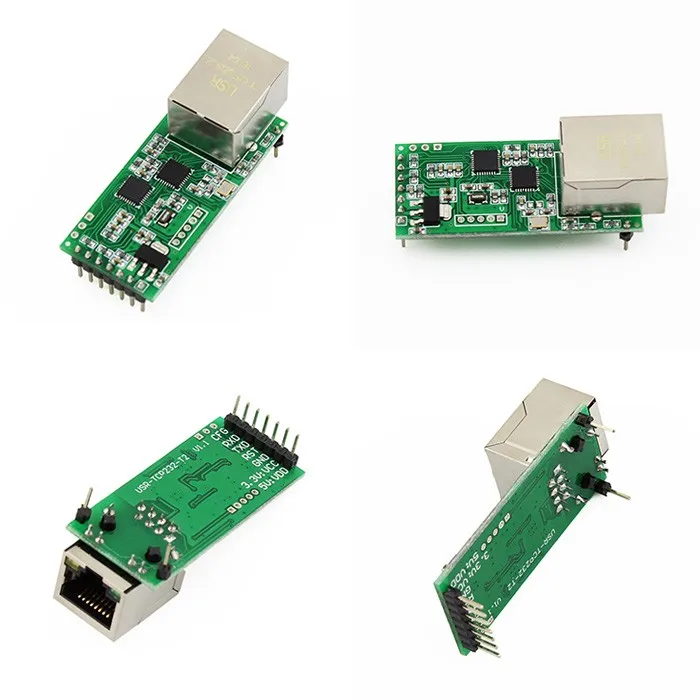

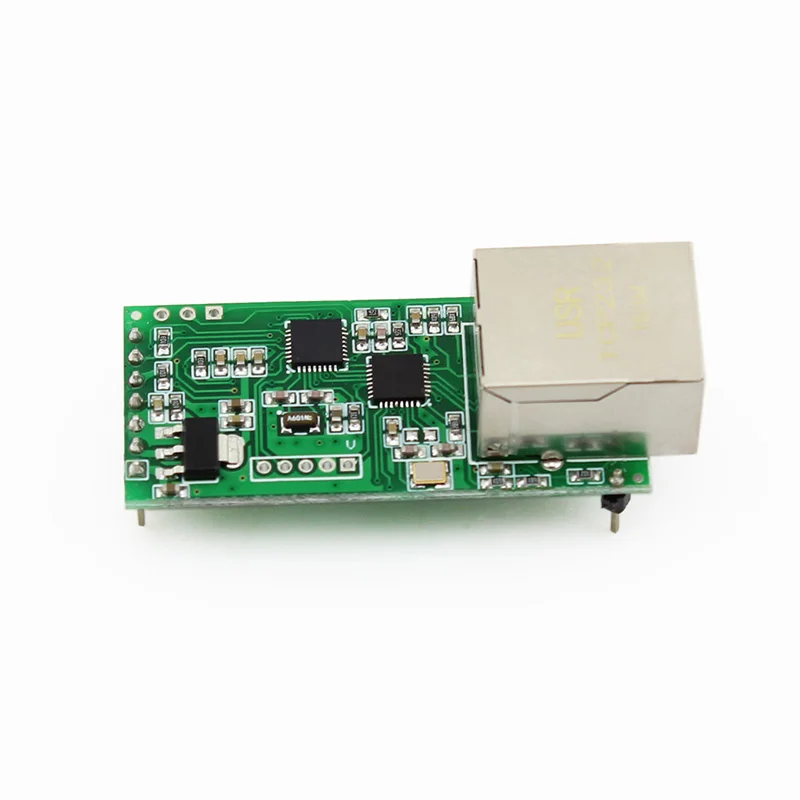

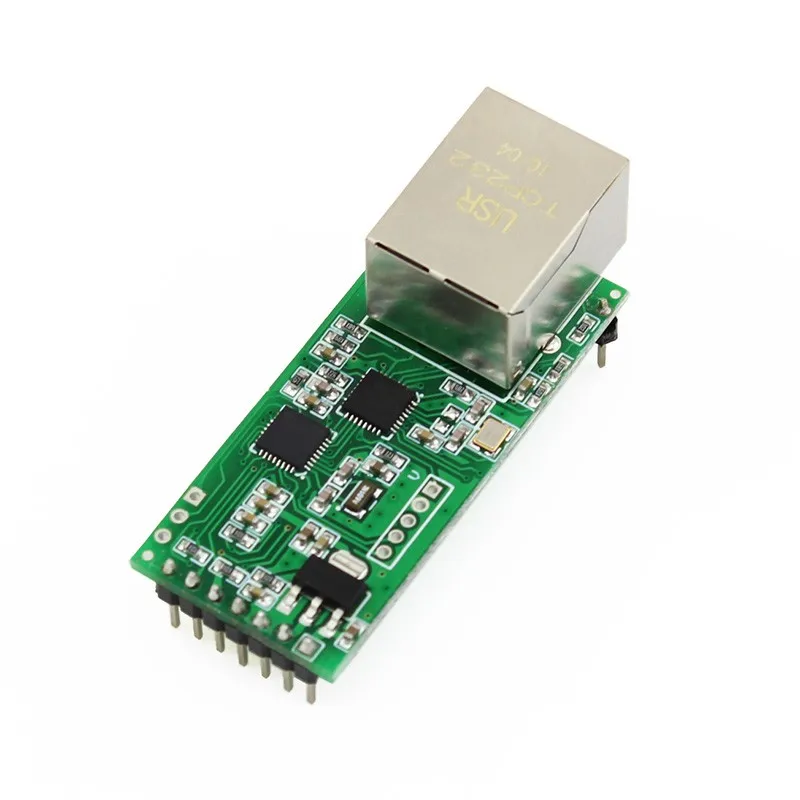

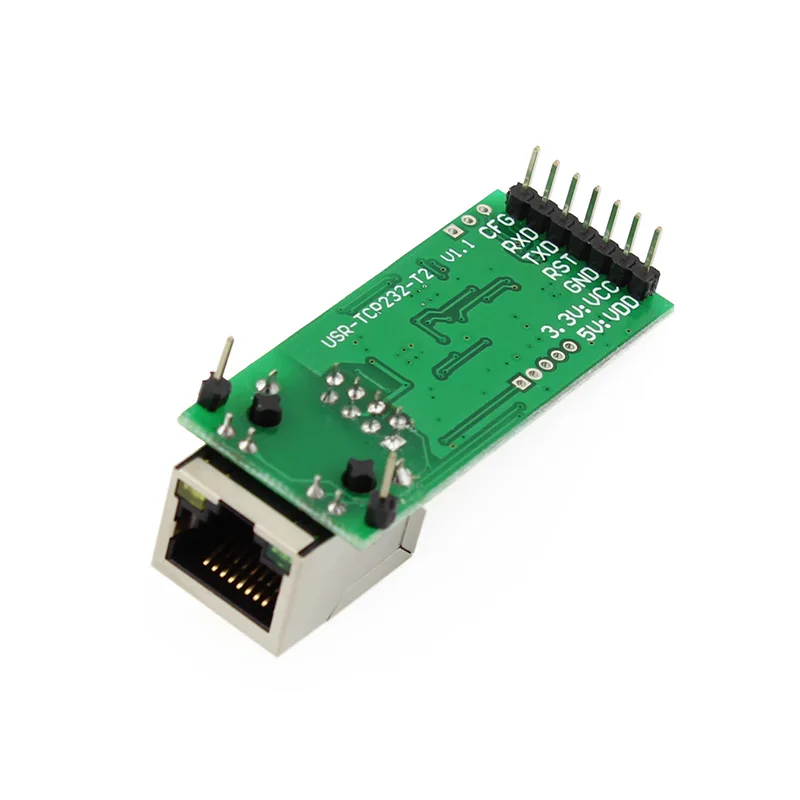

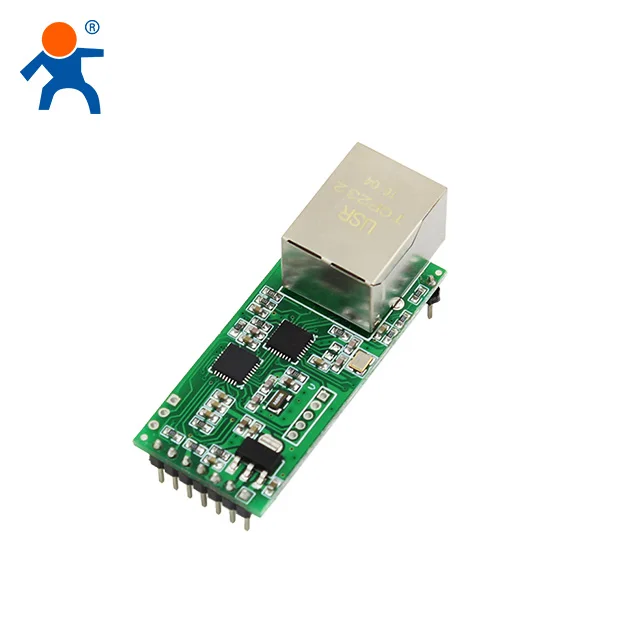

USR-TCP232-T2 is a tiny size serial Ethernet module which can realize data bidirectional transparent transmission between TTL and RJ45 Port. It can also be applied in RS232 / RS485 by level shift circuit.USR-TCP232-T2 is based on Cortex-M0 core. It has characters of low power, fast speed and high efficiency.



Feature


Network Port Interface
RJ 45
Power Supply
VDD 5V~7V
Serial Port Number
TTL*1
Work Mode
TCP Client/TCP Server/UDP client/ UDP server/HTTPD client
Basic Function
DHCP/DNS/Webpage
Baud rate
600~230.4K bps
Certification
CE/FCC


Point 1

1.LTE 4G Modems
2.Restore factory defaults by hardware and software
3.Insert SIM card

4. Support firmware upgrade via network

Point 2

1.Heartbeat packet, ensure connection reliable
2.Register packet, check connection status and use as custom packet header

3.Query IP address through serial setting protocol



Character


Serial Port
RS-232 / RS-485 / RS422
Port Type
RS-232: DB9 male port; RS-485: A+/B; RS422: TX+/TX-/RX+/RX-
Baud Rate
600 bps ~230.4K bps
Data Bit
5/6/7/8
Stop Bit
1/2
Buffer
Receive: 2K bytes;
Flow Control
Not this function
Protect
RS-485: ESD/lightning protection/ 2KV electric static protection


Ethernet
1 Port
Speed Rate
10/100 Mbps, MDI/MDIX
Buffer
Receive: 4K byte / Send: 6K byte
Protection
2 KV Electromagnetic isolation for Ethernet port
Network Protocol
IP/TCP/UDP/DHCP/DNS/HTTPD client
Power Supply
DC 5-36 V (ESD/ Surge prevention)
Work Temp
-25~75C
Software
Setup/Virtual COM

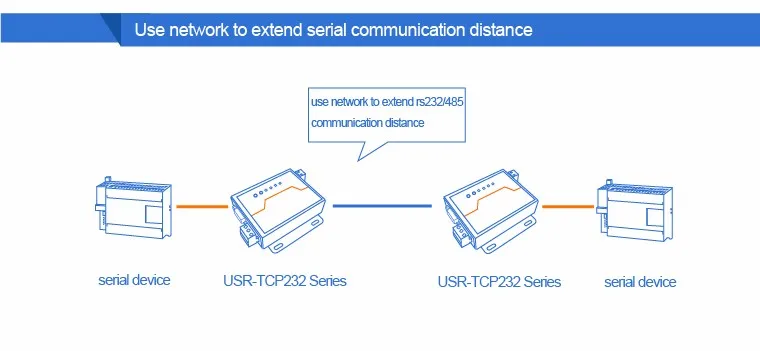

Application














Certificates




                  CE                                            FCC                                            RoHS                                 WEEE
