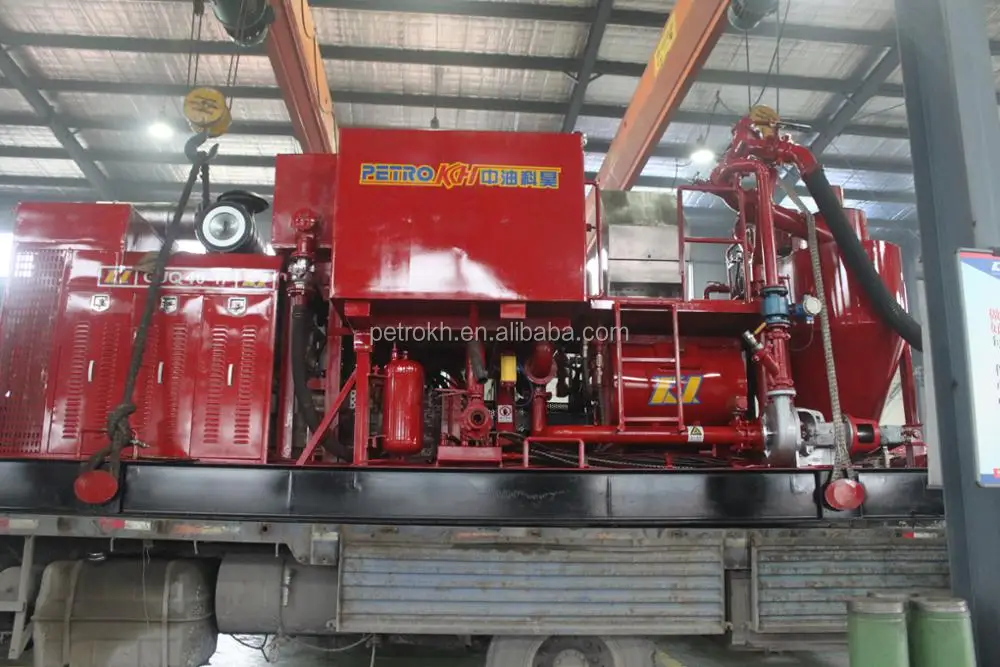

40-17 cementing skid mounted

Share on:


Price:RUB 11,375,160.00 - RUB 14,408,536.00
Price in USD:Details

Quantity:

  • add to wishlist

Product Overview

Description

Product Description



GJC40-17 cementing skid is mainly used for the cementing work in depth well , middle depth well and shallow well . It can realize the procedure of slurry automatically production , slurry injection , mud displacement ,pumping , and it can be used for well washing and the fracturing working for shallow well .
GJC 40-17 cementing skid is on a self-propelled skid with one horizontal triplex plunger pump .The plunger pump is driven by engine on skid when working and is driven by engine on skid when moving . The skid is equipped with slurry mixing system and is with re-circulation function . The whole skid consists of circuit system , hydraulic system , air system and mechanical transmission system . All the control system are on the control panel , highly automatic and can be operated by one person .

Deck Engine: Cummins KT19



Deck Transmmion: Allison HD4700OFS



Pump: 3ZB-265



Specification:



Weight 19t



Dimension 9630(L)x2470(W)x3610mm(H)



Max. Pressure 40Mpa



Max. Flow 1.7m3



Density Range 1-2.1g/cm3



Mixing Capacity



Working Temp. -40 °C ~+50 °C

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Packing & Delivery
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is iron box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

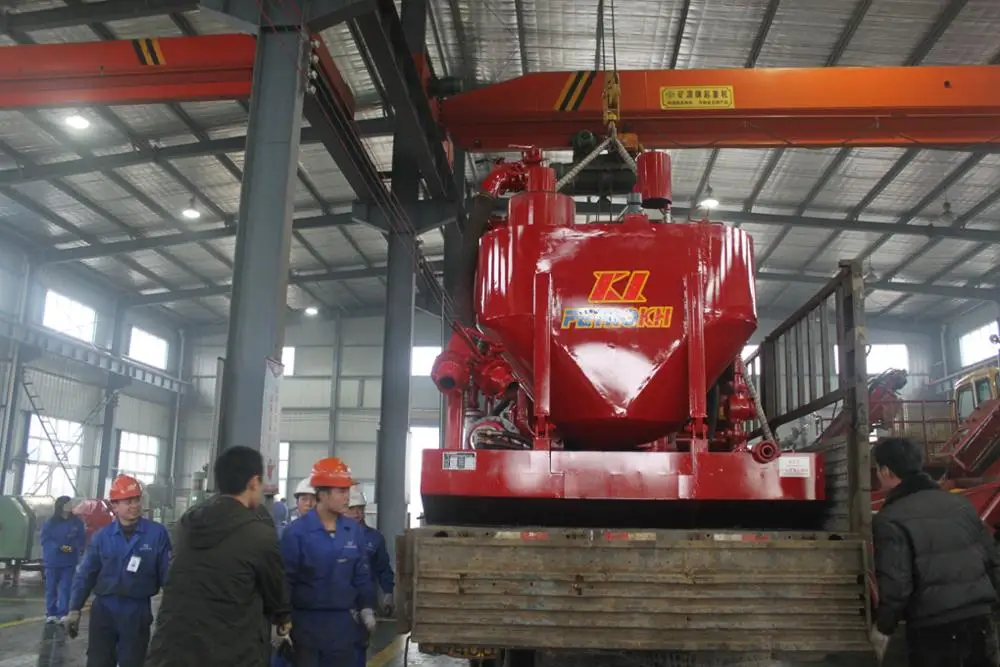

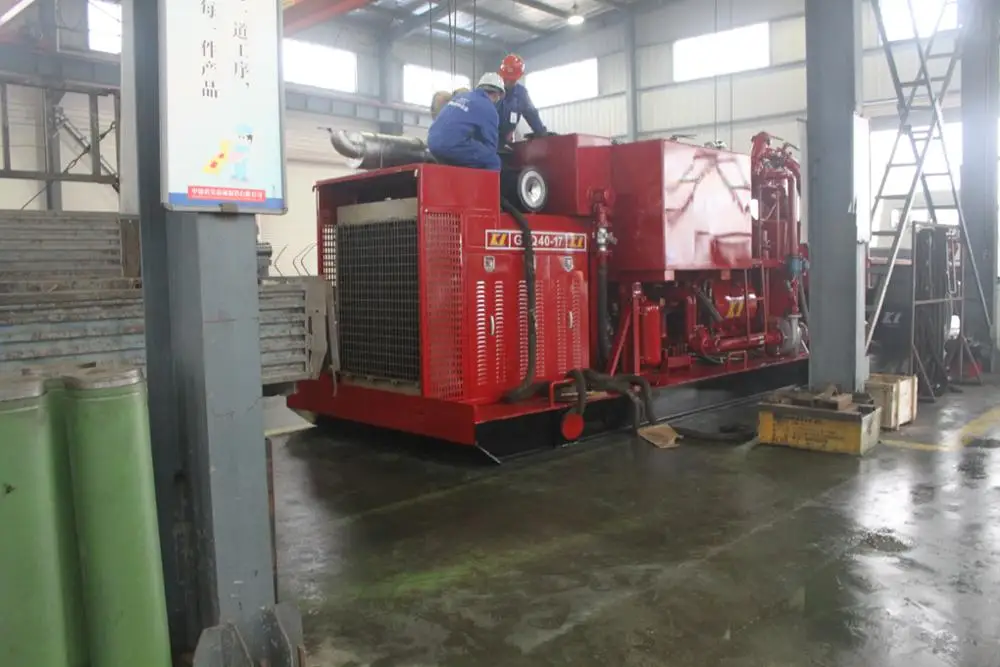

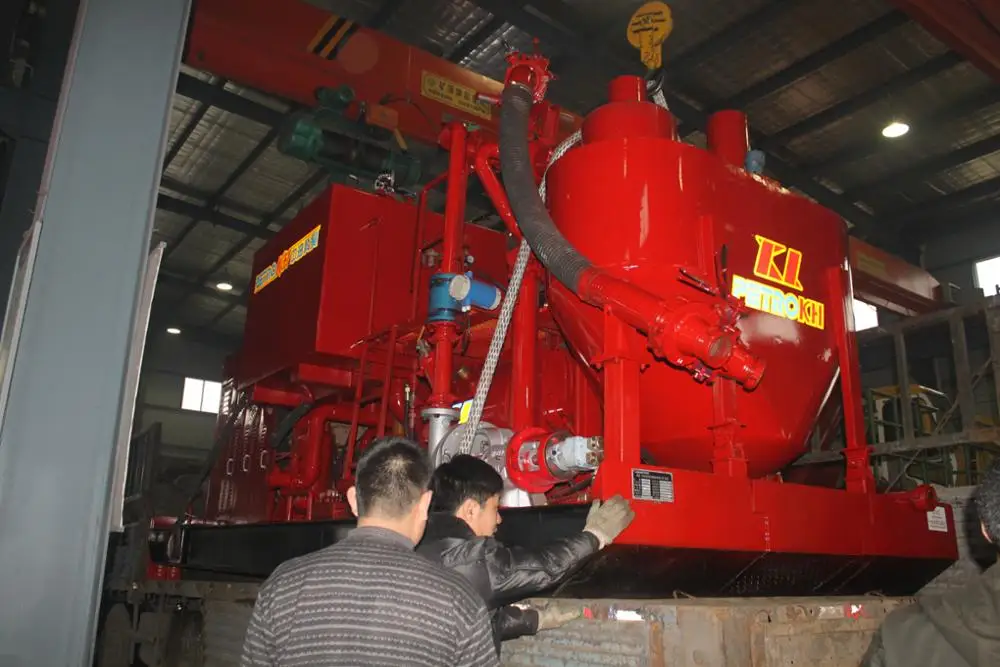

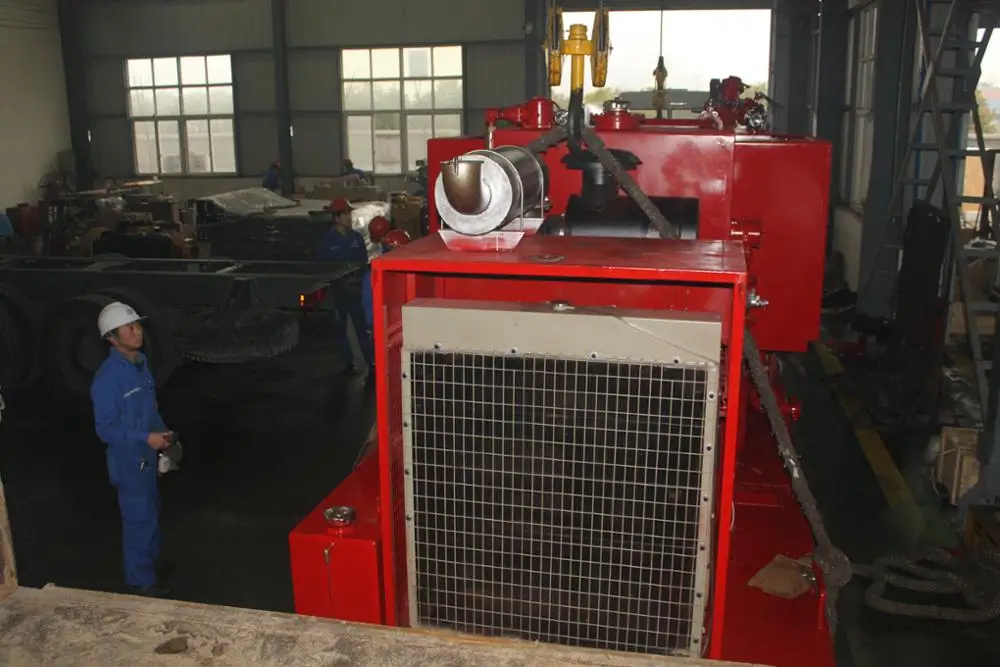

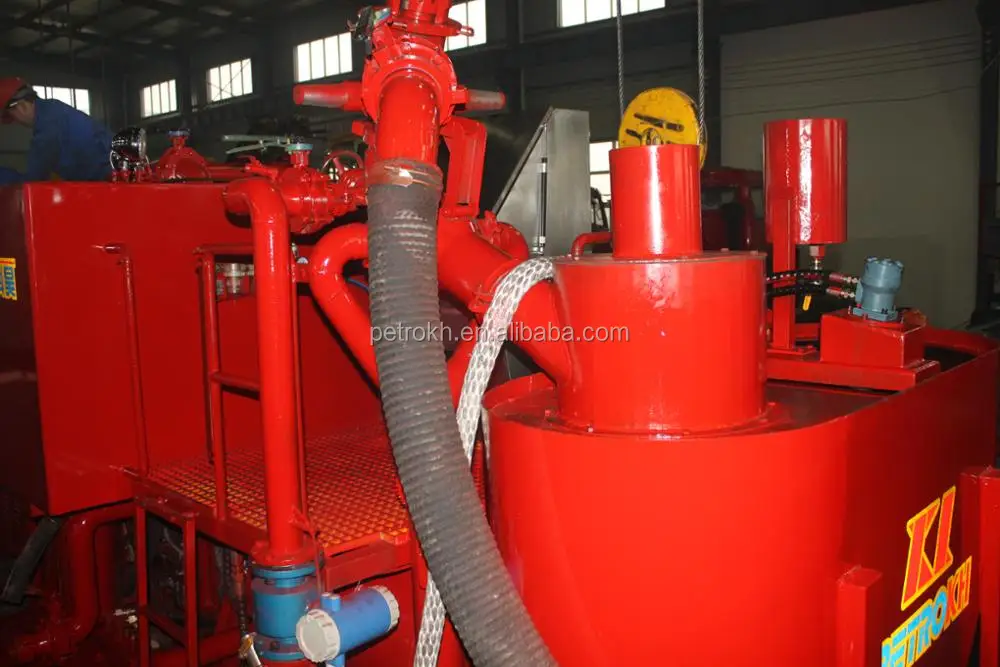

Detailed Images

Machine Parts

Name:  engine

Brand: Commins

Original: China

Domestic famous plunger, strong driving force, low fuel consumption, high economic benefits.

Main Features

Name:  plunger pump
Brand: KH
Original: China
Domestic famous, strong driving force, low fuel consumption, high economic benefits.

Machine Parts

Name: transmission box
Brand: Allison
Original: America
Foreign famous, strong driving force, low fuel consumption, high economic benefits.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
