Product Overview

Description

7 inch Dual Screen Touchable Android POS with Free SDK

Welcome to contact Lina :

skype: zkc-lina

Email: lina#sznewbest.com(change # to @ )

Tel: 86-18617014546

Product Description

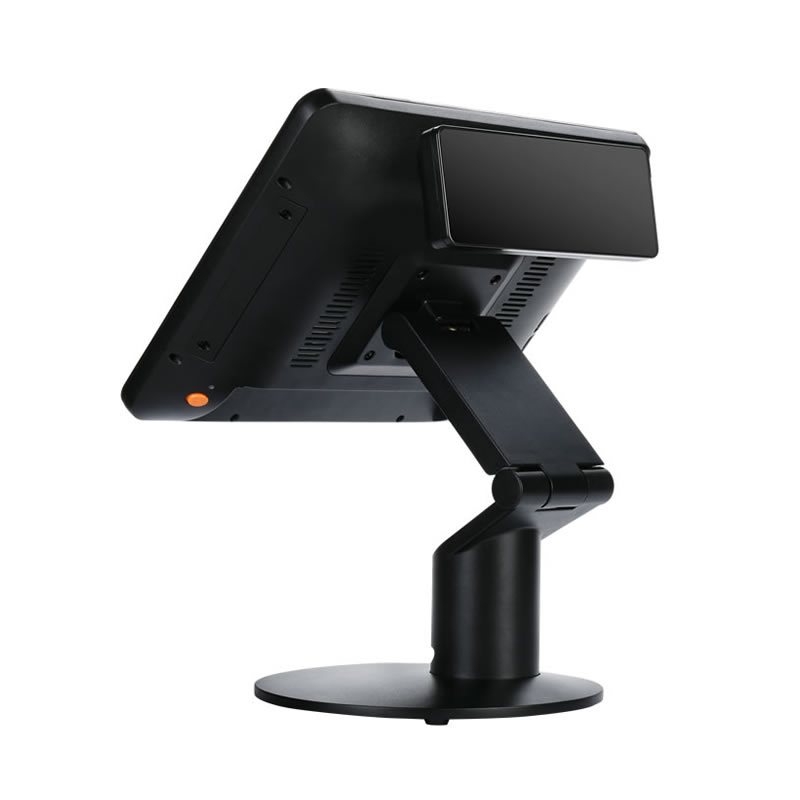

PC900 All in One Touch Screen POS Terminal is one of the best selling ALL-IN-ONE Touch Screen POS Terminal, has a stylish, unique design, Used widely  for restaurant, bar, hotel, cafe, supermarket, shop, store.

This model POS terminal is a all-in-one touch screen pos terminal with the 7 Inch Capacitive Touch Screen, builted in 58mm high speed printer and customer display, integrates 3G,WIFI,bluetooth,RFID/NFC reader,camera,1D/2D barcode scanner etc.

It has small size, complete function, strong compatibility and stable performance, and the android system is easy to operation.

We will provide free SDK after your sample order,provide technical support during developing.



Main features:



1.Support wifi.3G



2.With dual screen 7" and 4.3"



3.Support NFC&RFID read and write ( ISO14443 ) protocol ( 13.56Mhz )



4.Support PSAM financial level IC card encryption card read-write



5.Support 2 million pixel camera,The two generation ID card photo identity and recognition function



6.Support for external serial printer,Barcode Scanner,External other devices



7.Support SIM card data reading



8.Support secondary development(Provide SDK development kit)



9.suitable for hotels, supermarkets, business offices, electronic payment, logistics and other places



10. With CE,Rohs,FCC certifications by a national certification organizations.







Product Parameter





Model No.

 PC900

CPU

Master

Cortex-A7

Frequency

Dual-core 1.2GHZ

Memory

RAM

1GB

NAND Flash

8GB

Display

Size

7 inch    Resolution: 1024*600

4.3 inch  Resolution:480*272

screen

Color TFT display

OS

Android 5.1 OS

Hardware

WIFI

IEEE802.11b/IEEE802.11g

Communication

2G:GSM 850/900/1800/1900

3G:WCDMA850/2100MHz

PSAM

IC card read/write,supports IOS7816-1/2/3/4 protocol and <China financial integrated circuit (IC card) PSAM card specification>

Bluetooth

Bluetooth4.0

Camera

Front: 2MP   Back:5MP

Thermal printer

58mm thermal printing, printing speed:80mm/s

1D/2D scanner

Barcode: EAN-13,UPC-A,UPC-E,EAN-8, Code 128,Code 39,Interleaved 2 of 5 barcode

NFC

Frequency:13.56M  Protocol:ISO14443A,ISO14443B,ISO 15693,Sony FeliCa MIFARE read/write

P2P data communication

Active 106 to 424 Kbps Initiator andTarget

Passive 106 to 424 Kbps Initiatorand Target

Reader for NFC Forum Tags 1 to 4

MSR(Optional)

Magnetic card reader, supports tracking 1,2,3

Video Player

Support audio/video player

Interface

1* USB Port

1* TF card slot

1* DC port

1* reset key

Battery

Capacity

2300mA 7.4v

Charging time

About 3 hours

Working time

About 6 hours

Standing time

About 120 hours

Accessory

1* charger, 1* USB cable, 1* battery





Detailed Images

 PC900-smart-terminal-800-1.jpgPC900-6580-7.jpgPC900-smart-terminal-800-3.jpgPC900-smart-terminal-800-4.jpgPC900-smart-terminal-800-5.jpgPC900-smart-terminal-800-6.jpgPC900-smart-terminal-800-8.jpgPC900-smart-terminal-800-9.jpg



PC900-smart-terminal-800-10.jpgPC900-smart-terminal-800-11.jpgPC900-smart-terminal-800-12.jpg







Why choose this product?



1.Super core



Adopt Super Dual-core 1.2GHZ MTK6572 Cortex-A7 architecture processor,Performance is higher than mainstream tablet .



2.User-friendly control



Using the platform of open Andriod system,Full touch screen design,Without training also can operate.



3.Highly integrated



Integrates multiple functions,Each function independently of each other, Do not affect each other.



4.Business wireless extension



Basic functions,Value-added services,Intelligence applications, ticketing, bill payment……





Android NFC wireless pos terminal printer with 7'' display & 4.3'' customer display







After-sales service



Warranty&RAM:



All of our products with 12 months warranty from the date of shipment. We do not guarantee consumable items like printer head and ribbon.



RAM procedure:



1.Contact us and let us know what the problem is. It would be better if you can record a video for our analysis.
2.Tell us serial No. of the device. We will appoint after service staff work together with you to solve the problem as soon as possible.
3.If spare parts for repairing requested, please send back the broken part together with guarantee list for our testing and we will send the spare parts or repair it to you once confirmed the problem was caused by our side. Freight cost at our charge. If the problem was made by your side, we will repair it and send it back to you. Freight cost at your charge.
4.Good suggestions will be highly appreciated.
