1530BB


 waterjet cutting machine.jpg

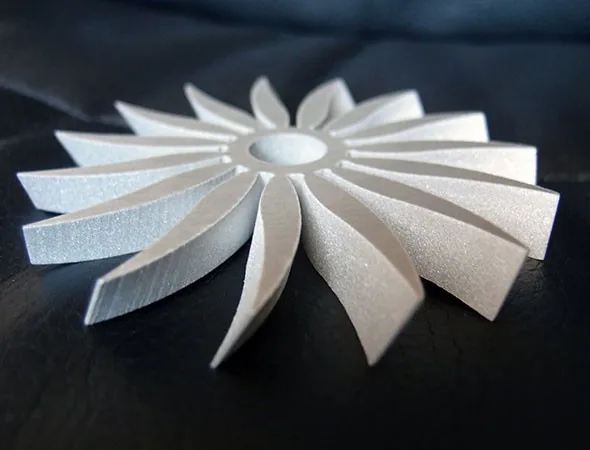

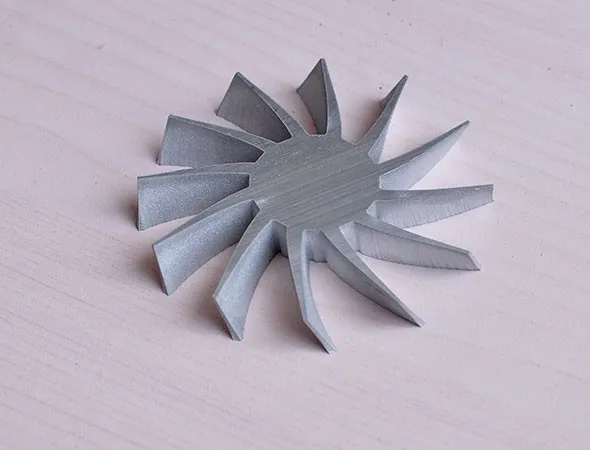

Cutting samples


Designed & manufactured to perfection, we are one of the well known and leading manufacturers and exporters of Water Jet Cutting Machinery. At our premises, we are manufacturing the cutting machinery utilizing premium quality of raw materials and components. In addition to this, the cutting machinery is best known in the market due to its remarkable features such as high performance, easy operation and durability. This Machinery finds usage in many application such as automotive, aerospace and electronics for cutting metals and non metals.


.png


shenyang head waterjetshenyang head waterjet


 Components of water jet cutting machine

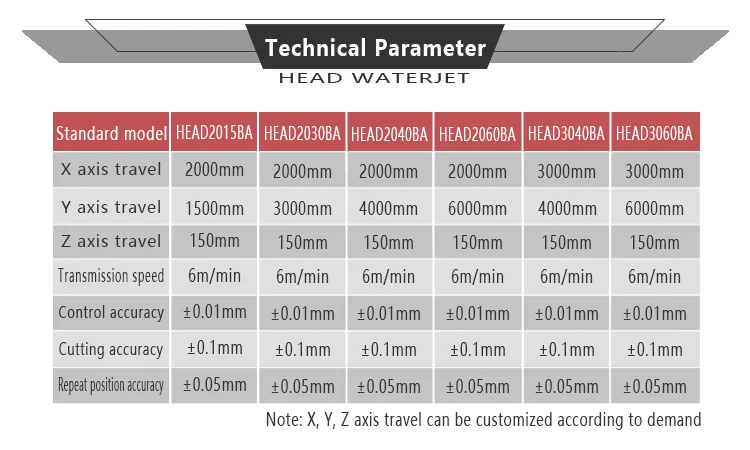

              Main technical parameter of China top professional metal cutting machine waterjet with 5 axis

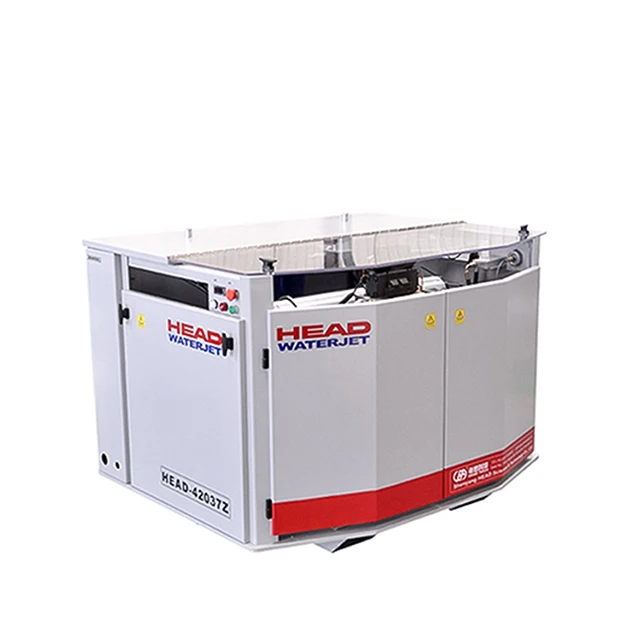

Intensifier Pump





 shenyang head waterjet



                                        Parameter



Type of pressurization  :hydraulic



Max oil discharge   :106L/min



Max operating pressure  :420Mpa



Continuous operating pressure  :380Mpa



Maximum Diameter of orifice  :0.33mm



Power requirme  :37kw  380V/50HZ



                                                    Advantages



1.Pumps are imported from American Accustream company with advanced & reasonable


 structure and high stability.



2. Integrated heat exchanger, high heat exchange ratio and good effect, control the temperature


 of the hydraulicwithin the limit



3. Two-stage water filter(5um,1um,0.45um)minimizes the damage of  high pressure seals


, nozzles and other parts.



4.Two step-up water supply to make sure the pressure, automatic alarm and protection function


when water is inadequate avoid the damage



5.Multiple filter for outlet oil and return oil, pollution alarm, oil cooling and temperature alarming


 ensure the continuous operation

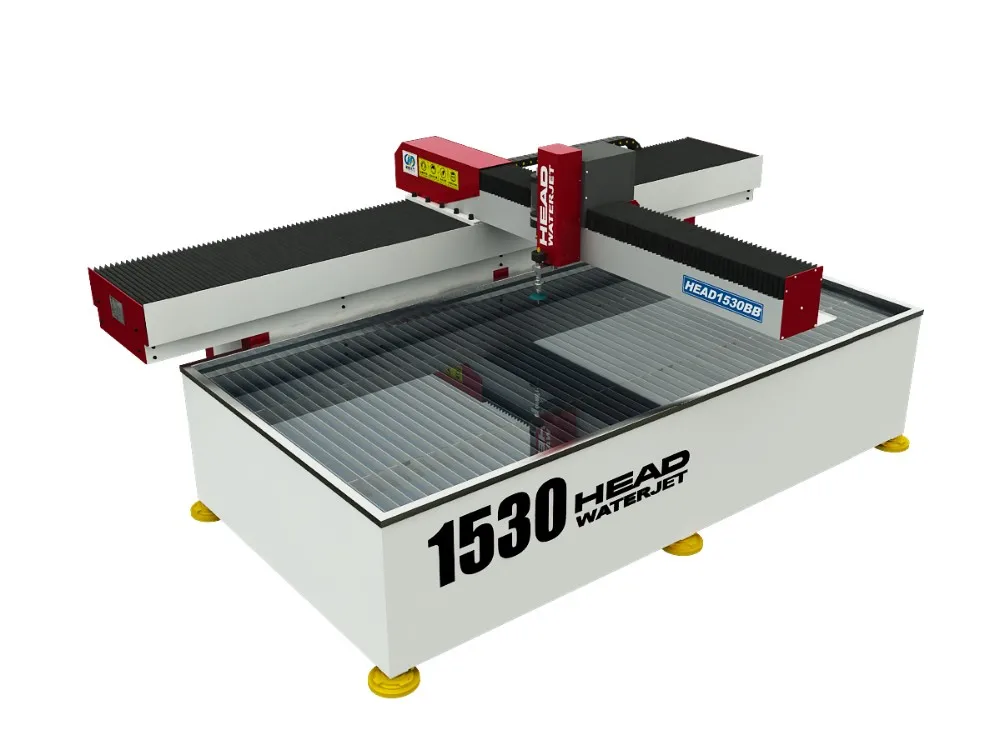

Cutting Table





 shenyang head waterjet






                                              Parameter



X axis characteristic  :One-off extrusion forming aluminum alloy



Y axis characteristic  :Cast iron used as foundation base



Z axis characteristic  :double linear guide and four sliding block



Driving system  :Z axis automatic controll,3axis association process



Driving wave  :Servo drive system



Cutting head  :Casting structure and concrete structure



Sealing way  :Whole piece sealing



                                                      Advantages



 1. Separate body between cutting table and load-bearing platform prevents interfering cutting


accuracy from long-term stress variation to load-bearing platform.



 2.X beam of cutting table applies the one-off extrusion forming aluminum alloy, light weight, strong


 steel, not deformed, is the most advanced technology in waterjet cutting machine.



3. Cancelling dustproof cloth on X, Y, Z axis and hiding Y axis towline greatly improve the machine


 life and save the maintenance cost.



4. Motor and ball screw are directly connected by flexible coupling. It can absorb vibration energy rever


sible and with higher drive accuracy compared with other torsional rigid coupling.

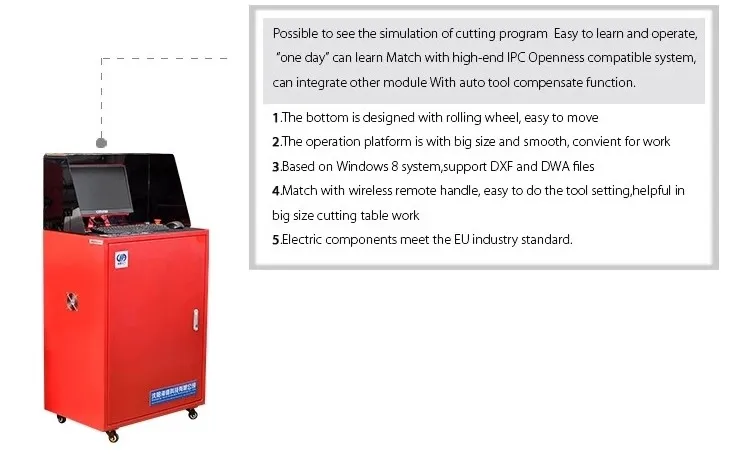

CNC Controller





                                                      Parameter



Display Size  :19inch LCD



Model of Cutting Text  :DXF



Model of Computer  :Industrial Control Computer



Operating System  :Windows XP/ windows 7



Cutting software advantage  :Auto save and transfer common parameter



                                                  Advantages



1. Industrial control computer: high reliability, convenient man-machine dialogue, real-time


 control of the cutting process



2. CNC control, apply 19 inch LCD. facilitate operators to observe and reduce visual fatigue.



3. Appropriate height of operating desk, reasonable display angle, and 180-degree horizontal


 rotation for easy operation and viewing



4. Replace the relay with PLC, with a computer communications, flexible control



5. Professional waterjet cutting software, easy to operate , easy to learn, and practical.

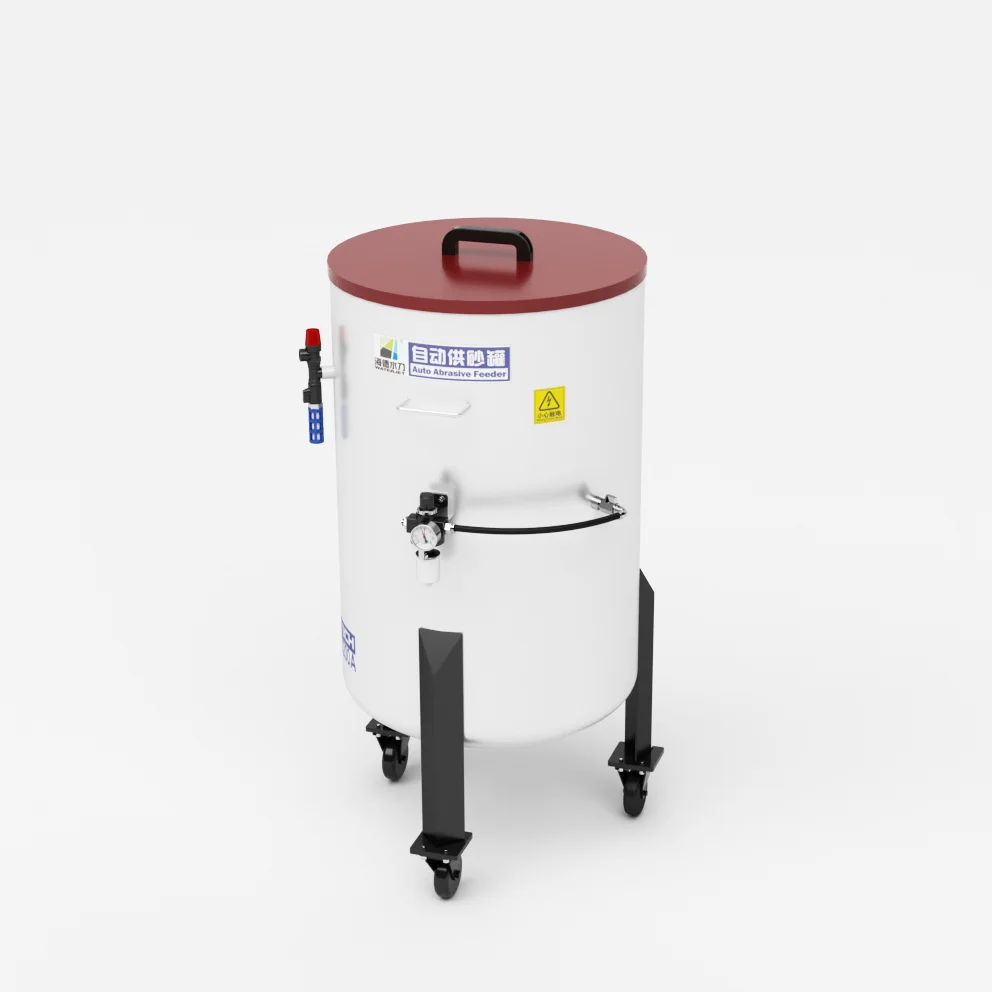

Automitic Abrasive Feeder





.jpg



                                                     Parameter



Founction :Sand storage and sand delivery



Operating  :No need electrocnic control,sample operation



Capacity  :200 liters for 8 hours



Pressure  :Less than 0.2Mpa compresses gas pressure



Level  :Standard equipment of HEAD waterjet



                                         Advantages



1. Can supply the cutting sand quantity according to the adjustable sand level location tube



2. No need electronic control, simple operation, reliable, maintenance-free



3. 200liters capacity can provide enough sand for 8 hours continuous cutting



4. Need less than 0.2Mpa compressed gas pressure,sand amount evenly, delivery smooth



5. It is the standard components of HEAD water jet



Deionization System



                                                      Advantages



1. Professional deionization system for water jet use



2. Remove the calcium and magnesium ion, can improve the useful life of HP seals, orifice



3. The outlet water amount can be 2ton/hour,can supply more than one machine



4. Simple structure and reliable sealing, reasonable design of the flow passage



5. Single tank control valve,no water pass the valve in washing



Wireless Handel



                                                        Advantages



1. WHB06 the wireless remote control handle special design for HEAD waterjet control system



2. It can realize wireless controlling water jet and long-distance materials processing



3. With display function,real-time display X.Y.Z axis workpiece coordinate, mechanical coordinate,


speed,step value.



4. Can set workpiece zero ,back to zero point, back to mechanical zero point,feed speed adjusting



5. Adapt high performance wireless transmission technology,frequency hopping transmission.



Auto abrasive removal system


                                          Advantages

1. Automatic desanding system is specifically designed for high-end customers.



2. It can make maximize savings in manpower and extend the usage life for equipment



3. Keeping the least content of sand in the water tank



4. Maximum keeping the cutting environment clean.





 waterjet product  process.jpg


waterjet production.jpg


waterjet cutter inquiry.png





Packaging & Shipping








Our Package Advantage:
1. Our Wooden Case is after fumigation treatment. Needn't timber inspection,saving shipping time.
2. All the spare parts of the machine were bovered by some soft materials,mainly using Pearl Wool.
Avoiding all damages that could happen in the delivery process.Then we’ll covered plastic wrap out it tightly, make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
3. The outmost is Wooden Case With Fixed Formwork.
4. The bottom of the wooden case has firm iron jack,convenient to Handling and transport.





Before delivery, we would do the test about 20-30 working hours for machine, and use standard packing to each configuration. We choose famous export company and transport company, making shipment more convenient and safer.








waterjet pack, delivery.jpg





Our Services


1. Maintenance free of charge for 12 months .
2. We will provide the consumable parts at an agency price.
3. 24 hours online service, free technical support.
4. Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me.
5. We have manual instruction and Videos for software Installation, operation and machine's using and maintenance; We will send professional technician to customers' factory, provide them two-weeks training, including working principle of machine, Auto CAD drawing, common problems and solution, etc.


waterjet service providing.jpg


waterjet service.jpg
