High precise rotary shear cut to length line price
- Category: Cut to Length Line >>>
- Supplier: Foshan,Hong,Zhong,Machiney,Co.,Ltd.
Share on:
Product Overview
Description
Company Information
Our company (high precise flying shear cut to length line )
Foshan HongZhong machinery Co.,ltd located in Foshan, Guangdong China, It only take 40 mins from Guangzhou airport, as 5000 square meters factory, Our export value is No.1 in this industrial, As we only manufacturing slitting line and cut to length line for decades. Our most cherished advantages as below:
1, Technical team from Taiwan, designers have more than 20 years experience, It can help customers to find best quality solution
2, Quality Control team from Taiwan, They use Taiwan quality standard, that’s why we are No.1 in our industrial
3, Professional as we only produce slitting line and cut to length line. We pay all time for slitting line and cut to length line Research and Design, So we can get improve day by day
4, Skilled installation team to keep sure customer satisfy with their requirements.
Our exist customers list: 1) Jindal stainless limited (India)
2) Apollo tubes (India)
3) Raajratna& Raajtubes
4) BMW Mexco plant
5) Jindal Indonesia plant
6) Honda Auto
I am excited to be your partner from now, We will shake hands to win future, treasure and reputation in our hands by my quality and your trust!
1, Technical team from Taiwan, designers have more than 20 years experience, It can help customers to find best quality solution
2, Quality Control team from Taiwan, They use Taiwan quality standard, that’s why we are No.1 in our industrial
3, Professional as we only produce slitting line and cut to length line. We pay all time for slitting line and cut to length line Research and Design, So we can get improve day by day
4, Skilled installation team to keep sure customer satisfy with their requirements.
Our exist customers list: 1) Jindal stainless limited (India)
2) Apollo tubes (India)
3) Raajratna& Raajtubes
4) BMW Mexco plant
5) Jindal Indonesia plant
6) Honda Auto
I am excited to be your partner from now, We will shake hands to win future, treasure and reputation in our hands by my quality and your trust!
Product Description
High precise flying shear cut to length line used for decoiling coil, leveling sheet then cutting sheet to required dimensions as per PLC order, then stacking sheets in pallet. it is widely used in steel plate, it is widely used in sheet, punching, auto parts, coil processing, fittings, etc industries. it contains the mechnical parts, hydraulic part, electric part, pneumatic part and lubraicate part. Our advantage as below:
1, Technical team from Taiwan, designers have more than 20 years experience, It can help customers to find best quality solution
2, Quality Control team from Taiwan, They use Taiwan quality standard, that’s why we are No.1 in our industrial
3, Professional as we only produce slitting line and cut to length line. We pay all time for slitting line and cut to length line Research and Design, So we can get improve day by day
4, Skilled installation team to keep sure customer satisfy with their requirements.
high precise flying shear cut to length line introduction
1, Raw material specification
| 1, Coil width: 200-800mm | 2, raw material: SS, GAL, COPPER | 3, Coil weight: 8-15T |
| 4, Coil ID: 508/610/760MM | 5, Line speed: 60m/min | 6, Control system: Siemens/ABB |
| 7, Drive: AC or DC | 8, Machine color: orange | 9, monthly production ability: 1800-3000 T |
2, Machine composition
| 1, Coil loading car | 2, hydro decoiler | 3, Pinch roller, leveler | 4, loop bridge#1 |
| 5, Guider | 6, NC length measure | 7, hydraulic shear | 8, belt conveyor |
| 9, auto lift stacker | 10, Lubricate, pneumatic | 11, hydraulic system | 12, electric system |
3, Details picture and description for each unit
(1) Coil loading car with saddle
Used to loading coil to decoiler mandrel, leveling working in rails, vertical lift power from cylinder, v type saddle
(2) hydraulic decoiler
Used to hold the coil, then open coil, feeding coil to next step, expansion and contractive by hydrualic power through wedge

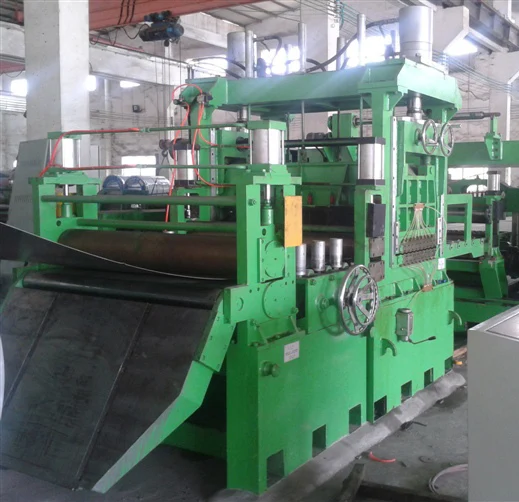

(3) Pinch roller, leveler
Pinch roller used to pinch sheet to loop bridge, drive from motor power

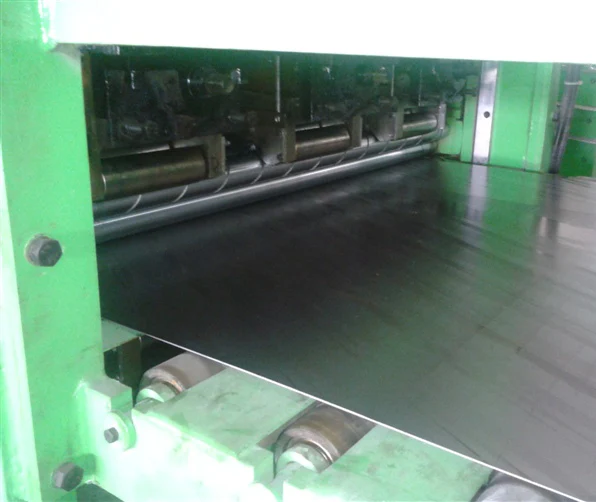

(4) Fine leveler with 6 hi
this adopts best quality in 19 rollers 6 HI leveler, to keep sheet in top flatness
(5) Loop bridge#1
Used to storage the enough coil to keep line working in best condition, also help to coodinate with each parts speed micro different, have sensor inside the pit to adjust each parts working speed in same

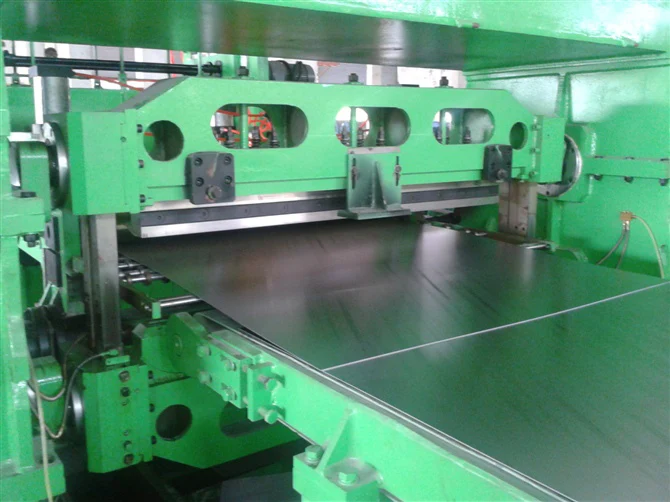

(6) fly shear
Used toshear the sheet according to PLC set data, it has two mode, from upper to down, and down to upper cutting, driven by motor or cylinder, speed can reach 80m/min
(7) Belt conveyor (two sets)
used to conveying sheets to stacker, the belt is durable
(8) auto lift stacker (two sets)
Used to stack the sheets to pallets, the power from motor and pneumatic system
under the stacker has move out roller table system, mostly have 2 sets, it has left& right out system, also has rear side out sistem. as per customer factory requirements
(11) hydraulic system
Used to offer hydraulic power for all hydraulic unit
(12) Pneumatic system
Used to offer pneumatic power for decoiler, recoiler etc other unit
(13) Lubricate system
Used to lubricate all required area, to make it working smoothly, some parts should be greasing manually
(14) Electric system
Used to control full line working condition, it has screen display, PLC, and button control together
Packaging & Shipping
Packing details: Plastic film packing the motor and gear area, fixed in the container with steel wire. spares packed with wood box, parts do anti-rust and anti-dust protection
Our Services
Pre-sale service
1, Confirm all specifications with customer
2, All confirmed specifications write in Contract/Technical offer
3, Show our ability and do what we can do, never cheat customer we can do everything, be honest and be professional
After-sale service
1, Banglore office person will help to service you after you buy from us
2, Machine have 1 year free guarantee except man-power broken or nature disaster
3, Sales team will visit customer every year in India, Indonesia, Vietnam etc, if other coutries we can come as customer invite
4, keep contact with old customer and ask how is the machine using condition, to get some suggestion to improve our design
