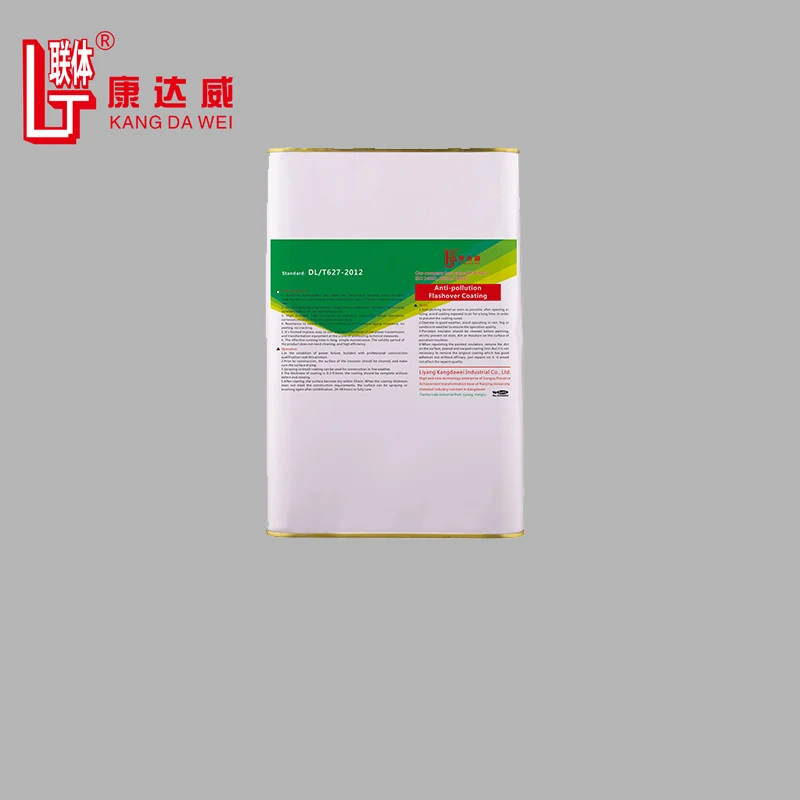

Kangdawei good liquidity rtv natural rubber underlay Anti-pollution Flashover Coating

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description


About us











Liyang Kangdawei Industrial Co., Ltd. ( former Liyang Kangdawei Professional Adhesive Manufacture ) is specialized in silicone adhesive and silane coupling agent development and production. It was established in 1997, and located in Tianmu Lake Industrial Park, Liyang, Jiangsu. In 2004, it passed ISO9001:2000 quality management system certification, and has adopted quality management, strict inspection standards, superior testing means and comprehensive product inspection. To ensure product quality, meet customers’ requirements and continuously improve the company’s performance, it established quality management system based on ISO/TS 16949:2002, and passed ISO/TS 16949:2002 quality system certification in 2008. In 2012, it passed ISO 14001:2004 environment management system certification and OHSA 18001:2007 occupational health and safety management system certification. It has advanced production equipment, perfect testing means and strong technical force. It keeps long-term technical cooperation with Nanjing University and has established the ‘achievement transformation base of Nanjing University’. Over the years, relies on independent intellectual property rights, it has researched, developed and produced a number of provincial high-tech products and gained many national patents. All products have passed SGScertification and parts of products have passed UL certification.
          Main products include: one component RTV silicone rubber; two components RTV silicone rubber; liquid additional silicone rubber; silicone grease, silicone paste; anti-pollution flashover coating for electrical equipment; silicone sealant for solar energy cell components and adhesive for chimney anti-corrosion engineering.
          Our company is based on the principle of high technology, high standing point and high quality, stands on the faith of keeping improving and pursuit of excellence, insists on market-orientation and the purpose of customers’ satisfaction. According to modern enterprise management standards, to ensure quality to customers, we will be glad to offer services.
Production Features

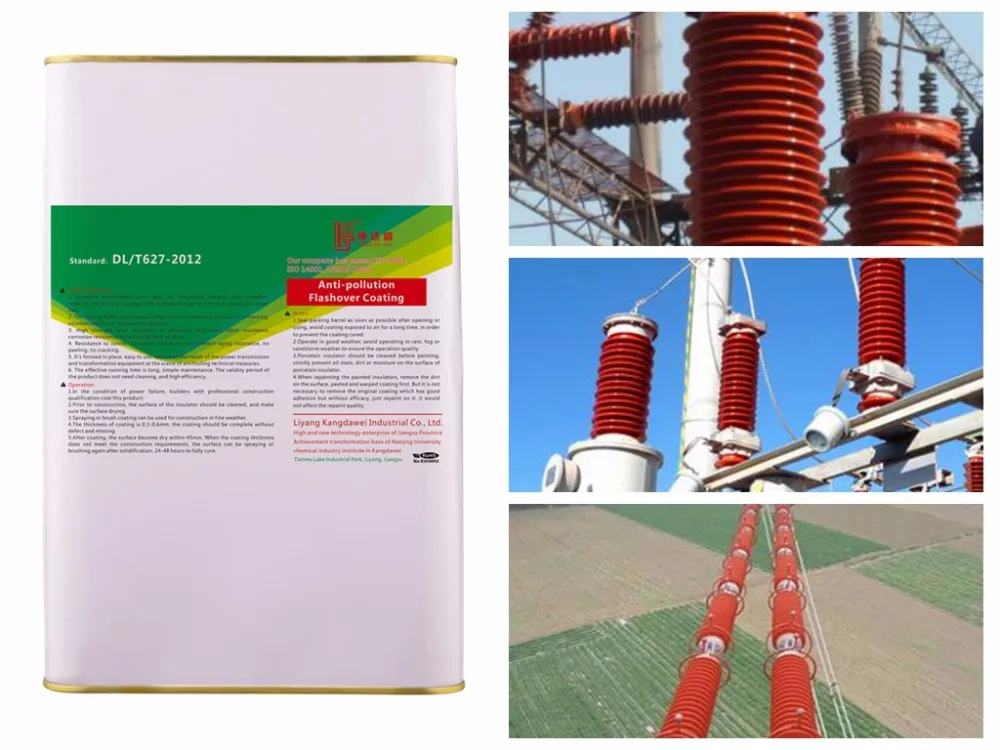

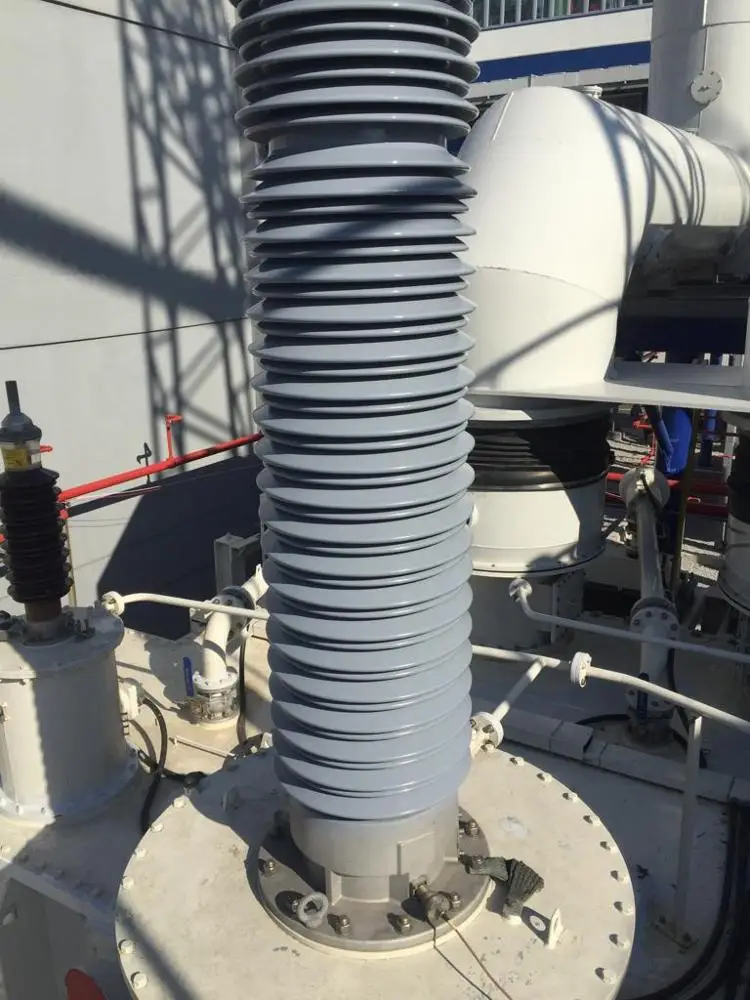

Anti-pollution flashover coatings is a new type silicone coatings. It can be long-term stored in sealed container and cured by absorbing moisture in the air.  This product is neutral, has good adhesion performance to insulator, excellent electrical insulation performance, resistance to damp, resistance to corona. Besides, the cured coating has excellent migration performance of hydrophobicity, resistance to UV, rain and hail, excellent outdoor aging resistance performance and long service life. It is mainly used for high voltage line insulators surface of external insulation.

1.Low viscosity, easy to spray, strong operability

2.Good migration performance of hydrophobicity, resistance to water and damp

3.Excellent electrical insulating performance and aging resistance performance

Technical Data



Test item
Index

Uncured
Color
Red/White/Gray/Blue/Translucent
Viscosity(S)
80~120
Tack free time(25℃, min)
≤45







Cured


Mechanical performance
Tensile strength(Mpa)
≥3.0
Tensile elongation(%)
≥250
Shear strength(Mpa)
≥2.5
Tear strength(KN/mm)
≥9.0



Electrical performance
Dielectric constant(1MHZ)
≤4.0
Tangent of dielectric lose angle(1MHZ)
≤4.0×10-3
Volume resistivity(Ω· cm)
≥1×1014
Dielectric strength(KV/mm)
≥18
Fire resistance
FV-0
Ps: All data was measured by testing after 7 days curing under the condition of 25℃ and 55%RH.
Operation



1.Use dry cloth to clean the surface of insulator before using, then it can be operated in good weather.

2.Spray on clean and dry surface when operating, the coating thickness should be over 0.25mm, holidays should be avoided.

3.The tack free time would be about 30 minutes, and the completely cured time would be 24 hours after operation.
