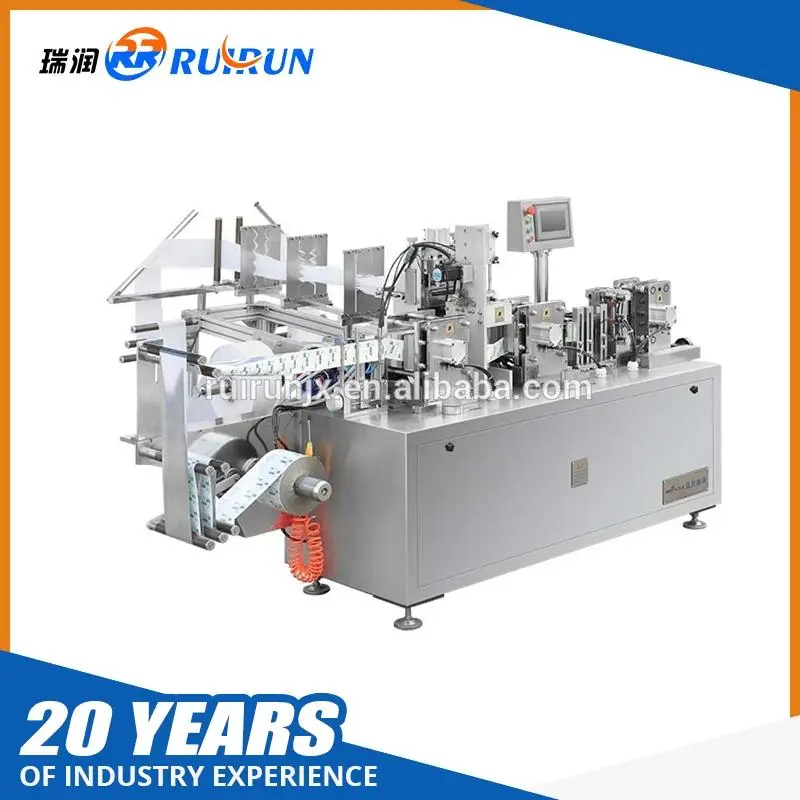

AWP-250 Wet Tissue Folding and Packing Machine Zhejiang


Product Application


1.This machine work steadily and continuously, its suitable for the production various kind of four-side sealing products of all types wet wipes/tissue, alcohol swabs/pad and so on.

2.Adopts Japan dosing pump, make it accurate to add liquid into different package with tolerance of ±0.01ml/time. Multiple kinds of liquid are available; it can add per liquid per bag or add all the liquid in the same bag.

3.The machine is easy to operate, with servo motor and PLC touch panel, which can adjust the packing temperature, packing speed and tissue length accordingly. This machine adopts light electrical integration design, with the function of automatic error alarm system and safety instruction signals.

4.The language of the touch screen panel can be special designed according to the buyer.

\t
Main Technical Variables FOR Wet Tissue  Machine
\t
Item/Mode
\t
AWP250
\t
Packaging Form
\t
Four-size Sealing
\t
Packing Material
\t
 CPP, PE, BOPP
\t
Inner Material
\t
30-80g/㎡Air laid paper, nonwoven, spun lace nonwoven fabric etc.
\t
Material Inner Roller Dia.
\t
Φ70-75MM
\t
Packing Size Length

                        Width

\t
40-125mm

40-110mm

\t
Folding Way
\t
Max 10 folding vertical, and 4 folding horizontal
\t
Liquid Added Range
\t
0-10ml
\t
Packing Speed
\t
60-100 PCS/M
\t
Total Power
\t
2.8KW
\t
Power Supply
\t
Single-phase two-wire 220V 50/60
\t
Machine Noise
\t
≤64.9dB(A)
\t
Air Supply
\t
0.6-1.0 MPa
\t
Air Consumption
\t
300-500ml/min
\t
Machine Dimensions
\t
2800×2800×1800(L*W*H)
\t
Machine Weight
\t
About 1100kgs
Parts Details
\t
Name
\t
Model
\t
Manufacturer
\t
Quantity

\t
Metering Pump
\t
EHN-B31VC4R
\t
IWAKI(Japan)
\t
2
\t
Photoelectric
\t
XINLOWG-NT-RG22
\t
Yatai(Shanghai)
\t
1
\t
Driver
\t
ECMA-C20807RS
\t
Delta(Taiwan)
\t
2
\t
Servo Motor
\t
ECMA-C20807RS
\t
Delta(Taiwan)
\t
2
\t
TouchScreen
\t
TPC7062K7
\t
Weinview(Taiwan)
\t
1
\t
PLC
\t
SIMATICS7-200
\t
Siemens(Germany)
\t
1
\t
Folio Motor
\t
2305HS50D8
\t
Delta(Taiwan)
\t
1
\t
Electric Appliance
\t
\t
CHINT(China)

\t
\t
Pneumatic
\t
\t
Runjia(China)
\t
9
Detailed Images

Machine Parts

Name: Metering Pump

Brand: IWAKI

Original: Japan

 Iwaki strives to continuously design and manufacture high quality pumps. The quality and performance of the product has been proven with over 50 years of experience.

Main Features

Name: Servo Motor
Brand:  Delta
Original:  Taiwan
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits.

Machine Parts

Name:  PLCr
Brand:  Siemens
Original: Germany
SIMATIC S7-200 stands for a reliable, fast and flexible controller in the micro automation area with a broad scale of modules


The Work Flow:

Inner Material→ Folding→ Cutting & Film Material→ Bag Forming→ Three Side Sealing

→Delivery Tissue to Bag→ Sealing→ Date Printing→ Punching→ Finished Product Cutting
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
\t
Packaging
\t
Size
\t
2.95m (L) * 1.7m (W) * 1.1m(H)
\t
Weight
\t
1.1T
\t


Packaging Details
\t
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
