Corner Crimping Machine LMB 120 (60612919682)

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description

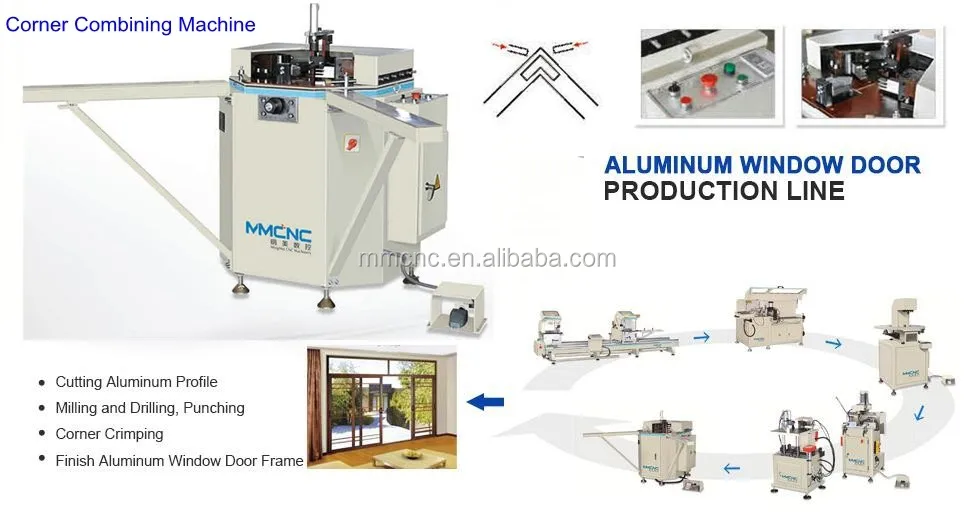

shandong mingmei crimping tool for aluminiumcorner combining machine.jpg

Product Description

1.Main Features for Aluminium window door corner combining machine

Used for corner punching combination of aluminum window & door,one corners connecting at one time is available.

1.1 LMB-120

1.1.1 Hydraulic system driving, ensure a stable working.

1.1.2 Synchronous feeding of the level(left ang right side) pushing knives by link with one hydraulic cylinder driving, which avoid the corner deform and enhance the corner connection efficiently.

1.1.3 Convenient operation and less error in processing.

1.1.4 Distance of tool knife adjustable,as the screw thread connection,easy working for tools.

1.2 LMB-120B

1.2.1  Strengthened machine structure and rack to make it work more stable and low malfunctions;

1.2.2  Auto up-down inner localization to make workpiece clamping convenient;

1.2.3 Special hydraulic station with big power and big crimping power, that can process profile with big cross-section and big thickness;

1.2.4  Special high speed hydraulic system to supply fast crimping and high efficiency.

1.3 LMB-120A

1.3.1 Synchronous feeding of the level(left ang right side) pushing knives by link with one hydraulic cylinder driving, which avoid the corner deform and enhance the corner connection efficiently.

1.3.2 Inner positioning can be reduced to working table below, is convenient for taking and discharging.

1.3.3 Hydraulic system driving, ensure a stable working.

1.3.4 Simple operation, reliable performance, advanced technology, easy maintenance.

2.Specifications for Aluminium window door corner crimping machine

Model

LMB-120

LMB-120B

LMB-120A

Rating power

1.5Kw

3.0Kw

2.2Kw

Power supply

380v/50hz

380v/50hz

380v/50hz

Air-pressure

0.6-0.8MPa

0.6-0.8MPa

0.6-0.8MPa

Rated pressure

15Mpa

20Mpa

15Mpa

General pressure of corner combining

48KN

26-41.6KN

/

Air consumption

3L/min

/

/

Capability of oil box

20L

60L

22L

Corner crimping casing movement journery

0-85mm

0-95mm

0-85mm

Profile width

90mm

90mm

90mm

The adjustable range of the main location block

54mm

/

54mm

Contour dimension

1000x1200x1200mm

1150x1100x1300mm

1300x1200x1300

Weight

about 340kg

about 534kg

about 420kg

3.Detailed Images of Aluminum Windows Corner Crimping Machine

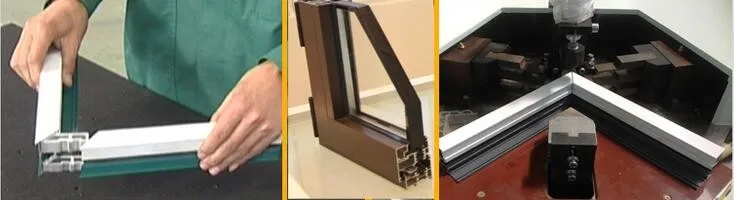

-----Overall image Corner Combining Machine(41).jpg

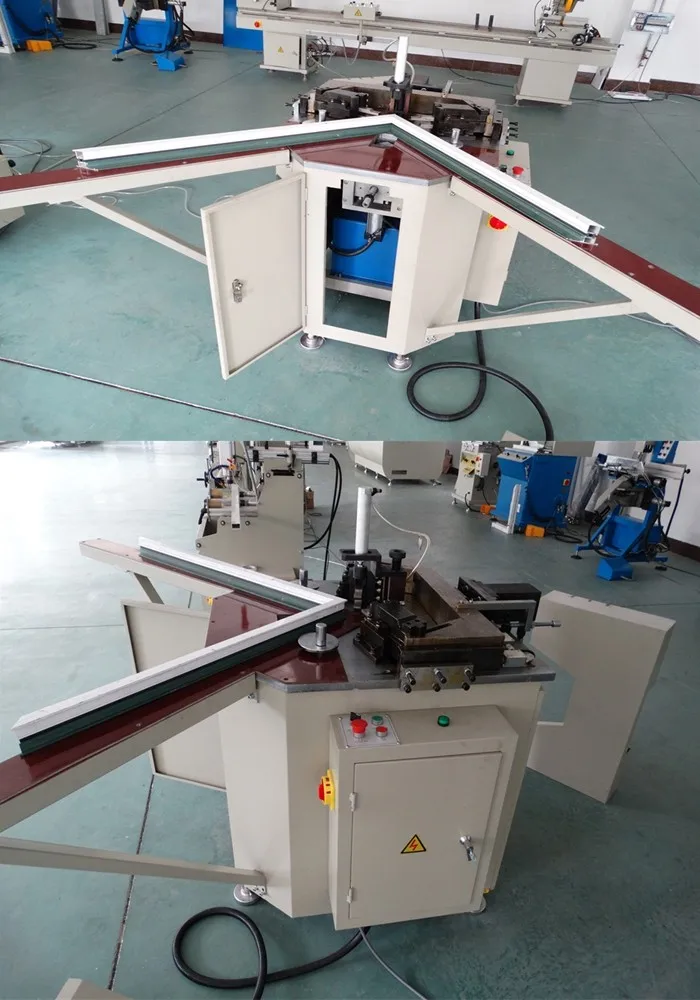

corner combining machine_.jpg

------Machine Testing

machine testing corner.jpg

------Machine exported to Vietnam QQ20160614112215.jpg

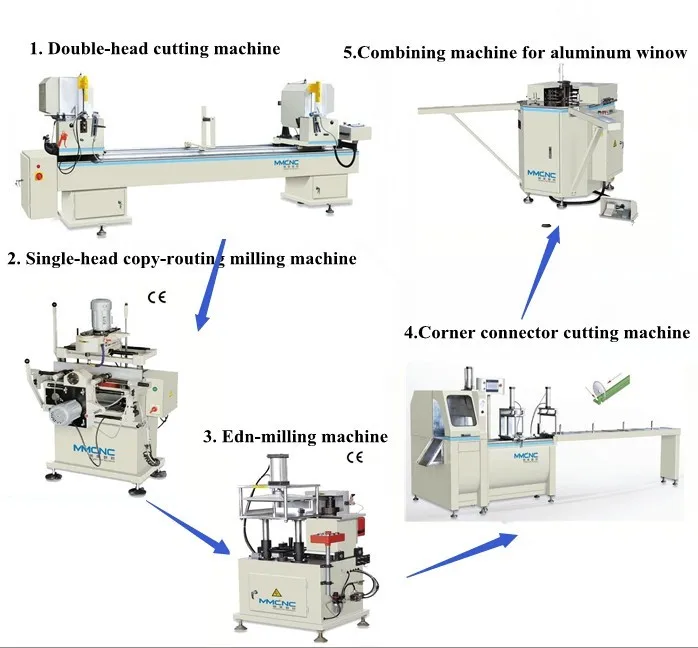

------Our machines for window-door production linewindow door production line


Our Services

-Pre-Sales Service

  * Inquiry and consulting support.
  * Sample testing support.

  * Design drawing of the factory workshop
  * View our Factory.

-After-Sales Service

  * One year warranty time, we can repair and replace parts for free in one year.
  * Free training course at our factory with professional engineers.
  * Technical support in 24 hours online, TM, Skype, E-mail  solving the relative questions in time.

  * Engineers available to service machinery overseas.

  * We provide the consumable parts at agent price when you need replacement.

-Are you manufacturer or trade company?
 *We are factory.Factory starts from 1995.For more company introduction click here>

-How I can get suitable Machine?

Please give me your followed information:

  *First: Please tell us what's your max working area (L*W*H),
  *Second: Please send us your profile drawing.Its very important.
    Those two answers will help us choice suitable CNC machine for you.

 If you are new farmer, no idea, contact us, our service department will guide you.

-What's your payment methods?

   *L/C, 30% deposit by T/T,70% spare payment L/C.
   *T/T, 30% deposit by T/T,70% spare payment before shipment.
   * Western Union,Trade Assurance...

Packaging & Shipping

How about the Packing & Delivery?

Packaging:These machines will be packed with Plastic Film and standard export wooden case,

to make sure customer will receive the machines they ordered Intact.

Shipping:Shipping by 20GP,40GP,40HQ Container...

According to Customers’ location and the vehicle size , we will provide professional packaging can save sea freight for cutomers.  Packaging and shipping.jpg

Customer Visiting

Welcome to visit our factory ! Abroad customers came to our factory for training and guidance.

.jpg

MMCNC on the Exhibition:Shanghai,Beijing,Guangzhou,Korea...
