Dried Oyster Shell powder grinding machine

Share on:


Price:$18,000.00
Price in USD:Details

Quantity:


Product Overview

Description



Product Description


Dried Oyster Shell powder grinding machine

Specifications
1 flour mill ,spice&sugar mill...
2 stainless steel 304 ,316L
3 80-320 mesh
4 low noise
Main Usage

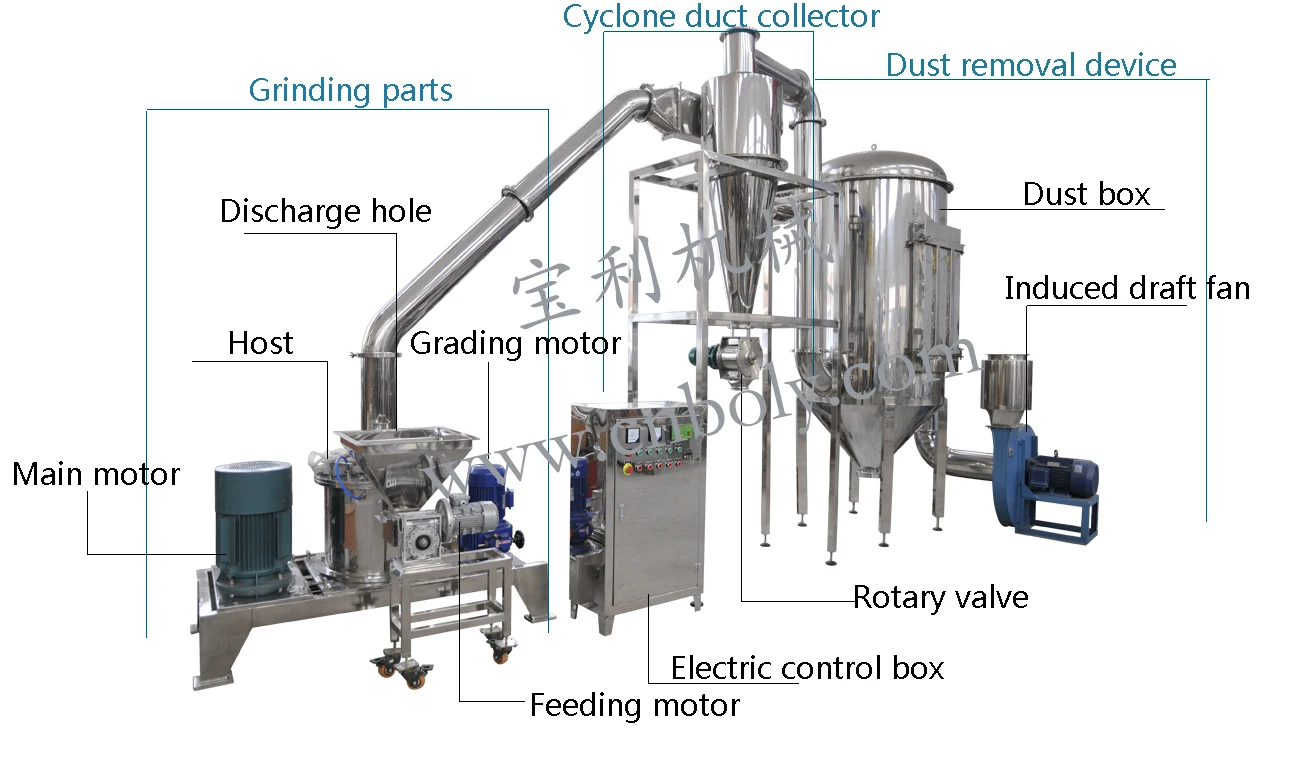

This machine is consisted of main motor , auxiliary motor , and electrical control cabinet with the capabilities of winnowing , non-sieve or mesh , equality of granule size , and continuous processing etc . It meets the international advanced level and is suitable for the material grinding by the trade of pharmaceutics, chemical ,and foodstuff etc.
Working Method

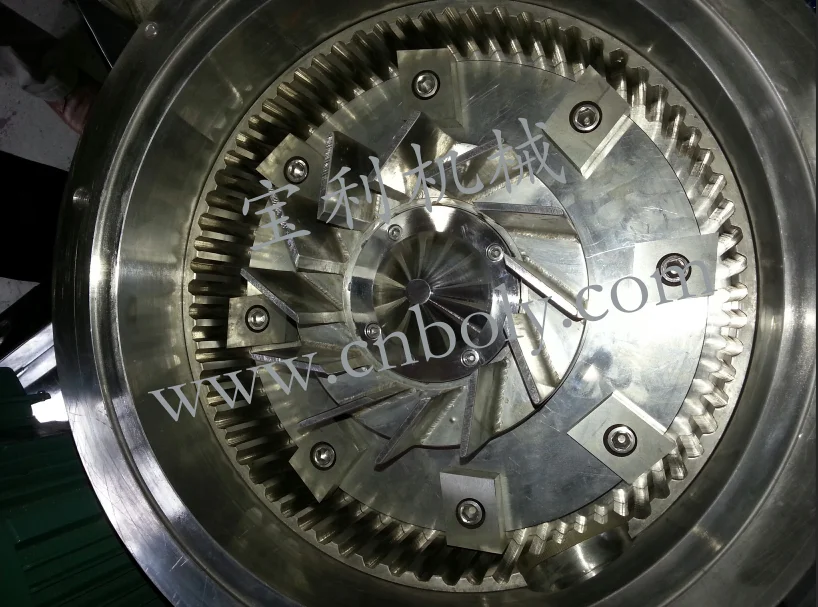

The material enters the grinding chamber via the funnel and spiral conveyor where it is sheared and broken by the fast-rotating blades. The power passes the guide ring and enters the classification chamber. As the classification wheel is in revolution, both the air force and centrifugal force act on the powder. As the particles whose diameters are greater than the critical diameter (diameter of the classification particles) have a great mass, they are thrown back into the grinding chamber to be ground again, while the particles whose diameters are smaller than the critical diameter enter the cyclone separator and bag-type collector via the material exit pipe be means of negative pressure wind conveyance. The discharge material meets the requirement for the product.





Technical Data






Certifications




Company Information:
Our company locates at Wuxi city, very near Shanghai City and it only takes 30 minutes to get to our city by train from Shanghai.
1) We are golden supplier on alibaba with a history since 2008.
And our factory's history is from 2004.
2) We have CE certificate, ISO,BV...etc.
3) Each year,We takes part in a lot of Expos ,for example: FIC, CPHI, API...etc



Packing & Delivery


Packaging
Size
Depends
Weight
Depends



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.


Packaging
Size
20 ft container; 40 ft container
Weight
Depends



Packaging Details
If machine is big, we will fix the machine inside container with steel wires and nails.

Machine won't move inside the container.


PRODUCT CONFIGURATION


Fine powder making machine
Powder granules Hammer mill
Universal crusher


If you want to send inquriy about oyster shell grinding machine , could you please tell me?
1) What material you want to grind, is it dry? what is the size of feed material
2) What capacity you expect ? (kg/h)
3) What mesh or mm or micron(size) of the powder you want?
4 ) What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; 220V...
(We only provide 3P, because our machines are all for industrial use,not for family.)
5) Usually we use stainless steel 304, if you want stainless steel 316, it's OK and please tell us.


Which payment terms can you accept?
* Normally we can work on T/T or L/C.
* On T/T term, 30% down payment is required in advanced. And 70% balance shall be settled before shipment.
* On L/C term, a 100% irrevocable L/C without soft clause can be accepted.Please seek the advice from the individual sales manager whom you work with.
Delivery time
Normally delivery time is less than 30 days after receiving the deposit.
Does your price include freight?
Our usual price is based on FOB Shanghai. If CIF is requested, please give us your delivery port, and we will give you CIF price.



Our Company




Jiangyin Baoli Machinery Manufacturing Co.,Ltd is a manufacturing-oriented enterprise founded in 2004.

After more than ten years of unremitting efforts, our company mainly applicated in Crushing/Mixing/Coneying/Sifting/Drying equipments from all over the world.


Why choose us?
* 24 hours online email service.
* Our principle: high honest, quality,service
* We are a big factory with rich experience and technology, engaged in the machinery industry for over 13 years. Best quality controls best services.



Our Service


Pre-Sales Service

* Inquiry and consulting support with 24 hours
* Sample testing support.
* View our Factory.

After-Sales Service

* Instructing how to install the machine, insutructing how to use the machine.
* Engineers available to service machinery overseas.
