Хорошее качество, металлический рабочий роторный стол, 4-осевые вращающиеся столы с ЧПУ для станков mazak cnc

Share on:


Price:15 000,00 $
Price in USD:Details

Quantity:


Product Overview

Description




Product Description



Good quality metal working rotary table 4th axis nc rotary tables  for mazak cnc machines



Feature:



1. This 4 Axis CNC rotary table use imported  precision dual-lead worm, turbine,



turbine with aluminum bronze alloy,ensure the transmission positioning  in high



 precision accuracy.



2. Three-piece clutch gear for precise positioning accuracy,ensure the work table’s



stability.



3.The vertical and horizontal can interchangeable.









           MXT-200 nc indexer specification







The Disc diameter

200mm

The disc spindle center hole

35H7mm

The disc spindle center through hole

25mm

Level placement  height

200mm

Level placement center height

160mm

T-slot width of the rotary shaft disc

12H7

Guide block width

18H7

Working applicable environment temperature

18~40 degree

Pressure of the locking device

35(hydraulic) kg/cm2

The mini angle of equal division

5 degree

Total gears rate

1/75

Max speed of the rotary disc

3000 RPM  X

4000 rpm   53.3

Division precision

±4”

G.W weight

76kg





Product Overviews

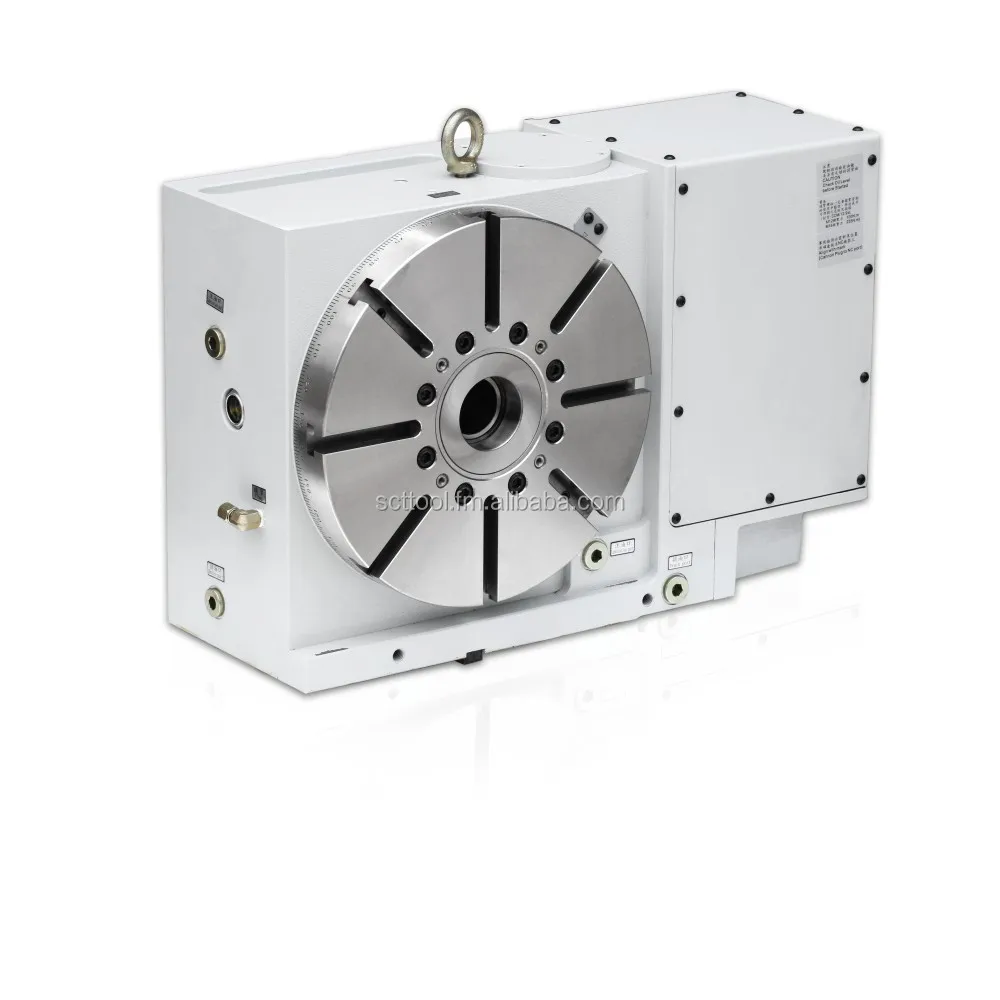

                                 MXT-200 4th axis nc rotary table

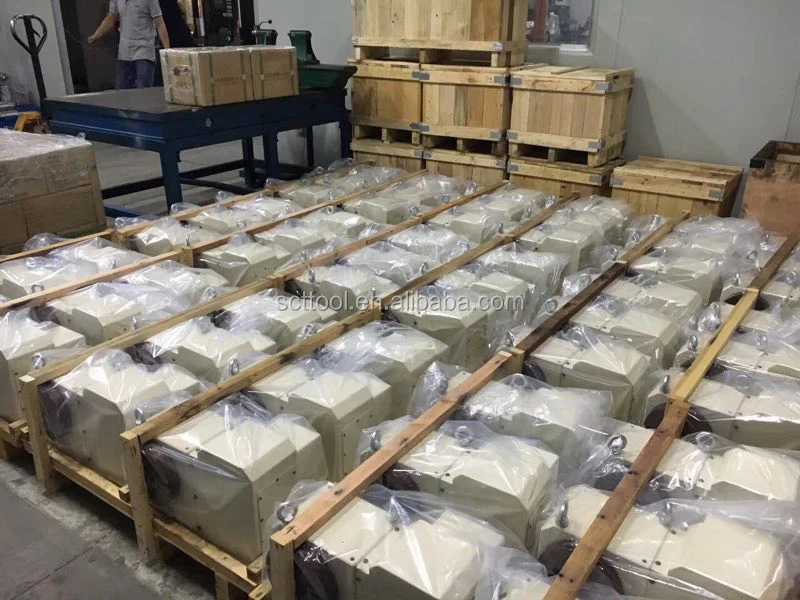

QQ20170823105343

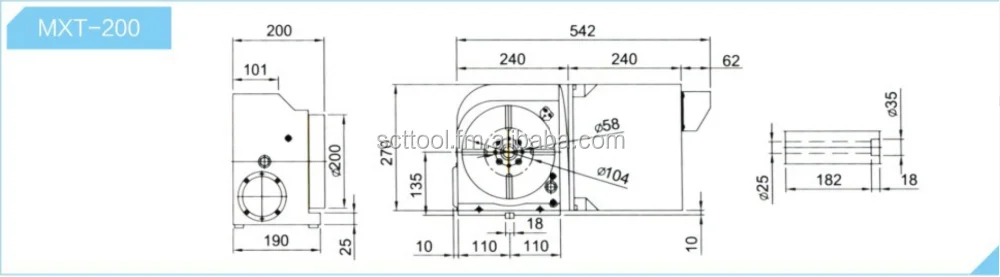

                              MXT-200 cnc rotary table drawing




Our Services

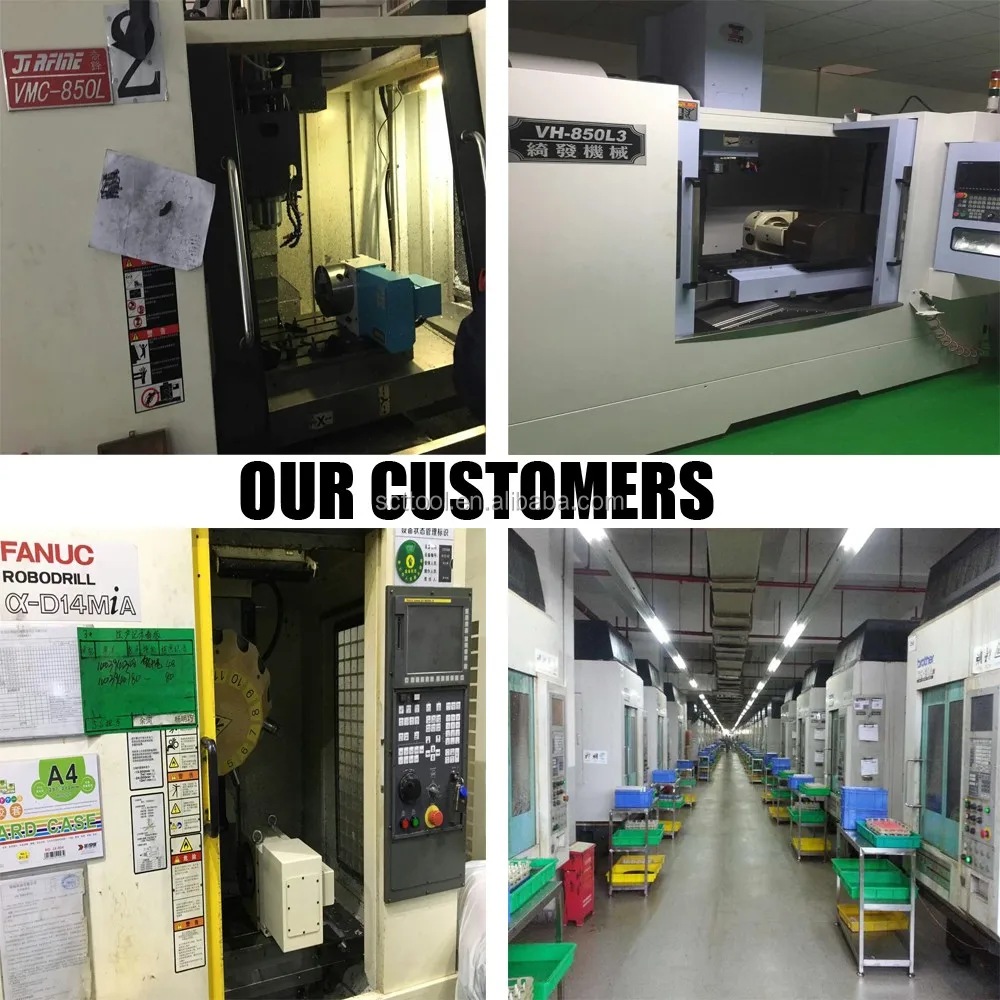

 -2





1. Our company is a manufacture of NC rotary tables ,tool holder ,cnc machines ,we can supply technical support for these products without charge .



All tool holder and nc rotary precesion parts were made in taiwan factory,no need to



worry about the quality.



2. About the nc rotary table :



     <1>. Before place an order of the nc rotary table ,please let us know your machine

        center work table size,brand,system,wire case position,so we can supply the right

      cnc rotary table with serve motor ,drive and cable etc .



     <2>. About the tool holder ,we can supply tool holder specification before customers        place order .



Exhibition

 mmexport1489118880835





Warranty



1.Warranty: Non-human damage, one year guaranteed period.



2.Shipment: goods by send by sea or by express based on



customers request.
