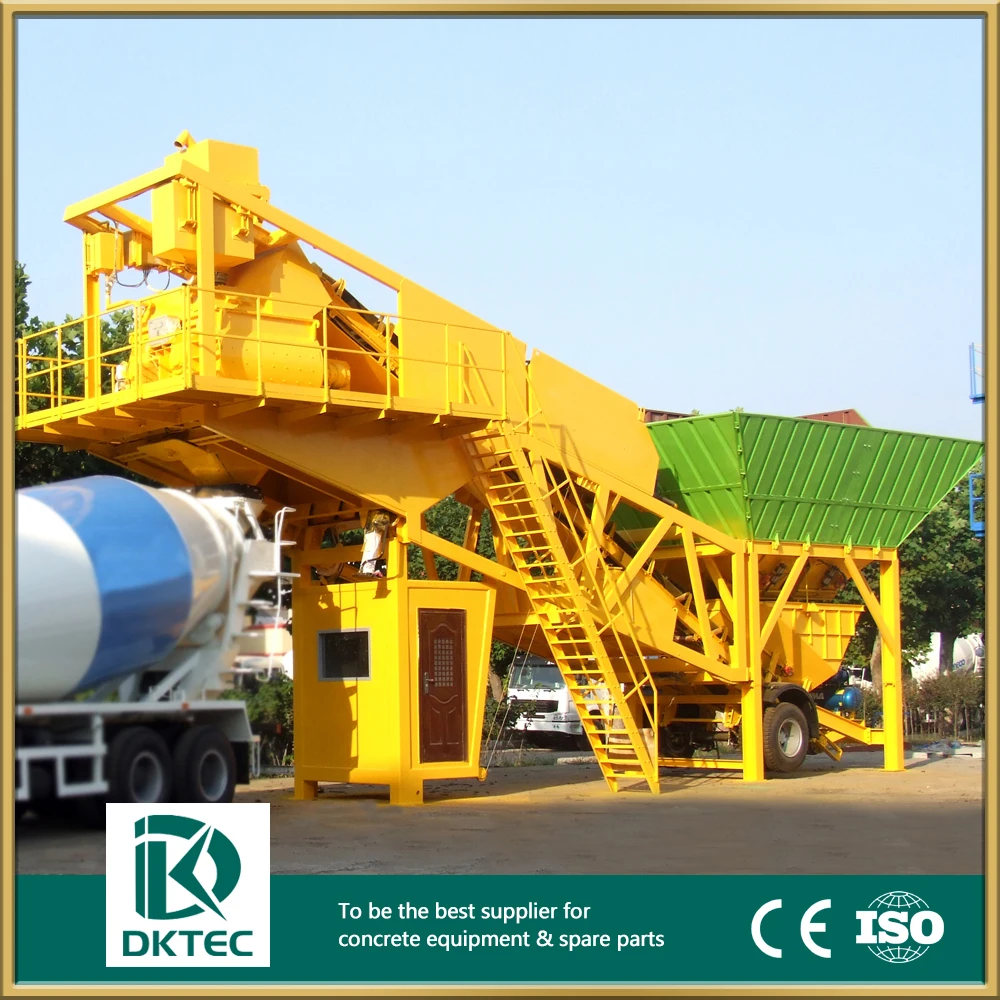

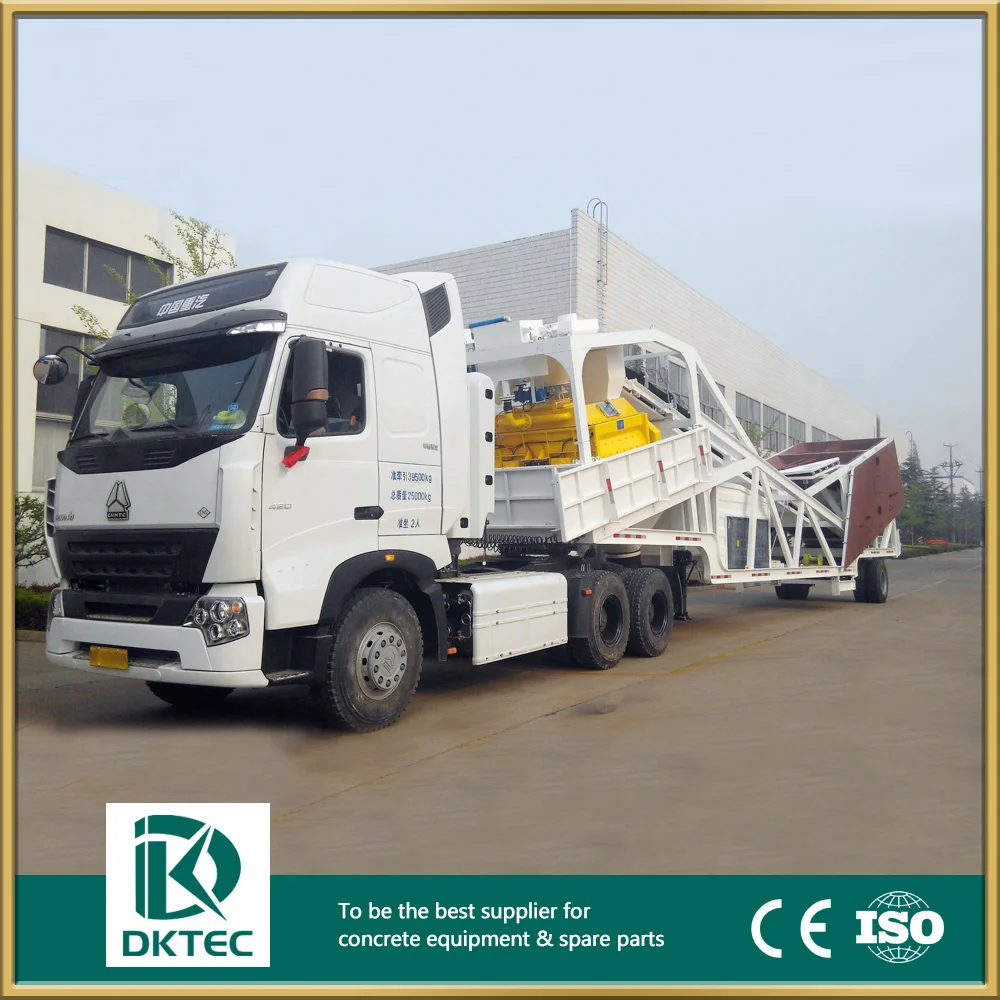

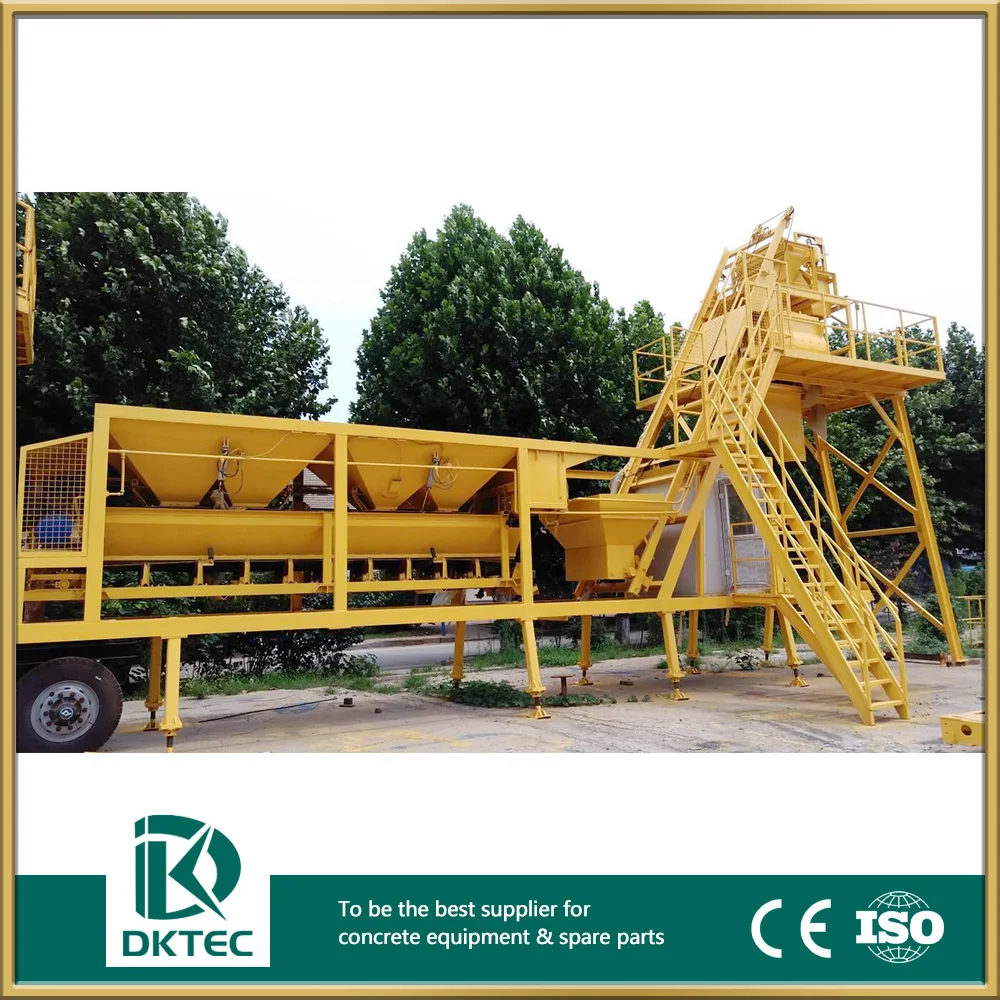

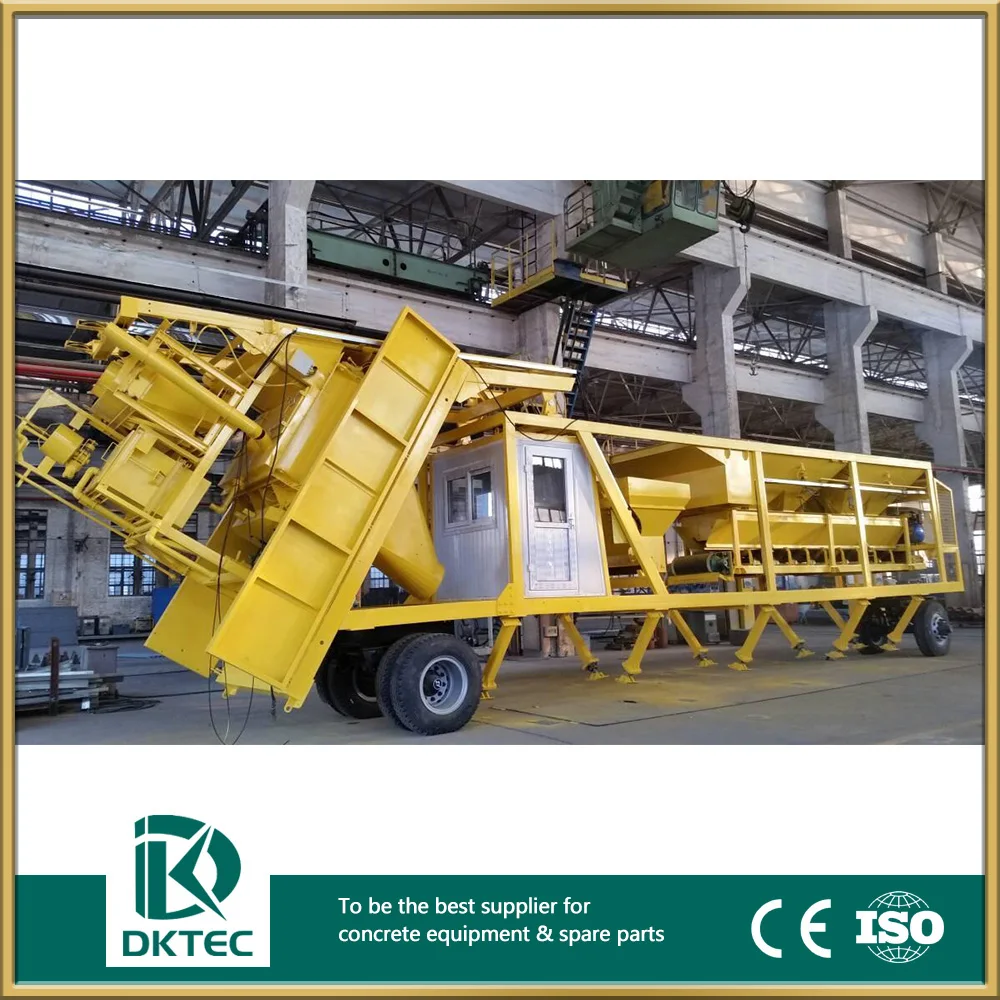

small scale portable precast concrete batch plant

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description









Performance Characteristics



1. The installation & disassembly is convenient and rapid, Integral movement by trailer is flexible, Easy storage management

2. Compact structure and small occupied area, sample installation foundation

3. High degree of automation, sample operation, small investment and quick effect, suit for mobile
construction such as road and railway, bridge, port, water-power construction





Specification



Item UnitYZHS25YZHS35YZHS40YZHS60YZHS75
Theory productivitym³/h2535406075
Output of mixer0.50.750.7511.5
Feeding type lifting hopperlifting hopperBelt FeedingBelt FeedingBelt Feeding
Batcher model PLD800PLD1200PLD1200-ⅢPLD1600-ⅢPLD2400Q-Ⅲ
Batcher(bin's amount) 4x44x48x48x48x4
mixer's powerkw18.5303022x230x2
Lifting powerkw5.57.5157.5x211x2
Discharge heightm3.83.83.83.83.8
Max weighing & Accuracy Aggregatekg1500±2%1500±2%3000±2%3000±2%3000±2%
Powder materialkg300±1%300±1%500±1%600±1%800±1%
Waterkg150±1%150±1%200±1%250±1%300±1%
Additiveskg20±1%20±1%20±1%20±1%20±1%








Concrete Batching Plant Concrete Mixer
1. Shaft ends multi seal protection and air purge seal protection to efficiently prevent leakage
2. Unique mixer monitoring system to monitor working conditions of gearbox,discharge door pump, and electronic

    lubrication pump
3. With DC 24V grease pump system special for concrete mixer, self-programmed running time water-proof, dust-proof,

    superb performance
4. Multi-pipe water spraying system to ensure even water distribution
5. Heavy duty design, stable operation
6. Reinforced gearbox processed with military materials by high-precision technology, high load capacity and longer

    service life
7. Capacity ranged from 1.5 cu m to 6.0 cu m
8. Optional filtering cooling system, grease-free and water-cooling shaft end sealing system, camera systemhigh

    pressure washing system, weighing system and microwave moisture monitoring system





Concrete Batching Plant Aggregate Batching Plant

Concrete batching plant Aggregate batching plant system is batcher mixer with the belt conveyor,equipment with cylinder & cell load to weigh and conveyor the raw material to get the expected mixing ratio.



Concrete Batching Plant Belt Conveyor

Concrete batching plant Belt conveyor is used to weigh and conveyor the sand & aggregate to the concrete mixer.including weighing conveyor belt and inclined feeding belt,the inclination degree can be varied upon the type of belt and design.

Concrete Batching Plant Cement Screw Conveyor

Concrete batching plant Cement screw conveyor is used to transfer the cement from the siol to the concrete mixer,according to the capacity of the plant,the size of srew can be made from168 to 407, the inclination degree can be customized.
