Product Overview

Description



Product Description



Greystone Log Washer is used to ore mud washing before materials feeded to next concentrating  process.

Greystone Log Washer is applied to Manganese, Iron, Limestone, Tungsten, Tin, Silica sand materials washing and etc.

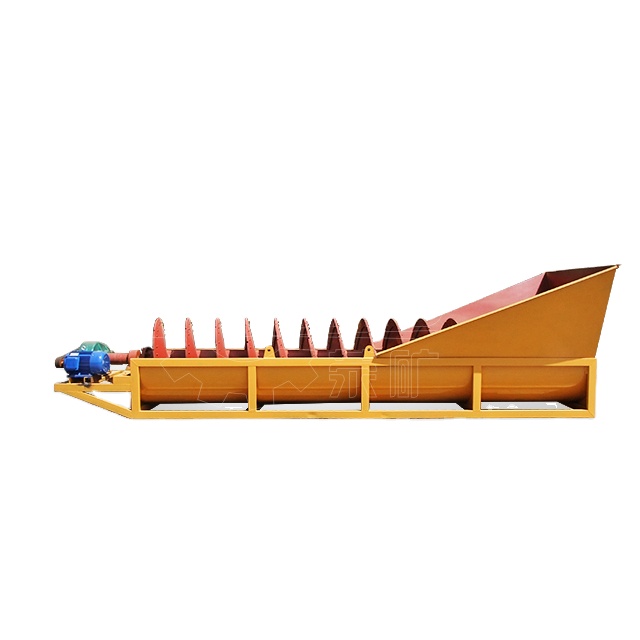

Greystone Log Washer show

 Greystone Log Washer  Greystone Log Washer  Greystone Log Washer  Greystone Log Washerlog washer.jpg

 Greystone Log Washer  Greystone Log Washer  Greystone Log Washer  Greystone Log Washer




Features of Greystone Log Washer

1. High capacity.

2. Heavy duty conveying paddles.

3. Fabricated with heavy duty tubs.

4. Oversize bearings and gears.

5. Thick-walled shafts.

6.Lower end bolted to fully machined stub shaft. Upper end mounted through flexible coupling to output shaft of gearbox.

7.The compound drive divides the operating load over an optimal combination of oversized helical and spur gears.

8. Continuous grinding and abrading log washer paddles.

9. Adjustable water discharge gates on both sides of lower end of the tub.



Structure




Detailed Images



Related pictures of Greystone Log Washer



Working scene  of  Greystone Log Washer

  Greystone Log Washer  Greystone Log Washer  Greystone Log Washer  Greystone Log Washer

washing plant(2).jpg



Accessory picture of Greystone Log Washer



wash plant(5).jpg



The body of Greystone Log Washer

  Greystone Log Washer  Greystone Log Washer  Greystone Log Washer  Greystone Log Washer




The head of  Greystone Log Washer

  Greystone Log Washer  Greystone Log Washer  Greystone Log Washer  Greystone Log Washer




Technical parameters



Technical specifications of Greystone Log Washer



Model

Spiral Dia.

(mm)

Rotating Speed

(r/min)

Feeding size

(mm)

Tank slope

(o)

Output

(t/h)

Power

(kw)

Weight

(t)

2RXL320

Φ320×3200

28

≤30

≤12

10

4

0.9

2RXL400

Φ400×4600

23

≤30

≤12

20

5.5

1.9

2RXL540

Φ540×4600

23

≤30

≤12

25

7.5

3.9

2RXL750

Φ750×7600

22.7

≤70

≤12

50

15

17.2

2RXL800

Φ800×7600

22

≤70

≤12

70

18.5

18.9

2RXL914

Φ914×7600

21

≤70

≤12

100

22

23



Packaging & Shipping



 Delivery picture of our factory








Export shipment picture of the  Greystone Log Washer
