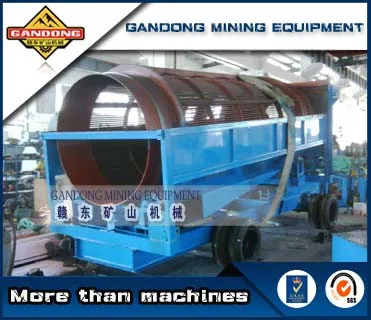

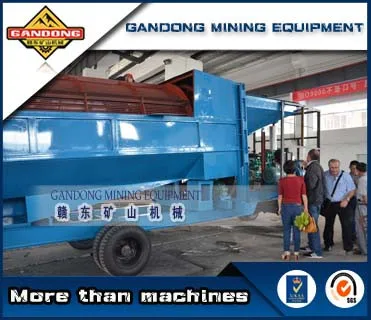

Mobile alluvial placer gold mining equipment
Mobile trommel screen washing plant is composed by hopper, trommel, chassis, tires, turntable, generator, water pump, gearing, control panel and carpet gold sluice. The mobile trommel screen is a optimized removable platform for gold recovery, applicable to small or medium scale of placer gold ore processing that need mobile operation. Its advantage: less investment, less labor, fast return of investment, simple operation , mobile etc.

The whole drum adopts strong and reinforced roller support and gear side drive, or chain pulley drive. The screen using high manganese steel woven net , It has large processing capacity, high efficiency , long service life , and easy to replace, no clogging. The chassis using heavy duty beam and equipped with six tires has sturdy construction, high load capacity, moreover the front wheel can achieve 180o turn , flexible move, let the mobile platform can easily cope with all kinds of complicated road. In addition, the chassis equipped with other four mechanical support legs, they can reinforce the bearing capacity of the whole chassis, ensure the equipment run more smoothly , reliable and safe during load running . Generator & motor separated drive, or direct diesel engine drive, low failure rate, easy maintenance. The gold recovery sluice covered by professional gold recovery carpet made of polyethylene non-woven, strong catch ability, high efficiency, it is also effective for fine particle gold.

The drum can be divided into heavy duty and light duty.
Heavy duty: the drum has a double-layer structure, inner layer with dense steel bar structure, which can prevent large material impact the screen directly, greatly improved the service life and screening efficiency for the outer screen.
Light duty: the drum has a single layer screen, it is used in the material that no large material included, its advantage is light, which can reduce the weight of the whole equipment and energy consumption.
Model
MGT1030
MGT1230
MGT1545
MGT1848
Capacity (t/h)
30-50
50-80
80-120
120-180
Power
Diesel engine equipped
Drum dia. (mm)
1000
1200
1500
1800
Drum Len. (r/min)
3000
3000
4500
4800
Screen size (mm)
>3
Dimension (mm)
5860*1400*2550
5860*1600*2600
8310*2180*3030
8500*2450*4000
Weight (Kg)
3900
5500
8600
9300
Products Show

Dense and strong steel bar can protect outer screen in order to increase service life.

Unique fluted roller design increase tress surface never let the drum to be out of shape.

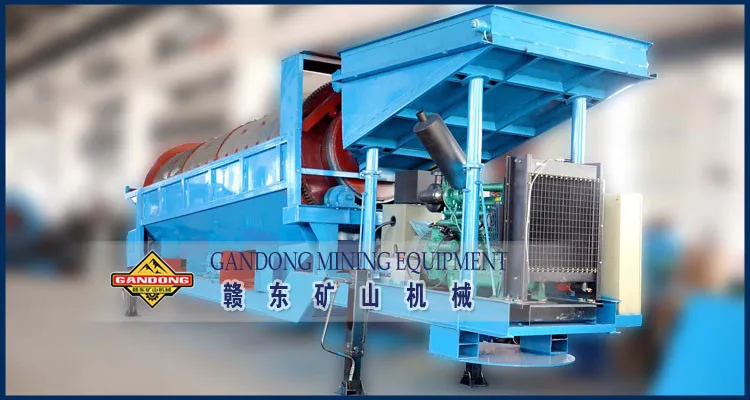

It equipped high quality diesel generator and electric cabinet, very convenient and easy to operation.

Customer Photo

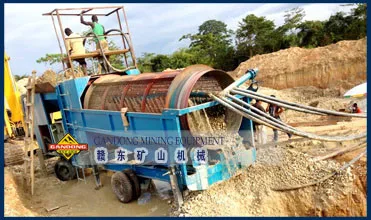

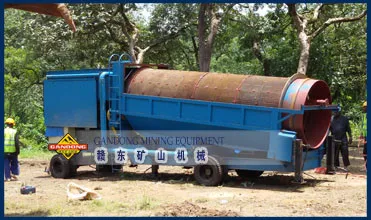

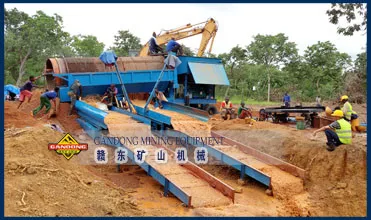

Application site

Application in production of alluvial gold ore in Ghana.

Application site

Application in production of alluvial gold ore in Guinea.

Application site

Application in production of alluvial gold ore in Mali.

Packing & Delivery

Packing Details : Non-packed because its large size.

Delivery Details : 25-35 days after down payment.




Our Company

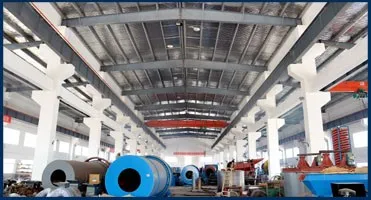

Factory

Our Factory

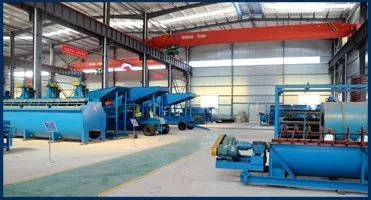

Workshop

Our Workshop

Warehouse

Our Warehouse

Office

Our Office

Our Service

Customized design and production service

According to customer's different requirements to design and produce a really suitable machine. Final products have been inspected and tested strictly before leave factory. Save your money.

Layout design service

According to processing flow chart and site condition to design professional reasonable layout by direct-view 3D. Save your time.

Installation service

Our professional technicians will come to customer's site to install and debug the machines, and train the workers. Save your money and time.

FAQ

1. Q: Can you provide production flow chart?
A: Yes we can. Our experienced and professional engineers can design scientific and reasonable flow chart for various ores, such as iron ore, tin ore, manganese ore, gold ore, tungsten ore, tantalum ore, etc.

2. Q: Can you test our sample ore to see what result can we get?
A: Yes we can. We have professional laboratory to offer ore test for customers by free charge.


3. Q: How do you provide after-sales service?
A: We can send our professional technicians to the working site for equipment installation, adjustment, and operation training. All of our technicians have rich overseas installation experiences. Anything you need in future we have professional person to follow up.

4. Q: What is your terms of payment?
A: T/T 30% paid in advance, and 70% before the shipment. You come personally or assign SGS for products inspection or we show product photos before you pay the balance.

5. Q: How about your delivery time?
A: Generally, it will take 15 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

6. Q: What about the warranty of your equipment? Do you supply spare parts?
A: Our warranty is one year(12 months), and we supply spare parts also.

7. Q: Can I visit your factory?
A: Of course welcome. Many domestic and overseas customers visited our factory every year.

8. Q: How do you make our business long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit, and we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.


Warmly welcome you come to visit our factory! Our factory located at Ganzhou city, Jiangxi province, China. Please take flight from your country to Guangzhou or Shanghai or Beijing airport in China, then transfer to Ganzhou airport, and then we will send our car to pick you up at Ganzhou airport.
