made in china 10t/h szlh420 animal chicken duck sheep livestock cattle fish sheep pig poultry feed mill machine for sale

Share on:


Price:RUB 785,760.00
Price in USD:Details

Quantity:

Add to Cart

Product Overview

Description

Product Description

1.poultry feed mills in pakistan Intensive production of animal feed pellets is of urgent need due to the prosperous breeding industry. Dedicated to providing animal feed pelletizing solutions for 12 years, Qiaoxing Machinery Pellet Mill Machinery is ready to make perfect project for any scale feed pellet plant. The feed pellet production line can be used to make various poultry feed and aquatic feed for rabbits, ducks, cattle, chickens, sheep, pigs, pigeons, fishes and shrimp etc. The whole production line can be control by the automatic PLC control system.


2. Advantages of Feed Pellets:
★Decreased ingredient segregation
★Decreased feed wastage
★Easy storage and transportation
★Improved palatability
★Reduced selective feeding
★Destruction of pathogenic organisms

3. Feed Pellets Processing Technology:
Raw Material → Feed Grinding → Feed Mixing → Feed Pelletizing → Pellet Cooling → Pellet Crushing → Screening & Grading → Pellet Packing

4. Equipment Related to Chicken Poultry Cattle Livestock Complete Animal Feed Line:
Feed Grinder →Feed Mixer → Feed Pellet Mill → Counterflow Cooler → Feed Pellets Crumbler → Feed Pellets Grading Sieve → Automatic Weighing and Packing Machine


5. Raw Materials for Feed Pelletizing:
The feed pellets are usually made of corn, brown rice, paddy, sorghum and soybean meal etc.

Detailed Images
(1) Big silos ( storage raw materials like corn, wheat etc)
Made of high quality Handan Iron and Steel galvanized sheet,Each layer effective height 1.12 meters, the effective length of 2.88 meters,use life 30 years ,Silo corrugated board using cold-rolled, punching, curved arc, shear production line production, high precision,top of silo, and Cylinder are used 8.8 hot-dip galvanized bolts.the ladder inner silo by painting, the ladder outer silo and maintance platform by galvanized ,Fence galvanized steel plate thickness layout, see the board layout, standard parts: standard 8.8 level;
(2) Raw Material Grinding Process

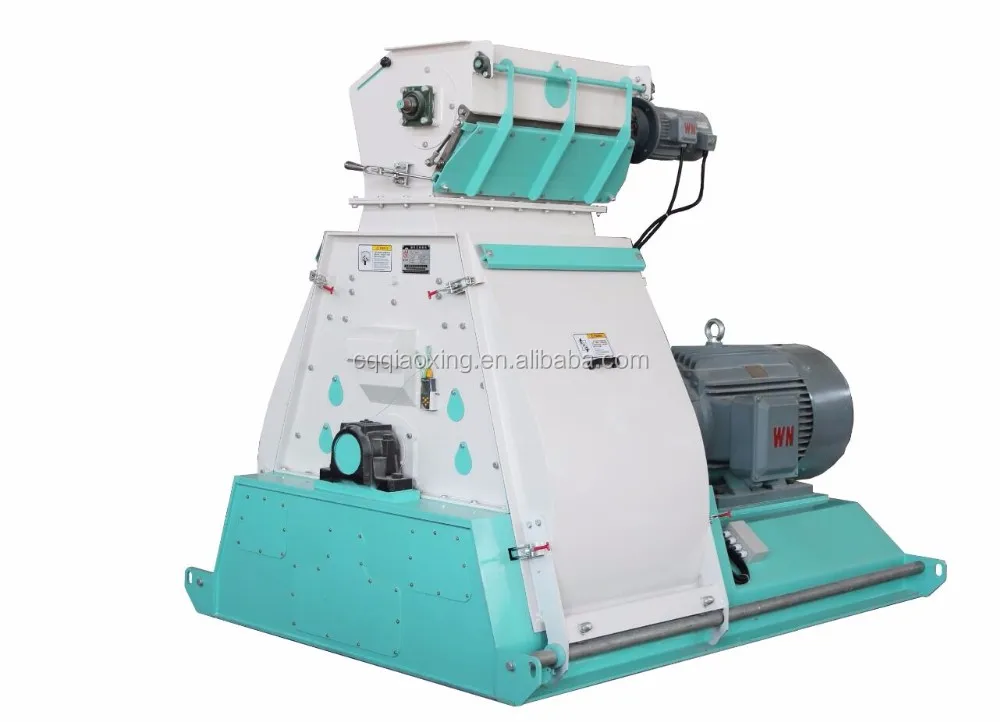

The feed grinder can grind the raw material ingredients to the required size. The grind fitness is different of different grinders. We supply four types of feed grinders. The hammer mills are suitable for small-sized or medium-sized feed pelletizing plants. The wide chamber fine grinders and water drop hammer mills are usually used in large-sized and medium-sized feed pelletizing factories. The ultra fine feed grinder is designed for grinding raw materials of special aquatic feed.
(3) Feed Material Mixing Process:
Mixing is considered to be one of the essential operations in feed pellet processing. Lack of proper mixing may lead to reduced diet uniformity, affecting the feed pellet quality. We supply two kinds of high efficiency feed mixers: twin-shaft mixer for mixing powdered or particle materials and screw belt mixer for mixing powdered materials. Both of them can be equipped with atomizing spraying system to add needed liquids, which can improve the feed pellet quality.
(4) Feed Pelletizing Process:
Feed pellet mill is the main equipment of the whole production line. There are two common kind of feed pellet mills: ring die feed pellet mill and flat die feed pellet mill. If you want to produce feed pellets with large quantity, the ring die feed pellet mill is the ideal choice. If your demanded quantity is small, you can choose the flat die feed pellet mill. Also, we supply the aquatic feed pellet mill for pressing fish feed pellets and shrimp feed pellets etc. If you have more question about customized feed pellet production requirement, please feel free toleave message or send email for more support.
(5) Feed Pellet Cooling Process:
The feed pellets pressed out by the feed pellet mill are hot and moist. They can't be crushed, screened or packed immediately. Counterflow feed pellet cooler is designed to cool or dry the feed pellets. It can decrease the temperature and moisture of the feed pellets, preparing for the following processes.
(6) Feed Pellet Crumbler Process:
Different poultry, livestock or aquatic feed pellets are with different sizes. Some big ones should be crushed into small ones. Roll type feed pellet crumbler is just the equipment for feed pellet crushing. Double-roll feed pellet crumbler is suitable for crushing poultry feed, such as chicken feed, duck feed and goose feed etc. Three-roll feed pellet crumbler is suitable to crush aquatic feed including fish feed and shrimp feed etc.
(7) Feed Pellet Screening and Grading Process:
The crushed feed pellets are with different sizes, and there may be some powder. Therotary grading sieve can be used to screen and grade the feed pellets. After processing, you can get the qualified feed pellets without fine powder.
(8) Feed Pellet Packing Process:
The feed pellets should be packed for transporting, storing or selling. Automatic weighing and packing machine can weigh and pack the pellets automatically with high accuracy.
(9) Automatic PLC Control System:
With the automatic PLC control system, the production line is with high efficiency and convenient operation.
Packing & Delivery

Full Container Loading for poultry feed mills in pakistan

Machine self by plastic film wrap, then loading by container

Customer Factory

8-10T/H Poultry Feed Line In China

(automatic batching)

5T/H Poultry Feed Line In Bangladesh

( Manual Batching)

Powder Feed Making Line In Saudi Arabia

10T/H Poultry Feed Pellet Line In Middle Of China

8Tt/H Cattle Feed Line In Algeria

10T/H Cattle Feed Line In Nigeria

10T/H Poultry, Pet, Fish Feed Line In Australian

Crushing System In Thailand

Silo Project In Middle East

Contact information

poultry feed mills in pakistan :


Contact Person : Mrs Anni

Cell/What's app/ Viber: 0086 15178920906

E-mail: info(at)astarmachine.com

Skype: Anni Duan  or winni.duan
