Product Overview

Description


Product Description

easy operation cnc channel letter bending machine for making Aluminum Coils trim cap Signage

Product Application

Fully functional, which has combined both the plate and profile processing. This system integrated the most convenient switching function of material and cutter, the design of double slotting cutter and double bending tools can easily deal with stainless steel, galvanized sheet, aluminum plate and aluminum profile and other materials processing. Now the machine is the highest rate of return on investment in the market.

\t
Feeding System
\t
Rolling-typed continuous feeding device
\t
Slotting System
\t
Planer cutter and milling cutter double drive slotted system
\t
Bending System
\t
Double blade alternate bending system
\t
Suitable Material
\t
Stainless steel, Galvanized steel, Aluminum, Aluminium profile
\t
Material Height
\t
20~125mm
\t
Material
Thickness
\t
1.Stainless steel≤1.0mm   2.Galvanized steel≤1.0mm
3.Aluminum≤1.2mm  4.Aluminium profile 1.0mm
\t
Accuracy
\t
±0.1mm
\t
Input File Format
\t
.dxf
\t
Dimensions
\t
L2571mm×W800mm×H1550mm
\t
Power
\t
AC220V 50Hz 3.0Kw
\t
Air Supply
\t
0.6m3/Min
\t
Total Weight
\t
480Kg
Detailed Images

Main Features

Double knife alternating bending system,according to the change of internal and external arc,automatically switch to bend the bending tool,reverse bending tool automatic income tools library,to avoid the phenomenon of intervention bending tools forming angle,for small arc of the small angle of the molding performance is very good.Under the same platform have the processing ability of profile,plate and profile processing without the need to replace the hardware.

Main Features

Double cutter double drive slotting system,Planer cutter and milling cutter of combination configuration,The system is based on the processing of different materials to drive the slotting tool,no manual intervention tool switching procedure.

Main Features

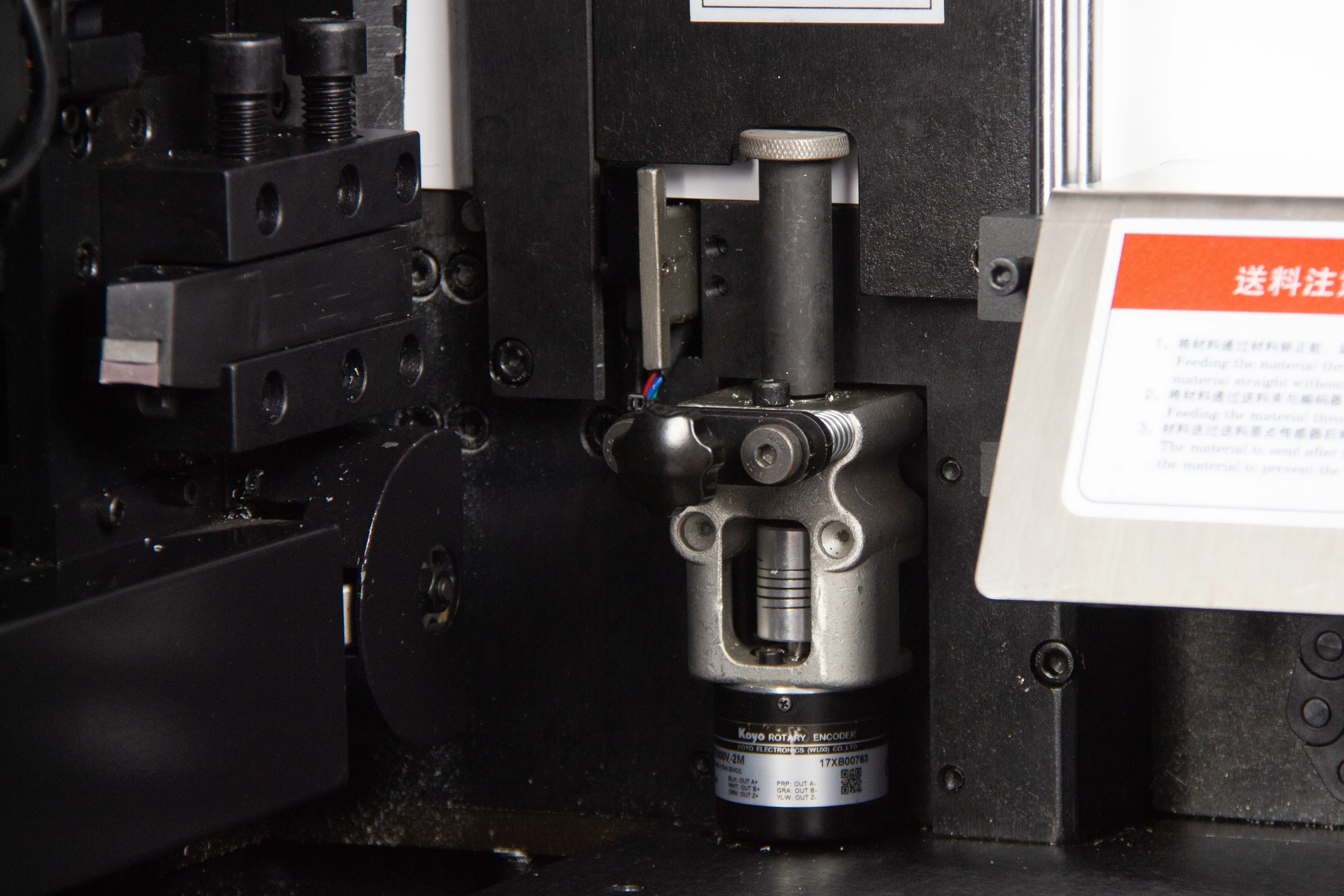

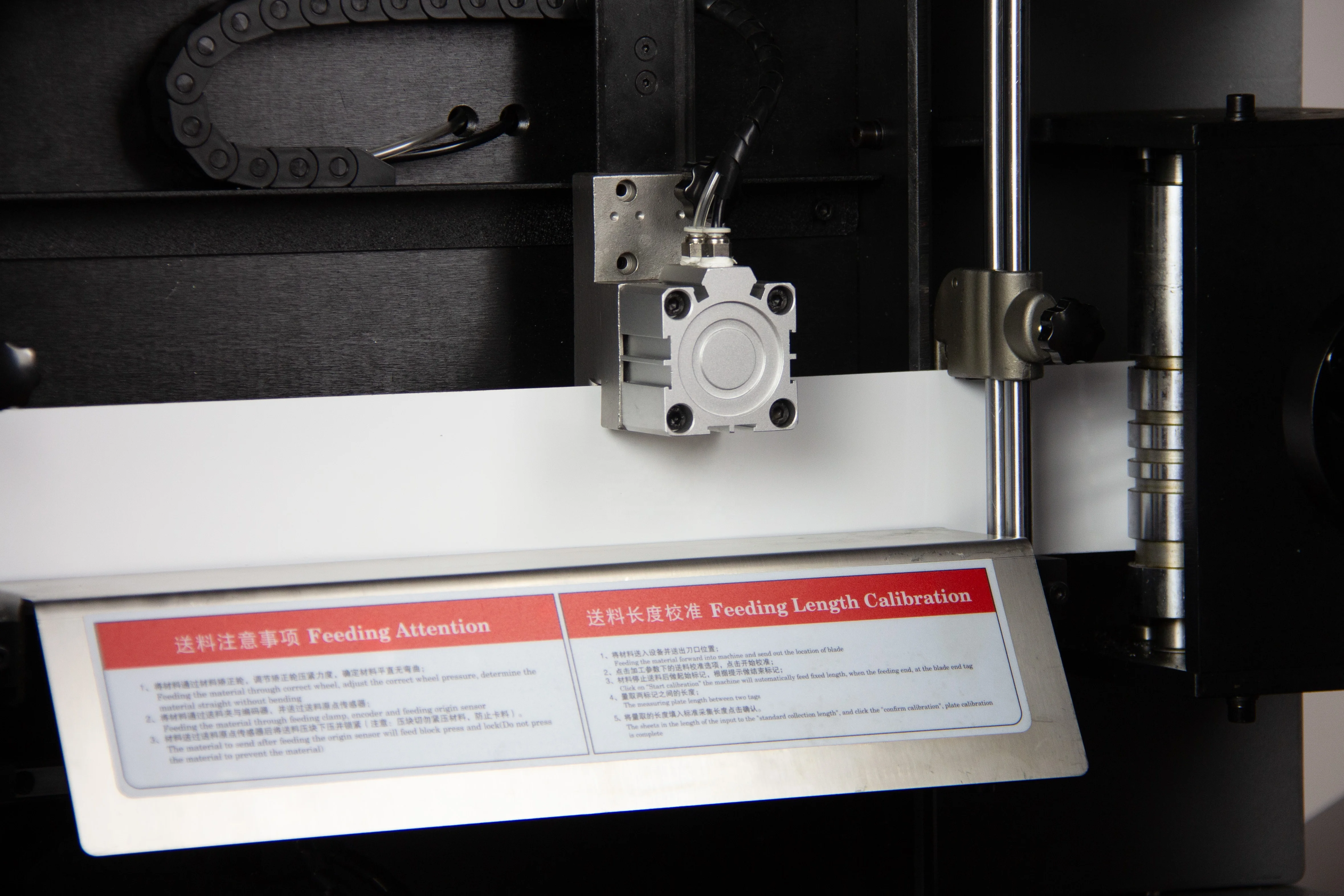

Rolling continuous feeding system,Rapid and sensitive, continuous response.The pressure can be adjusted according to the change of material, which can avoid the occurrence of indentation and sliding material.The setting of the double feeding support avoids the change of feeding track, and ensures the smooth input of the material.

Main Features

1.For the same graphics processing the consistency achieved to 99% For the batch words producing even more advantages.

2.Min. bending angle achieve R6.

3.Perfectly match with laser welding machine.

4.High degree of Forming ,It can match with the panel which produced by all kinds of cutting equipment and the matching degree is more than 90%.


Main Features

board card,U-KEY,data expansion line, USB flash disk ,warranty card,bending tool adjusting picture ,mouse pad,2 Power lines, 1VGA line,hexagon wrench,
hardware tool, Insurance,mini cutter

Our Service

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

Packing & Delivery
\t
Packaging
\t
Size
\t
2670 (L) * 950 (W) * 1730 (D)
\t
Weight
\t
0.5 T
\t



Packaging Details
\t
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Requirements


Computer

To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.Computer configuration requirements: XP system or window7 32-bit system, and requires a PCI card slot to install the control card.


File Format

The software of bending machine is self-developed. Import file format supports .dxf.Plt We recommend using Coredraw or adobe illustrator tocomplete the file after the export file to.Dxf.Plt format. Then open the operating software, select the document.



Pump

The use of equipment should be equipped with
air compressor, we suggest that the selection of
more than 4kw, the gas flow is 0.6m³/Min.
