BW-TF03K 48V 350A Hight Precision LiFePo/Lead Acid battery voltage indicator

Share on:


Price:$33.00 - $45.00
Price in USD:Details

Quantity:


Product Overview

Description



NEW Related products


LY4 battery indicator

TH01 battery indicator

LY6W battery indicator



TF01 battery tester

TF03 battery tester

TK15 battery tester



Product Description

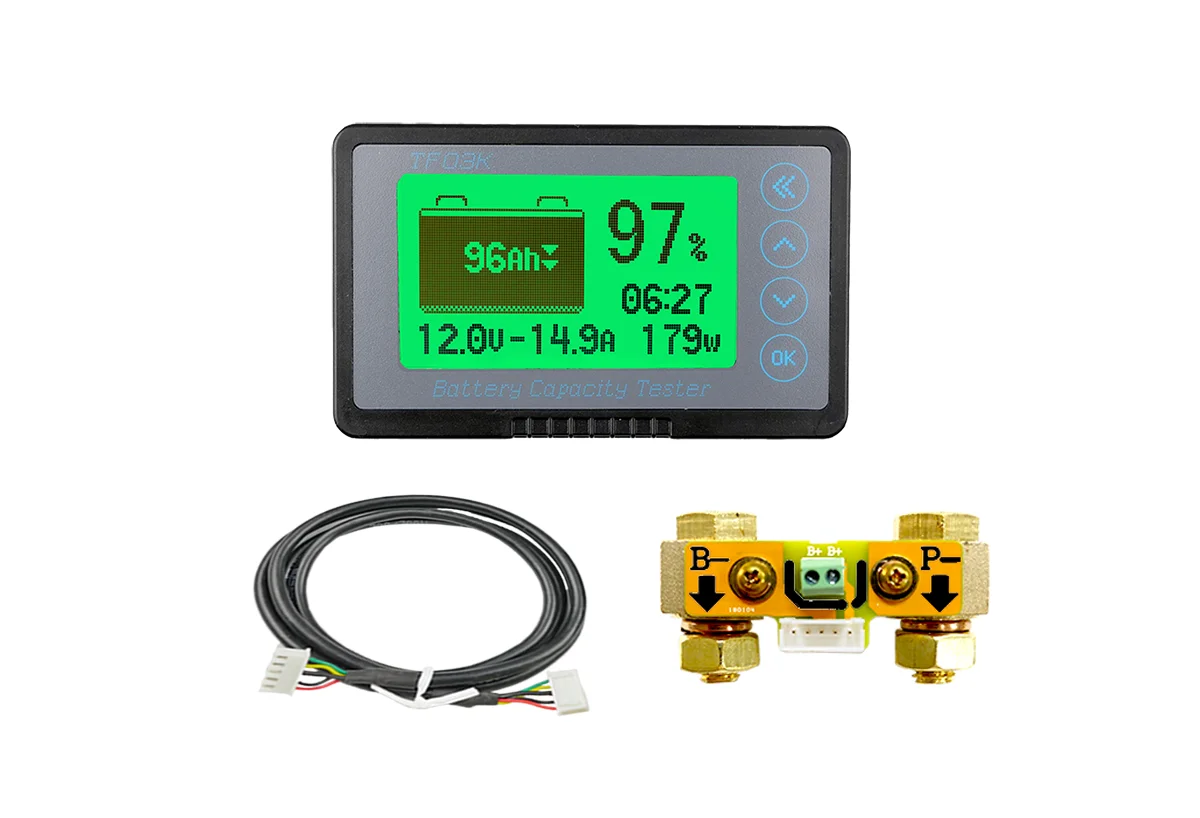

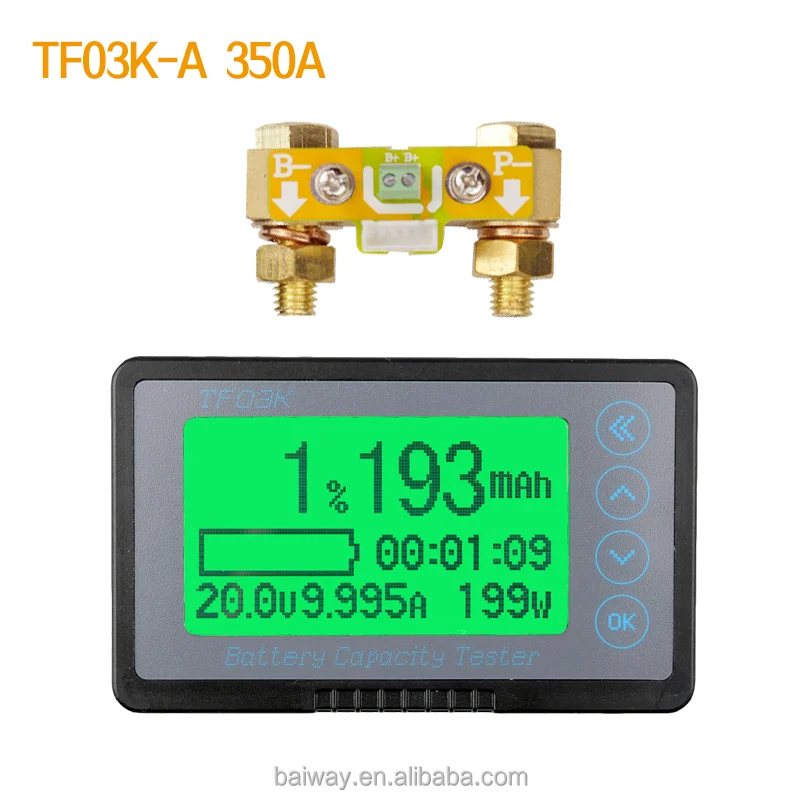

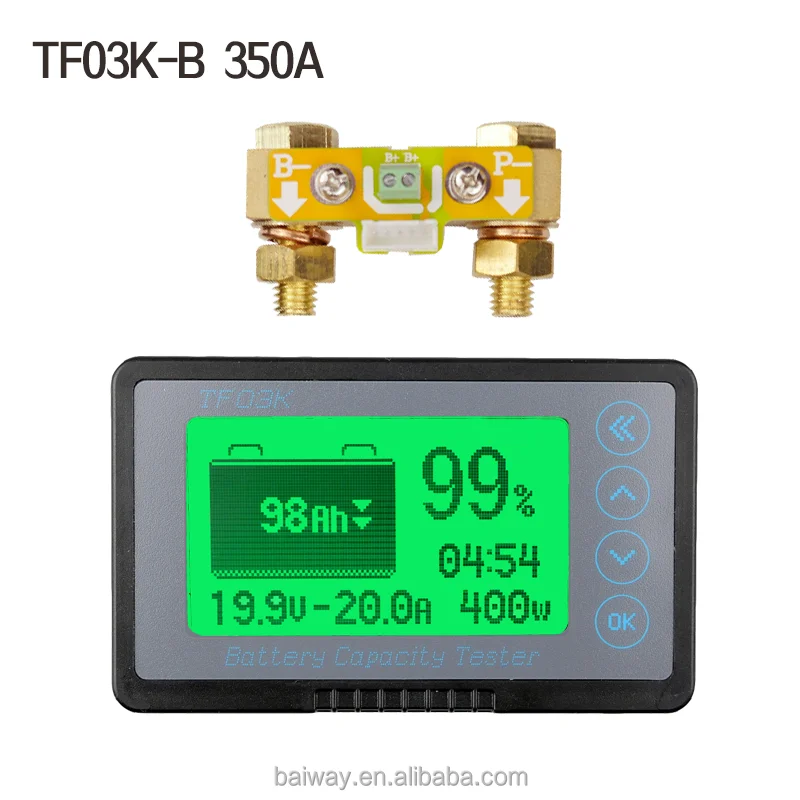

TF03K Battery Indicator(100V 350A)

      TF03K is a kind of high accuracy current type battery indicator, TF03K can test the voltage, current and capacity of lead-acid/lithium-ion battery, and display them with intuitive battery symbol and percentage. Users can know the state of battery in time. TF03K has function of memory.This battery indicator is suitable for mobile and portable equipments、upselectric vehicles、ebike、 battery cars、balance cars、cleaning machines and so on.

      TF03K is different with voltage type battery indicator, TF03K has high accuracy and higreliability.So it is expensive than voltage type battery indicator like LY4,LY6......









          Note:This product contains 50A sampler and 3 m shielded cable( default 0.5m, 1m, 2m, 3m, 4m, 5m, 8m, 10m can select,Please contact us in advance). The price is according to the length.



Basic parameters:




Parameter
Min
Type
Max
Unit
Working voltage
10.0

120.0
V
Working dissipation

10.0
15.0
mA
Standby dissipation

1.0
2.0
mA
Capacity accuracy

±1.0

Voltage accuracy

±1.0

Current accuracy

±1.0

%
Backlight on current

80.0
100.0
mA
Backlight off current

50.0
60.0
mA
Capacity setting value
0.1

9999
Ah
Current of 50A sampler
50.0
500.0
A
Temperature range
-10
20
60
Weight
450.0
g
Size
100×62×18
mm


Working interface:






Install:

1. In the device panel to open a rectangular hole and two screw holes,

2. Then install the battery indicator from the front of the panel and place the indicator housing into the rectangular opening;




Connect:





Connection diagram of 350A sampler

      Attention: Please connect as shown strictly. The sampler must be connected to the negative circuit, it is forbidden to connect to the positive circuit. If you want to extend the shielded wire, you must use 4 lines of same specification.





Our Company


      Shanghai Baiway electronic CO., LTD was founded in 2009. Our company has been focused on the production, design and development of battery applications for years, have rich experience.

      The company has a strong development of technical strength, and constantly introduce new products to meet the needs of various customers. Shanghai Baiway electronics Co., integrity, strength and quality of products recognized by the industry. Welcome friends from all walks of life come to visit, guidance and business negotiation.





High quality partner

Our products have been unanimously confirmed by users and established a good long-term cooperation relationship.





Order Process

From the time the order is established, the order information is transferred to the warehouse, the warehouse starts to pick according to the order information, (usually in stock, large batch orders are determined in advance for the delivery cycle), and then the electricity is turned on for product inspection, and after the test, the packaging is started and the box is sealed. The goods will be delivered to your hands through logistics.





Certifications




Packing & Delivery

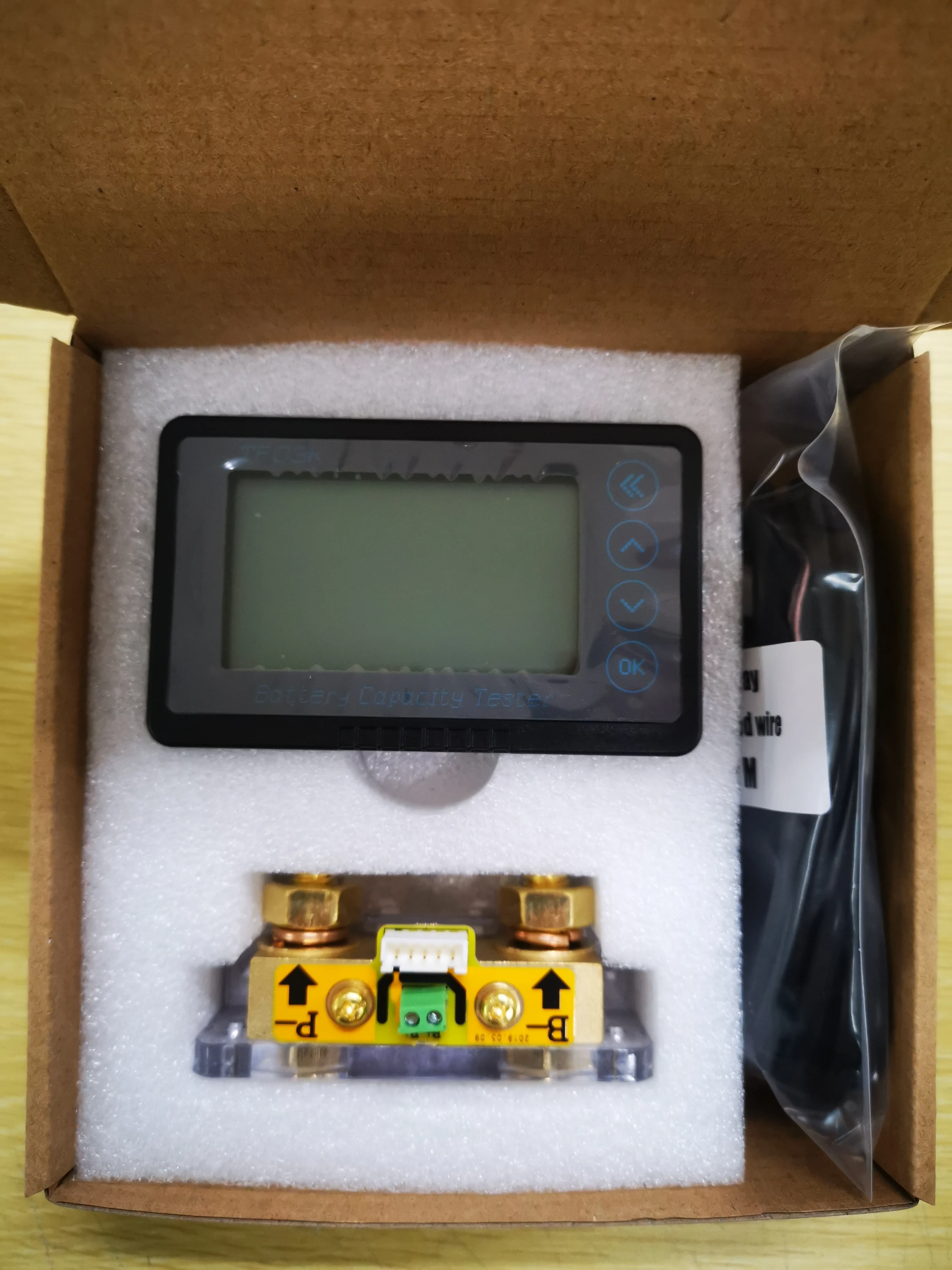

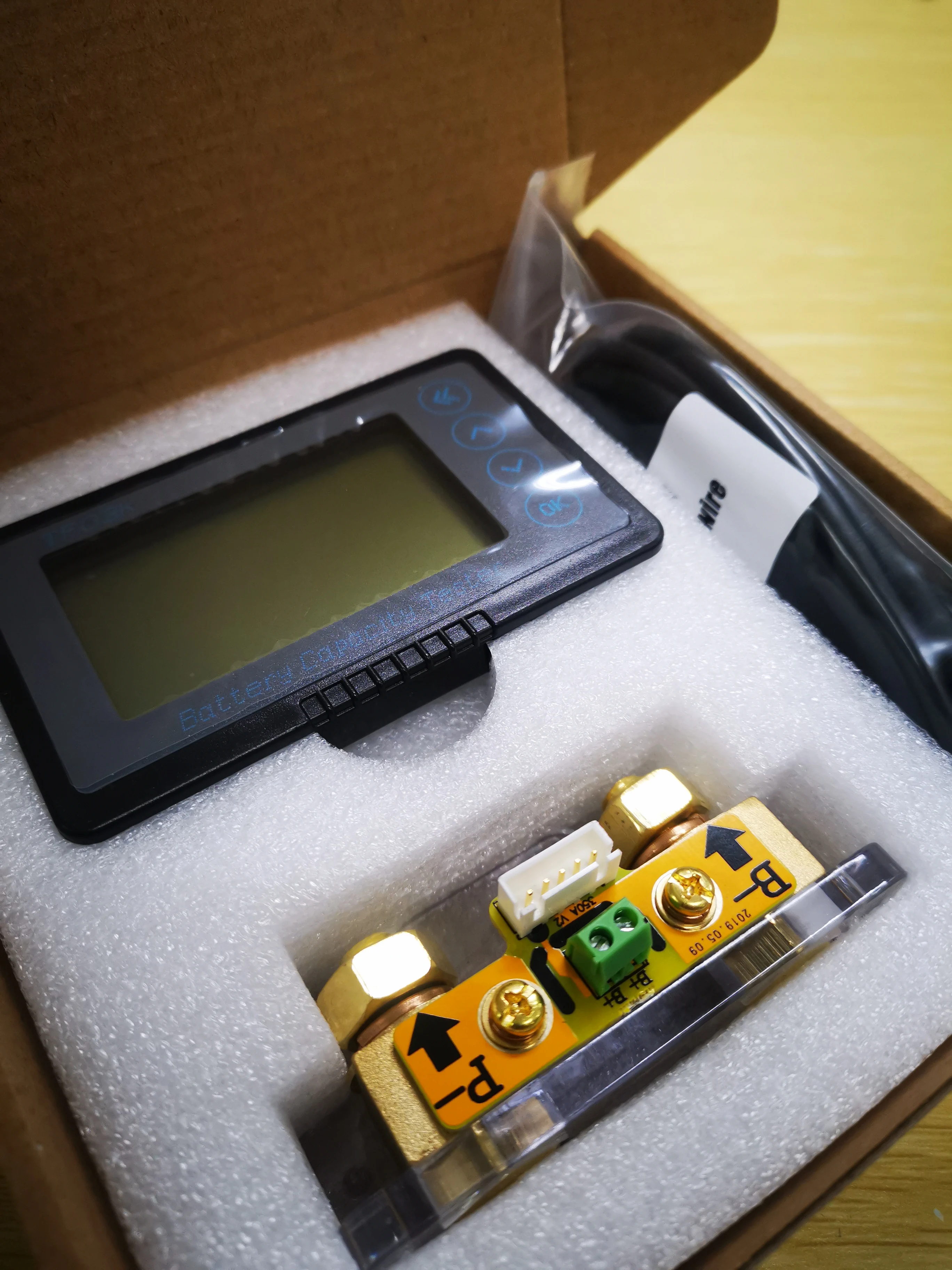

      Packing: Each packed in sealing bag, bag size: 15*15*5cm, weight: 450g.
      Delivery: We can send goods off by sea, land, air and post according to you need.
      Receiving: Please make sure the goods are in good condition before sign for.Please contact us if you have any question about the products.







FAQ


1. Are you manufacturer or trader?
    We are manufacturer, and our company is established in 2009.
2. What is your delivery time?
    10-30 working days depends on your order quantity.
3. Where is your factory?
    Locate in Shanghai, China. You are welcome to visit our factory.
4. What are your main products?
    Our products include voltage type battery capacity tester, current type battery capacity indicator, etc.
5. Why do you choose us?
    Our company's products are independent R&D and manufacture, have high performance.
