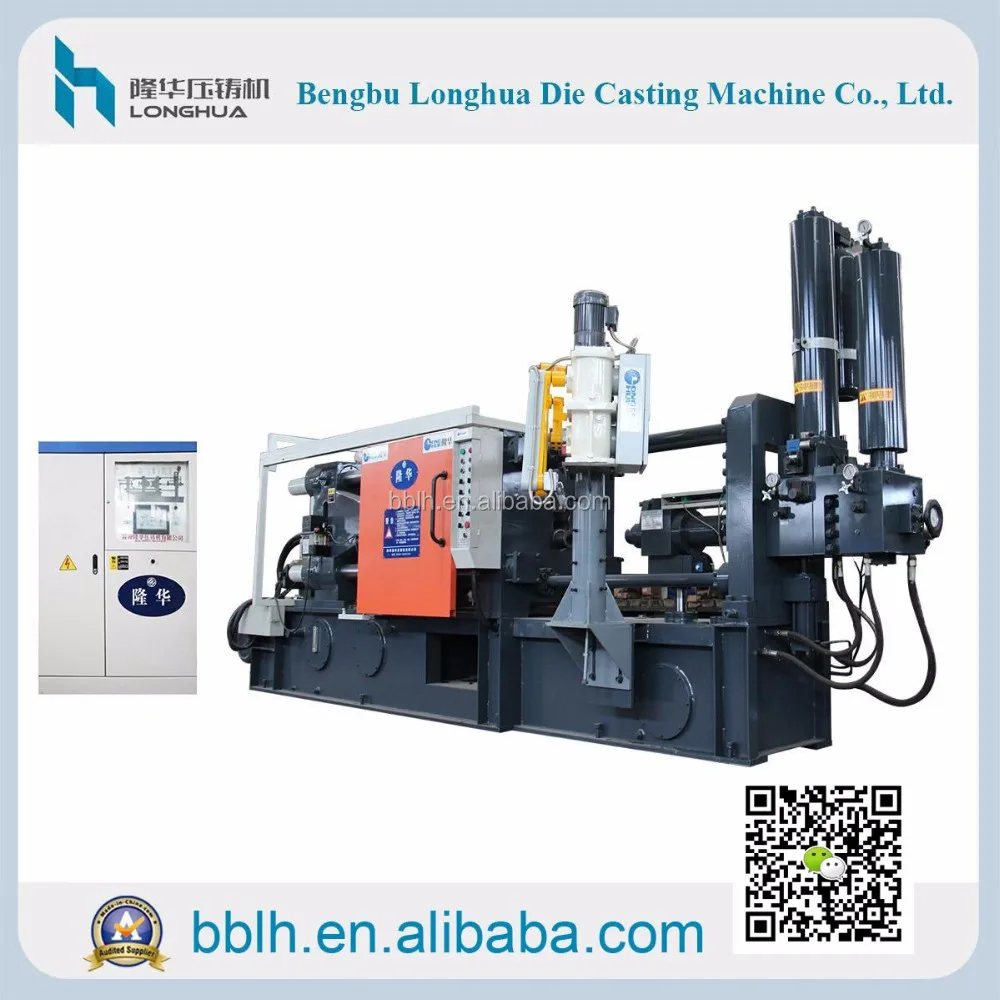

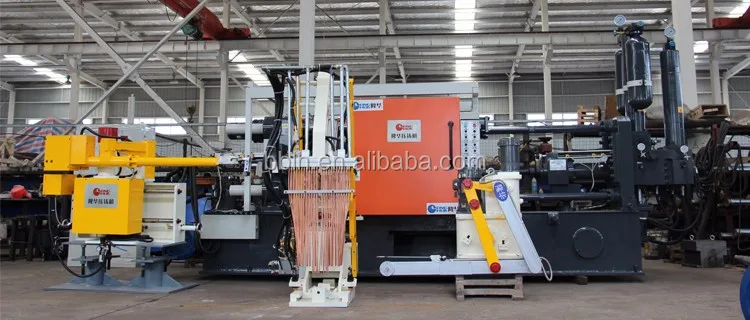

Low price and high quality aluminum 300ton horizontal cold chamber pressure die casting machine

Share on:


Price:RUB 2,260,137.00 - RUB 3,013,516.00
Price in USD:Details

Quantity:


Product Overview

Description

Product Description

Product Application

Long Hua die-casting machines are applicable to manufacture of automobile and motorcycle parts (engine cylinder block, cylinder head, crankcase, hinged door covers, oil pan, gearbox housing, gearbox end cap, dashboard, etc.), electric escalator handrail/steps, industrial/road/railway/air/agricultural machinery, streetlights shells,potlight shells, building material parts, furniture, aluminum arts, copper arts, magnesium alloy products, non-ferrous metal processed products and other die casting products.

LH series of standard parameter table (300 ton)
Die Open/Close
Clamping Force/Locking Force
KN
3000
Space Bteween Tie Bars
mm
560*560
Mold Thickness Range
mm
250~650
Injection
Injection Force
KN
330
Plunger Stoke
mm
400
Maximum Casting Pressure
KPa
143/99/73
Ejection
Ejection Force
KN
150
Ejection Stroke
mm
110
Hydraulic Motor
KW
15

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Certifications
Detailed Images

Machine Parts

Name: PLC High resolution touch screen

The internationally-favorable PLC man-machine interface control system, casting product data storage and monitoring capabilities, timely alarm in case of abnormality, and elimination of large quantities of defective products.

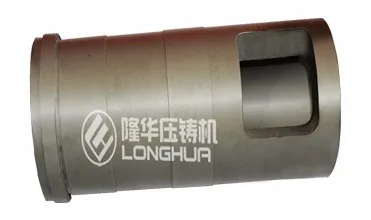

Molten Cup/Melting shot sleeve

Main material: SKD61, H13 steel,8407
Treatment hardness: HRC60
Nitriding hardness:HV>900
Nitriding depth:0.25-0.3mm
Size:125T-3800T
Characteristic:Efficient, energy saving, environmental protection.The only our factory in the country has the technology of repairing and recycling.

Alloy punch/Plunger/Injection piston

Main material: SKD61, H13 ,8407,Berylliun bronze

Process: Heat treatment

Plating:Nickel,Chrome,Tungsten,Wolfram

Injection rod

Main material: SKD61 ,45# steel,H13 steel ,40Cr
Process: Heat treatment
Application: Match with all kinds of casting machine
Characteristic:Moderate hardness of inside and outside, not easily deformed under the high pressure,
not easily broken.

Our customers are

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & FAQ
Packaging
Size(m)
6.4*1.7*2.8
Weight
13T
1. Industrial packaging:
Plastic tube + carton + wooden pallets
2. Commercial packaging:
Plastic bag + color box + carton + wooden pallets.
 3.Discuss delivery and packing according to customer's requirements.
FAQ
Q: Are you trading company or manufacturer ?
Our edge is the factory of production, export product quality, factory direct prices.
Q:Why choose us?
1.Our machine Efficient, energy saving, environmental protection,Quality has been recognized by the national quality supervision department.
2.Our service has been recognized by international customers.
