Вибрационная машина для удаления заусенцев и Мисок

Share on:


Price:750,00 $ - 800,00 $
Price in USD:Details

Quantity:


Product Overview

Description

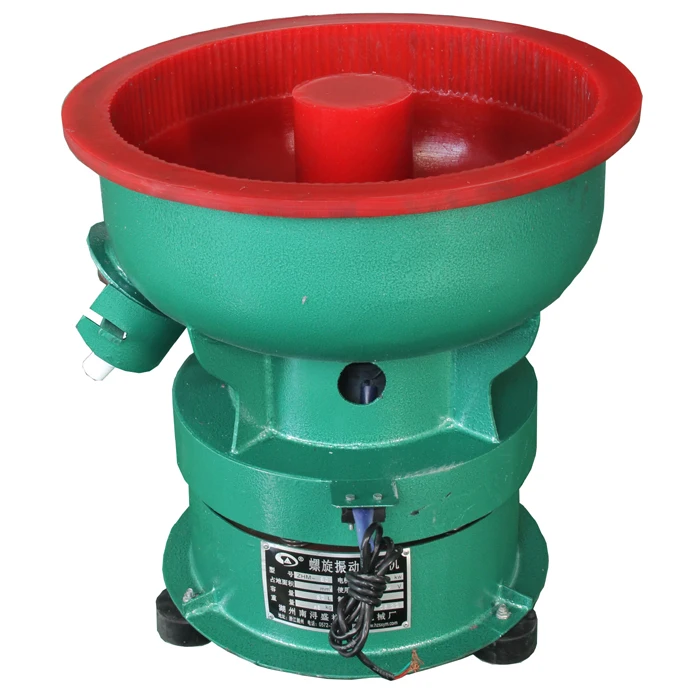

Vibratory Deburring Bowls Finishing Machine








In addition to the deburring process, vibratory finishing can be utilize for the different applications as Preplating  finishing, Brightening, Smoothening, polishing, Burnishing, Edge Radiusing, De-rusting, Fine mark removing, cleaning, De-scaling, De-Gressing, Deflashing, Micro Finish Improvements.









 vibratory polish (8).jpg    vibratory polish (10).jpg

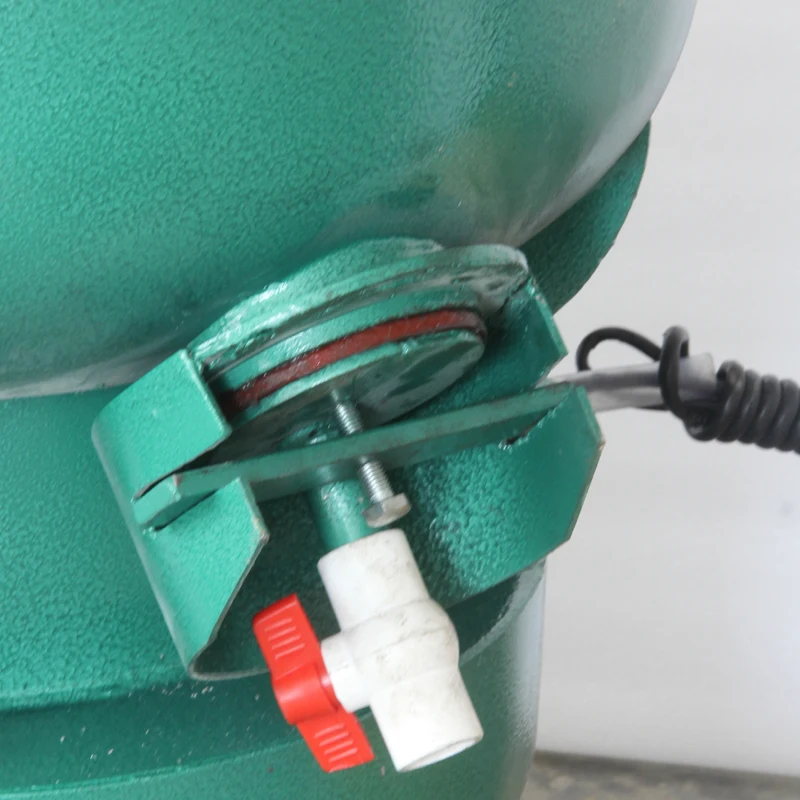

                      Water outlet                                                              PU Lining



vibratory polish (7).jpg



Vibration Deburring Machine Features:


1, Using special vibration motor, vibration performance, low maintenance, production cost-effective.
2, The machine's amplitude, flip strong, high cutting force, suitable for large quantities, small size workpiece grinding, polishing and processing.
3, The process will not destroy the original size and shape of the workpiece.
4, It can be customized according to customer requirements frequency control, time control, plus environmental protection cover noise work.




Vibration Deburring Machine Parameters

















































ModelCL-60A
Voltage230V/380V/440V,  50Hz/60Hz, 3 Phase/Single phase
Capacity:60L
Size :700*640*700mm
Speed:1450 r/min
Amplitude0.8-3mm
Motor Power0.75-1.1Kw
Estimated weight:100kgs
Lining Thickness6-12mm
Equipped With:All urethane bowl
Rubber suspension mount system
Steel base/stand
Quick release bowl clamp system
Optional Items

Automatic Lubrication


Sound Enclosures


Media Separators


Variable Frequency






 Advantages and Benefits



  • High Frequency/High Amplitude Vibratory Mass Finishing Bowl

  • (4) Models 5-20 CU. FT. Capacities

  • 1450 RPM Direct Drive Motor

  • Engineering Heavy-Duty Motor

  • AC Tech Inverter/Controller AVAIABLE

  • 230V/460V Dual Voltage, 3 phase

  • Waterproof ON/OFF Switch

  • Rugged  Polyurethane Liner

  • Convenient Discharge Door

  • Unique Curved-Wall Construction

  • Low-Profile Design

  • Extended Screen Deck

  • Integral Sound Cover AVAIABLE

  • Easily Changeable Drain Plug


LOW PROFILE DESIGN
The low-profile vibratory bowl design, together with variable speed control, supports fine-tuned operation along with efficient processing and part unloading.

CURVED, POLYURETHANE-LINED BOWL
Maximizes machine channel utilization and offers higher cutting pressures while keeping parts in contact with media for more efficient processing and reduced impingement. High-quality, polyurethane construction for longer bowl life.

EXTENDED SCREEN DECK
Increases part separation time, and together with variable speed control and curved wall construction, assists in providing 100% parts separation under most operating conditions.

DIRECT DRIVE MOTOR - 1450 RPM
Rugged motor, heavy-duty springs, variable speed control, and low center of gravity produce high-frequency, high-amplitude action ideal for fast cutting and high intensity burnish.







 Model Features & Specs








hot sale



















Remarks :
If the workpiece is relatively large, choose the A Type.
If the workpiece is relatively small, you can Use AB type.
If the workpiece is relatively small, and the workpiece hardness is relatively high, then choose B-type


Our Packing





About KAFAN:




 2345501


We own a manufacruery base on 3600 square meter,around 100 employees and 24sets of production equipment ,dividing into technical department,after-sale department .


Kafan, is a brand under the COLO group specializing in sandblasting equipment and mass finishing equipment. We have worked on worldwide market for 10 years, because of the superior technology, quality, service, we’ve export into more than 100 countries, establish long term business with distributor in US, Mexico, Russia, Poland, UK, Germany, South Africa, Vietnam, Thailand, etc.


FAQ


1)Q: Are you manufacturer or distributor?


   A: Kafan is professional manufacturer of surface finishing equipment with 10 years experience


2)Q: How can we place the order?


    A: You can inquiry us now, then we can talk by email, or whatsapp, or skype.


3)Q: How do we make payment?


    A: For big amount, we accept T/T by bank, for small amount, we also accept paypal and western union.


4)Q: Can you ship for customers?


    A: Yes, we can. We accept CIF, CFR, DDP, etc, we can ship for you.


        We also accept FOB, EXW, etc, customer can assign their own shipping agent.


5)Q: What is the delivery time?


     A: Normally  it is 7-10 working days


6)Q: What about the warranty time?


    A: One year.
