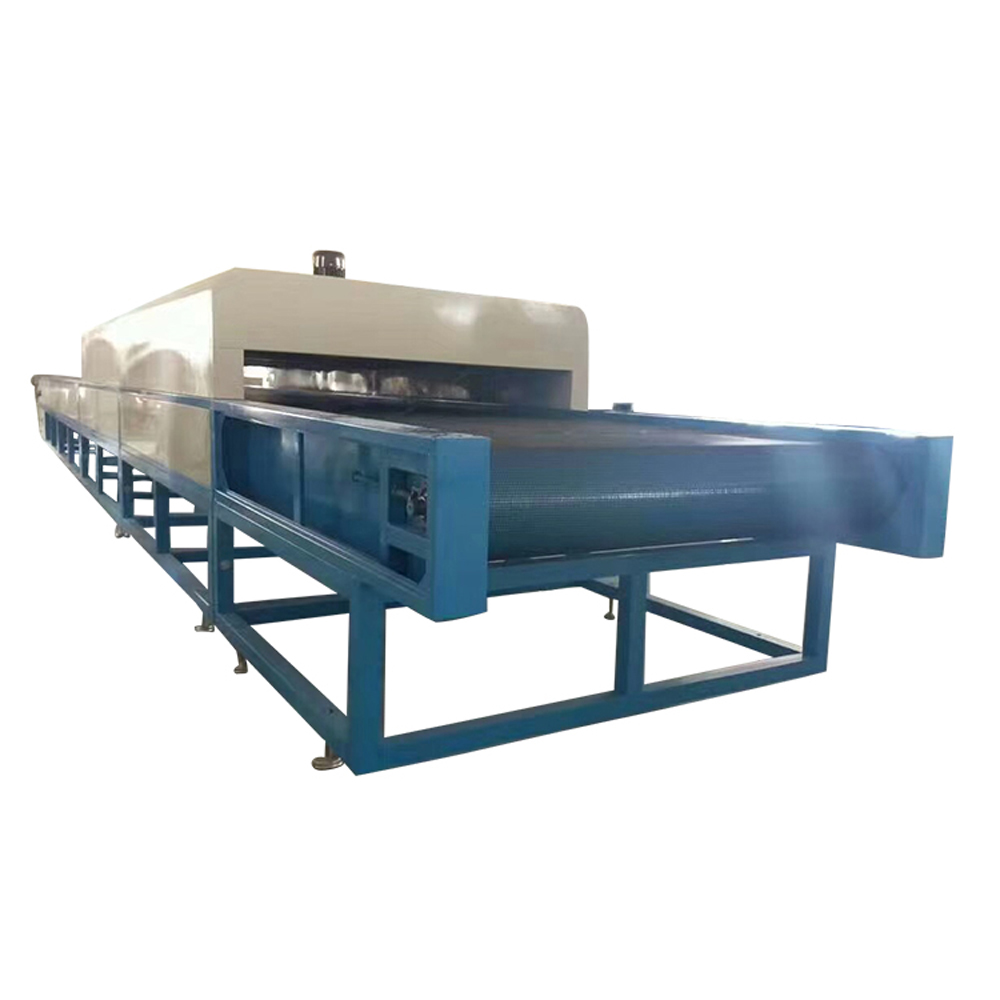

High Efficiency Industrial Microwave Dryer Equipment

Share on:


Price:RUB 392,828.50 - RUB 4,713,942.00
Price in USD:Details

Quantity:

Add to Cart
  • add to wishlist

Product Overview

Description

Product Application

High efficiency industrial microwave dryer equipment  can be widely used in metallurgical, chemical, pharmaceutical, food,wood and other fields .it can provide fast , energy saving , high efficiencof microwave drying , microwave sterilization, microwave dehydration, microwave extraction, microwave heating and microwave sintering process and etc.


Main Features

1) Time saving and speed is fast.

2) Keep nutrients and traditional flavor-low temperature sterilization.

3) Energy saving and uniform processing

4) Easy control and labor saveing

5)Improve woking conditions and save cover area.

Technical Parameter
Item
DXY-20KW
DXY-30KW
DXY-40KW
DXY-60KW
DXY-100KW
DXY-200KW
Power supply
380V,50Hz
380V,50Hz
380V,50Hz
380V,50Hz
380V,50Hz
380V,50Hz
Microwave output frequency
2450 ± 50MHZ
2450 ± 50MHZ
2450 ± 50MHZ
2450 ± 50MHZ
2450 ± 50MHZ
2450 ± 50MHZ
Related input apparent power
≤ 26KVA
≤ 38KVA
≤ 50KVA
≤ 72KVA
≤ 130KVA
≤ 230KVA
Microwave output power
≥ 20KW
≥ 30KW
≥40KW
≥60KW
≥100KW
≥200KW
Microwave power adjust range
0-20kw
0-30KW
0-40KW
0-60KW
0-100KW
0-200KW
Temperature range
0-200℃
0-200℃
0-200℃
0-200℃
0-200℃
0-200℃
Relative humidity
≤80%
≤80%
≤80%
≤80%
≤80%
≤80%
Inlet and outlet height
80mm
(adjustable)
80mm
(adjustable)
80mm
(adjustable)
80mm
(adjustable)
80mm
(adjustable)
80mm
(adjustable)
Transport belt width
500mm
(adjustable)
750mm
(adjustable)
750mm
(adjustable)
1200
(adjustable)
1200
(adjustable)
1200
(adjustable)
Outline size(mm)(LXWXH)
8500x820x1750(adjustable)
8500x1500x1750(adjustable
10500x1500x1750(adjustable)
10500x1800x1750(adjustable)
16200x1800x1750
(adjustable)
16200x1800x1750
(adjustable)
Transmission speed
0-8m/min
(adjustable)
0-8m/min
(adjustable)
0-8m/min
(adjustable)
0-8m/min
(adjustable)
0-8m/min
(adjustable)
0-8m/min
(adjustable)
Certification
Detailed Images

Machine Parts

Name: power supply

Brand: Megmeet

Feature: Domestic famous brand, stable &reliable . can change the power according to different products .

Main Features

Name: Microwave emitter
Brand: Toshiba/Samsung

 Feature:  Famous brand to support stable and reliable features.

Machine Parts

Name: Frequency inverter
Brand:  Delta
Original: Taiwan
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.

MaIn Parts

Name: Electirc cabinet wire
Features:   Neat  arrangement ,convenient for checking and maintenance

Packing & Delivery
Packaging
     Material
Wooden box or plastic film according to different models into container



Delivery
                                                                                                                                                                                                                              normal products can be delivery within 2-3 weeks after the receipt of deposit .
