Winged Twist-on Wire Nuts

Share on:


Price:RUB 1.54
Price in USD:Details

Quantity:


Product Overview

Description

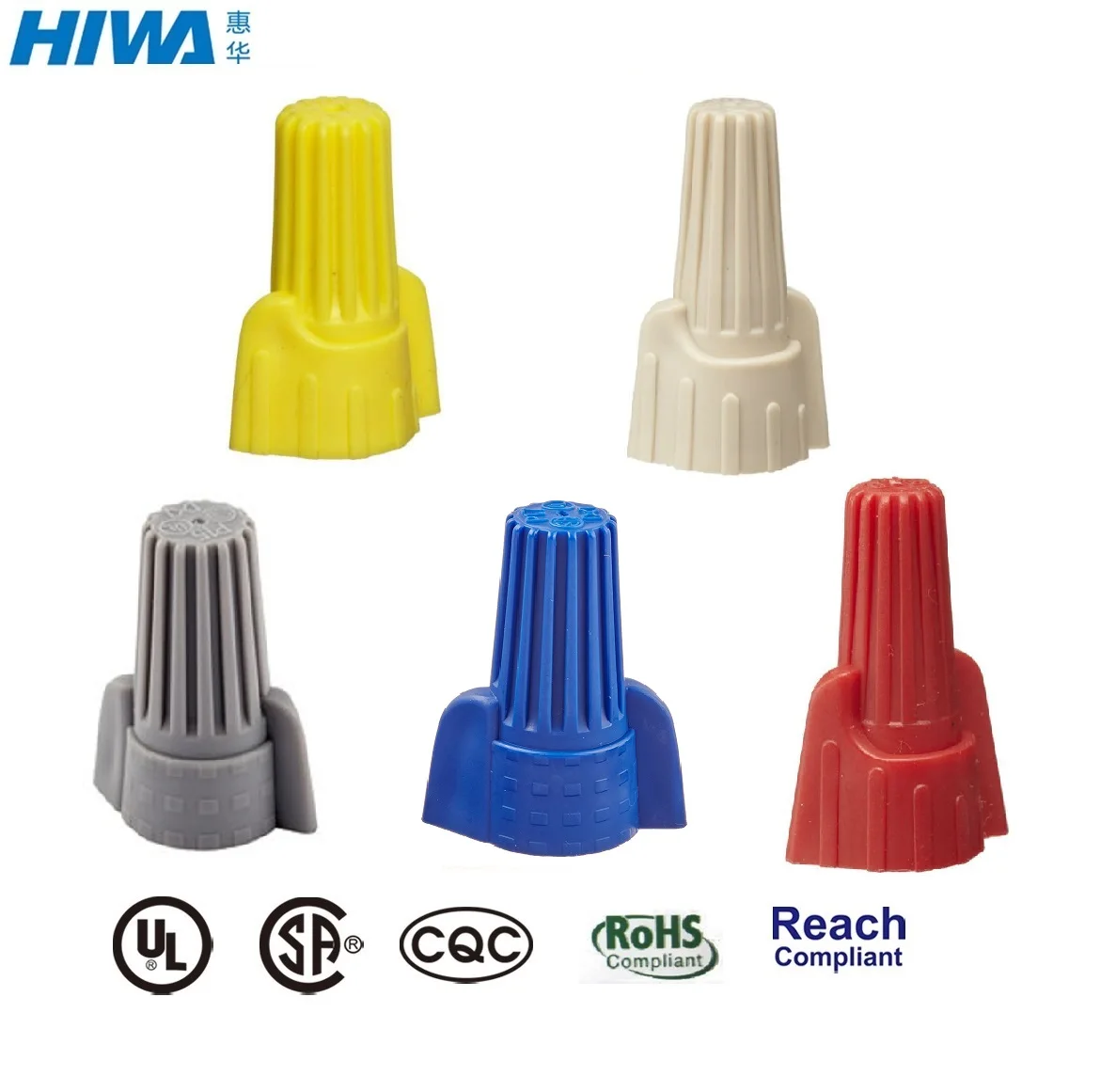

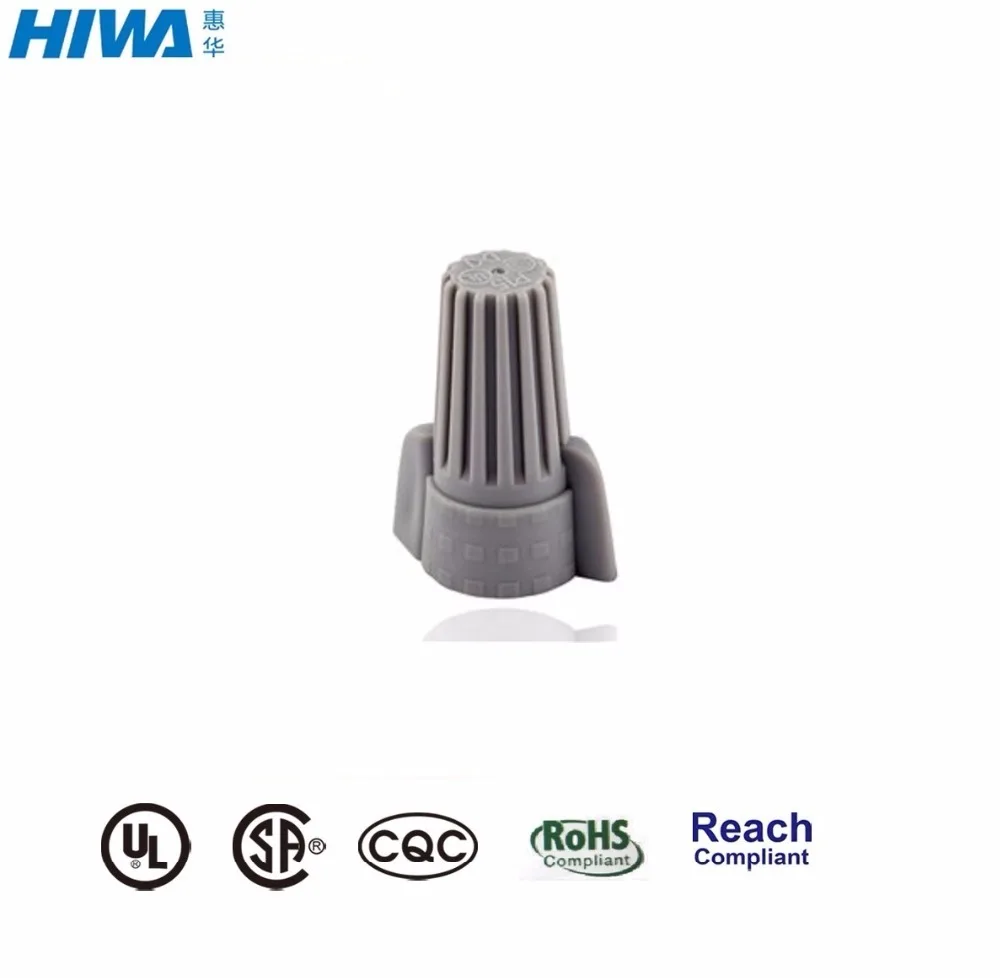

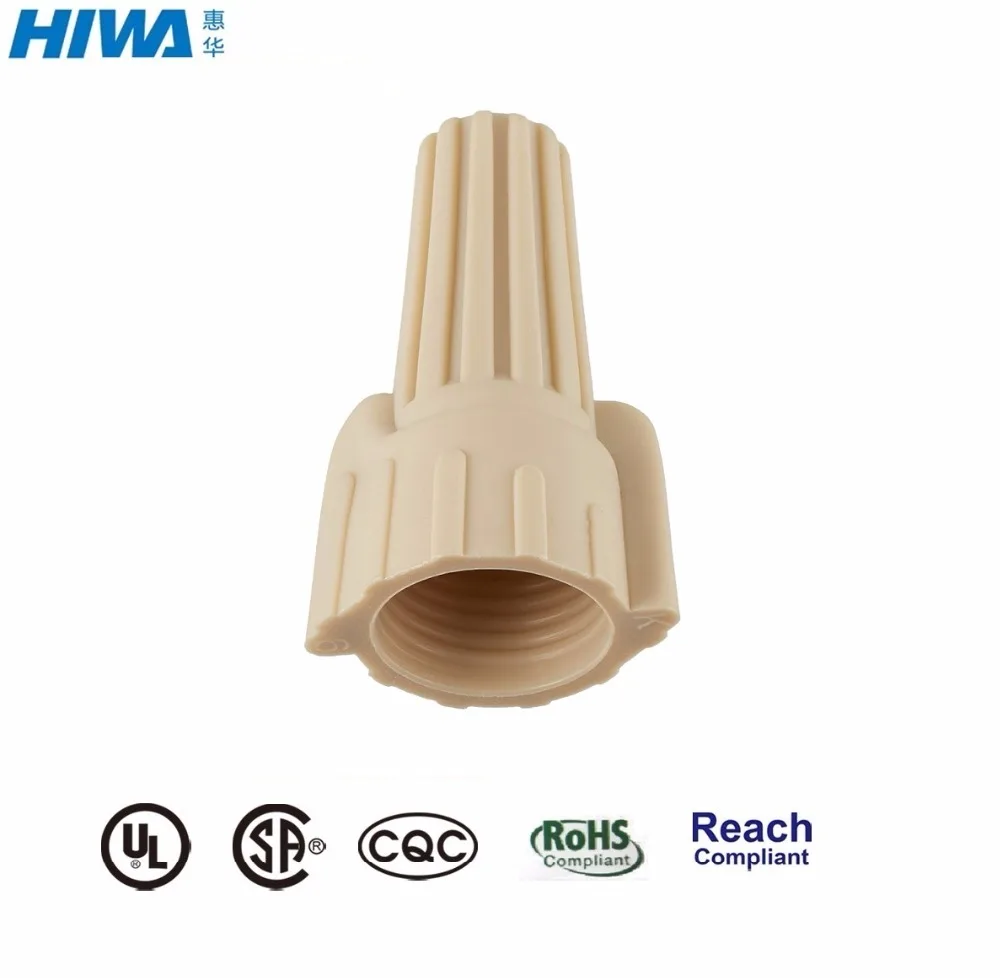

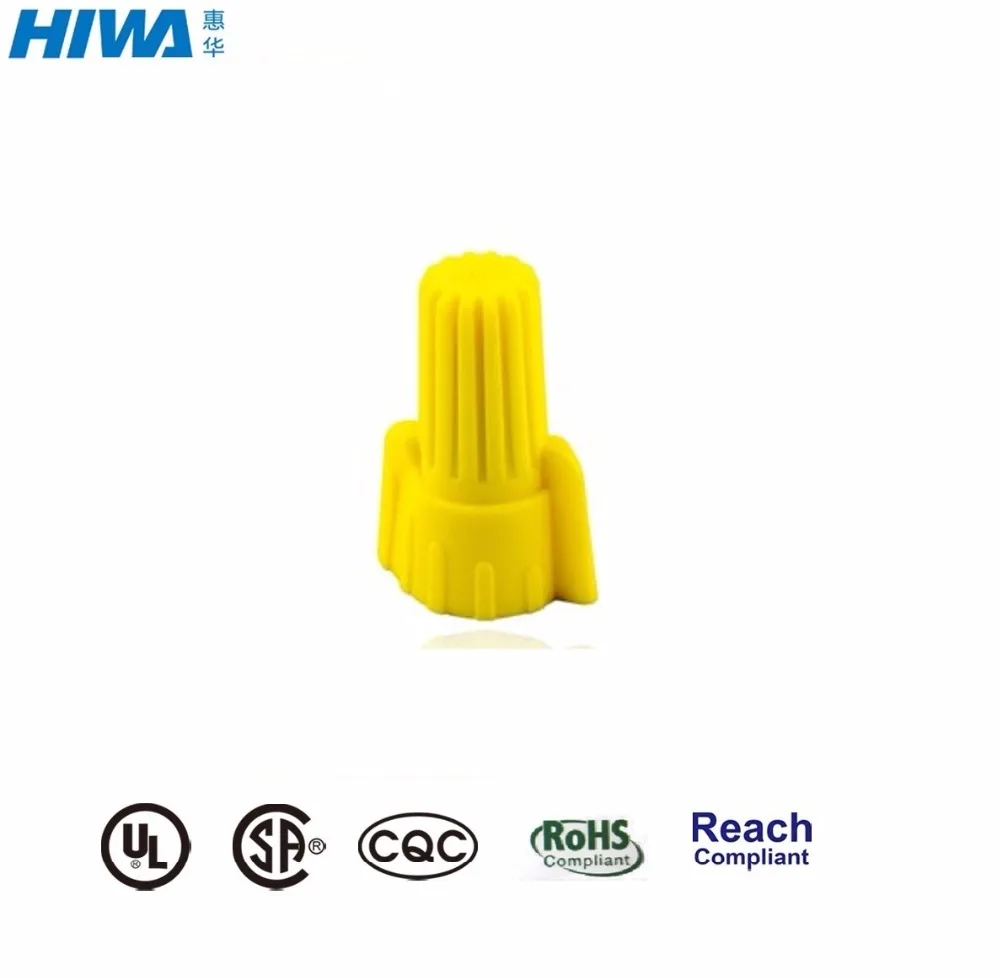

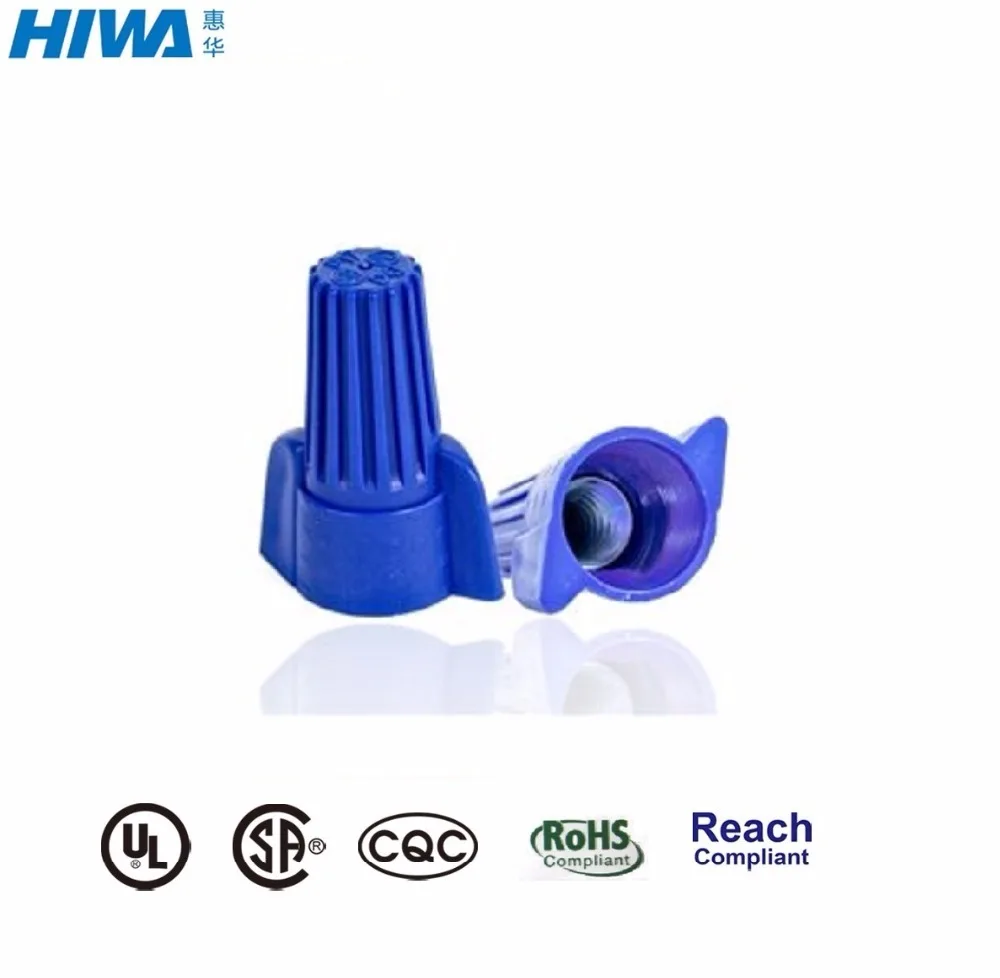

Winged Twist-on Wire Nuts

W-13



Model No. Color Electrical Ratings & Temperature Wire Range Packing
P11V Yellow 300 V/600 V Max. 18-10 AWG, Cu 500 Pcs/Bag
105°C (221°F) Max. 2 #12 w/1 #14 5,000 Pcs/Ctn
  Min. 3 #18
P12 Tan 600 V Max. 22-8 AWG, Cu 500 Pcs/Bag
105°C (221°F) Max. 4 #12 5,000 Pcs/Ctn
  Min. 3 #22 Sol
P13 Red 300 V/600 V Max. 18-8 AWG, Cu 500 Pcs/Bag
105°C (221°F) Max. 5 #12 Sol 5,000 Pcs/Ctn
  Min. 3 #16
P15 Grey 600 V Max. 18-8 AWG, Cu 250 Pcs/Bag
105°C (221°F) Max. 3 #10 2,500 Pcs/Ctn
  Min. 3 #14 w/1 #18
P17 Blue 600 V Max. 14-6 AWG, Cu 100 Pcs/Bag
105°C (221°F) Max. 3 #8 Sol w/1 #12 1,500 Pcs/Ctn
  Min. 2 #10 w/1 #12

 Characters:

  •  UL 486C Listed and CSA 22.2 No.188 Certified.
  •  Tough thermoplastic, UL 94V-2 flame-retardant shell.
  •  Zinc plated square-wire spring.
  •  Rated to 600V max. for building wiring and 1000V max. lighting fixtures and signs.
  •  Five color-coded to industry standards.
  •  No pre-twsting required, push stripped conductors into connector and screw on.
  •  For use in electrical appliances, lighting and building wiring
