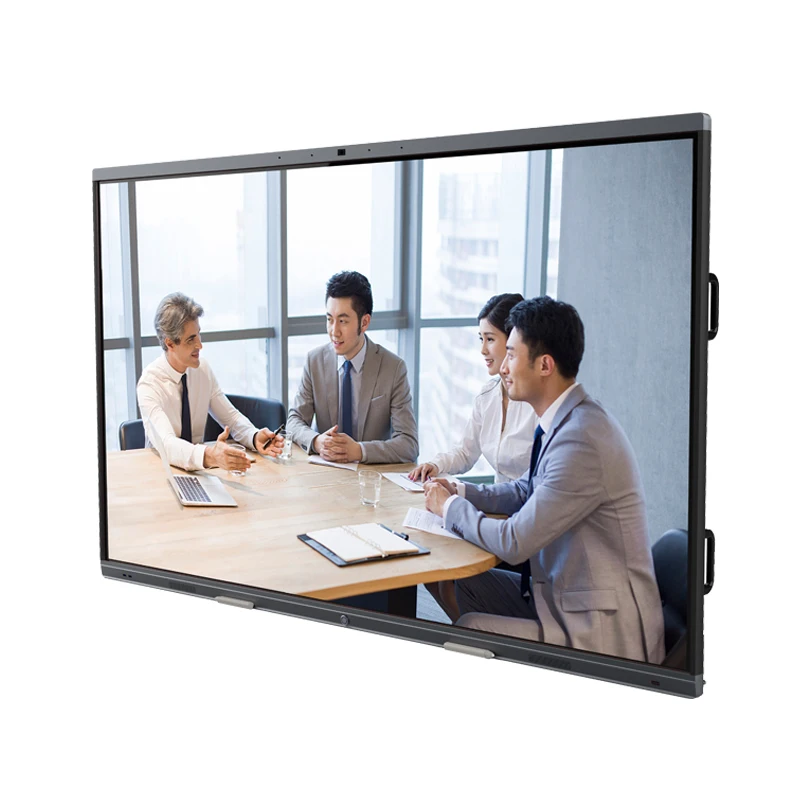

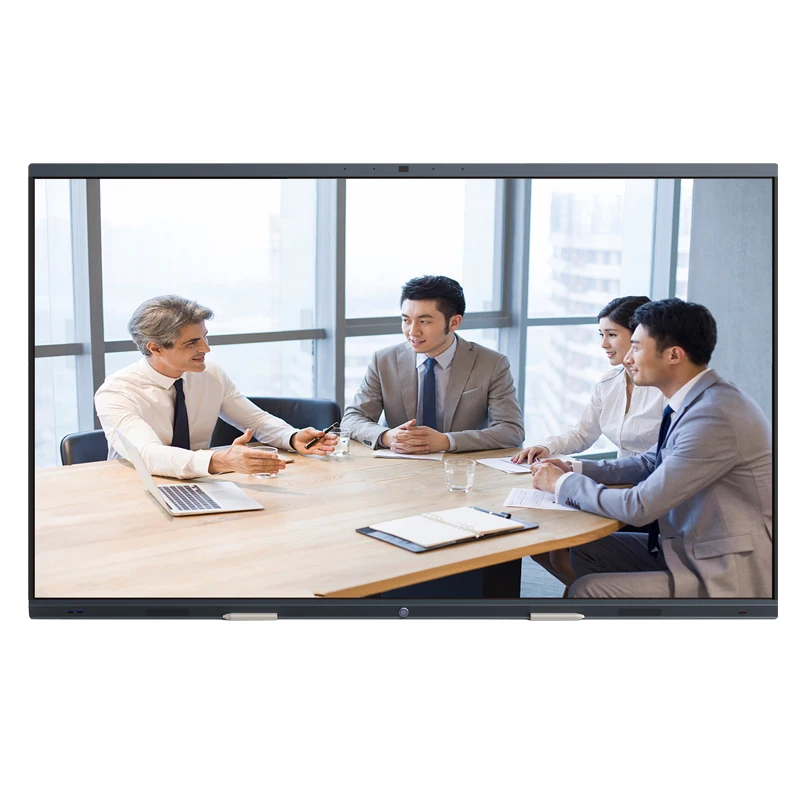

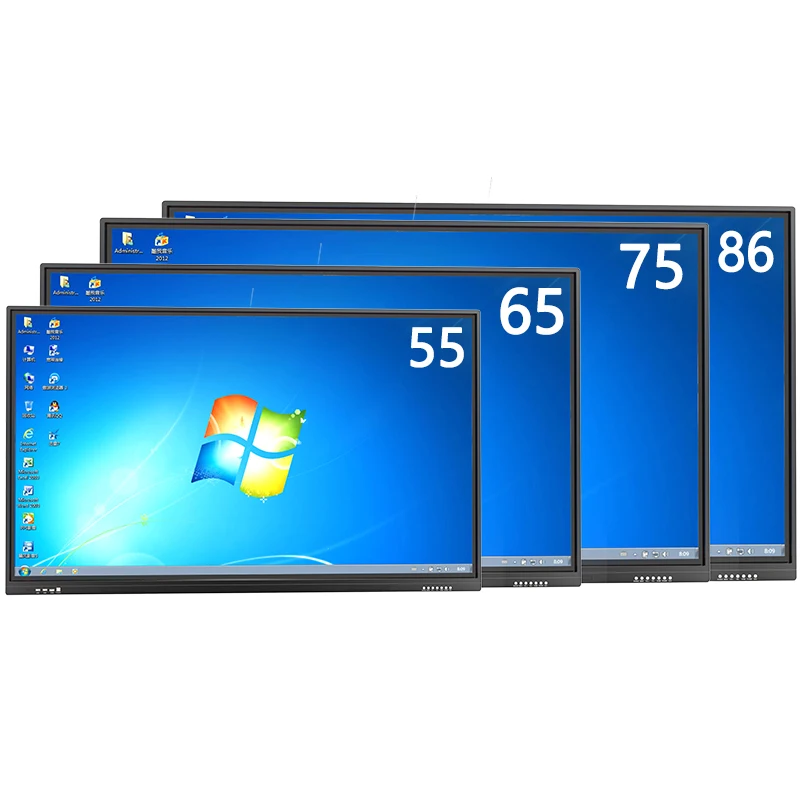

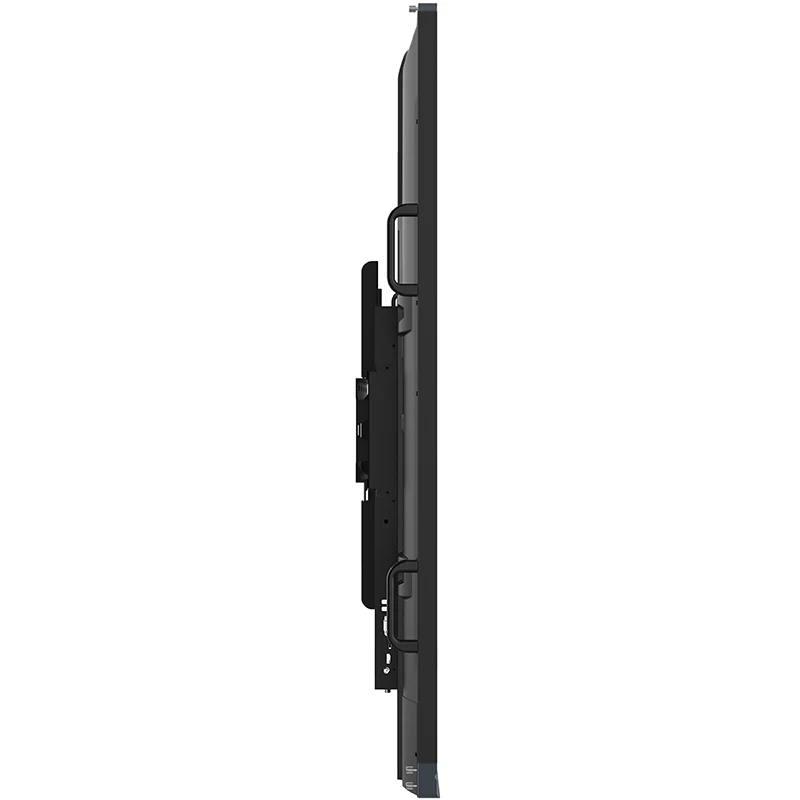

High Quality Educational Equipment 65/75/86/98 Inch 4K Smart White Board

Share on:


Price:839,00 $ - 879,00 $
Price in USD:Details

Quantity:


Product Overview

Description



Product Paramenters











Panel
Screen Size
65’’
75’’
86’’
100’’

Panel Technology
LED




Aspect Ratio
16:9




Max Resolution
3840x2160




Brightness
350 cd/㎡




Active Area(mm)
1428.48×803.52
1649.66×927.9
1872×1053
2202.9×1239.6

Contrast Ratio
1200:1
1100:1
1200:1
1200:1

Viewing Angle
178°




Color
8 bit /16.7 M




Response Time
8ms




Screen Display
horizontal screen




Pixel Pitch(mm)
0.372 x 0.372
0.429 x 0.429
0.4935 x 0.4935
0.4935x 0.4935

Life
>50000 hours








Android Parameter
Solution
MSD648/MSD8386/HISI811




RAM
3GB DDRIII&4GB DDRIII




ROM
16/32GB





I/O Interface
HDMI*3, USB2.0*3, SD*1, AV out*2, AV out*1, YPbPr*1, RJ45*1, SPDIF*1, VGA in*1, VGA out*1, Audio in*1, Audio out*1, Touch USB*2,
RS232*1, RF*1, WIFI*1, Earphone*1, Microphone*1




Audio Format
MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP




Video Format
H.263, H.264, VP8, RV, WMV, AVS, MPEG4




Picture Format
JPG, BMP, PNG




System
Android 8.0








OPS Parameter
CPU
Intel I3/I5/I7




Graphics Card
HD4600




Memory
4G DDR3




Hard Disk
120G SSD / 500G HHD




Network Card
Realtek 8111F




I/O Interface
USB2.0*2, USB3.0*2, VGA*1, COM*1, HDMI*1, RJ45*1 WIFI*1, Earphone-OUT*1, MIC-IN*1, POWER*1




System
Support Windows 7/ Windows10










Infrared Touch Parameter
Resolution
32768x32768




Touch Points
Android: 10/20 points; Windows: 10/20 points




Touch Accuracy
±1mm




Response Time
4ms~12ms




Light Transmittance
90%




Working Temperature
0℃~60℃




Working Voltage
DC5V




Working Consumption
≥1W



Operation System
Dual System
Android and Windows







Product Spec
Product Size
1516*100*940
1737*117*1065
1991*109*1210
2283.6*95*1369

Max Power Consumption
180W
320W
380W
380W

Working Voltage
100V-240VAC, 50/60Hz




Built In Speakers
8Ω10W*2




Product Color
Black, silver






Environmental Conditions
Working Temperature
0℃-50℃




Storage Temperature
‘-20℃-60℃




Working Humidity
85%




Storage Humidity
85%




Product Structure
Shell Material
Aluminum + steel plate + glass



Product Structure
Glass Characteristic
Anti-glare Tempered glass





Details Images
