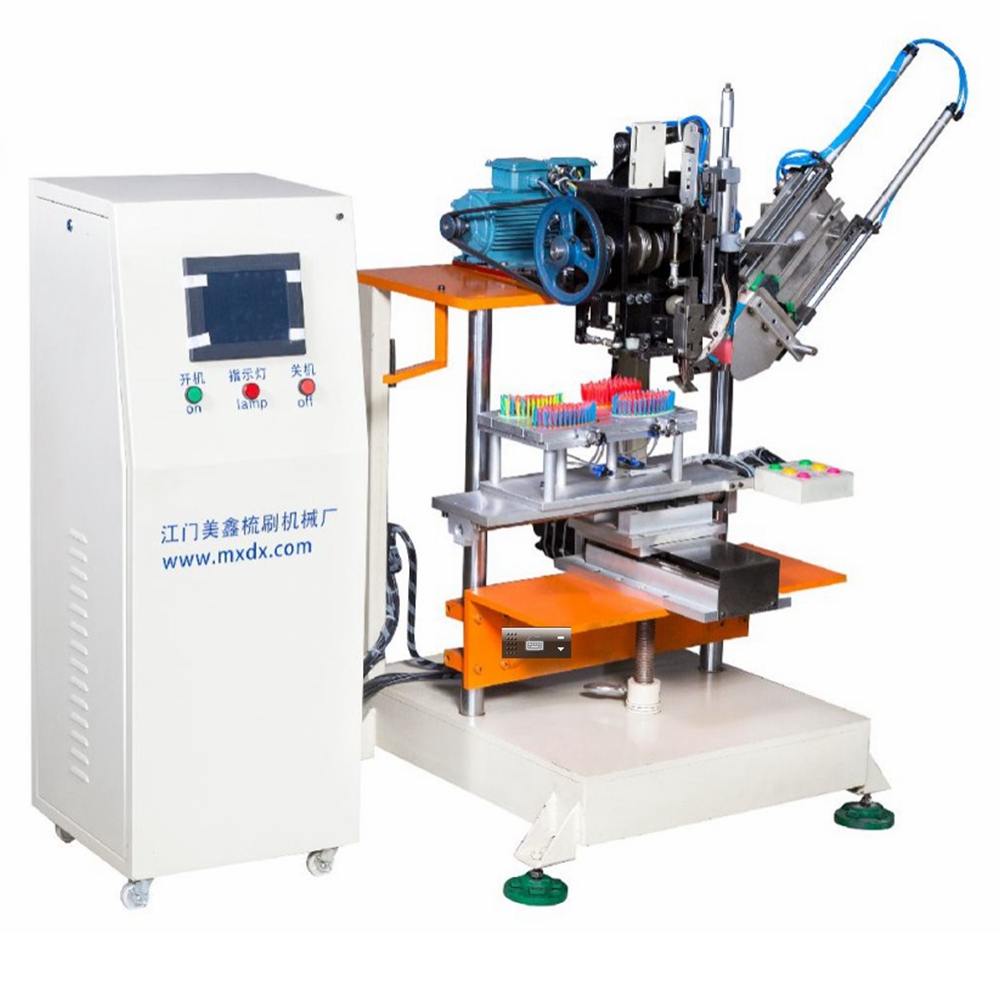

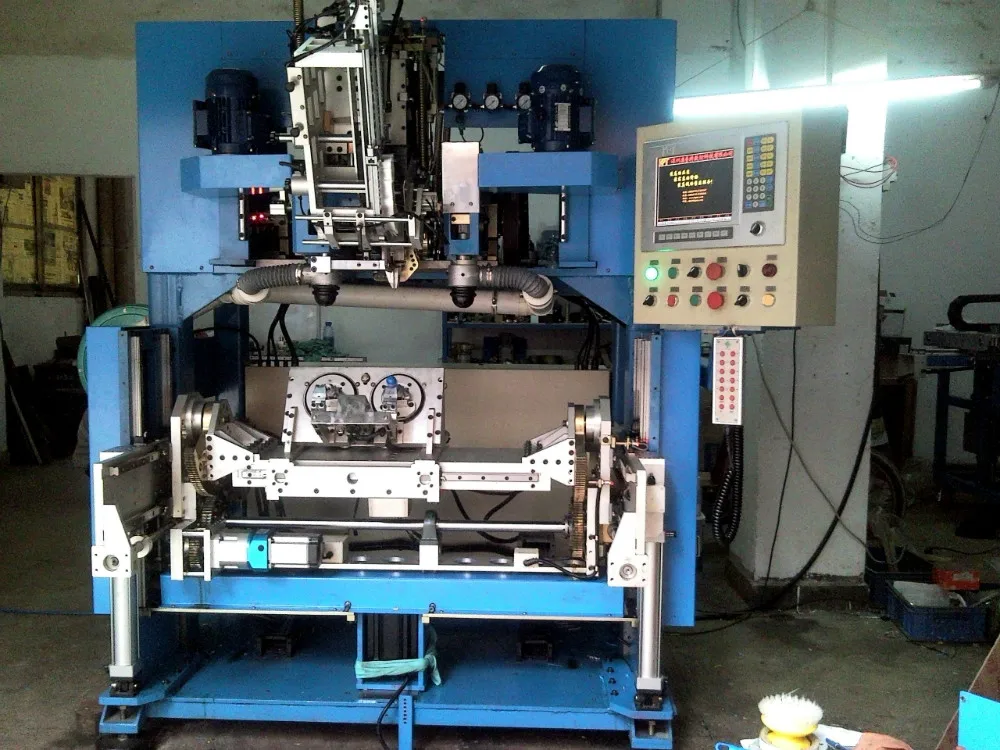

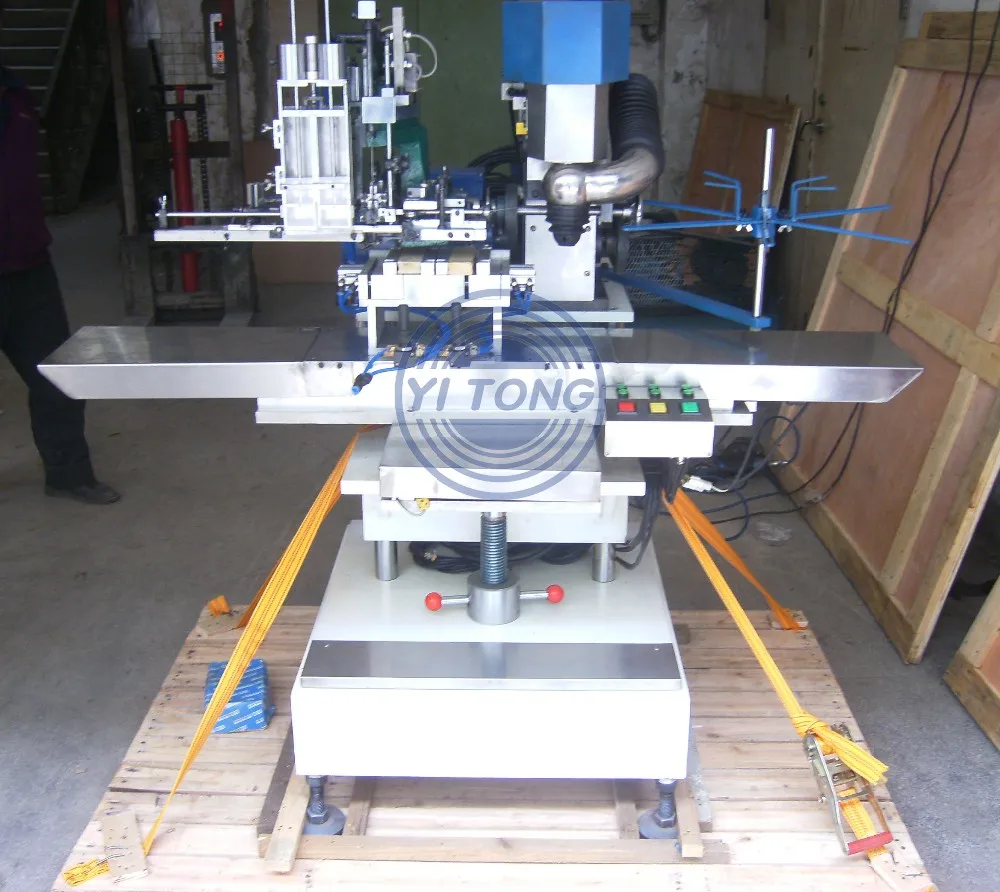

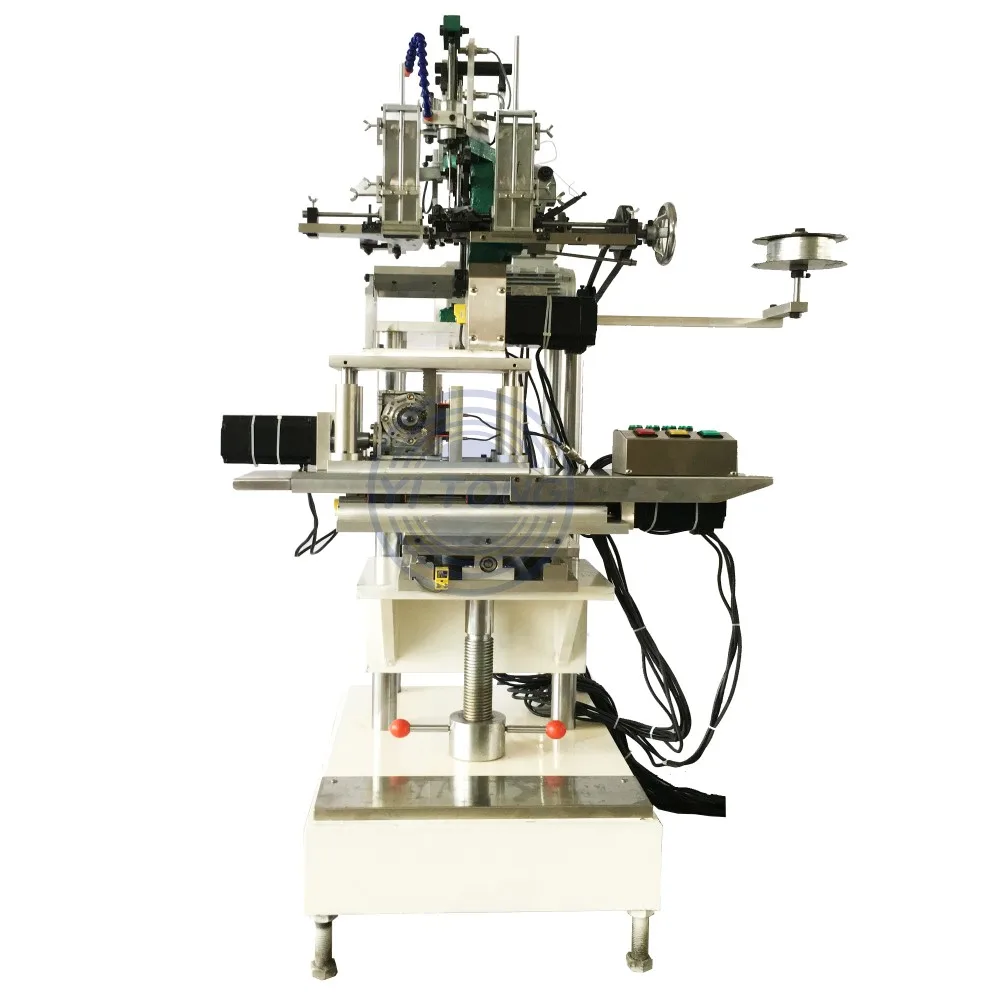

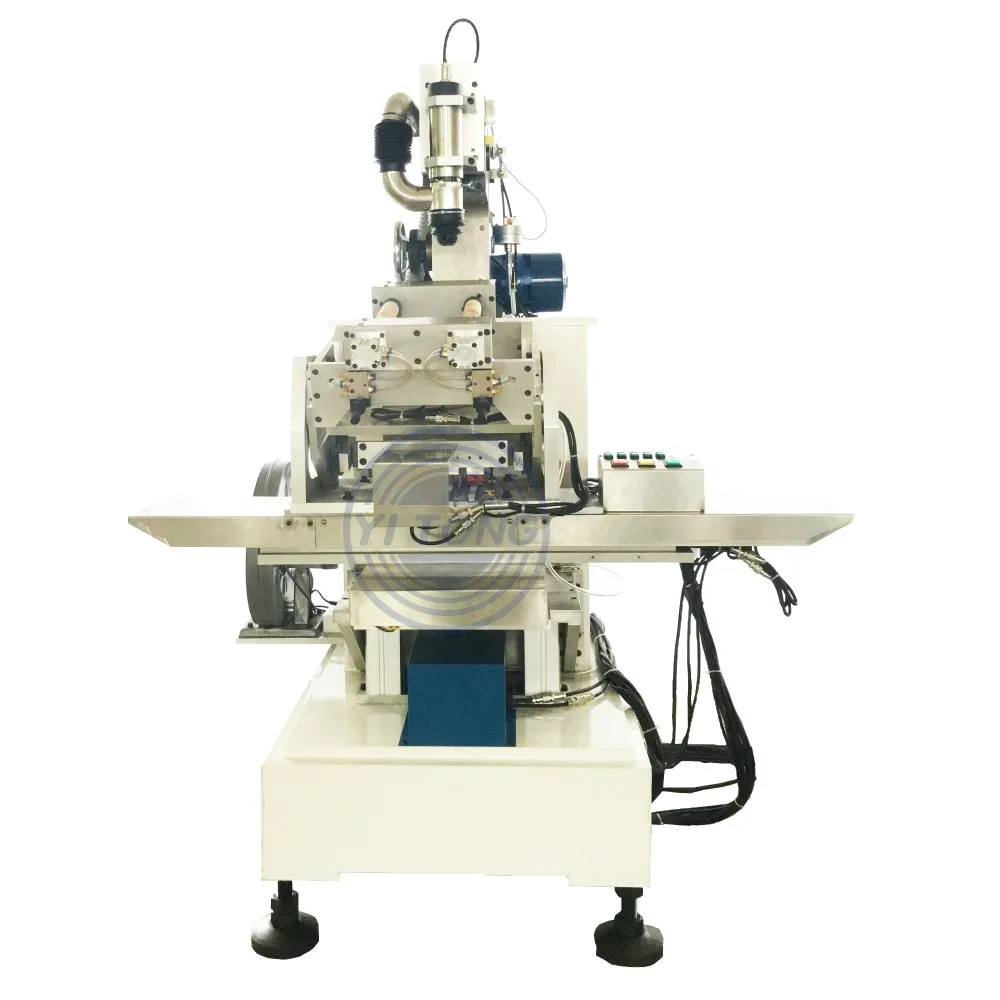

Brush making machine - YT503MT

5 axis drilling and filling machine quick to set up and easy to operate. Thanks to its fast change-over speed, the machine is ideal for radial brushes. The operator manually loads the virgin blocks onto the machine and enables the working cycle. When the cycle is over, the operator removes the filled block and then moves the drilled block from the drilling station to the filling station, and places a virgin block into the drilling station, during the operating, the machine no need to stop, it would run automatic.

SPECIFICATIONS FOR 5 AXIS DRILLING AND FILLING MACHINE
Diameter of drilling holes		3.0 to 6.0mm
Depth of drilling holes		0 to 12mm
Production speed		540-600 holes/minute
Tufting mode		Staple mode
Length of bristle (unfolded)		10 to 240mm
X-Y-H itinerary		620mm-200mm-180mm
Z itinerary		±20 °or 360 °
S itnerary		±20°
Bristle container		double color
Maximum store holes		8,000
Size of machine		2,720 x 3,270 x 2,200mm

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) Running in a high automatization and intellectualization.

5) Full automatic, no need to stop the machine even changing the virgin blocks.

6) Ability to produce flat brushes with upright filling.

7) easy to change design.

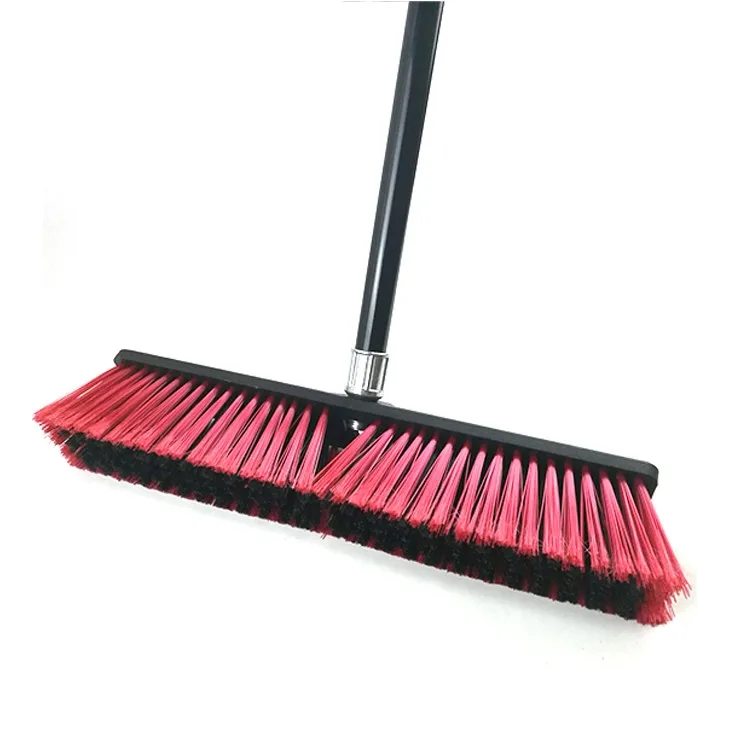

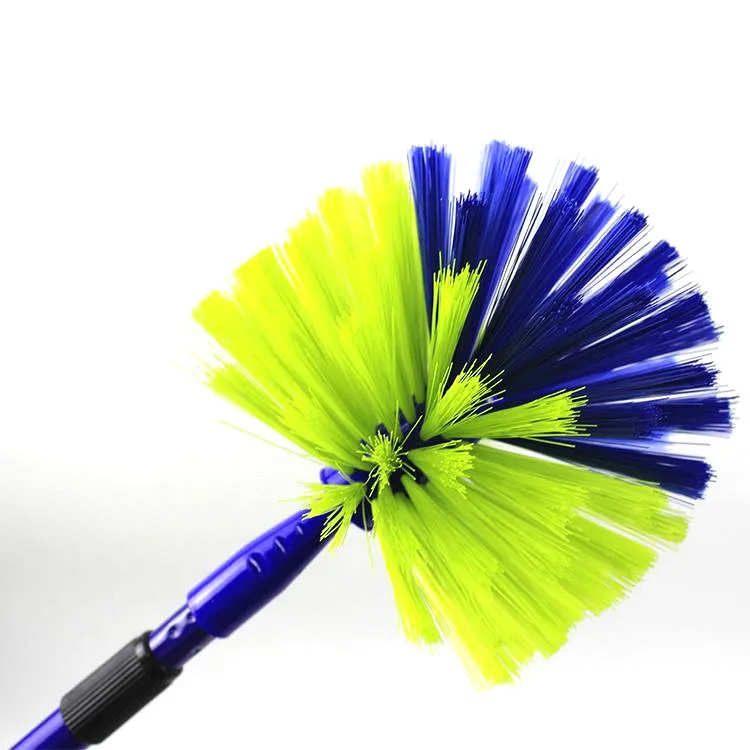

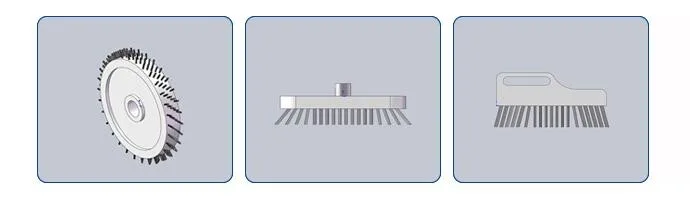

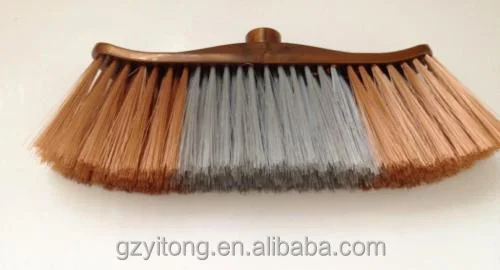

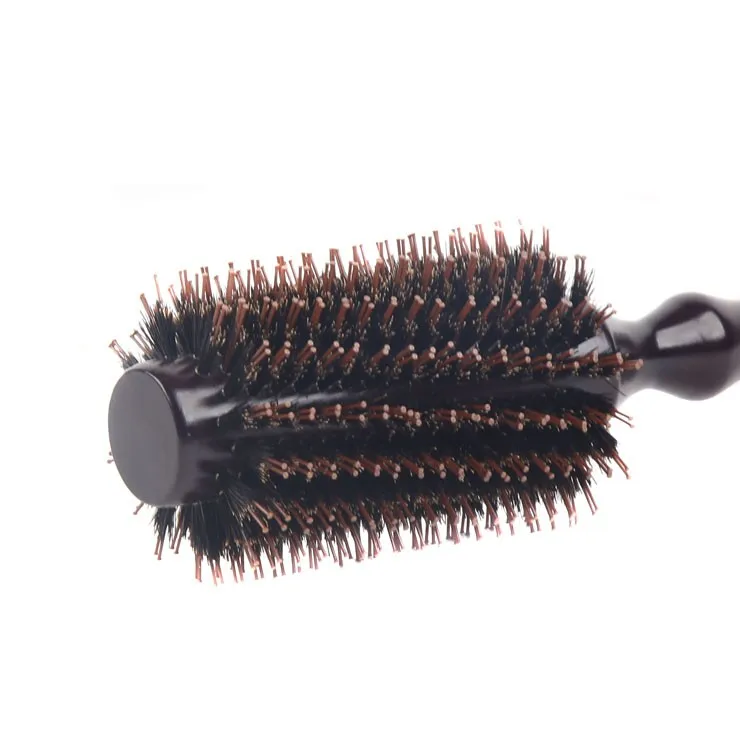

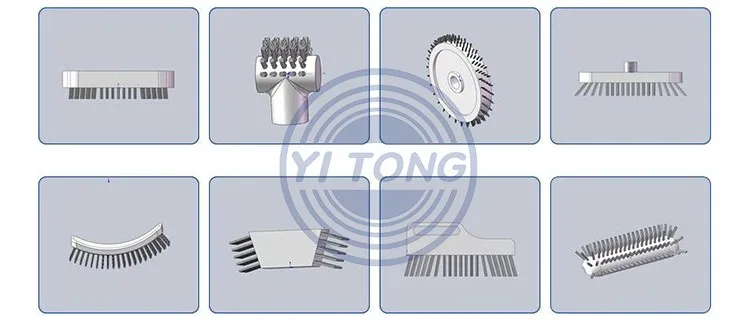

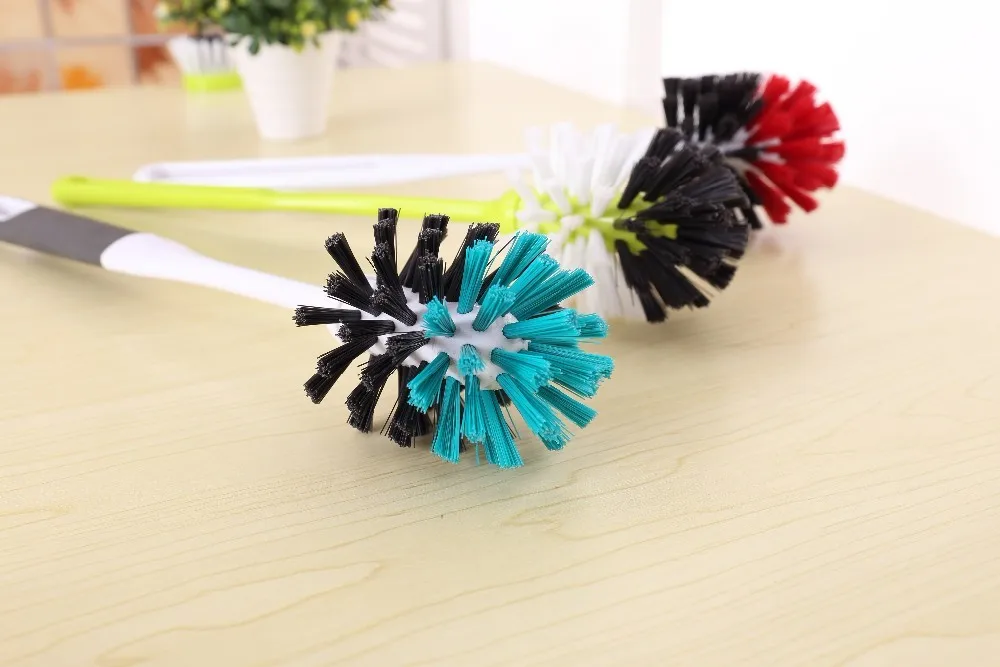

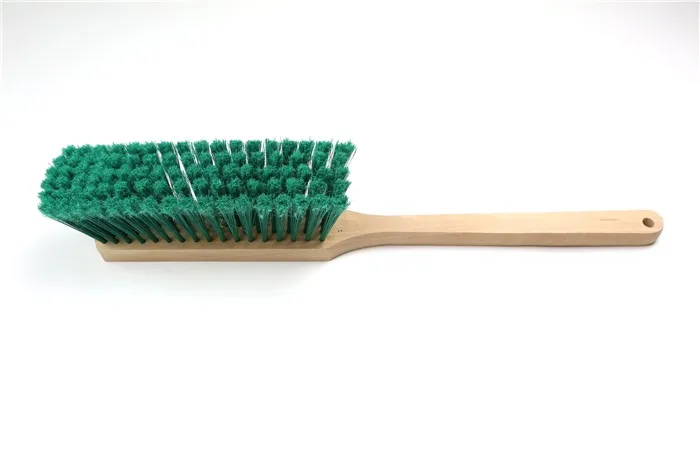

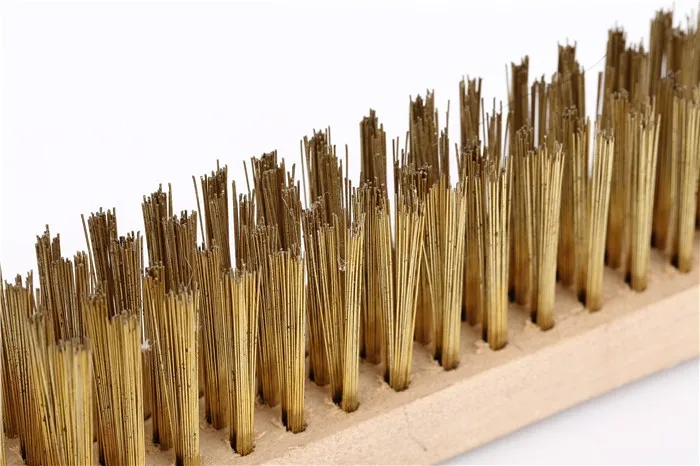

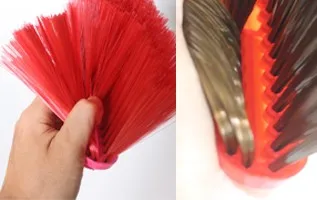

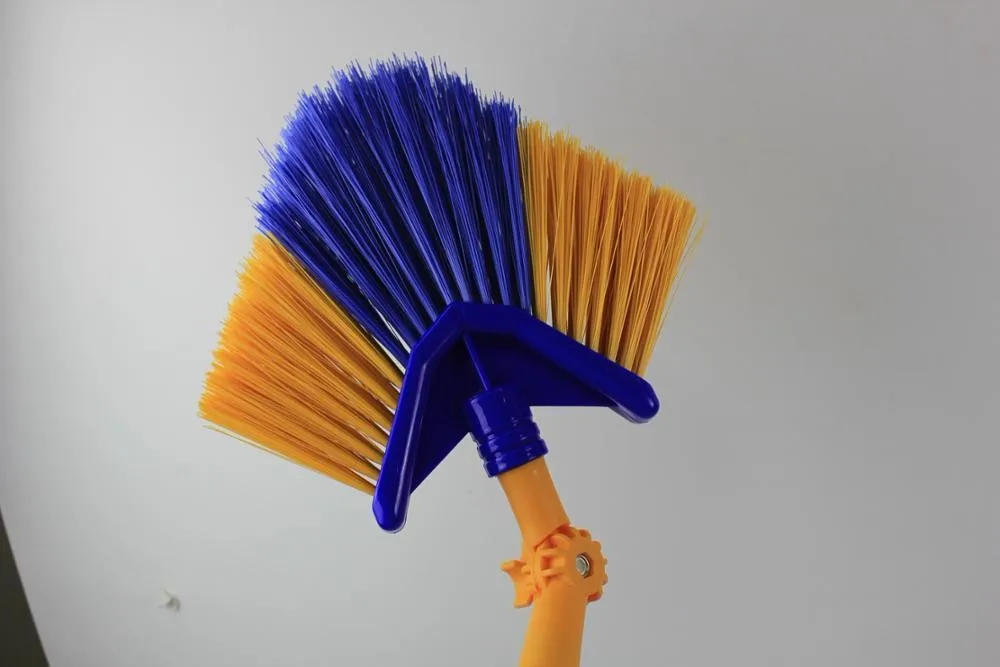

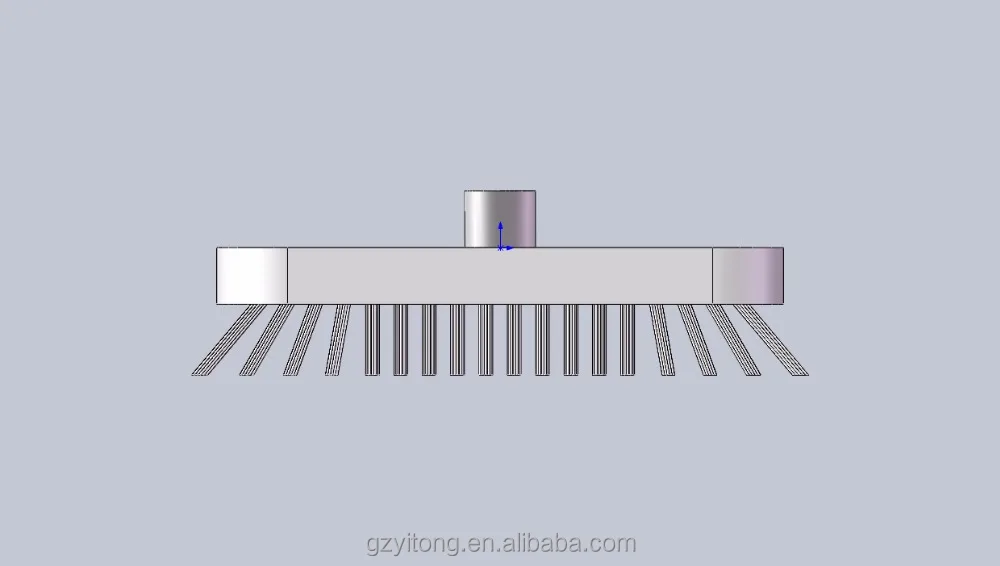

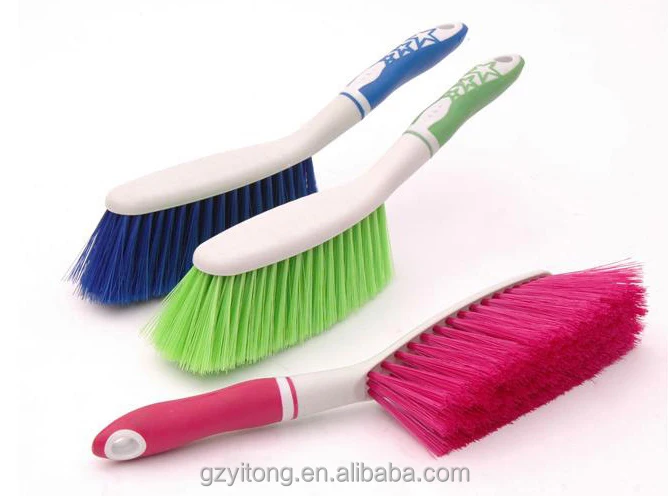

BRUSHES

Detailed Images

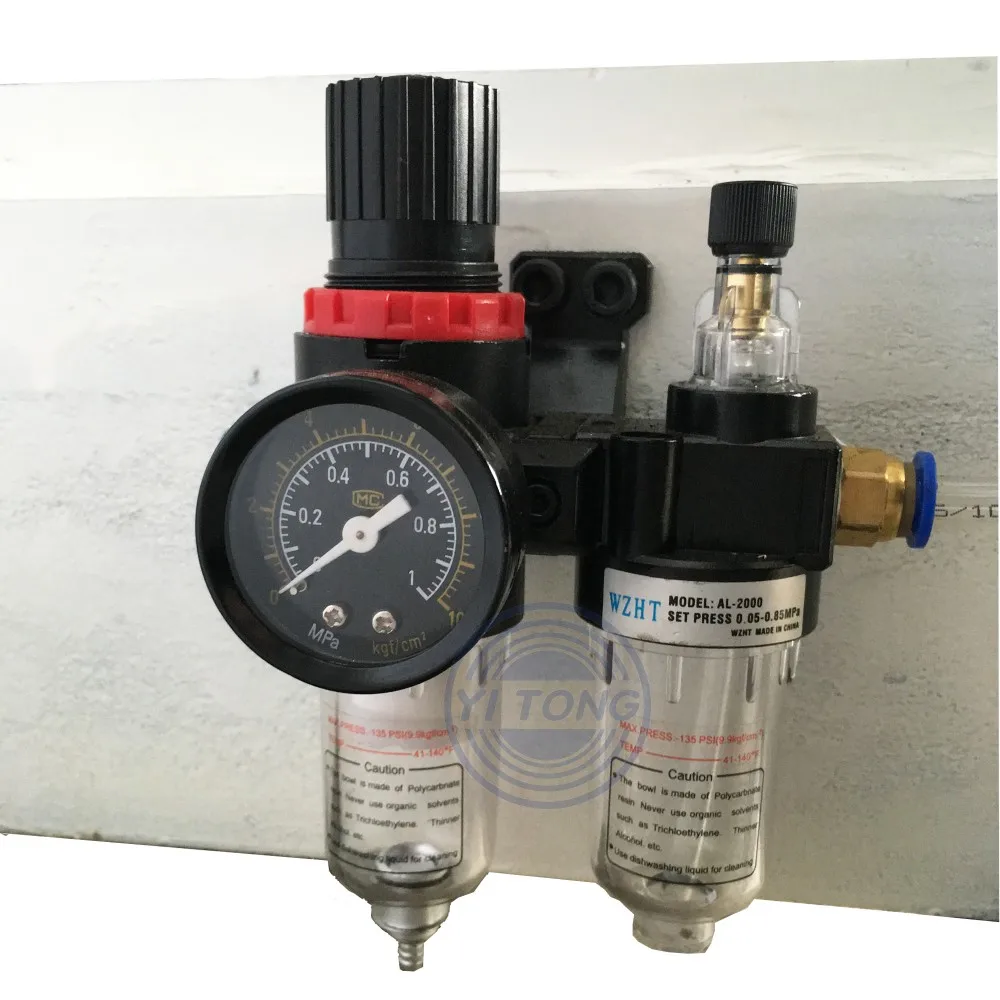

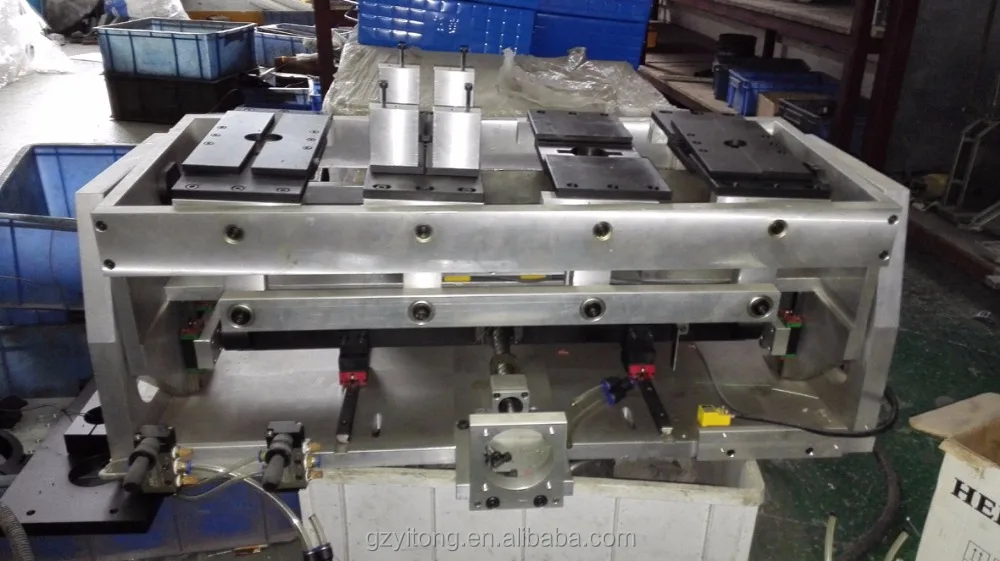

Machine Parts

Name:

Brand:

Main parts

Name:
Brand:

Machine Parts

Name:
Brand:

Main Parts

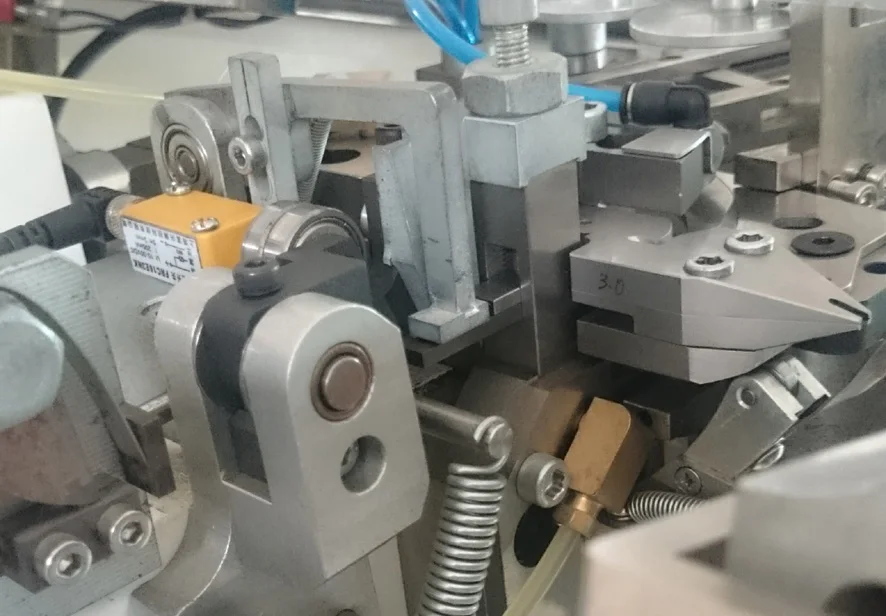

Name: Drilling head
Brand:
Original:

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

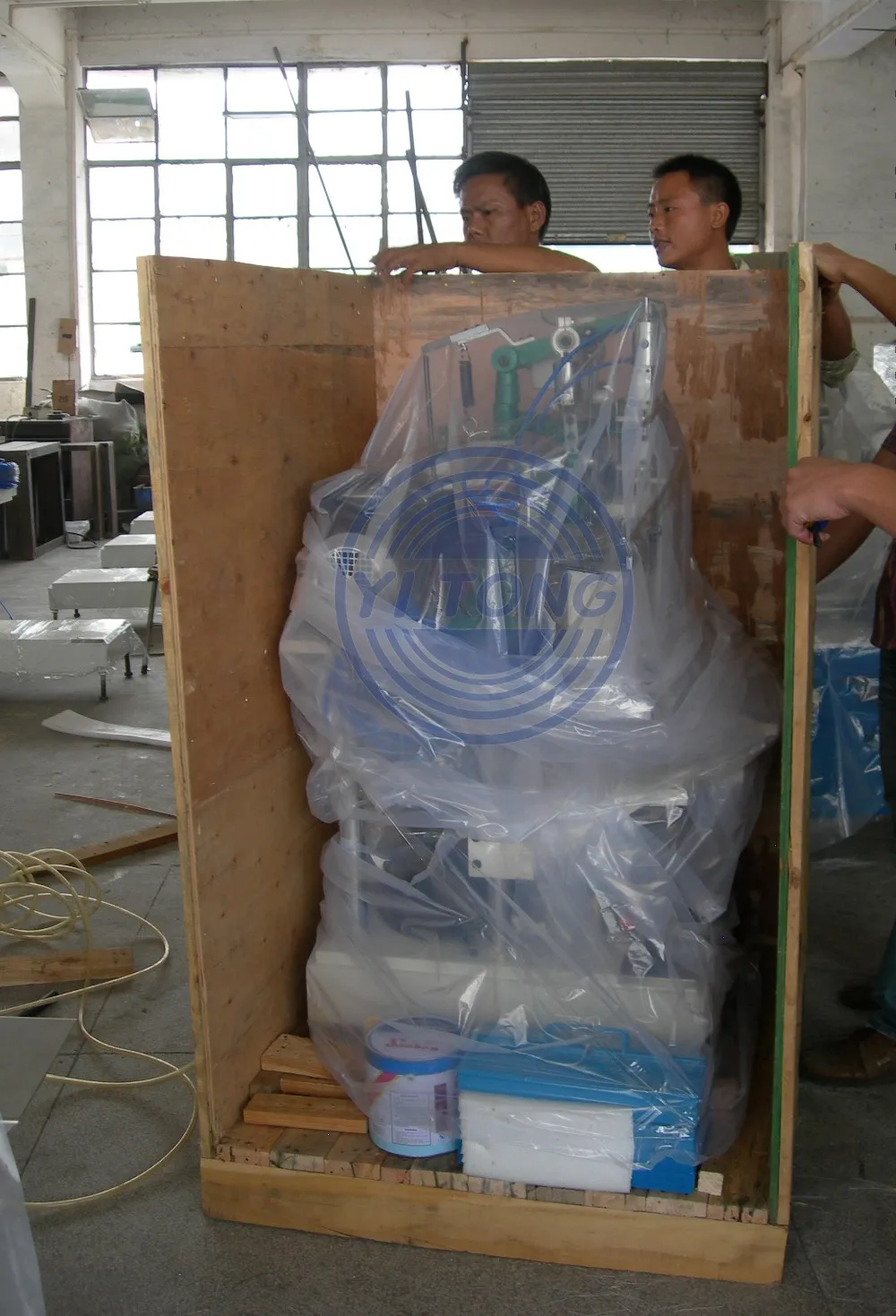

Packaging
Size	2,720 x 3,270 x 2,200mm
Weight	1.5T
Packaging Details	The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packaging
Size	2,720 x 3,270 x 2,200mm
Weight	1.5T
Packaging Details	The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
