>> Products specifications
Specifications | |
Model No. | YIP122 |
AC Input | |
Nominal Input Voltage | AC 100V~240V |
Input Voltage Range | AC 95V~265V |
Input Frequency | 50/60Hz |
DC Output | |
Output Voltage | 12V |
Output Current | 2A |
Output Power | 24W |
DC Connector Size | 5.5*2.5 |
Line Regulation | 2% |
Load Regulation | 5% |
Ripple Noise | 180 Mvp-p |
Efficiency | >85% |
Output Cable Standard | 0.5mm2 Pure Copper |
Output Cable Length | 1.5m normally or customized requirement |
Environment | |
Operating Temperature | 0°C ~40°C |
Operating Humidity | 5%~95%RH |
Storage Temperature | -20°C ~85°C |
Storage Humidity | 5%~95%RH |
Protection | |
Over Load Protection | Short Circuit Protection |
Over Current Protection | Over Temperature Protection |
CE, ROHS, REACH, FCC, ERP, CB, GS, TUV, UL, CUL, CCC,PSE | |
8*5*3.9CM | |

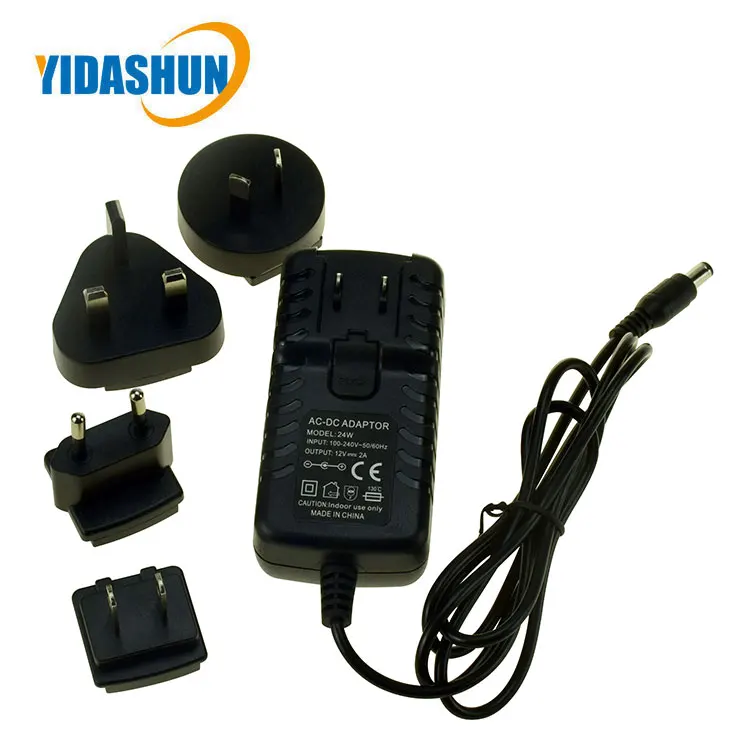

Adapter Weight | 175G (With 4 EU/US/UK/AU plug) |
Inner Box Size | 10*5.1*8.3CM |
Inner Box Weight | 18G |
PCS/CTN | 100PCS |
Outer Carton Size | |
Outer Carton Weight | 680G |
GW/CTN | 18kG |
Package | |
Inner Box | Normally neutral brown box or customized requirement |
Outer Carton | Normally neutral standard carton or customized requirement |
Guarantee | 30 days |
Warranty | 1 year |
Terms and Conditions | |
MOQ | 100PCS for mixed order |
Payment Terms | T/T, L/C, PayPal, western union |
Delivery Time | 3-5 days |
1. Set-Up→2. Hand Insertion→3. Wave Soldering→4. Touch-Up→5. V/I→6. ICT→7. INT→8. Apply Glue→9. Q/A→10. Entering Stock→11. Assembly→12. Power On Test→13. Hi-Pot Test→14. Burn-In→15. Hi-Pot Test→16. All Fun Test→17. Packing→18. OQC→19. Shipping | |
1.No-load output voltage test→2.input power load test→3.No-load output ripple test→4.Full load open test→5.Full load output voltage test→6.Full load output ripple test→7.Full load input power test→8.Half load output voltage test→9.Half load output ripple test→10.Over load test→11.Over current protection test →12.Short circuit protection test (above test is under both 110V and 230V.)→13.High voltage test→14. burn-in test→15.Turn on delay time test→16.Rise time test→17.Hold time test→18.Overshoot test
|
>> Package information:
Each adapter into white box, then 100pcs in one brown carton
>> Shipping details:
♦ FedEx/DHL/UPS/TNT for samples, Door-to-Door;
♦ By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
♦ Customers specifying freight forwarders or negotiable shipping methods;
♦ Delivery Time: 1-3 days for samples; 5-15 days for batch goods.
1.9 years focuson the AC DC power adapter Research and development, Production;
2.For control the quality ,we have professional test from the raw material to finished products to control the quality seriously;
3.can offer wholesale Factory prices, After-sale guaranteed;
4.Flexible and fast delivery, bulk orders usually delivery within one weeks, General small batch orders can be arranged delivery within 1-3 days,cause we usually have large quantity of PCB in stock;
5. All our high quality adapters with OCP/OVP/SCP/OTP protection;
6.Certificate:CE/FCC/ROHS
>>What is your warranty for adapters? We usually offer 1 year warranty >>What is your MOQ and sample term? our MOQ is 100pcs, we can offer you free samples, but you pls pay shipping costs. >> How do you deal with defective rates? Our defective rates for high quality adapterusually is about 0.3%~0.5% below 1%, we usually will send you replacement part in next order for RMA. >> Can can accept OEM&ODM? yes,we can. We can customized the products,labels,package as your demands. >> What is your payment terms? we accept T/T,paypal, western union, L/C,cash...
|
