Label Paper 2/4/6/8 color flexographic printing machine paper factory high speed customized

Share on:


Price:$10,000.00
Price in USD:Details

Quantity:


Product Overview

Description



Product Description

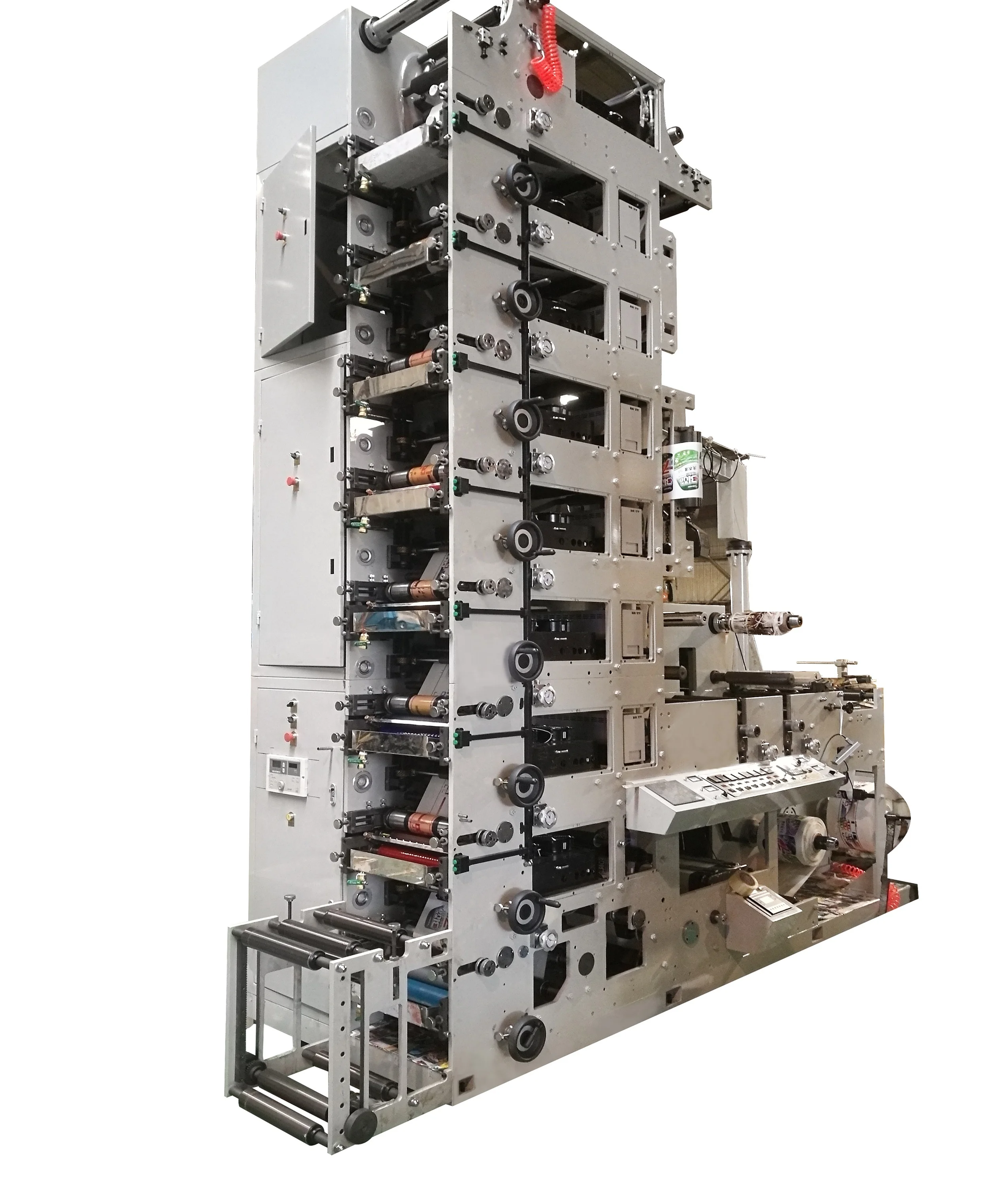

Flexographic 8 colors printing machine aluminum foil Film Label Thermal Paper label Roll




Main Features:
1)Main motor adopts frequency steppless speed regulator motor.
2)Unwinder and rewinder are controlled by magnetic powder brake,clutch and tension inspector.Tension controller is automatic.
3)Each printing unit adopt 360° to regulation.
4)Each printing unit has one IR Oven. Every IR oven can exchange UV drying system.
5)Sending paper,printing ,polished,infared drying or UV drying,laminating,rewinding step by step at one printing process.
This machine is suitable for print on paper,film,foil etc. roll material, It is an ideal equipment for label area. The flexo printing machine has multi- function: Varnishing , die cutting, slitting , sheeting, cold stamping etc. for optional. Printing range is wide, ink is environmental, low cost, high efficient, high speed.


Specification


Model
320mm
480mm
Printing Speed
60-80m/min
60-80m/min
Printing Color
1-10 colors
1-10 colors
Max. Unwinding Width
330mm
510mm
Max. Printing Width
320mm
480mm
Max. Unwinding Dia.
600mm
600mm
Max. Rewinding Dia.
600mm
600mm
Printing Girth
175-580mm
175-580mm
Precision of Registering
±0.10mm
±0.10mm
Dimensions
L2.1M*W1.35M*H3.5M
L2.1M*W1.35M*H3.5M
Machine Weight
About 2800KGS
About 2800KGS

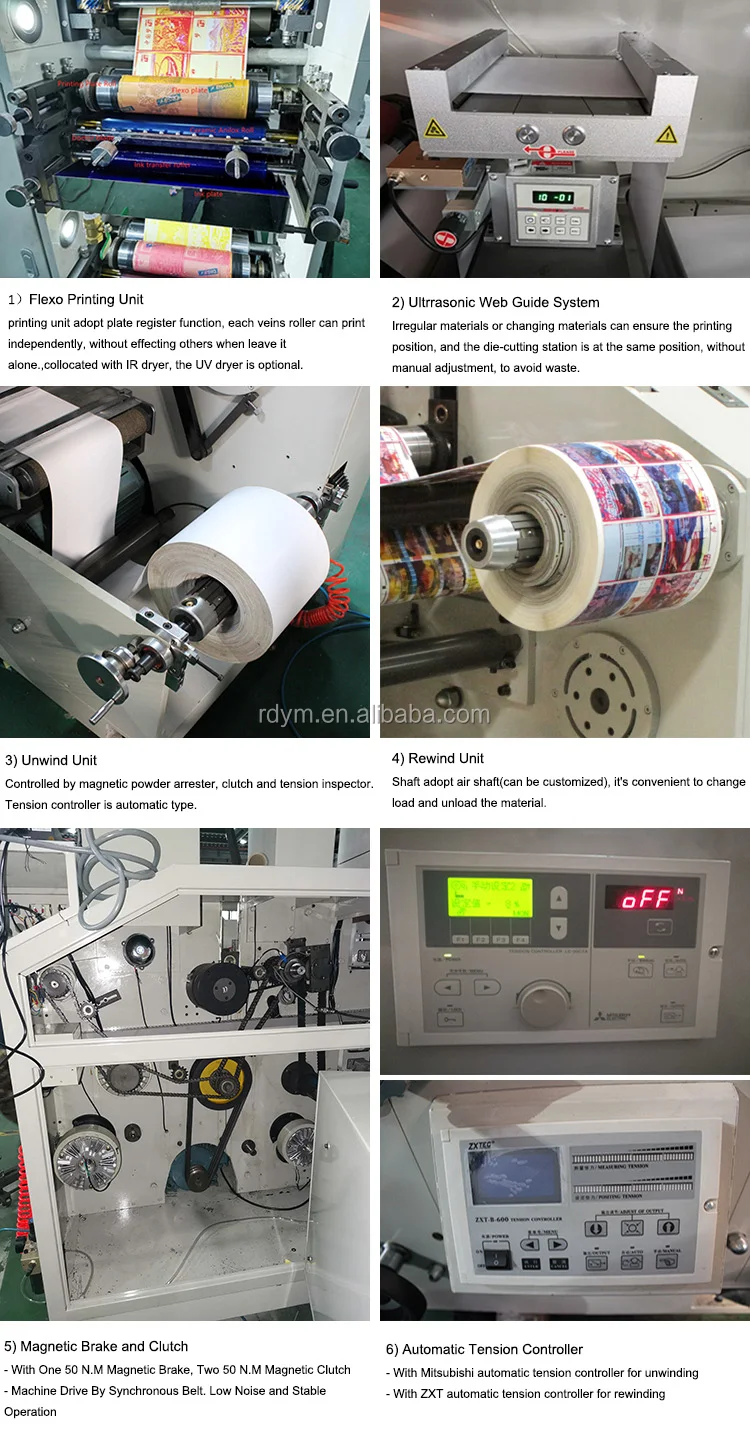

Product detail






Optional device of flexographic printing machine :
①UV oven
②Video inspecting system/ Camera
③Slitting device
④Cold / Hot stamping device
⑤Corona treatment
⑥Conveyor
⑦Pouching device ........(Please contact with me to get more information,thanks)




Sample show






Packing & Delivery


Packing Details : Seaworthy woodencase
Delivery Details : Printing Press :40 working days
Die Cutting machine:15 working days
Slitting Machine: 7 working days




Certifications




Company Profile




FAQ


1.Q: Are you a factory or trading company?
A: We are a professional manufacturer of printing press related machines (Pre-press and post-press equipment) more than 10 years.

2.Q: Where is your factory located in ? How can I visit there?
A: Our factory is located in Wenzhou city, zhejiang province which is very near from Wenzhou airport. When you arrive,we arrange people to pick up you!

3.Q: How to control the quality in your factory ?
A: Quality is priority. We control the quality of our products strictly, from the incoming materials to the finished products. Our factory has obtained CE & ISO Certification.

4.Q:If there are no machines available from your list, could we customize non-standard machines ?
A: Yes, we have our own professional design engineers, and can customize products according to your requirement.We have much experience on this .almost 30% of our customer need customization on their machines .

5.Q:Does it easy to operate and what can i do if it doesn't work?
A:First ,our machine is stable and easy to operate by one man .And we will sent you manual and video , you can come to visit our factory to learn more thing by yourself. If there is something goes wrong , you can call us ,video-chat ,email us .And we will give solutions within 24 hours .Our engineer also can be distributed to overseas as you required.
