Vacuum forming machine with great price for PET PVC plastic tray

Share on:


Price:$7,500.00 - $8,500.00
Price in USD:Details

Quantity:


Product Overview

Description



description





Product Description

Product Description



pvc vacuum forming machine with great price






Information




Vacuum forming is a simplified version of thermoforming, whereby a sheet of plastic is heated to a forming temperature, stretched onto a single-surface mold, and forced against the mold by a vacuum is formed into permanent objects such as turnpike signs and protective covers.





Typical application
Thermoforming differs from injection molding, blow molding, rotational molding and other forms of processing plastics. Thin-gauge thermoforming is primarily the manufacture of disposable cups, containers, lids, trays, blisters, clamshells, and other products for the food, medical, and general retail industries.

Types of thermoforming molds
Wood Patterns ;
Cast aluminum Molds;
Machined aluminum Molds;
Composite Molds;

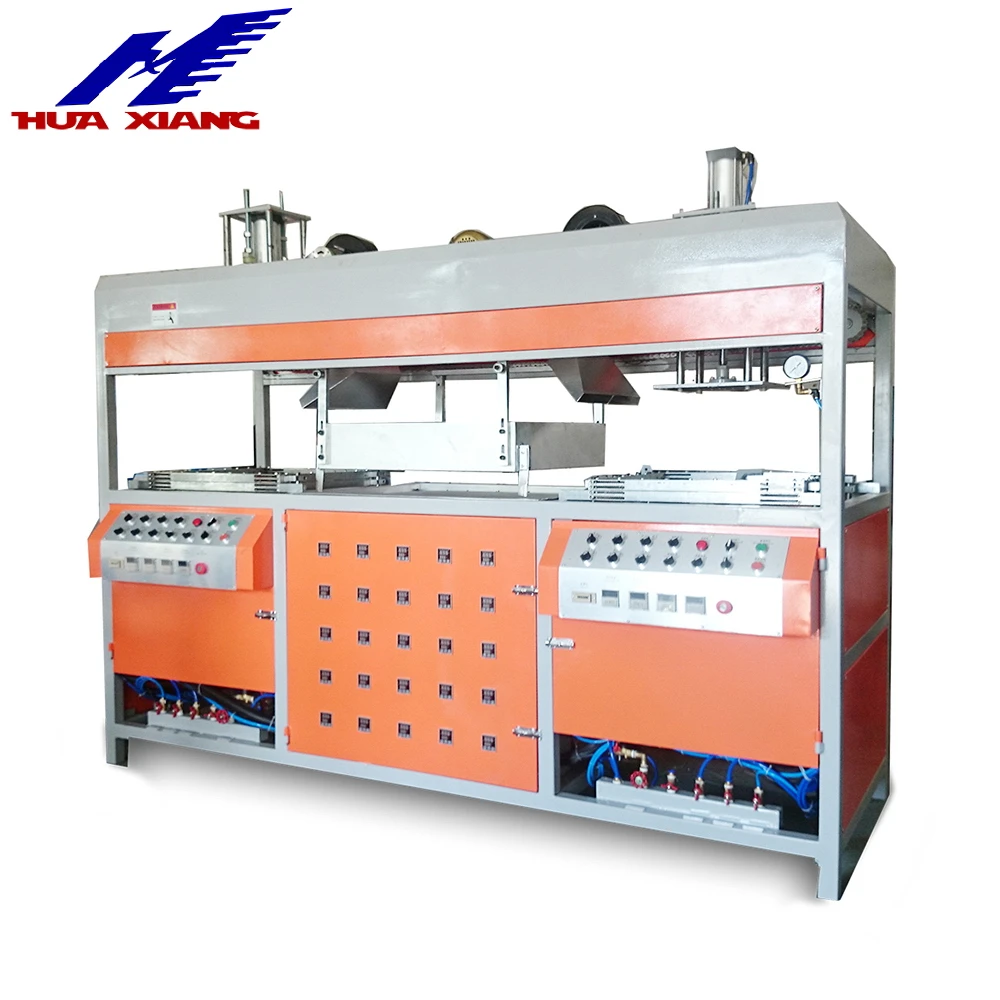

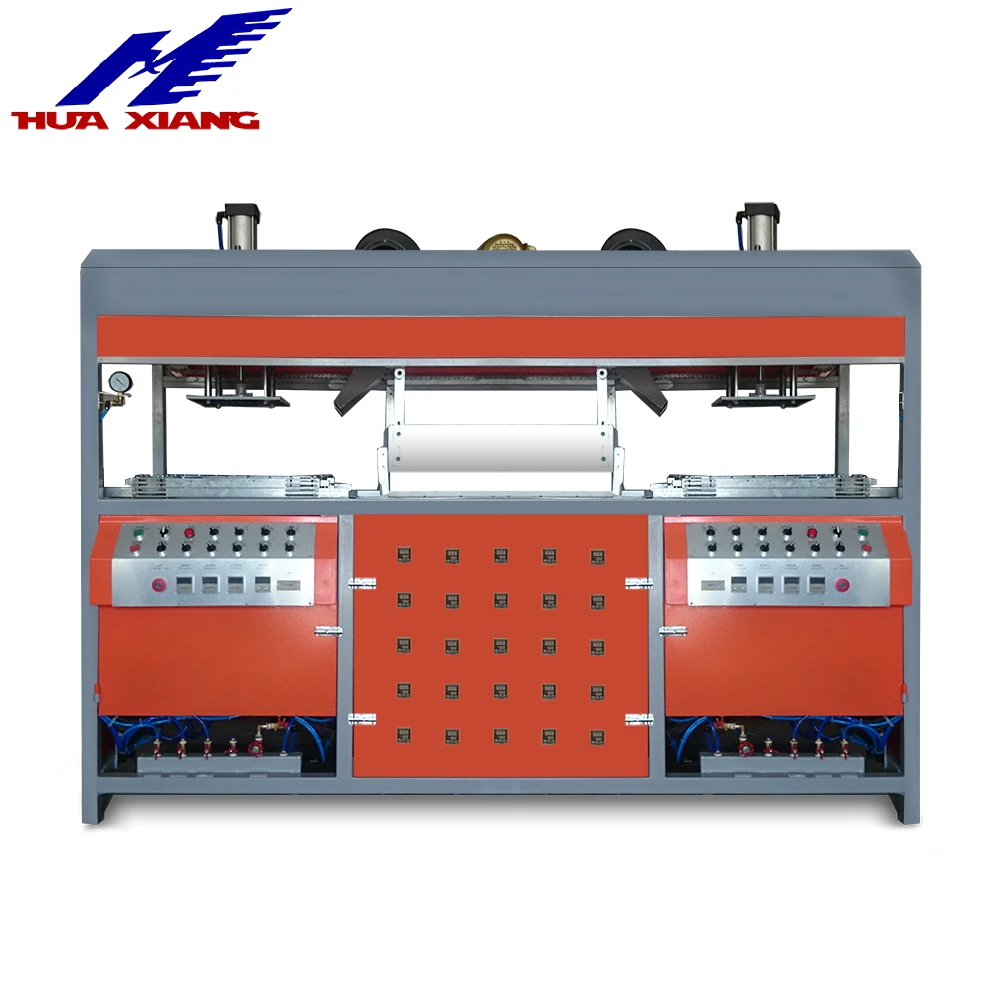

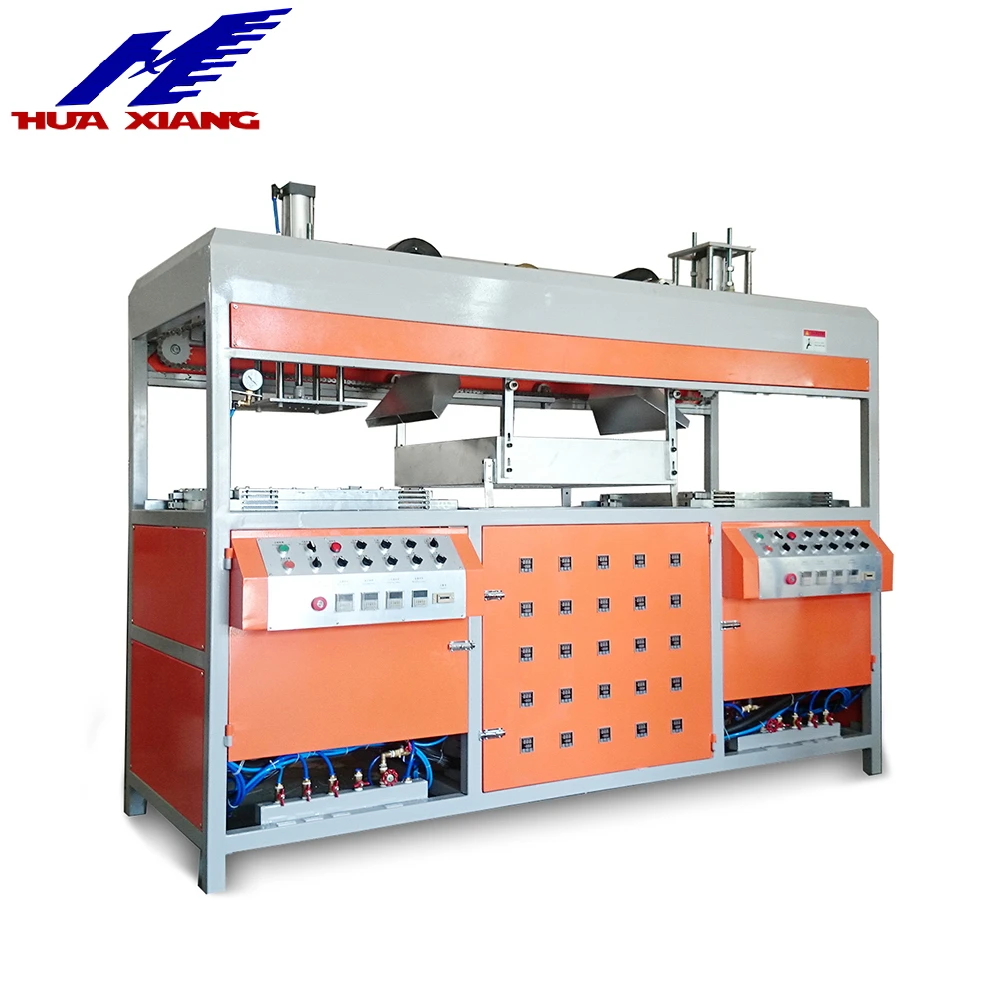

HX-2234 Double Station Vacuum Forming Machine






Parameter


Forming Width


560 mm


22 inches


Forming length


610 mm


24 inches


Forming height


150 mm


5.9 inches







Material / Sheet


Application type


PP,PS,PET,PVC,Foam


Genre


Sheet feed,Reel feed


Thickness


0.1-2.0mm


max.0.08 inches


Reel / Material width


600 mm


23.6 inches









Dyanmical system



Compressor


3 HP



Vacumm value


20 m³



Heater type


Ceramic


600Kw/per


Heating zones


25 pcs


15kW


Power Consumption


18 kW


3Phase Powe requirement


Control type


Press-button switch or PLC control







Main Features




One single heating oven with two work station, HX-2234 is a new price-performance ratio for automatic production class machinesThe reform can save electric power effectively, shorten reclaiming time of invest, reduce operating and equipment cost greatly and then develop enterprises frugally.





1) Digital timer with audible warning helps achieve consistent cycle times.


2)According to consumer's need,PLC control available.


3) programme memory to recall heater profile and timing settings for each project.(PLC type)


4) 25pcs ceramic infrared heating boards which can be controlled separately, suit for different size or different thickness material.
5) 25pcs Solid state voltage regulators, control heating boards simple and visualized.
6) Large-scale cooling fan which can cool the products quickly.
7)Cooling system which suit for thick material.(optional)
8) Manual and Semi-auto style.







pvc vacuum forming machine with great price






Machine function





Ceramic Heaters with Full Temperature
25 Independently Controllable Heating Zones
Pneumatically Powered Clamping Frame
Digital Timer
One Cooling Fans


Four Cooling Fans


Reel Feed




Vacuum Receiver Tank
Vacuum Flow Regulator
Vacuum and Pressure Gauges
40m³  Vacuum Pump


Automatic heating oven


PLC Control (apolegamic)


 Programme Memory(apolegamic PLC control )









Forming Part




.HX-2234/HX-2234A  Vacuum Forming Machine  is equipped with two forming area of 610 x 560 mm.







pvc vacuum forming machine with great price






Sample

Sample

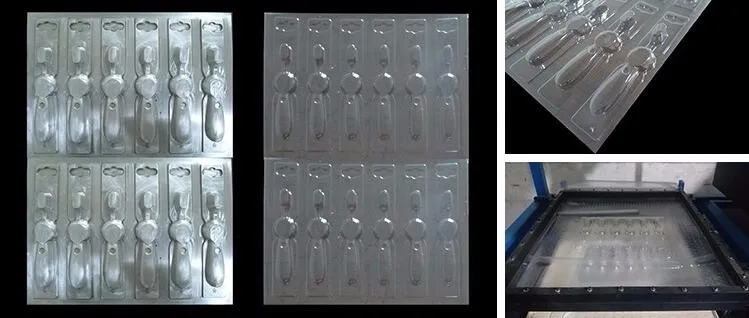

PVC sample




Material: Pvc
Thickness: 0.3mm
speed time: 6s







pvc vacuum forming machine with great price




Click the pic view more

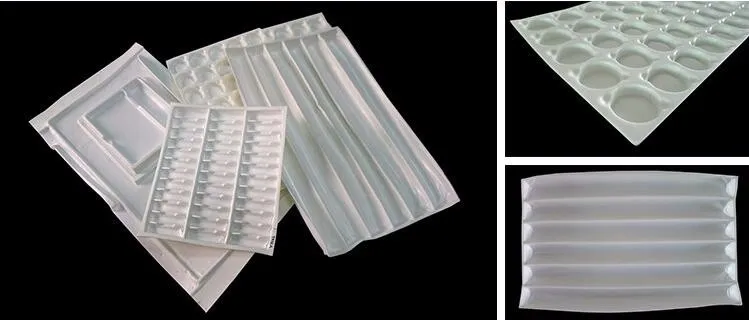

PS Foam materials sample.




High precision of temperature control
Make sure that thawless


speed time: 6s







pvc vacuum forming machine with great price





Click the pic view more

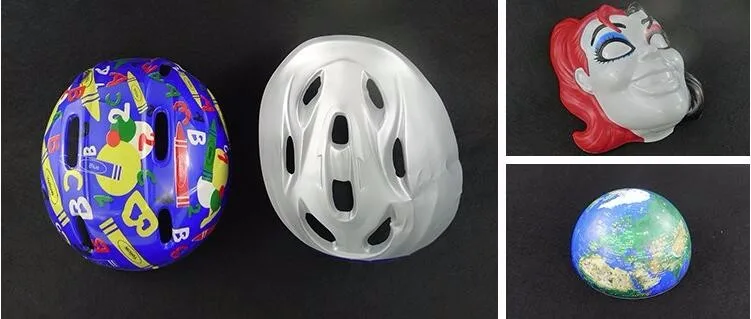

Helmet and mask




Material PP,PS,PET,PVC


Different material sheet with print


speed time: 10S







pvc vacuum forming machine with great price





Click the pic view more







Machine Size

Machine Size




Place




1) The machine overs an area of 3.12m²;
2)Requires 20m² of space to place ;
3)In the open air environment;
4) Weight 500kg







pvc vacuum forming machine with great price





pvc vacuum forming machine with great price






















Packaging size


Size


1.4 (L) * 2.8(W) * 2.3(H)≈9m³


Weight


600kg









Packaging Details


1.The normal package is wooden box.
2. If export to european countries,the
3.wooden box will be fumigated.
4.If container is too tighen,we will use pe- film for packing or pack it according to customers special request.

Machines will be Split to facilitate placmenT
