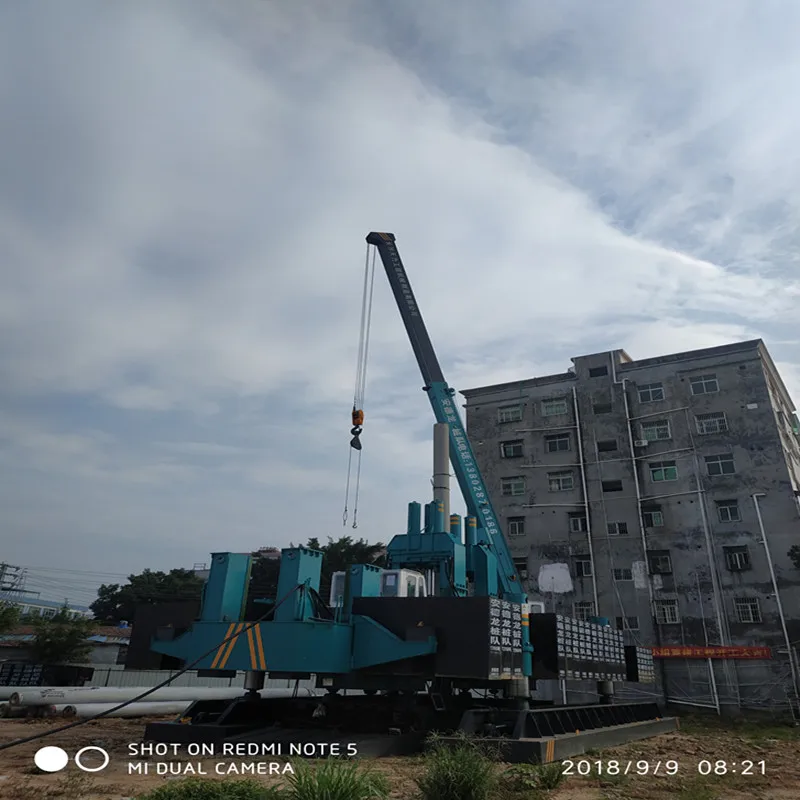

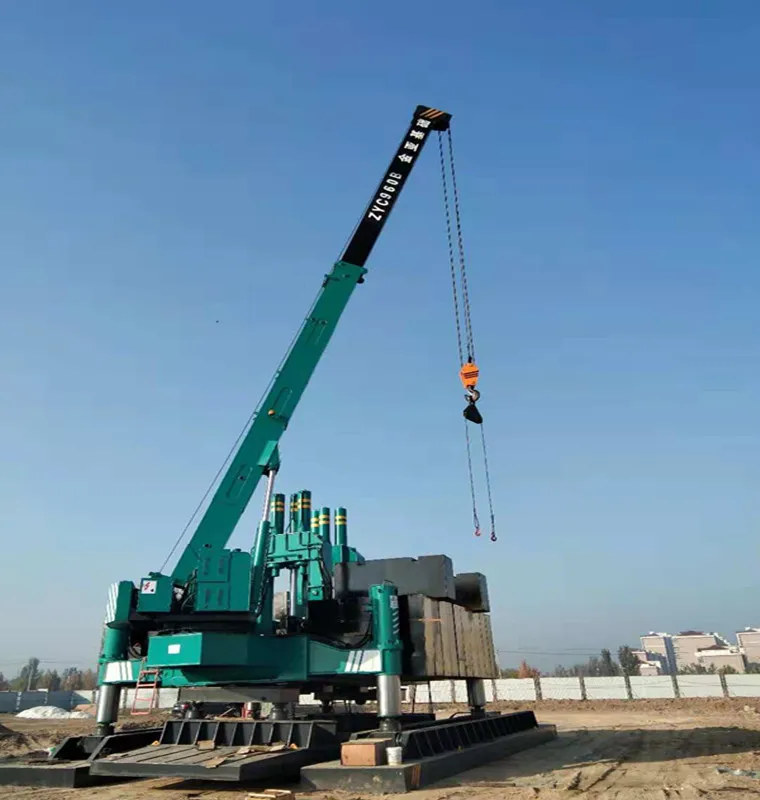

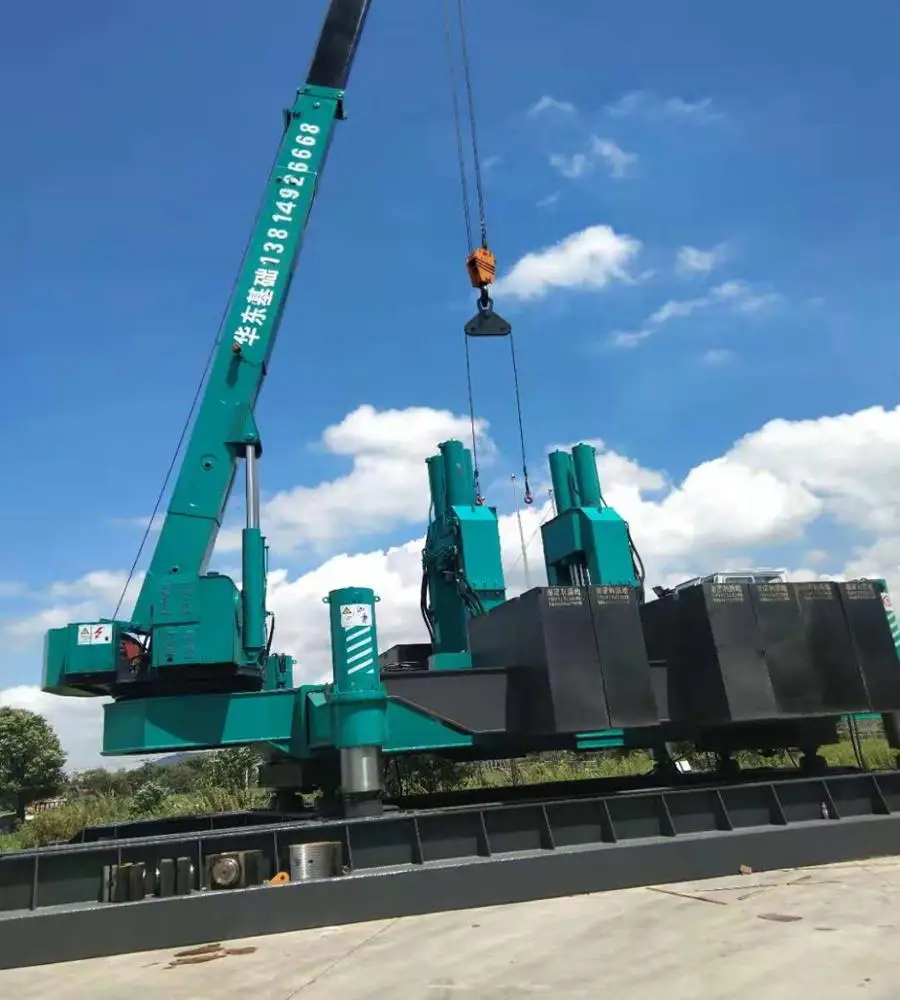

240B-B1 180B-B1 ZYC240 precast pile injection Hydraulic Static foundation piling Driver machine

paramete / type/model

ZYC240

Rated piling pressure(KN)

2400

(m/min) Piling speed

Fast

7.7

Low

1.8

Piling stroke(m)

1.9

Pace(m)

Longitudinal

2.4

Horizontal

0.6

Angle range(°)

15

Rise stroke (m)

1.6

(mm) Square pile

Max

5300

(mm)   Circle pile

Max

500

Side piling space(mm)

900

Corner piling space(mm)

1800

Lifting weight(t)

12

Lifting pile's lengh(m)

14

Power(KW)

Piling

60

Lifting

22

   Main dimension(m)

   Work length

11.1

 Work width

5.8

Transport height

3.0

Total weight(T)≥

240
