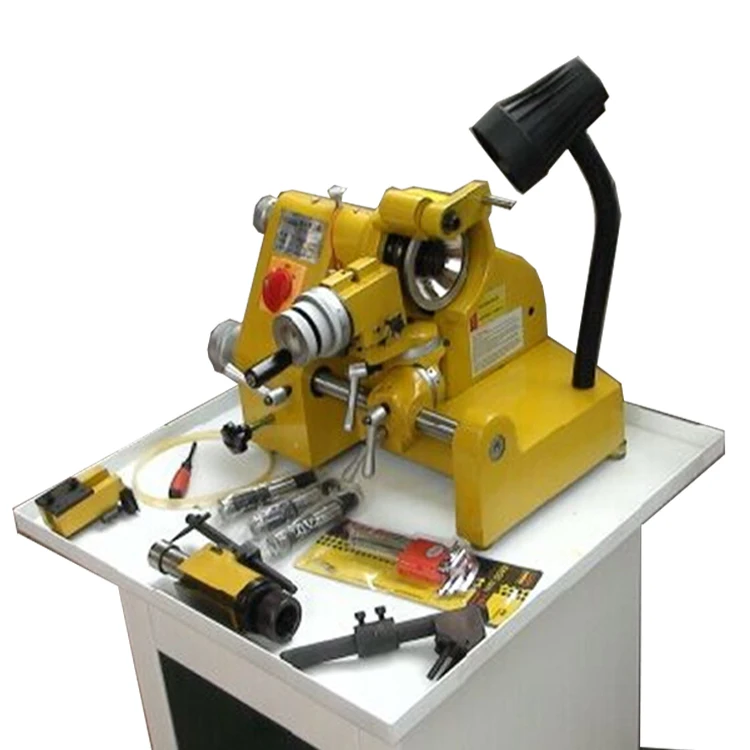

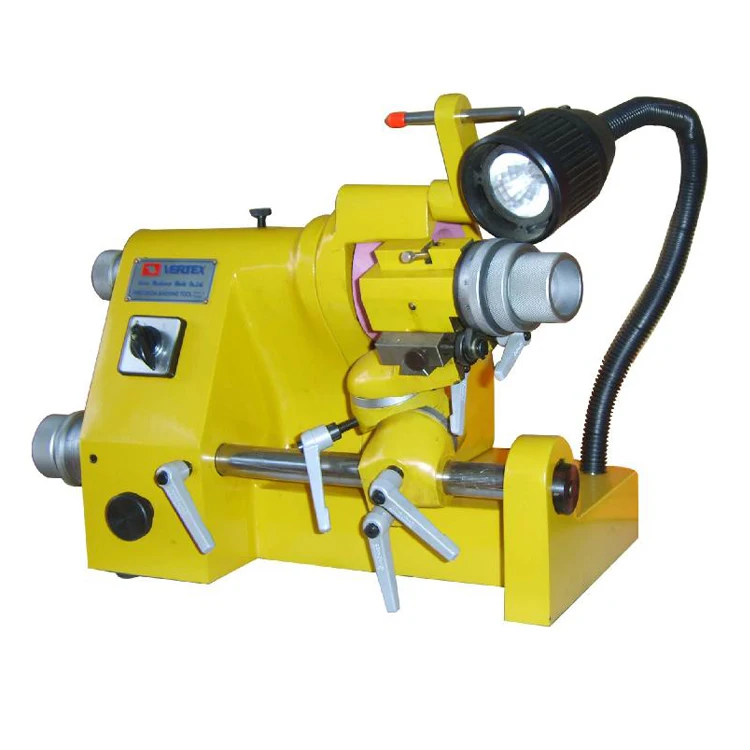

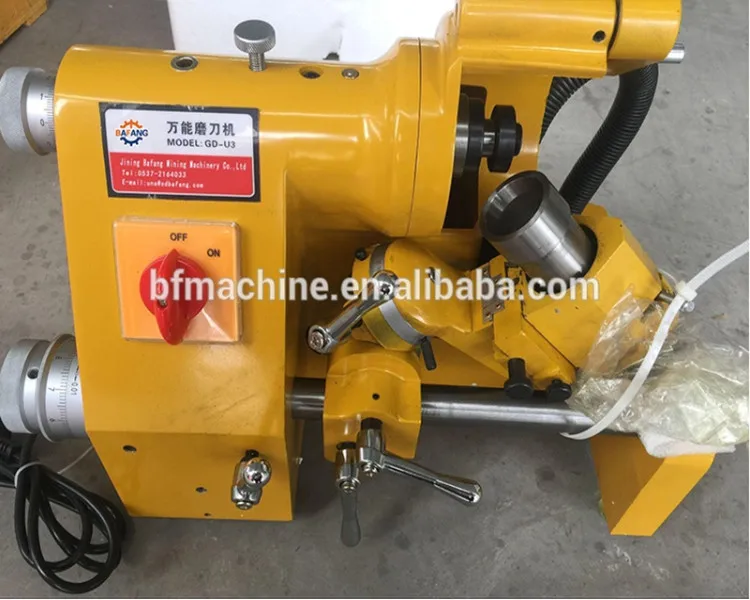

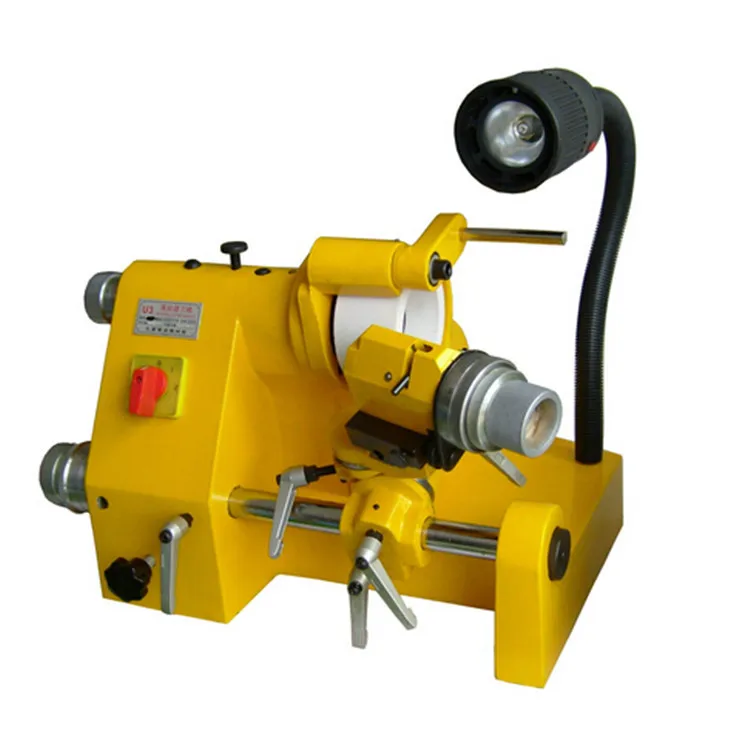

High precision U3 universal sharpening machinery 3-28mm graver cutter grinder






U3 Universal Cutter Grinder can be used for grinding all kinds of shape of a half cone angle fillets or anti-high-speed steel and carbide engraving tools and unilateral or multilateral tool. Grinding dividing head can be operated in 24 different positions for any grinding angle and shape, just replace the dividing head attachment, it can be carried out end mills ,chisel, drill, lathe, ball mills grinding.

1.  Used for grinding of HSS and carbide engraving/carving cutters with single lip and multiple flutes in various shapes.

2.  Used for grinding Lathe tool ,and Twist Drill,End Mill,just match Optional attachment .

3.  Large range 3 collects(Ø3mm-Ø28mm ).




Model

U3

Max collect capacity

Ø28

Max grinding capacity

Ø25mm

Longitudinal traver of index head carrer

140mm

Longitudinal adjustment travel of index head carrier

180mm

Spindle and wheel longitudinal adjustment travel

600mm

Taper angle

0° ~ 180°

Relief angle

0° ~ 44°

Negative angle

0° ~ 52°

Spindle speed

5,200 RPM

Cup grinding wheel

100 x 50 x 20mm

Motor power

380V/220V,50/60Hz

N.W. / G.W

50kgs / 60kgs

Packing size

570*480*470mm

Standard Accessories:

Collet

Ø3-28mm(3pcs)

Diamond wheel

1pc

Diamond pen

1pc

Belt

1pc

Tools

1set

Lamp

1pc

Optional Accessories:

Twist drill grinding attachment

Ø3-8mm

End mill grinding attachment

Ø3-16mm

Lathe tool grinding attachment

20*20mm

Stand

diamond wheel
