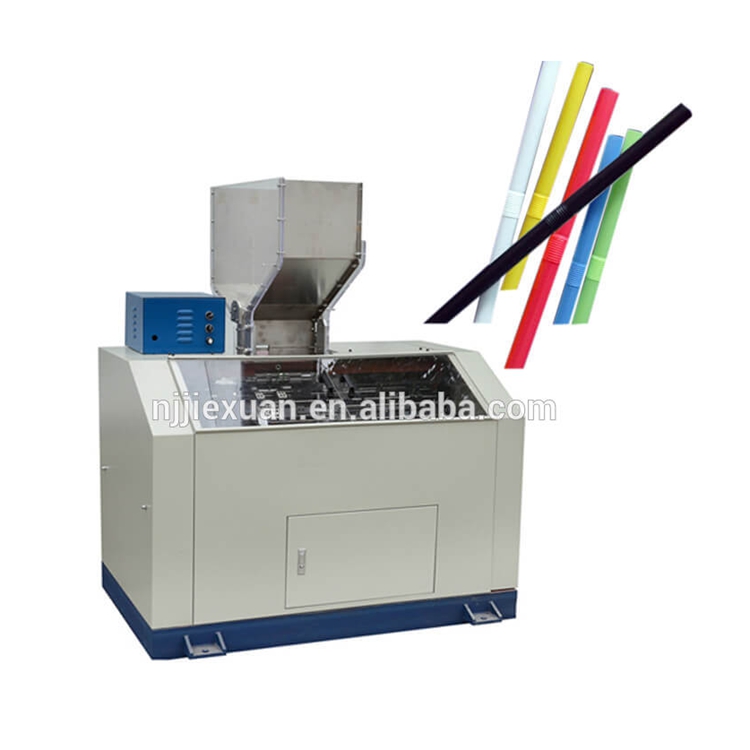

This CY021 is a forming machine which is used to corrugate straight PP PE pipe, drinking straws into flexible straws. The only thing a staff need to do is to add straws into the hopper, then the straws goes one by one into the main drum and be clamped by two mechanical hands . As the main drum rotates , the straw goes through two rotary mould to be pressed, then compressed by two mechanical hand to gain the character of flexibility, then be finished, sent out. As the main drum has 12 or 18 mechanical hands and they work in continuous loop, thus high production can be achieved.
Series automatic flexible drinking straw forming machine
Model
CY021-4
CY021-5
CY021-6
Main parts
The machine is mainly composed of hopper, feeding equipment,rotary drum, forming equipment, conveyer device and control device.
Power supply
1.5kw (VFD)
Production rate
200~300pcs/min
Specification Of straw
Inside diameter
Φ3.8
Φ4.8
Φ5.8
Length of straight straw
165~245mm
200~260mm
200~260mm
Thickness of straw
0.18±0.03
0.15±0.03
0.15±0.03
Length of flexible straw
150~230mm
185~245mm
185~245mm
Top section length
30~50mm(adjustable)
Length of flex. part
8~12mm(adjustable)
Machine dimension L×W×H
1.5m×1.8m×1.6m
Weight of equipment
1,000kg
