Product Overview

Description

12V 20Ah storage battery for ups power bank security project

Product Description



Model 1220
Nominal Voltage 12.8V
Nominal Capacity20Ah
Cell Inside3.2V 3300mAh 26650 Cells
Cell Combine4S6P-24PCS Cells
Storage Energy240Wh
Charge Cut Off Voltage14.6V
Discharge Cut Off Voltage10.6V

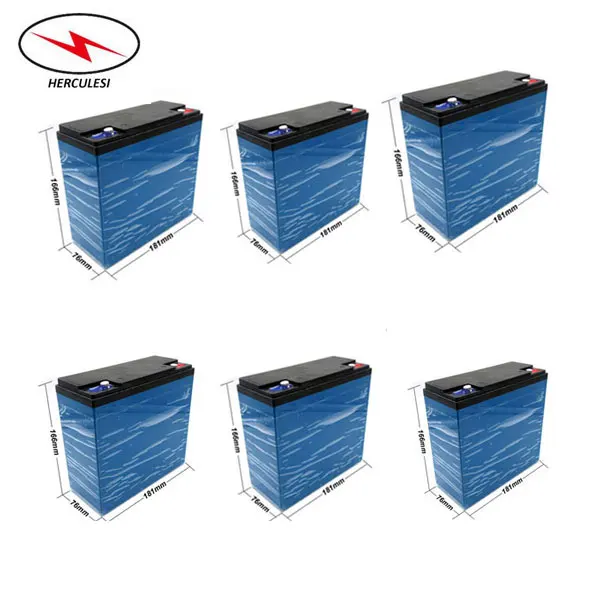

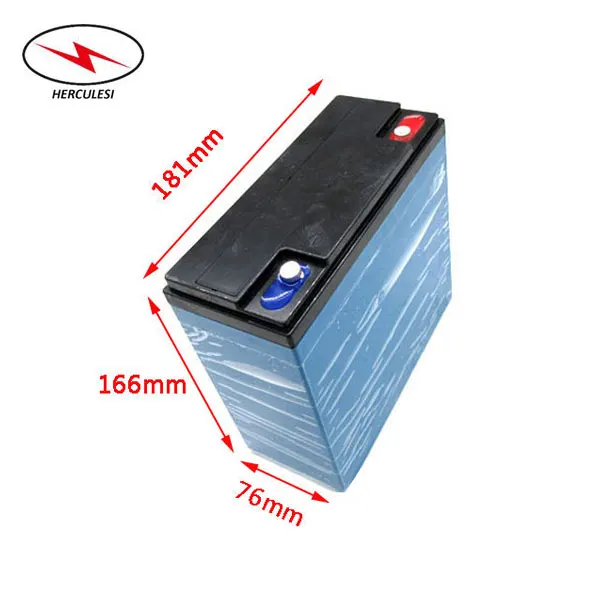

Battery Box Size76*166*181mm
Battery Weight2.7KGS
BMS Inside12V 4S 30A
Total Rated Power360W
Charger2A or 4A or 5A for your choice

Why choose this 12v lifepo4 battery ?
1) you can combine 5pcs accu 12v battery 20ah into bateria 12v 100ah in parallel by yourself

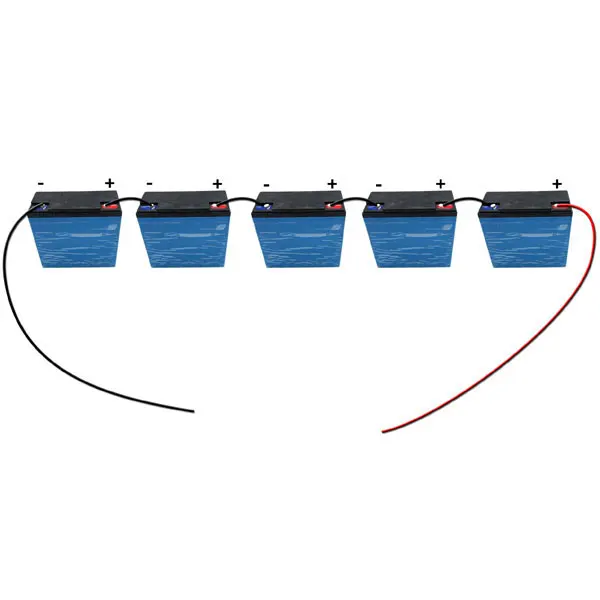

2) you can combine 5pcs lithium ion battery 12v lifepo4 battery 20Ah into batterie 64V ( 60V ) 20Ah in series by yourself
3) lifepo4 12v 20ah batetry have deep cycle lifes ( see front curve picture )
4) batterie 12v 20Ah lifepo4 lithium ion battery pack is very lightweight
5) lifepo4 battery packs 12v have portable case , which is rainproof
6) bateria litio 12v 20Ah battery is greenway battery pack
7) you can combine 6pcs 12v lithium ion battery into 72v 20Ah lithium battery pack Akku .
8) easy in series or in parallel



What's specifications of your BMS board ?
Our BMS consists of Master BMS Circuitry (we named “BMU”), Slave BMS Circuitry (we integrate it into our
battery module) and contactor. Besides the basic functions such as over charge/ discharge,over current, short circuit, over temperature and balancing, Our BMS owns the following features .
Our batteries build in 30A BMS



What's cycle lifes for 12v 20ah lifepo4 lithium ion battery ?

2000 times at 100% DOD
3000 times at 80% DOD
5000 times at 65% DOD
8000 times at 55% DOD

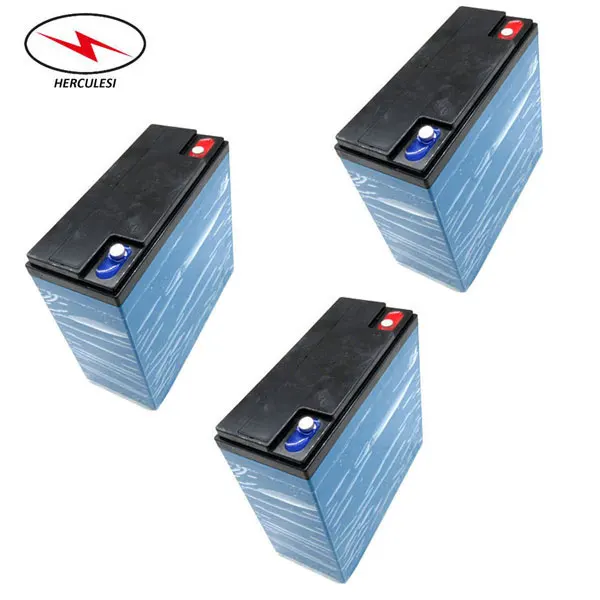

12v 20ah battery.jpg

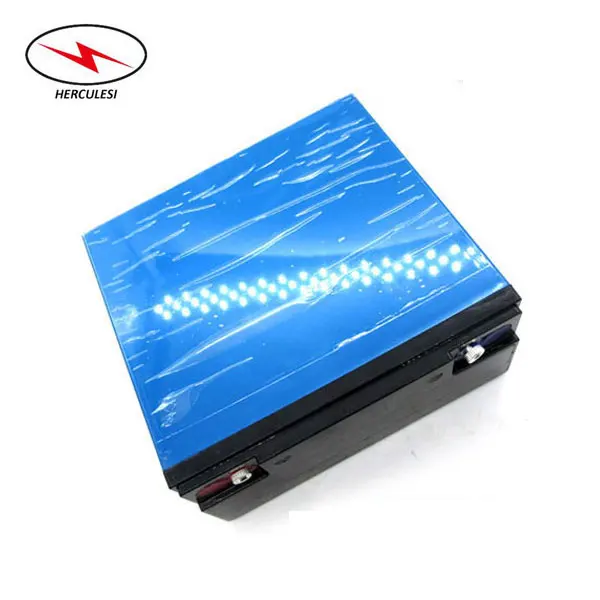

Detail picture



1 - .jpg




Company Information

Our service

1. We have 10 years experience in Battery field

2. Fast service to customers within 24 hours

3. A professional Engineering Team to offer Best Solution to you

4. Genuine Battery Capacity, no Fake

5. 100% QC Inspection before Delivery

6. Business Partners from all over the World

7. Rich Experience in Battery Field

8. 13 months warranty ,after-sales







 Test quality



1, We are not only sell batteries, but also provide expertise to help customer design their own custom batteries.

2, For the raw material: We used Ni1/3Co1/3Mn1/3 positive pole material for electric bike battery. The name is Ternary Li ion battery (Li-NiCoMn). It has high energy density, deep cycle performance, long cycle life (>1000times 1.0C, IEC standrad) and with lower cost. It is the newest generation Li-ion rechargeable battery for high power applications, such as EV car, E-scooter and E-bike.

3, Strict Quality Control: Cell test and battery pack test before producing & delivering.

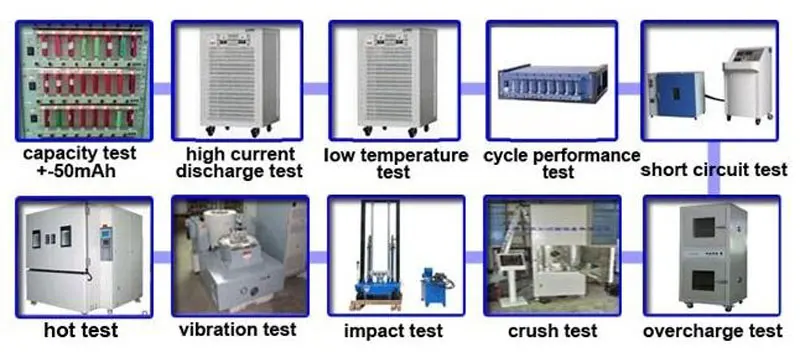

As usual, we produced a batch of cells, and need do below test firstly.

a) capacity test, b) high current discharge test, c) low temperature test, d) cycle performance test, e) short circuit test, f) overcharge test, g) crush test, h) impact test, i) vibration test, j) hot test.

Rectangle / Triangle Electric Bike Battery 48V 20Ah Li Ion Battery Pack with Charger and BMS.jpg

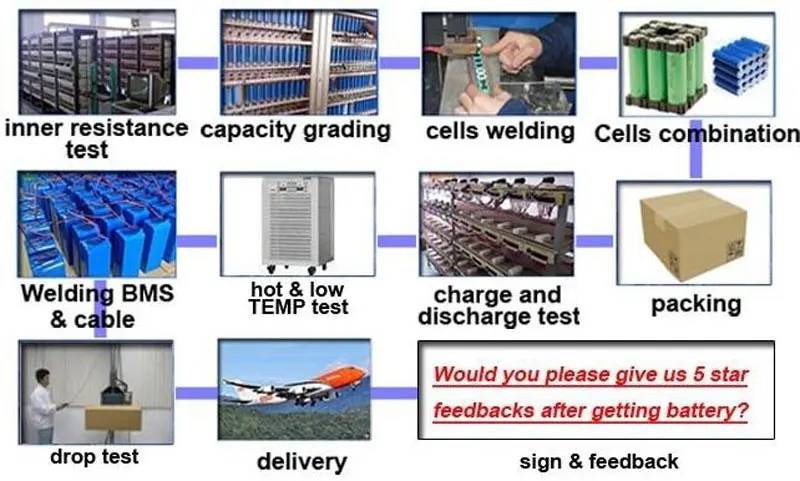

After the cell is passed test, we will build the pack as below procedure.

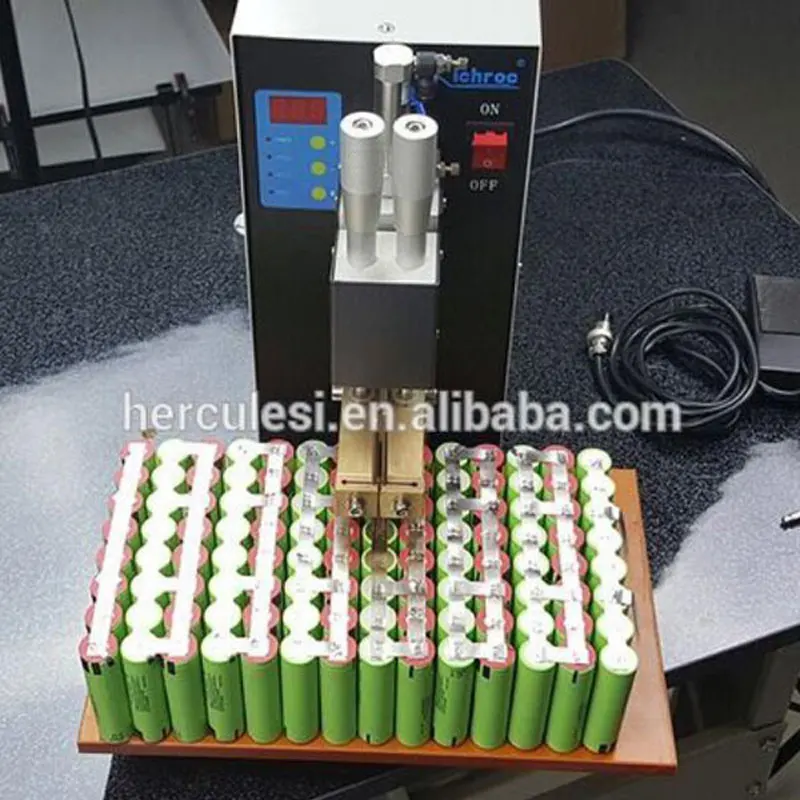

a) inner resistance test, b) capacity grading, c) cells welding, d) cells combination, e) welding BMS & cable, f) high & low temperature test, g) charging & discharge test, 10times cycle. h) packing, i) drop test, j) delivery.

Rectangle / Triangle Electric Bike Battery 48V 20Ah Li Ion Battery Pack with Charger and BMS .jpg

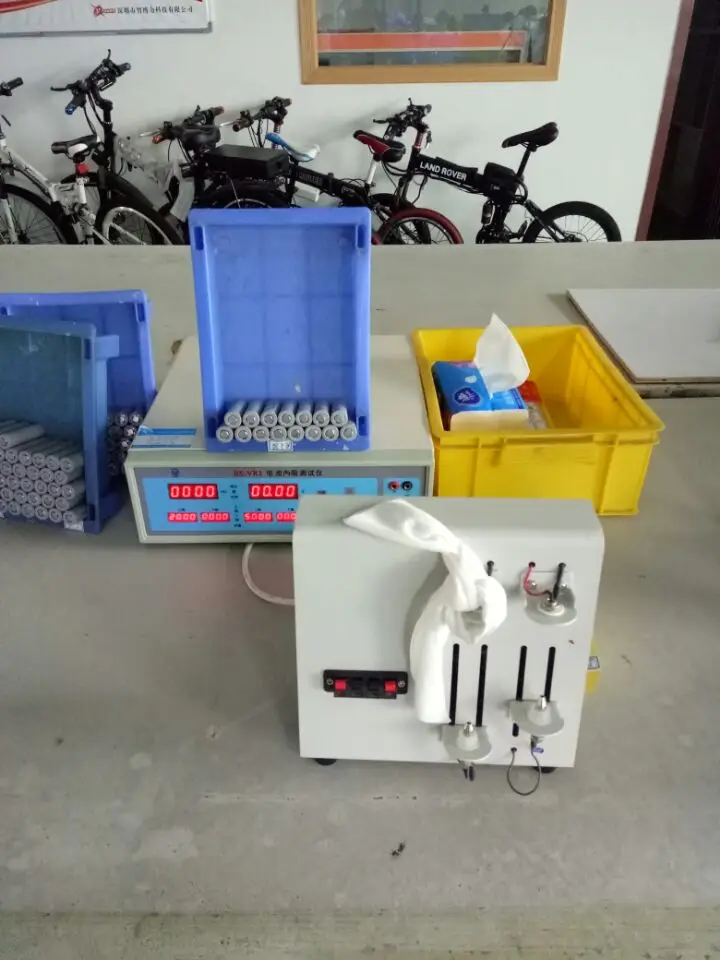

Our factory

We are specialized in Li ion battery, LiFePO4, Li-NiCoMn, LiCoO2, LiNiO2, and LiMn2O4 battery with 12 year experience.

We are not only sell batteries, but also provide expertise to help customer design their own custom batteries. Our sales and engineers have more than 10 years experience, if you have any design or inquiry, please just message us, our engineers will work with you to provide you best solutions.
