Shandong 100000 M2 аквапарк, стекловолоконная водная горка, оборудование для аквапарка

Share on:


Price:260,00 $ - 380,00 $
Price in USD:Details

Quantity:


Product Overview

Description

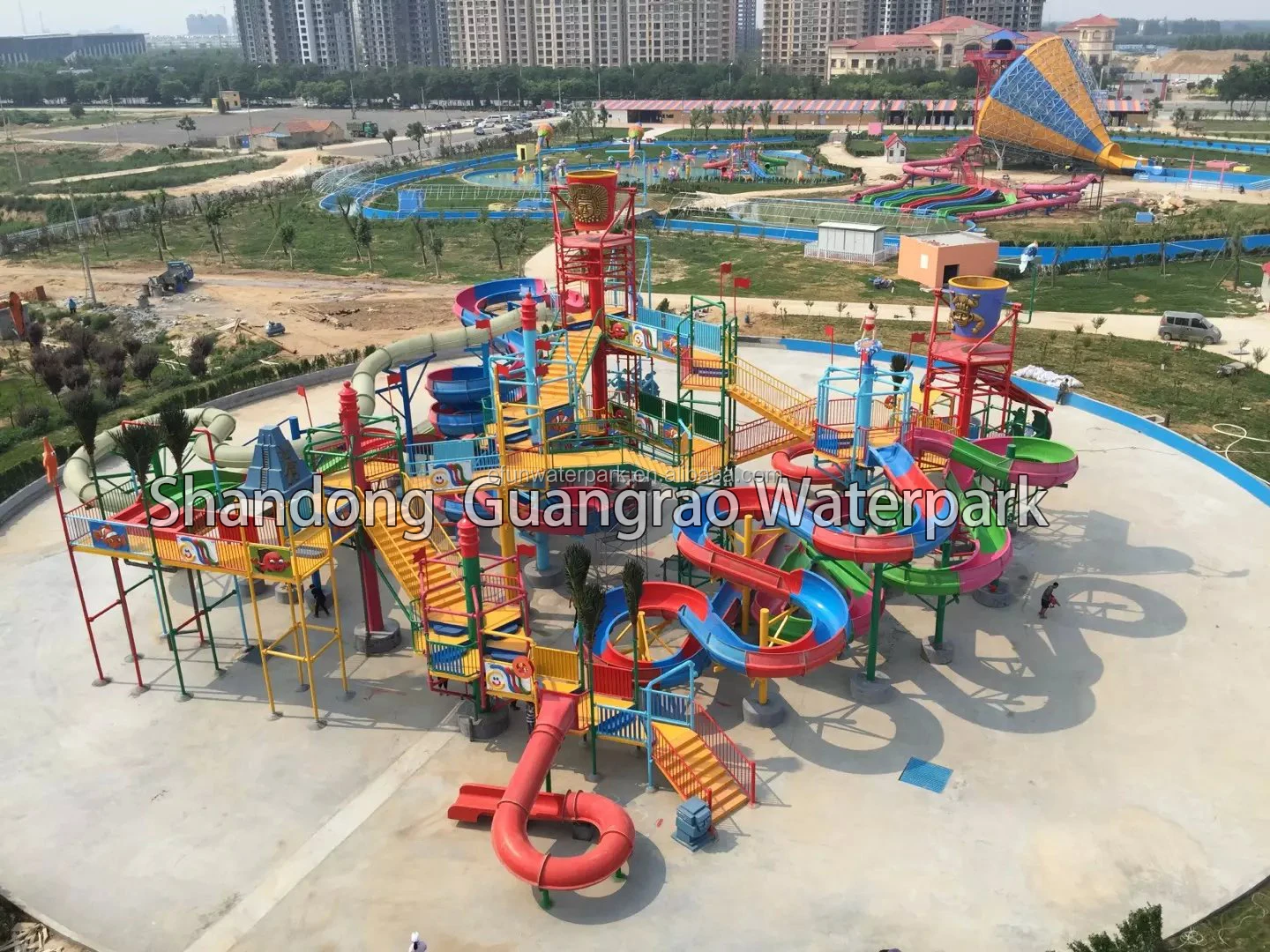

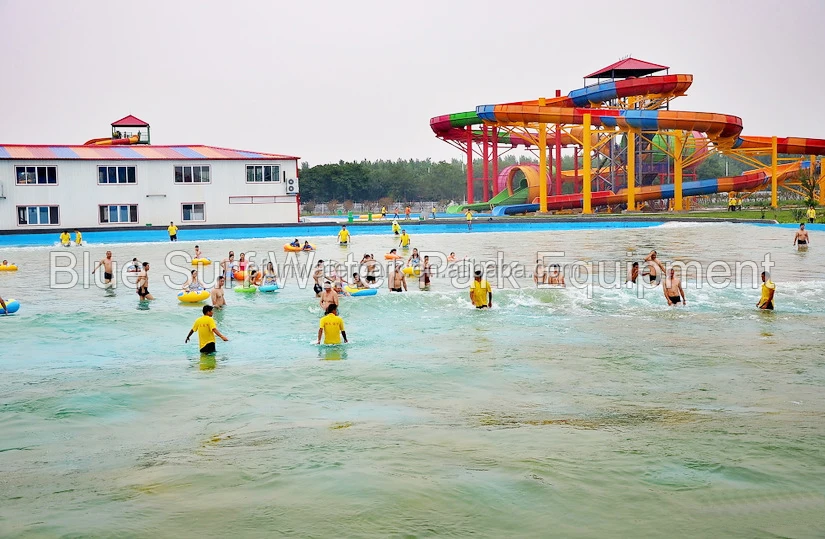

OUR PROJECT CASE: China ShanDong Crazy Sea Water Park
Area:100,000 M2
Total Investment Quota:2 hundred million
Opened Year: 2015

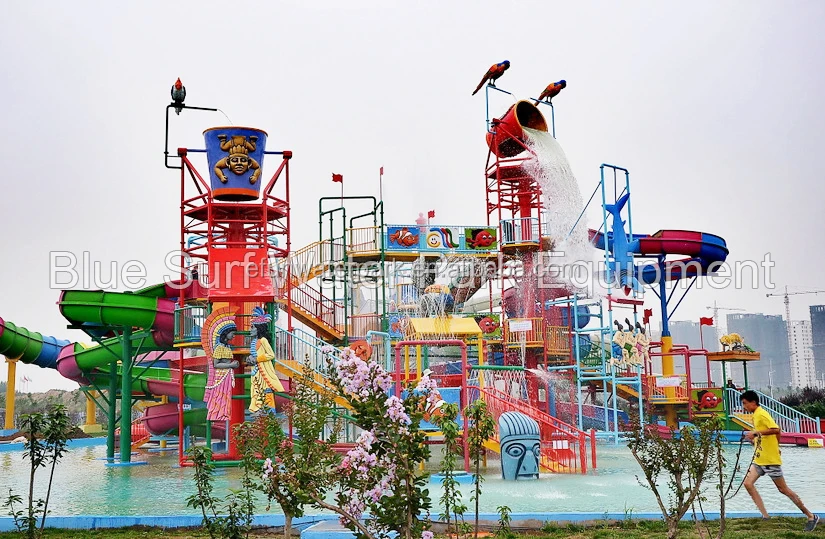

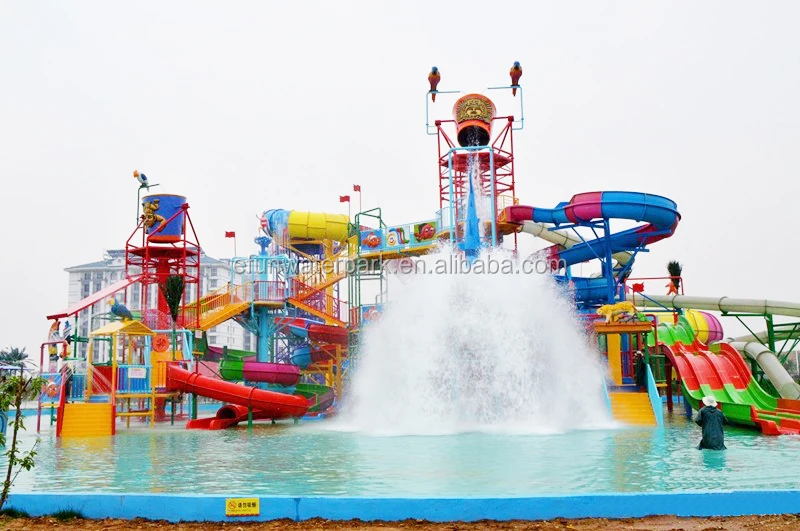

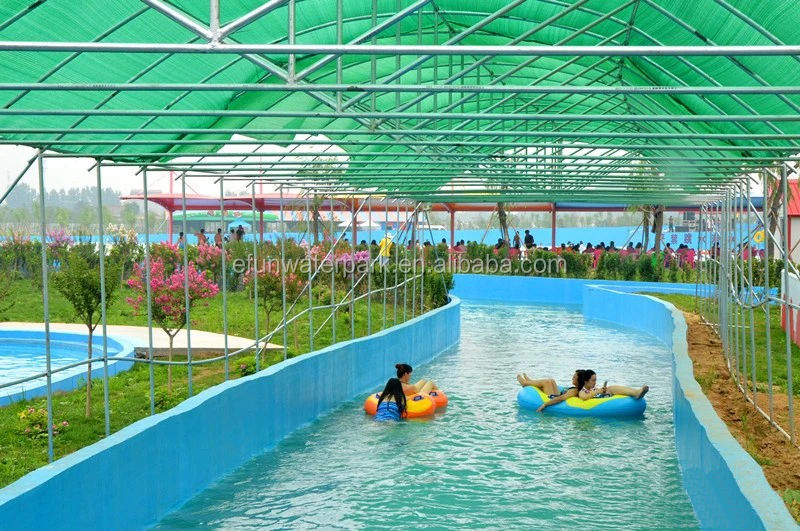

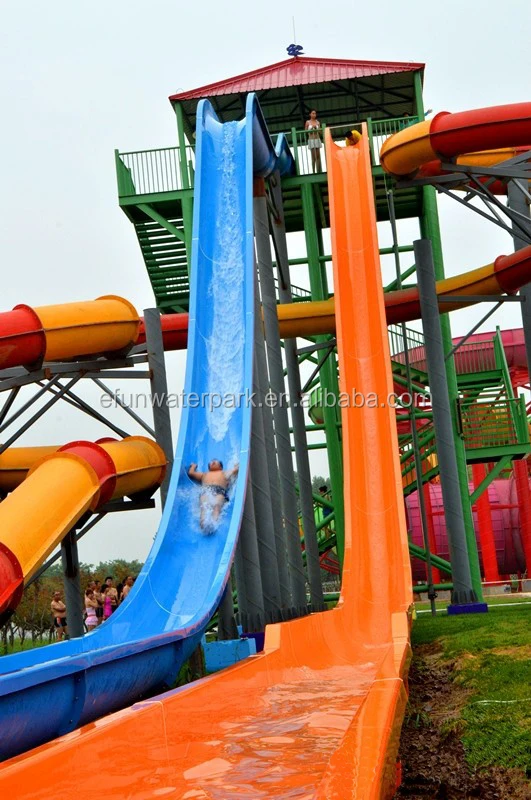

Equipments: Tsunamis pool,Boomerang,Tornado,Huge Space bowl,Pythons, Eight Octopus slide,Family slide, High speed slide,Race slide,Lazy river,Huge Maya water house.
City: Shandong.China

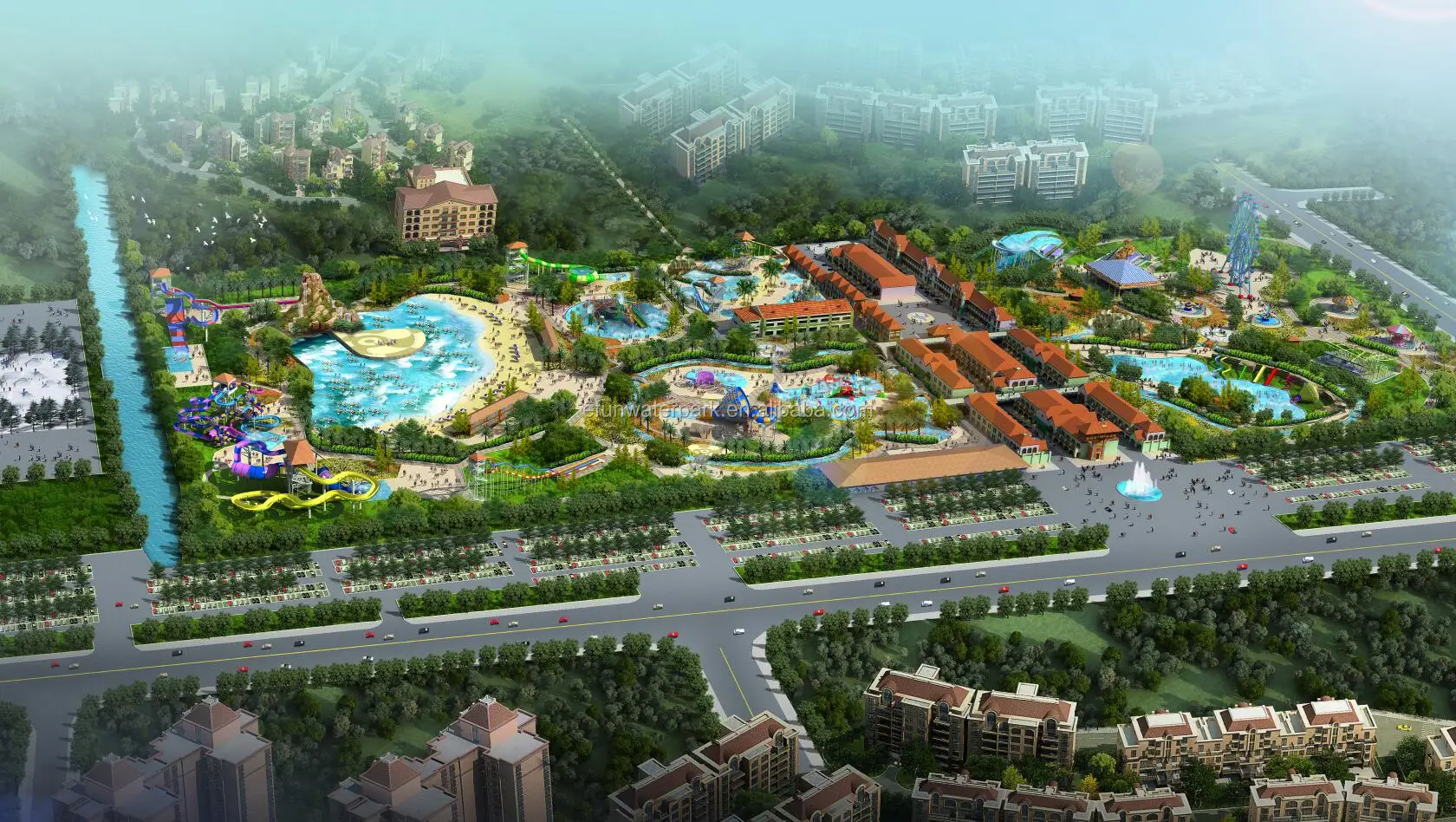

1. Full view for the 3D design

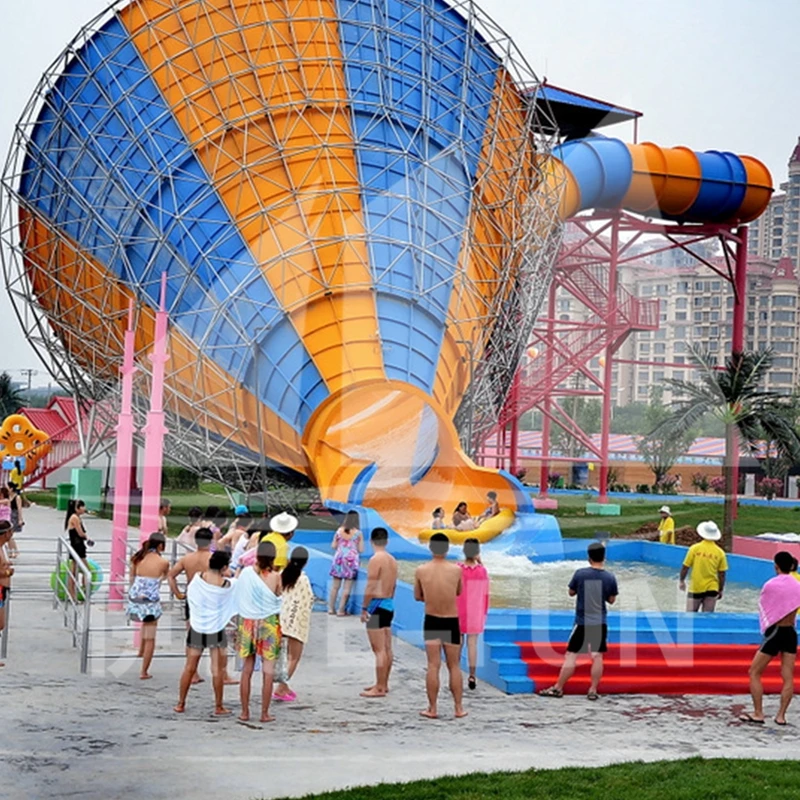

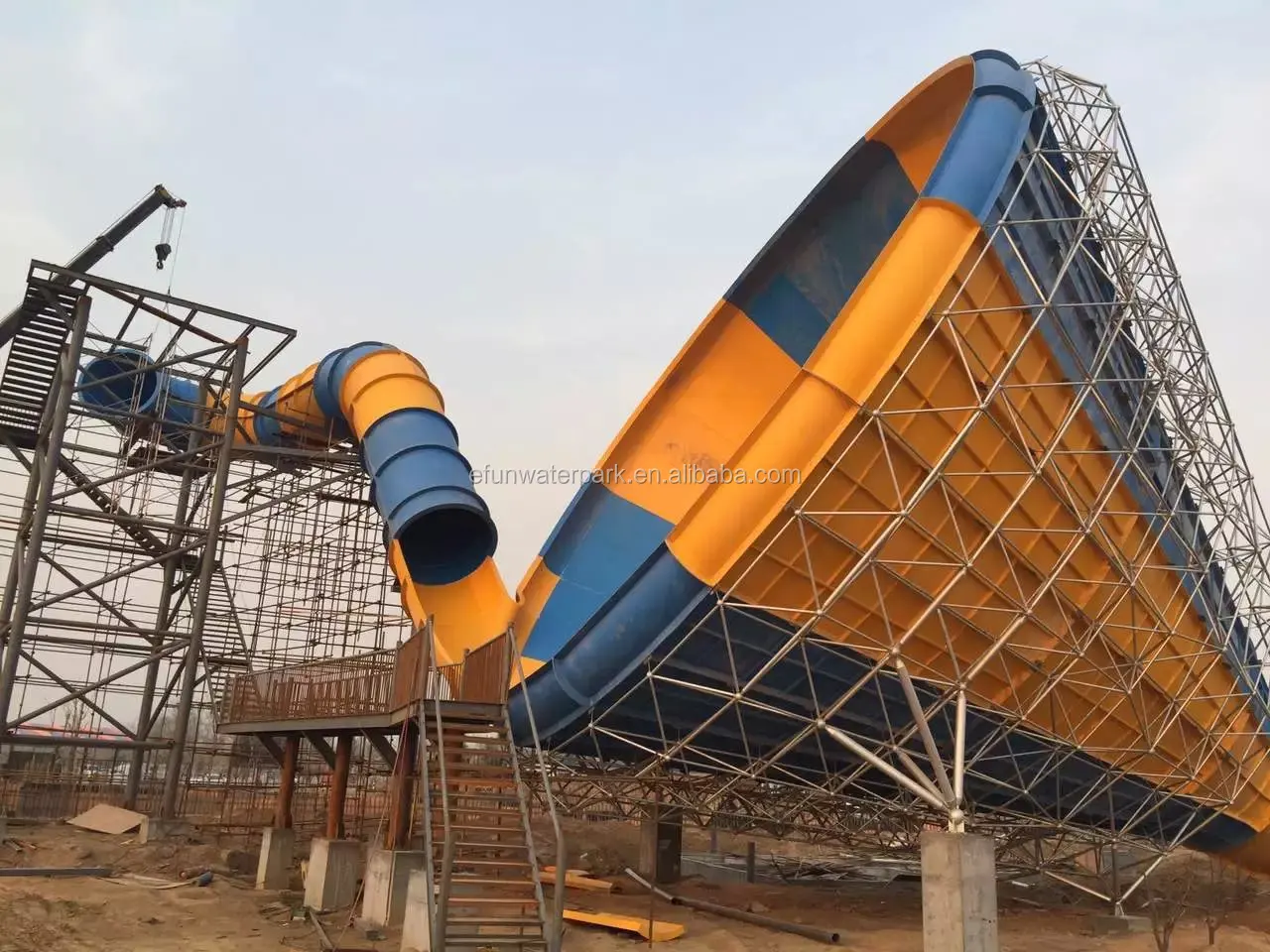

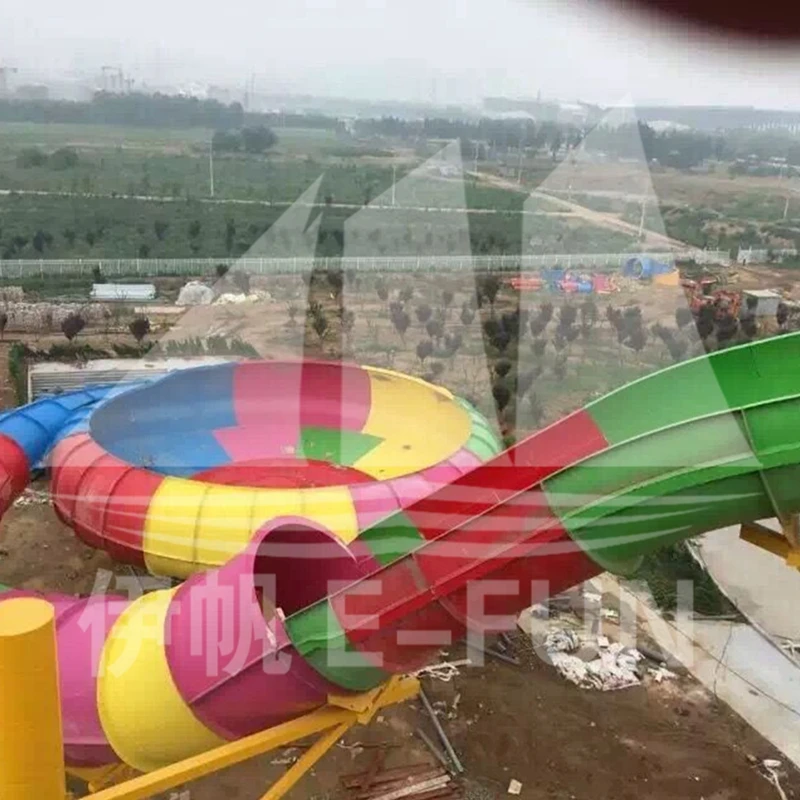

2. Tornado water slide show in our this ShangDong project


 Huge Tornado
1.entrance of water slide:width is 2.8m
2.closed spiral water slide:Diameter is 2.8m, length is 35m
3.open water slide closed the tornado parts:width is 2.8m length is 4m
4.Tornado:Diameter is 18m
5.Exit of tornado:width is 3.8m length is 8m
 Detailed equipment list SPECQTYUnit
1Tornado H=14.7m D18.5m1set
2
Embedments
  1batch
3
Screws, Brackets,seal gum etc
  1batch
4
Steel column, supporting poles etc.
  1batch
5Water pump KG250-200/32:
75KW
2pc
6Hair interceptor 650m3/h2pc
7The electrical control device KZ 160KW1set

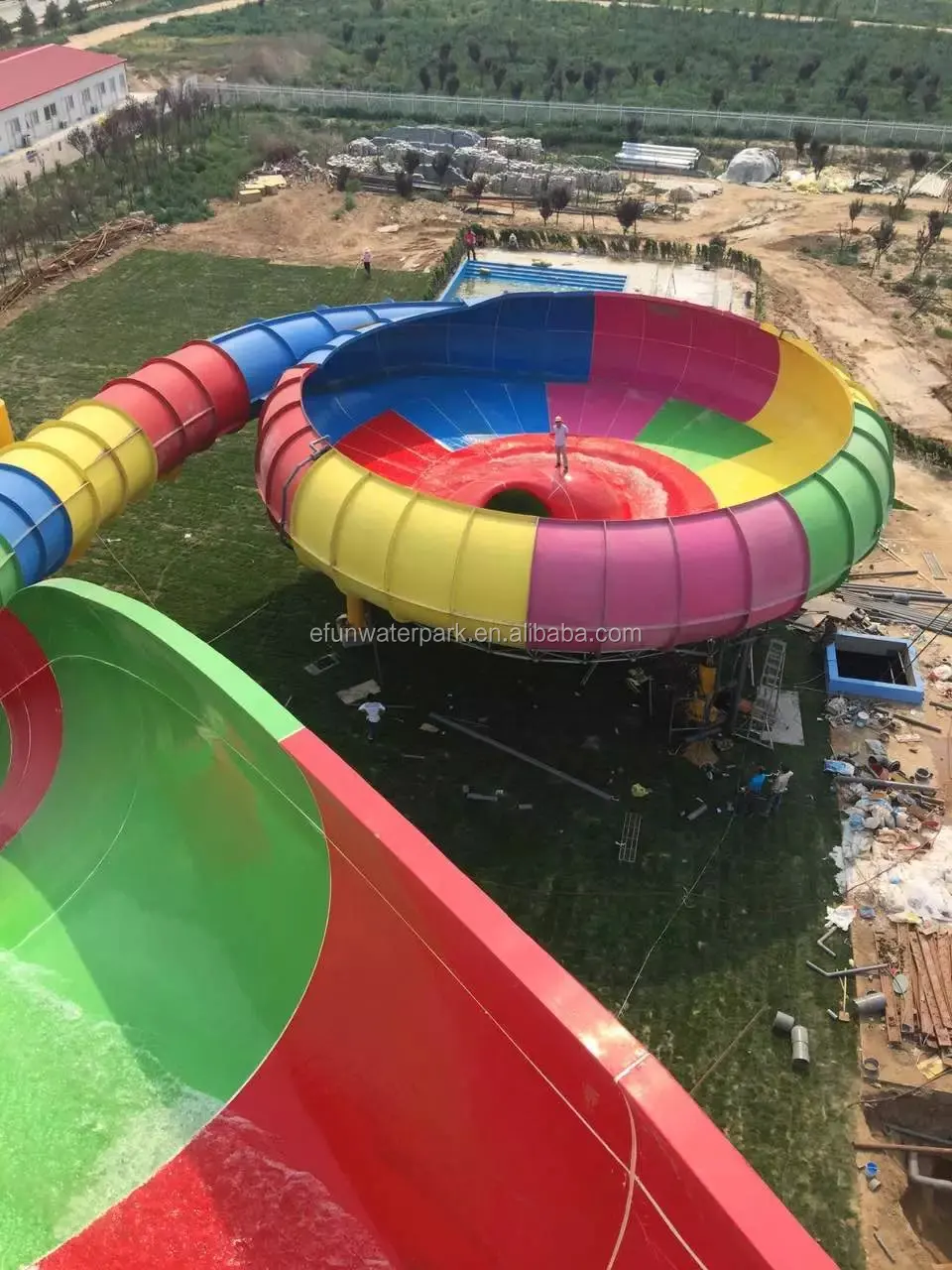

3. Super Bowl water slide show in our this ShangDong project



Specifications:



Super Bowl



NameSuper Bowl Fiberglass Waterslide Tubes
SpecOuter width is 1 meter, Inner width is 0.8 meter: existing mold we have
Thicknessslide body: 6-8mm; flange: 8-10mm
Stretched lengthCustomized ,12-15m
Capacity1
Materialslide: fiberglass
screw: stainless steel
steel support: galvanized steel
ColorRed, Yellow, Green, blue, or customized
Packing detailsEPE foam and carpet
Payer age

>15years old
