CNC vertical tooth indexing plate DRC GV series CNC milling machine vertical rotary table






Product Description


-1

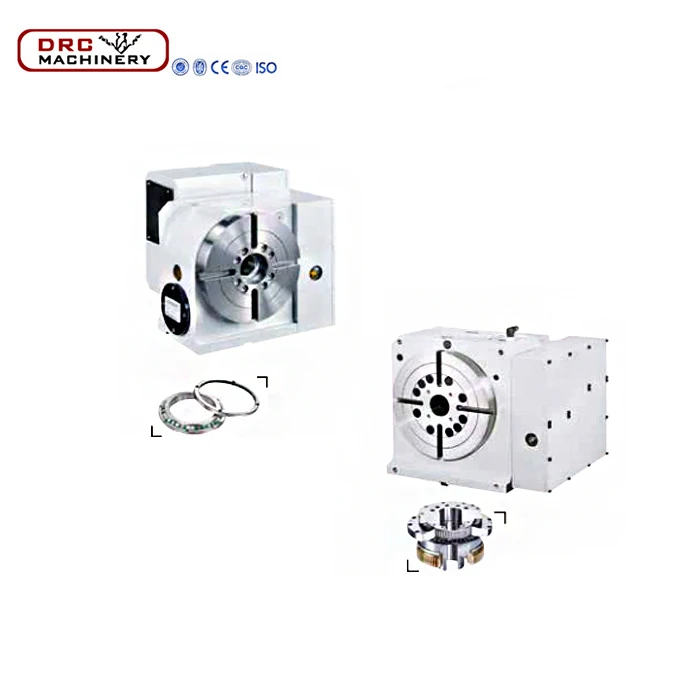

What Is The rotary table DRC GV series?

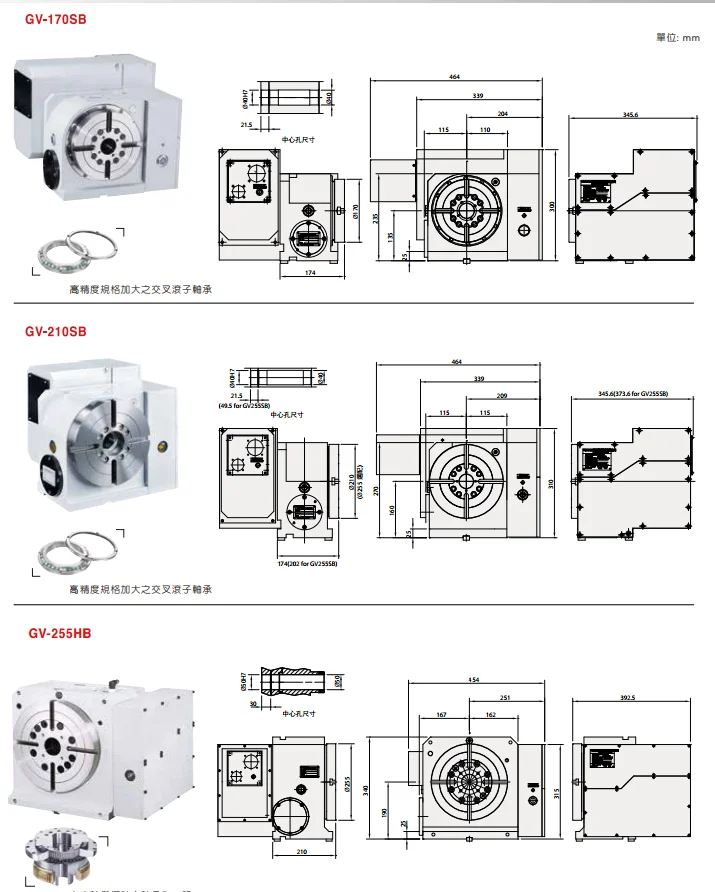

model

 GV-170SB


GV-210SBGV-255HB
Rotary table diameter mm

Ø170



Ø210


Ø255
Center hole diameter mm

Ø40H7



Ø40H7


Ø50H7

Center through hole diameter mm

Ø40



Ø40


Ø50
Center height (vertical position) mm

135



160


190
Workbench T-slot width mm

12H7



12H7


12H7
Guide block width mm

18



18


18
Drive mode / drive pressure

MPa air pressure 0.55~0.7



MPa air  pressure 0.55~0.7


oil pressure 5
Tightening torque N.m

250



400


700
Reduction ratio

1 / 90



1 / 90


1 / 120
Maximum speed of disk surface min-1

44.4



44.4


22.2

Allowable load inertia capacity Kg.m2



0.28



0.42


2.07
Minimum setting unit deg.

0.001



0.001


0.001
Indexing accuracy sec.

20



20


15
Repeat accuracy sec

6



6


6
Rotary table weight (without servo motor) Kg

90



104


150
Allowable load capacity Vertical Kg

75



75


100
Use tailstock Kg

150



150


250
Allowable cutting force (when the turret is clamped)

N 14000 14000 16000
N.m 1020 1020 1120
N.m 250 400 700



N 14000 14000 16000
N.m 1020 1020 1120
N.m 250 400 700


N 14000 14000 16000
N.m 1020 1020 1120
N.m 250 400 700
Worm gear allowable torque N.m170 260 550



DRC  rotary table  Features?


High quanlity CNC rotary table
CHARACTERISTICS:
Rotary table diameter Ø170, Ø210, Ø255.
Motor rear configuration, fully retaining the Y-axis effective stroke
  S series is a powerful air brake mechanism
Use hydraulic unit, no oil leakage.
High efficiency, high tooth depth double lead worm drive.


Relationship between braking force and cutting force and efficiency of rotary table
The braking force of the rotary table is a key factor in supporting high-efficiency cutting forces and the highest safety factor must be maintained:
The braking force should be greater than 200% of the cutting force
The efficiency of metal machining cutting forces comes from complex conditions, including:
1.Machining center machine rigidity, spindle speed performance
2.Machining power output and adjustment of machining centers
3.Application of high speed tools
4.safe and stable clamping force
5.Peripheral auxiliary configuration
