NDL Craft all tanks are made of certified 304 stainless steel material and components, sanitary construction, 100 percent TIG welded and sanitary polished with stringent controls, inspection, and pressure testing. NDL Craft guarantees an unsurpassed tank quality and fantastic value of all valves and fittings - included at no additional cost.
1. Different Beer Brewhouse Types for Option:
A typical two-vessel
Combination Mash Lauter Tuns are the first combination vessel in these smaller brewhouses line ups. This vessel should be sized to favor the Lauter operation, and have the mechanics for mixing mash and graining out. Next inline is the combination of the Kettle and Whirlpool tanks. This combination vessel is designed and sized for being primarily a kettle, but is equipped with a tangential fitting for whirlpooling.

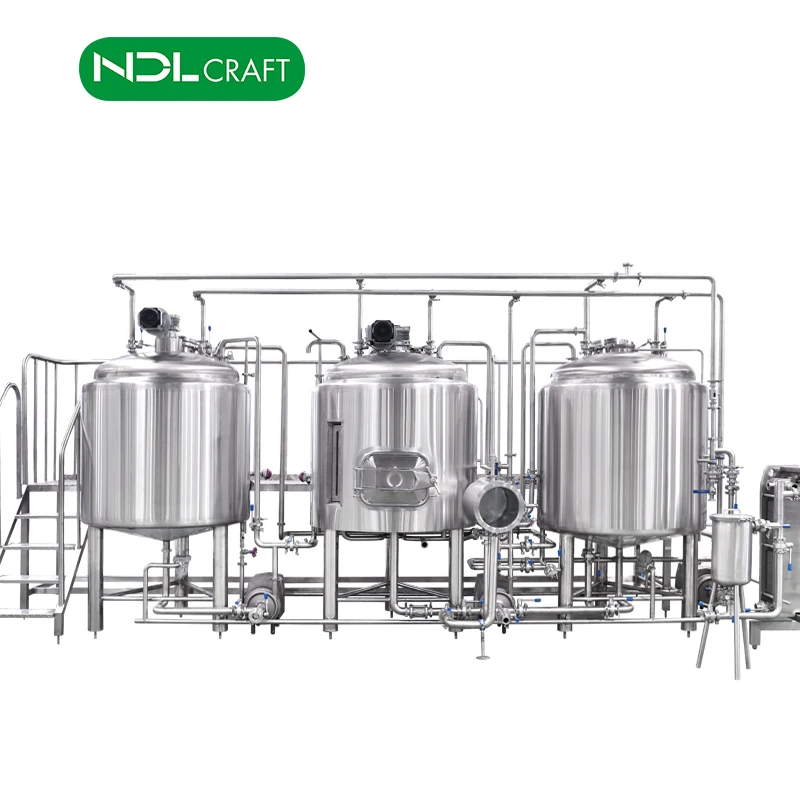

A three-vessel brewhouse is hybrid system that incorporates at least one combination vessel and two dedicated process vessels. For example, a medium sized brewery with a focus on heavily hopped beers might choose to go with a combination Mash Lauter Tun, a dedicated Kettle, and a dedicated Whirlpool. Whereas, someone focusing on lagers or feeding a distilling operation might go with a dedicated Mash Tun, dedicated Lauter Tun, and a combination Kettle/Whirlpool. Three-vessel systems don’t have the same output and versatility as four-vessel systems, but they will still out perform a two-vessel system and provide increased efficiency.

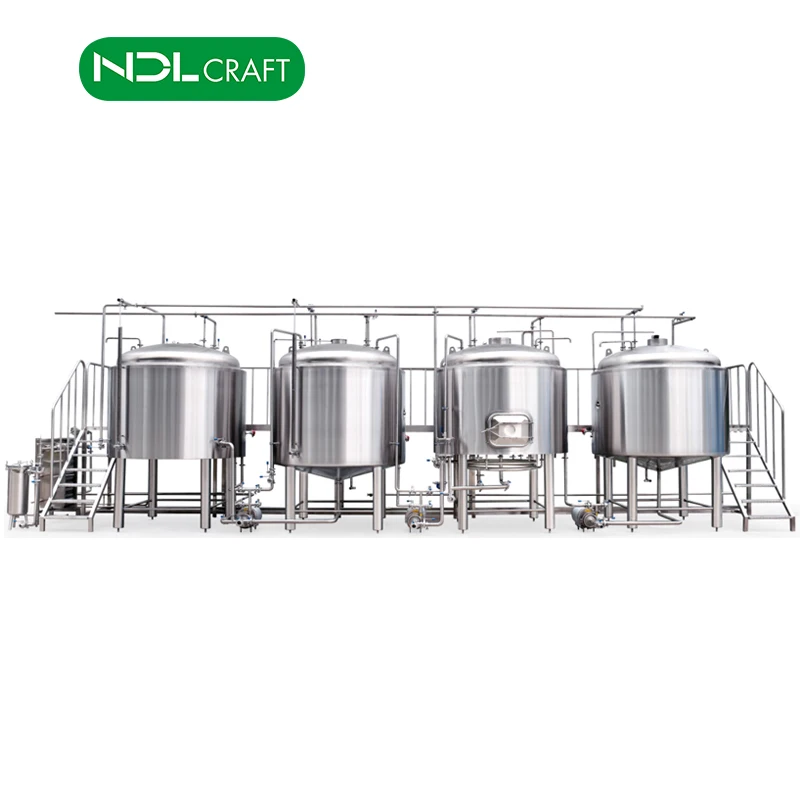

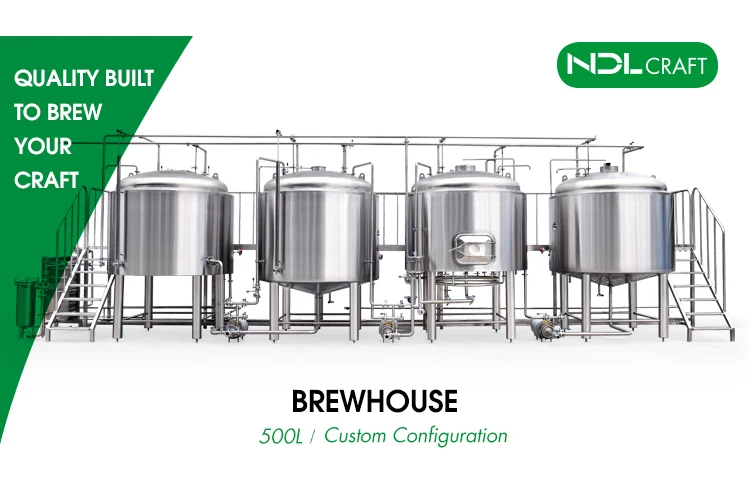

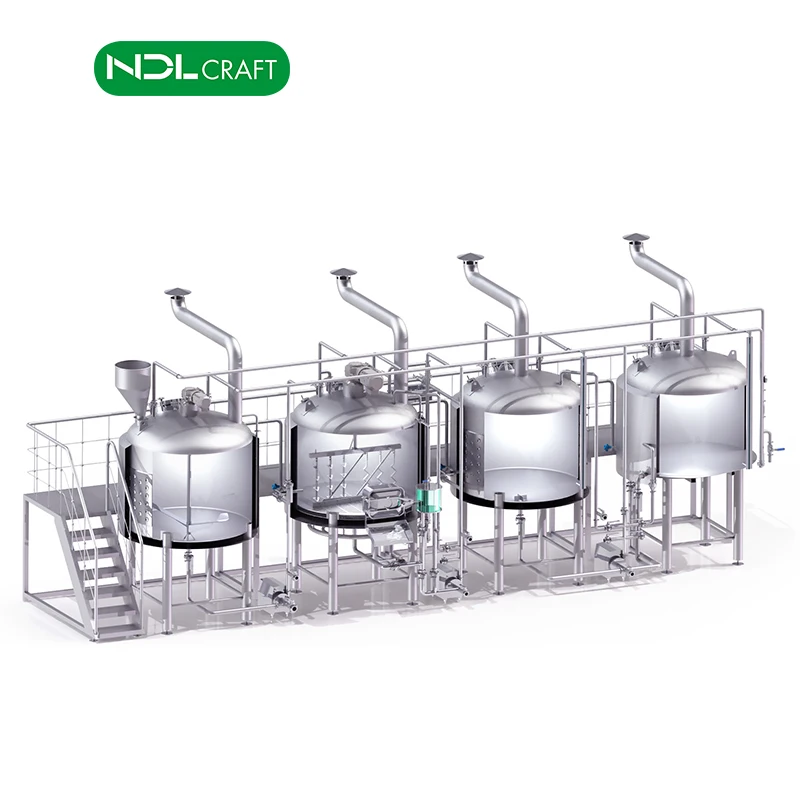

A typical four-vessel brewhouse will include a Mash tun, Lauter Tun, Kettle and Whirlpool. Each of these tanks is dedicated to performing a single process, and is designed differently than similar vessel used for performing multiple processes.
Four-vessel systems offer the highest throughput and the most versatility. With proper vessel sizing, well laid out hard piping, and well-designed controls these brewhouses can be extremely large and only require one person to operate it. The ability to make more beer with less labor input, paired with gains in efficiency and quality control make the four-vessel brewhouse a worth while investment for breweries that intend to produce a lot of beer.
Click to Contact Us Now!!!
2. A serials of Beer Fermentation Tank models:

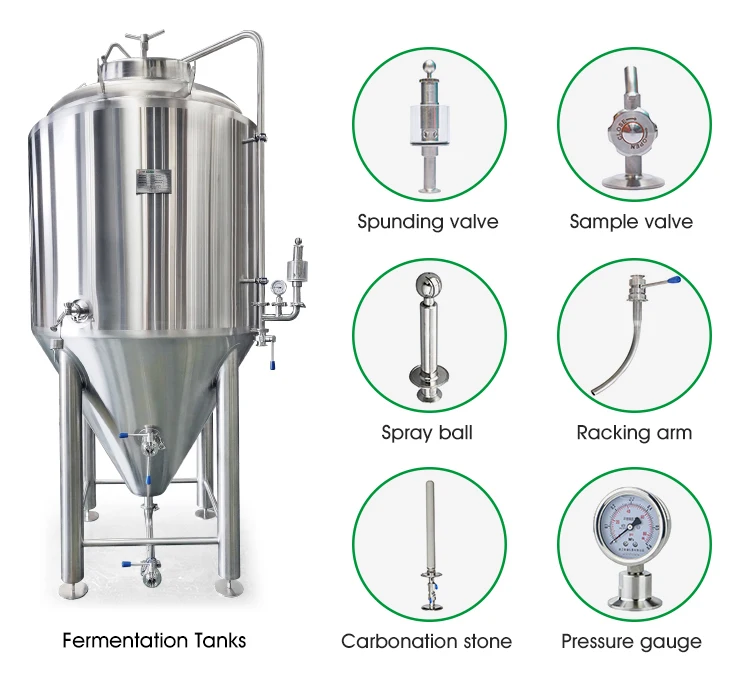

3. 7BBL Fermentation Tank
NDL Craft experienced team of engineers and brewers work together to design every Fermentation Tank. We meticulously focus on the details, like pump and valve placement, aiming to maximize Fermentation Tank efficiency and ease of use. With a NDL Craft Fermentation Tank you will hit your gravity targets quicker and run up and down the platform less often.
Built with AISI 304 stainless steel
5-year limited manufacturer's warranty
Dished head and conical bottom
Insulated with Polyurethane foam
Double-acting air vent valve (below 100HL)
Pressure and anti-vacuum valve (100HL and above)
CIP with spray ball and blow-off arms
Temp, sensor, sample valve, and butterfly valves
2" bottom drain outlet
6" hop port
Rotating racking arm
4. You May Also Like Wine Fermentation Tank
Click for More Information!!!
NDL Craft, founded in 2011, is a brewing equipment manufacturer and brewing technology engineering company that provides many kinds of customized tanks and turnkey projects throughout the world. The company attaches great importance to the research and development of core technology. On the basis of maintaining the manufacturing cost of China, the company can design according to CE PED standards and ASME design codes, and institutes production and quality control methods according to both European and American quality standards.
We have established an ERP management system and have passed quality audits for internationally recognized certifications.
ISO 9001: Certification for the Quality Management System
ISO 14001: Certification for the Environmental Management System
ISO 18001: Certification for the Occupational Healthland Safety Management System
CE: Certification of Compliance
PED(TUV): Certification of Compliance, Certification of Conformity
SGS: Gold Plus Supplier Assessment Certificate
