Hot sales!API oilfield double drum ZJ20 XJ650 truck-mounted drilling rig/workover rig
Product Description

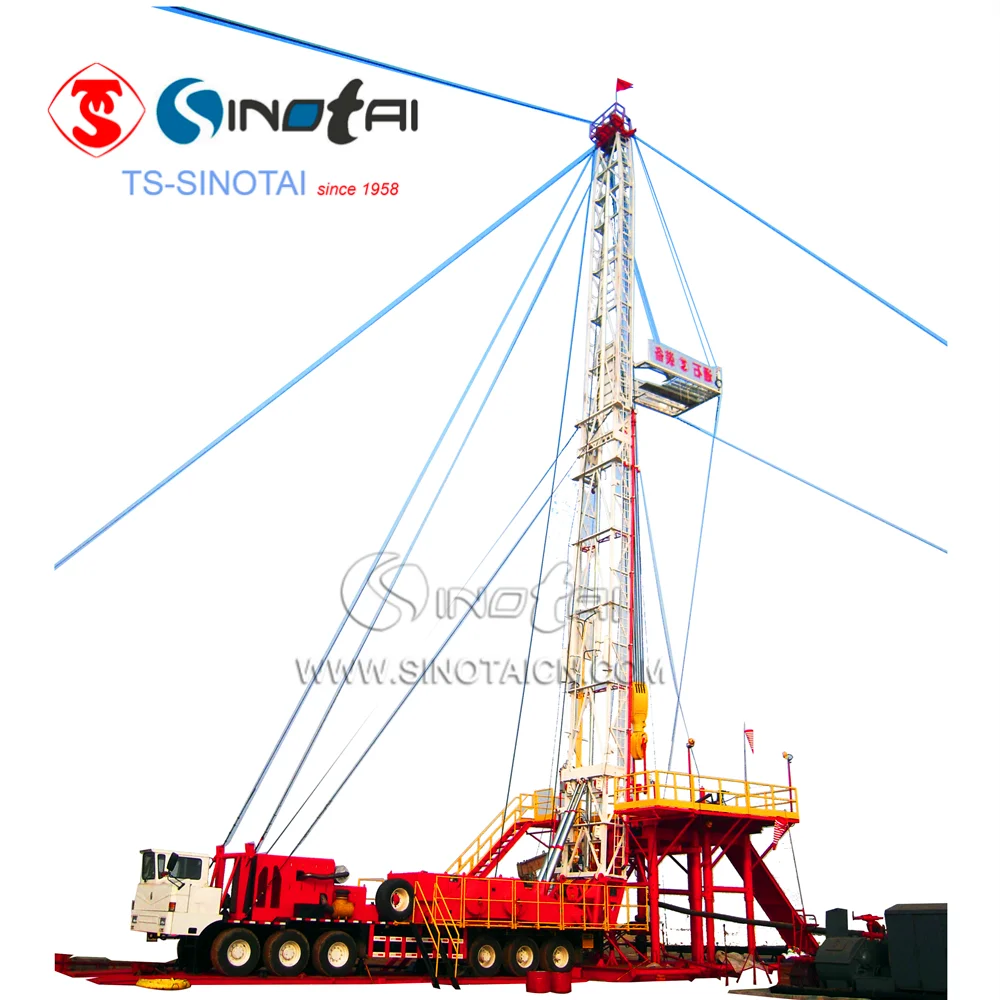

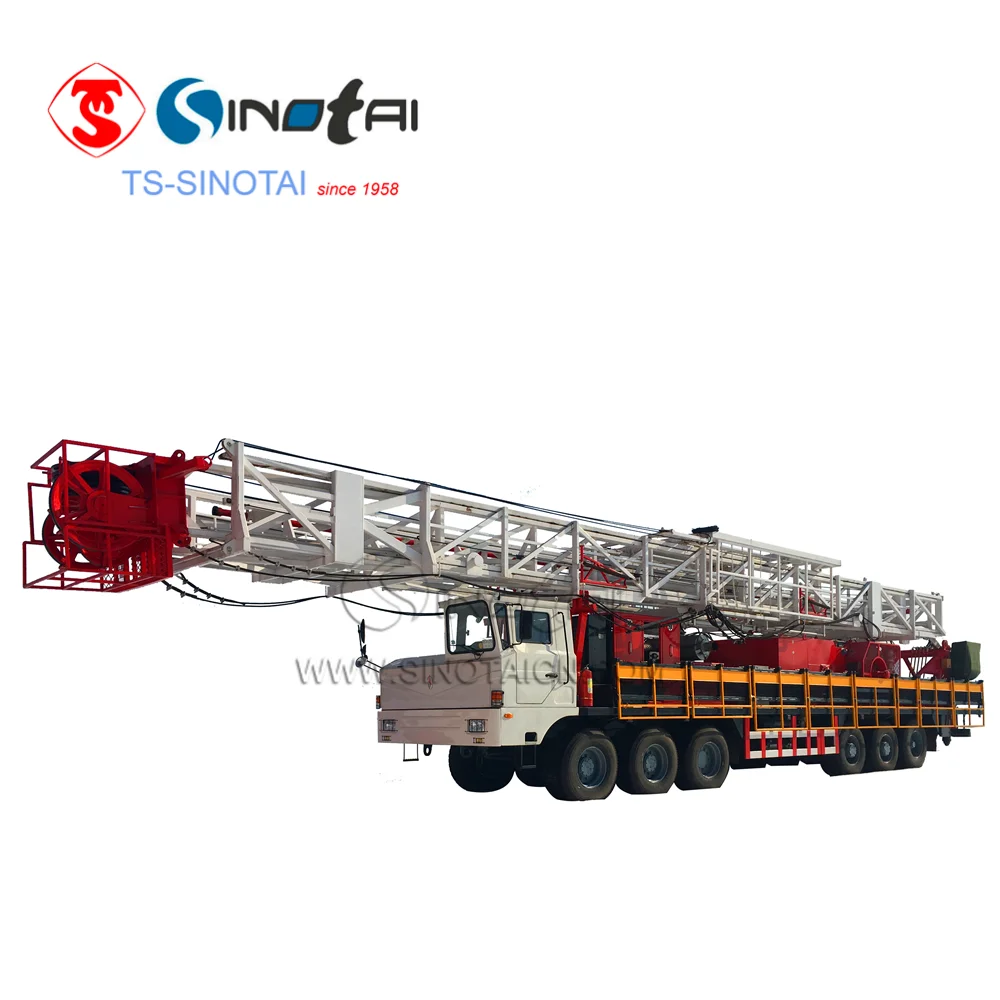

XJ650 (120t)workover& drilling rig is one of the best selling, single engine and high power, self- propelled rig . The rig adopts 12x8 driven type chassis, Caterpillar engine and Allission transmission (can use China brand also), and double drum draw-works. Max. hook load is 1580KN. The rig equipped with rotary table, platform, and swivel etc.

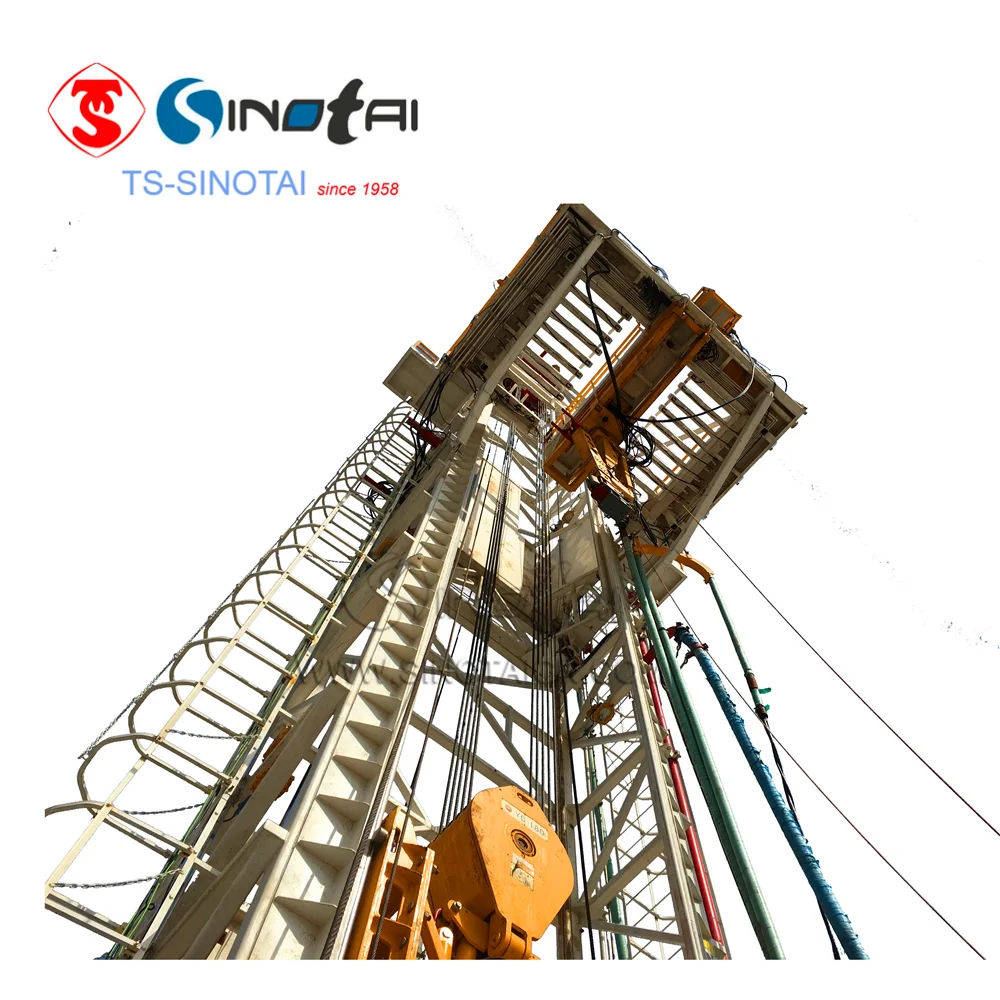

1.Adopts double section hydraulic lifting, flexible mast, the height is 35m.
2.Equipped with double CAT C18 engine and Allission M6620 transmission. The performance is stable and reliable.

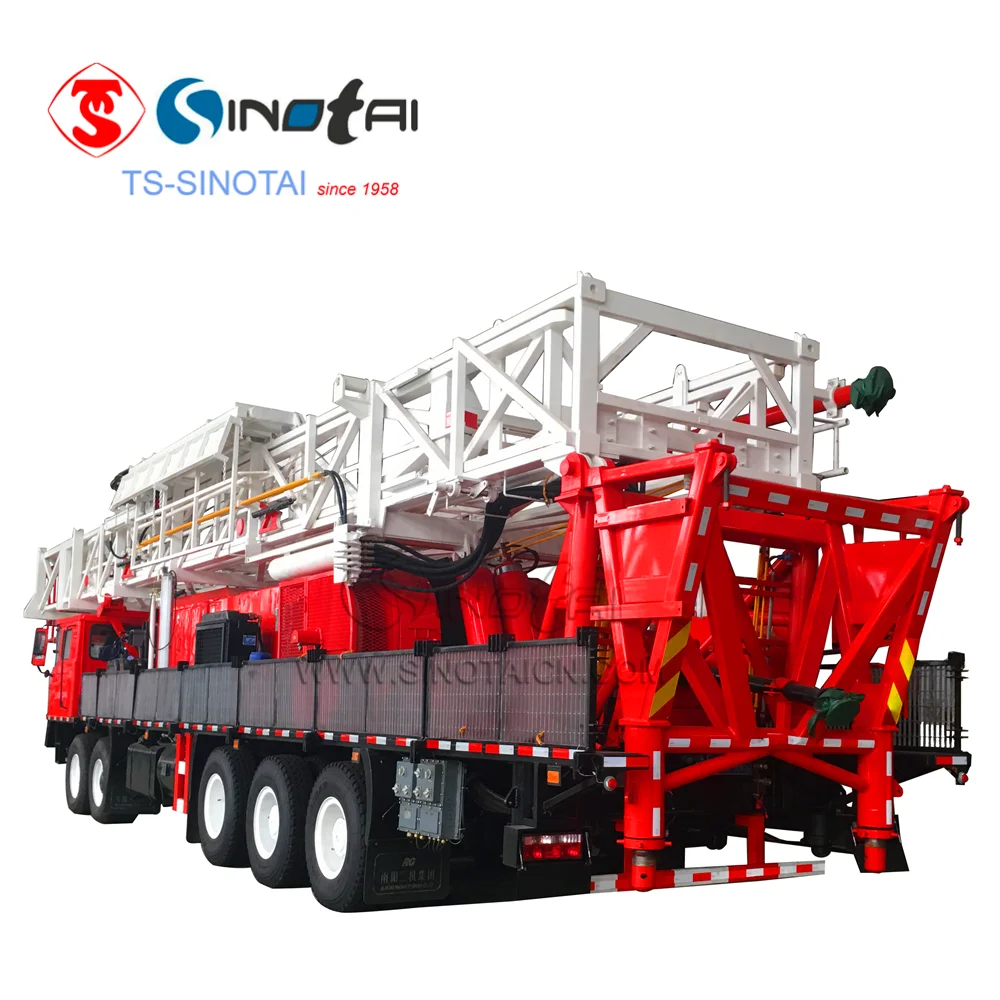

3.The driven model of self-propelled chassis is 12x8. Single cab. With heater.
4. The main drum adopts ATD324 disc brake, and assis brake is air control disk type brake.

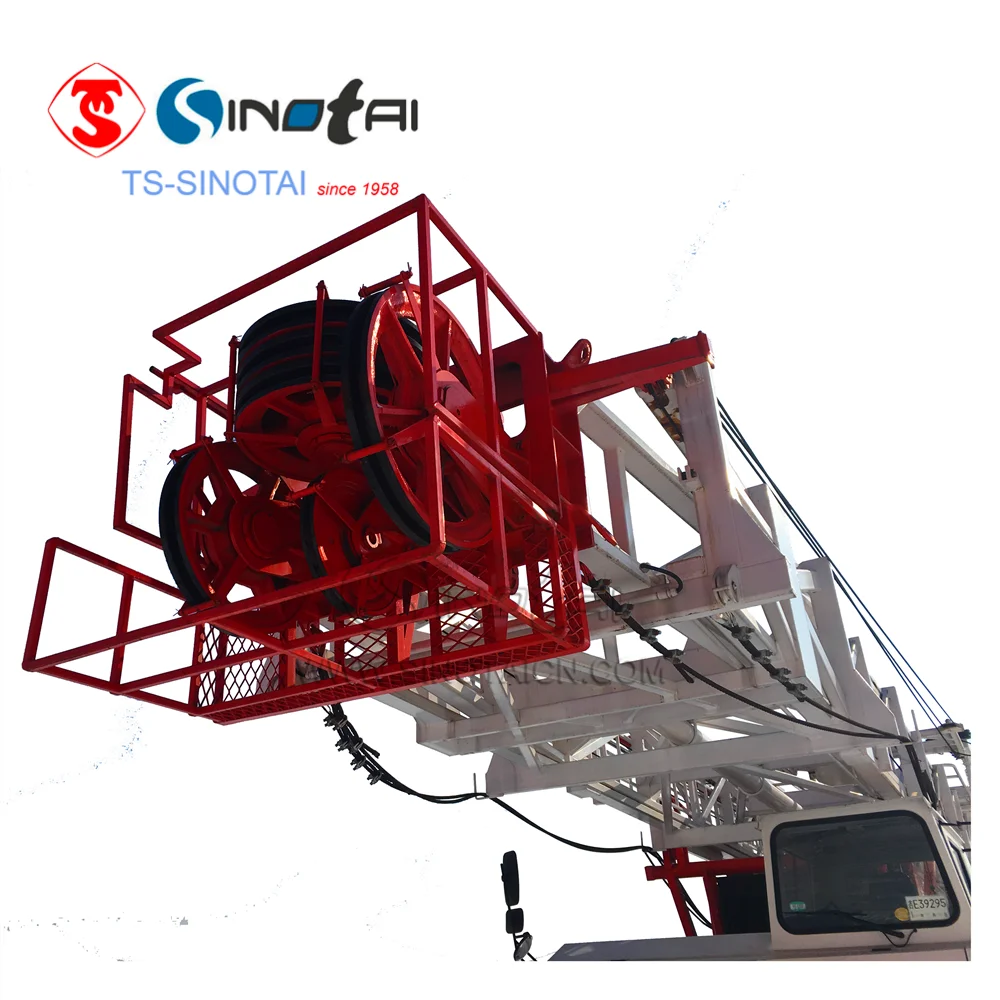

5. Anti-collision crown block.
6.Fingerboard of monkey board is longitudinal arrangement, the beam space can be adjusted. Equipped with aid climbing implement and escape device.
7. All pneumatic pipelines adopt FESTO quick-coupling and pipeline
8.Meter system adopts 24V DC, and lighting system supplied power by external AC power.
Description | XJ650(120t) | ||
Workover depth | Φ73mm (2 7/8”upset tubing) | m | 8500 |
Service depth | Φ73mm( 2 7/8”DP) | m | 7000 |
Φ88.9mm( 3 1/2”DP) | m | 5500 | |
Φ114mm(4 1/2”DP) | m | 4200 | |
Drilling depth |
| 2000 | |
Rated hook load |
| 1200 | |
Max. hook load |
| 1580 | |
Engine model |
| CAT C18 | |
Engine power |
| 470(630) | |
Transmission |
| Allision M6620 | |
Chasssis driving form |
| 12x8 | |
Approach/departure |
| 25°/ 16° | |
Min. ground clearance |
| 310 | |
Derrick height |
| 35 | |
Derrick type |
| front opened, double section hydraulic lifting, flexible mast | |
Valid rope number |
| 8(4x5) | |
Hoist rope diameter |
| Φ29 | |
Transportation dimensions(length x with x height) |
| 19.90x3.10x4.37 | |
Total weight |
| 55000 | |
Drum |
| Single / double drum | |
Main drum assist brake system |
| Air control disk type brake / hydraulic control disc brake / hydraulic brake | |
Product show
Our factory
Certifications
Successful case

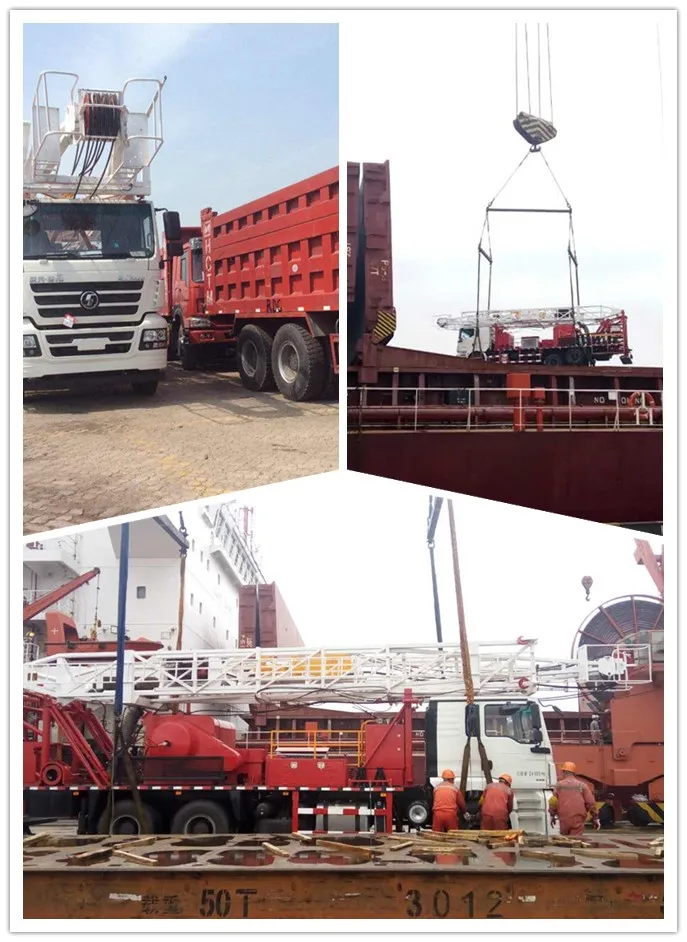

Packaging & Shipping
