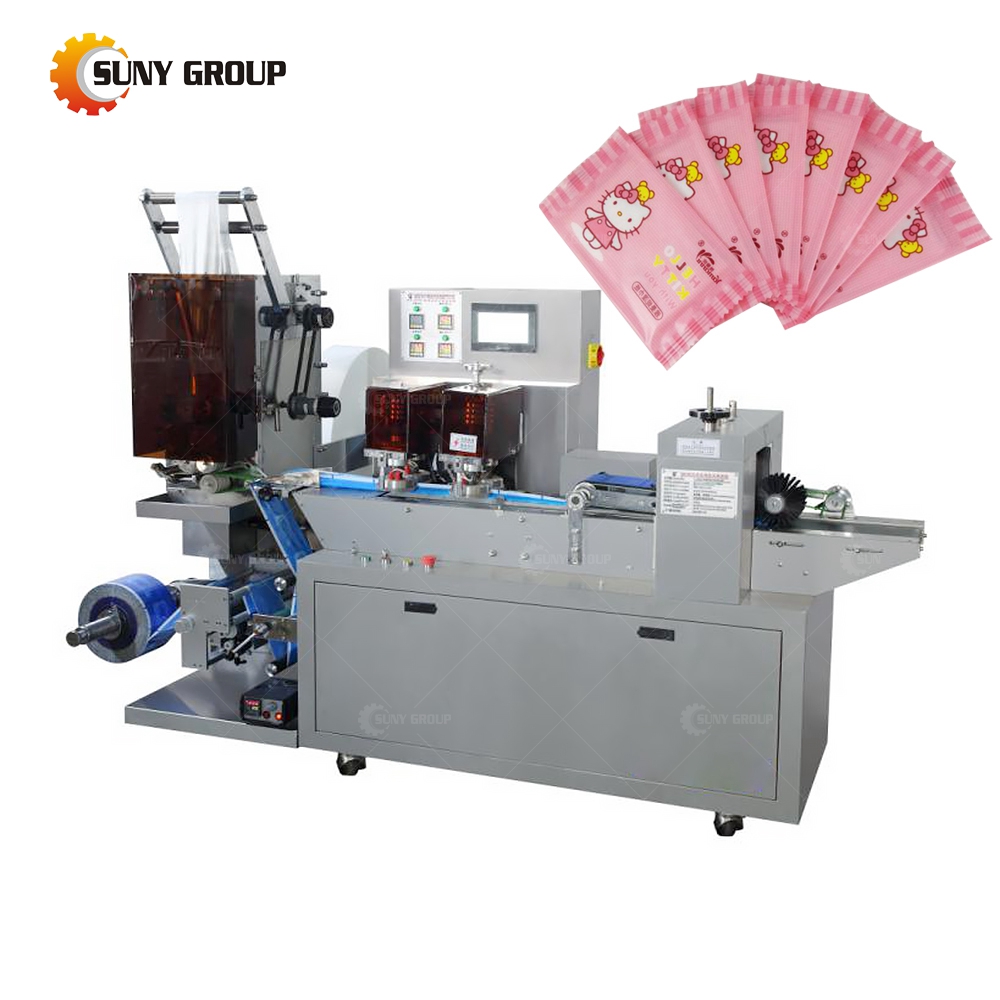

High Quality PLC Control 220v automatic wet wipes facial making machine Alcohol Prep Pads packing machine

Share on:


Price:RUB 1,180,338.00 - RUB 1,967,230.00
Price in USD:Details

Quantity:

Add to Cart

Product Overview

Description

Note

The machine is one of the world's most advanced paper , non-woven packaging equipment.We make design of the machine according to the world advanced paper and nonwoven packaging machinery technology..

Application range

It is suitable for Four-side sealing of wet wipes, alcohol swab, and pad, disinfect cloth, etc.

Main performance and structural features

1, The machine work steadily and continiously, It is suitable for four-side sealing products of all types wet wipes/tissue, alcohol swabs/pad and so on
2, Single bag or two bags in row can be setted freely (Max four bags in row for alcohol swabs).
3, Full automatic pouch forming, photo electricity correction, no blank edge and fault forming
4,The tissue can be folded in different types. max 8 folding vertical, and 4 folding horizontal, fold freely by unfold nonwoven width, length.
5, Adopts Japan imported spray pump, make it accurate adding with tolerance of 0.01ml/time. Multical kinds of liquid are available. it can add per liquid per bag or add all the liquid in the same bag
6, Double times sealing better to ensure the liquid adding volume and avoid leaking.
7, The machine is easy to operate, PLC touch panel, could adjust the packing temperature and speed according to the packing material,product's thickness and length. servo motor. controlled by light, electric and air power, failures can be self- diagnosised and displays clearly.
8, The full machine is covered with Stainless steel in good appearance, also easy to clear and durable. Low operation and maintenance cost.
9, The Confined glass cover, to avoid contamination , less noise !
10, The Sealing molds is made by aluminum alloy , have a very high thermal shock resistance, do not thermal deformation.

SPECIFICATIONS
Item
VPD250
Packaging form
Horizontal Four-side sealing
Packing material
CPP film,PE film,BOPP film
Packing Length
40-125mm(can be customerized, max 220mm)
Packing Width
40-110mm(can be customerized)
Maximum packing dimensions
L220mm×W110mm
Packing speed
60-160bags/minute
Total power
2.8KW
Power supply type
220V 50/60Hz
Machine noise
≤64.9dB(A)
Air supply
0.6-1.0 MPa
Air consumption
300-500mL/min
Outline dimensions
L2800×W2800×H1800mm
Machine weight
About 1100Kg
Sample Details
Machine Details
Our Company&Factory
Exhibitions
Packing & Delivery
